Product Introduction

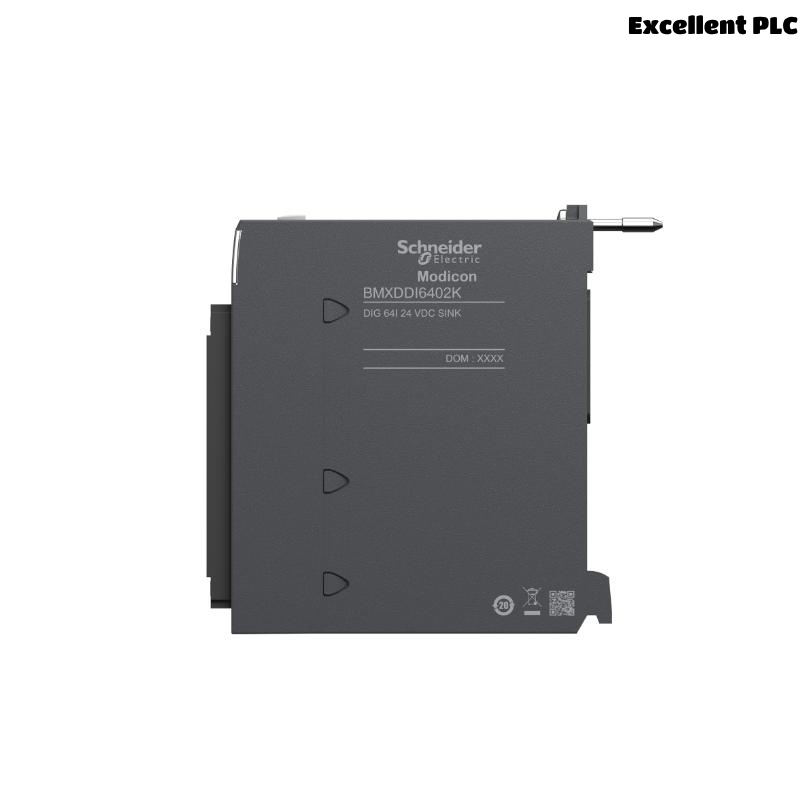

The Schneider Electric BMXDDI6402K is a 64-channel discrete input module specifically designed for the Modicon M340 PAC (Programmable Automation Controller) platform. It serves as an integral component in discrete automation applications where high-density digital input processing is required. With its robust construction, fast response times, and compatibility with 24V DC source logic inputs, the BMXDDI6402K is ideal for industrial environments where reliability, modular scalability, and diagnostic capabilities are crucial.
The module is engineered to support rapid digital input acquisition from field devices such as sensors, switches, and pushbuttons. Its high-density 64-channel configuration minimizes panel space requirements, while its hot-swap capability enhances maintainability without system downtime. It interfaces easily with the rest of the Modicon M340 system via the X80 backplane, supporting plug-and-play installation and configuration through Unity Pro / EcoStruxure Control Expert.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | BMXDDI6402K |
| Manufacturer | Schneider Electric |
| Module Type | Discrete Input Module |
| Number of Input Channels | 64 |
| Input Voltage Type | DC |
| Rated Input Voltage | 24 V DC |
| Logic Type | Positive (source) |
| Input Current per Channel | Approx. 2.5 mA |
| Input Voltage Range | 15 to 30 V DC |
| Response Time | ≤ 1 ms (On/Off) |
| Isolation | Yes, between channels and bus (500 V RMS) |

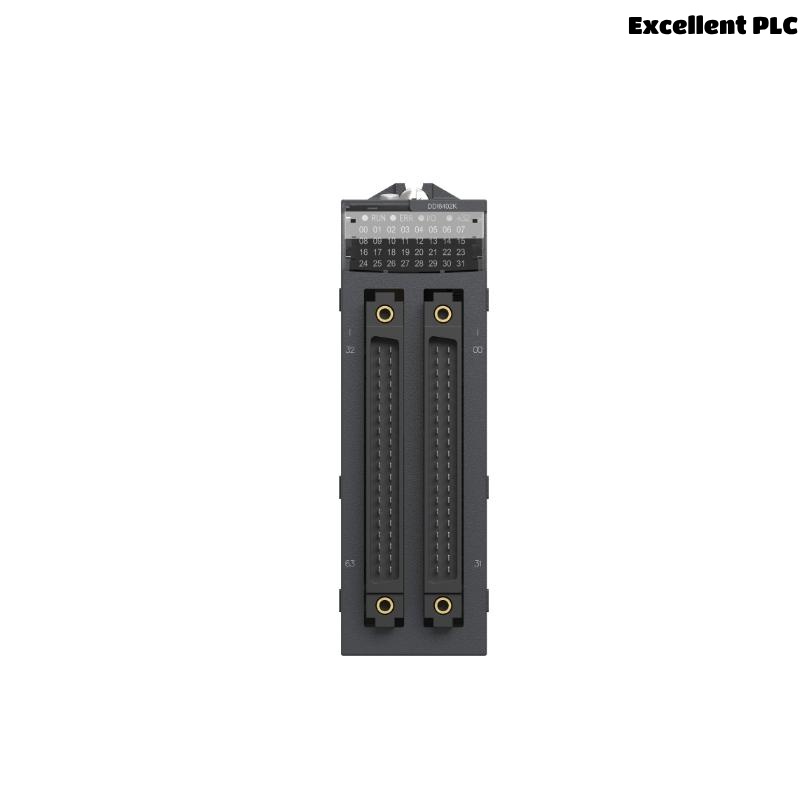

| Connector Type | HE10 2 x 20 connector |
| Diagnostics | Channel diagnostics, module error LED |
| Mounting Type | DIN rail mounting (via base backplane) |
| Hot-Swap Support | Yes |
| Protection | Reverse polarity, short-circuit protection on inputs |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Standards Compliance | CE, UL, CSA, ATEX (Zone 2), RoHS |
| Dimensions (H x W x D) | 160 x 100 x 35 mm |
| Weight | 0.145 kg |
| Software Compatibility | Unity Pro / EcoStruxure Control Expert |
| Backplane Compatibility | Modicon X80 platform |
Product Applications
The BMXDDI6402K module is tailored for discrete automation and digital signal acquisition in the following industrial applications:
-
Factory Automation: Integration with sensors, pushbuttons, and status indicators in automated assembly lines and production facilities.
-
Material Handling Systems: Real-time monitoring of conveyor sensors, presence detectors, and safety switches.
-
Packaging Machinery: Monitoring and controlling of packaging sensors and actuators.
-
Water Treatment Plants: Acquisition of digital status inputs from pumps, valves, and flow switches.
-
Process Industries: For logic monitoring in non-critical parts of control systems in oil, gas, and chemical plants.
-
Energy Management: Interface for digital metering, breaker status, and control signals in power systems.
Product Advantages
-
High-Density Input Configuration: With 64 inputs, it reduces module count and cabinet space.
-
Fast Input Response: Sub-millisecond reaction ensures timely control and monitoring.
-
Robust Diagnostics: Built-in error detection on the module and channels improves system reliability.
-
Modular and Scalable: Seamless integration with Modicon M340 PLC platform for easy expansion.
-
Hot-Swappable Design: Maintenance without shutting down the entire system.
-
Rugged Construction: Designed to operate in harsh industrial environments.
-
User-Friendly Interface: Supports EcoStruxure Control Expert for intuitive configuration and troubleshooting.
-
Wide Certification Range: CE, UL, ATEX approvals make it suitable for global projects.
-
Backplane Efficiency: Uses Schneider’s X80 platform, minimizing wiring complexity.
-
Long Lifecycle and Availability: Supported by Schneider’s industrial lifecycle management systems.
Frequently Asked Questions (FAQ)
-
What type of input logic does the BMXDDI6402K support?
→ It supports positive logic (source), meaning input signals must source current. -
Can I use the module with 24V DC proximity sensors?
→ Yes, it is specifically designed for 24V DC signals and is fully compatible with PNP sensors. -
Does the module provide channel-level diagnostics?
→ Yes, each channel supports diagnostic feedback for status monitoring and error detection. -
Can this module be hot-swapped during operation?
→ Yes, it supports hot swapping when used within a Modicon M340 backplane. -
Is the module compatible with Unity Pro software?
→ Yes, it is configured and programmed using Unity Pro or EcoStruxure Control Expert. -
How is the module connected to field devices?
→ Via HE10 40-pin connectors that interface with terminal blocks or pre-wired harnesses. -
Does it require a separate power supply for the inputs?
→ Yes, external 24V DC power is required to energize the field inputs. -
What certifications does the BMXDDI6402K have?
→ CE, UL, CSA, and ATEX Zone 2 certifications for global and hazardous area use. -
Can it be used in SIL-rated applications?
→ While the module itself is not SIL-certified, it may be used in support roles in SIL-rated systems. -
What happens if a channel is overloaded or shorted?
→ The module includes protection mechanisms and will flag a diagnostic alert for the affected channel.
