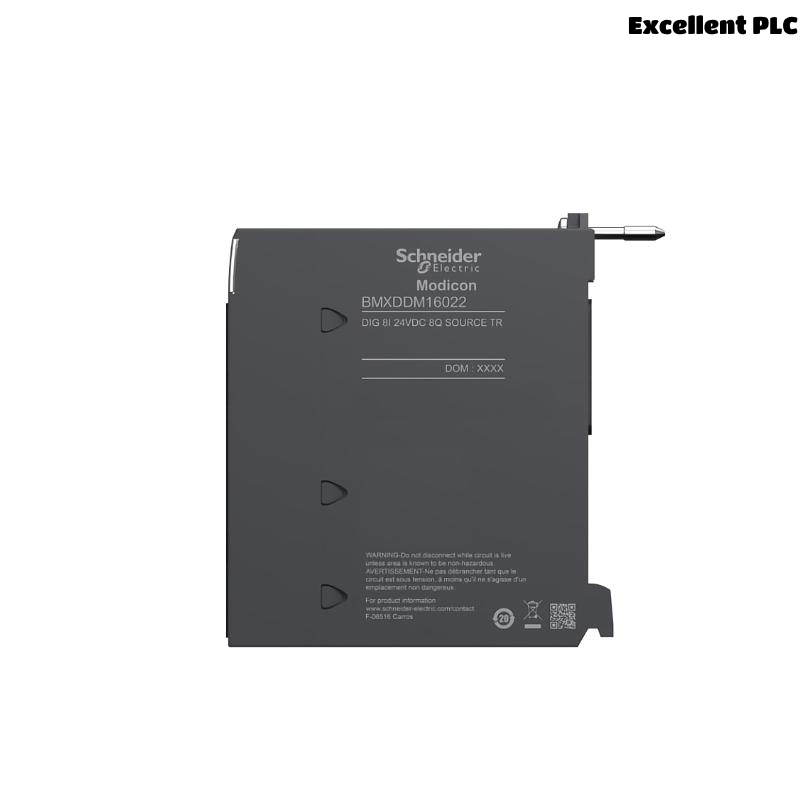

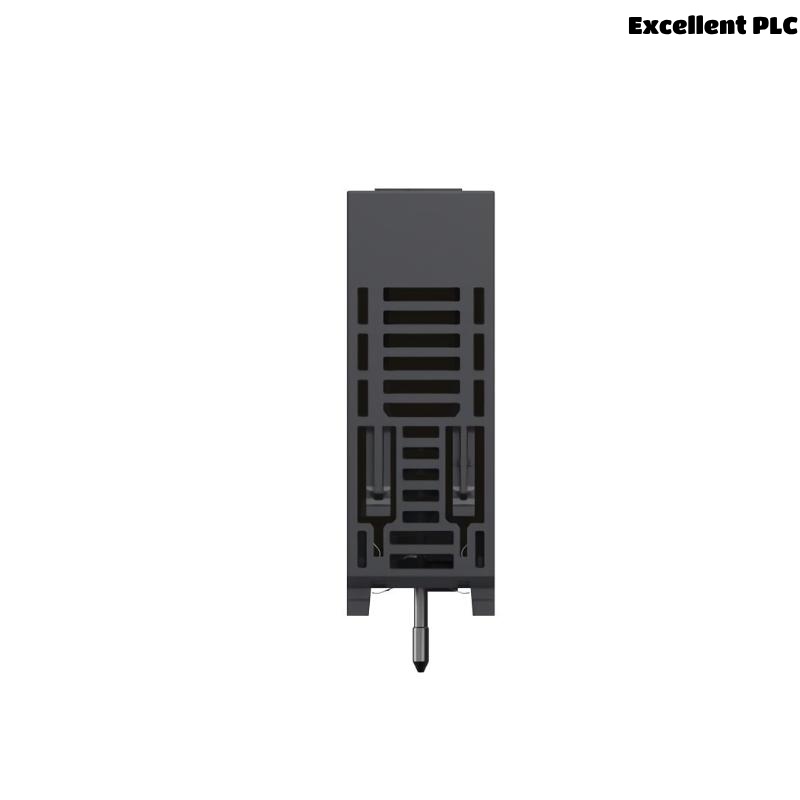

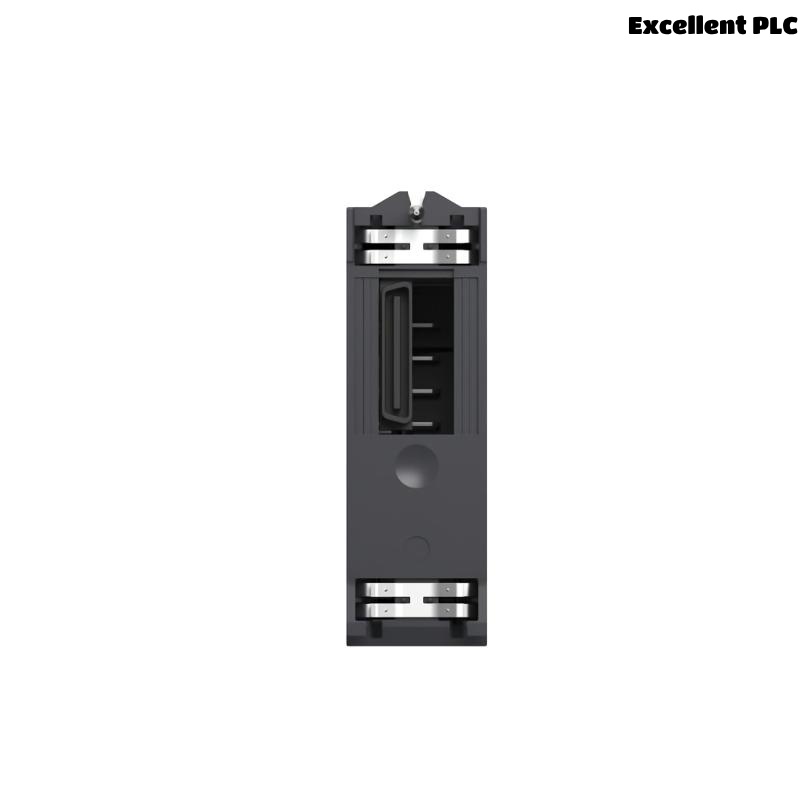

Schneider BMXDDM16022 Discrete I/O Module

Product Introduction

The Schneider Electric BMXDDM16022 is a high-performance discrete input/output module that belongs to the Modicon M340 automation platform. It is a 16-point mixed module offering both digital inputs and outputs in a compact, rack-mounted form factor. This module is widely recognized for its excellent versatility, fast response times, and reliable signal handling capabilities in industrial automation systems.

Specifically designed to support sink (positive logic) wiring configurations, the BMXDDM16022 is ideal for applications that require both monitoring of digital field devices and control of actuators or relays using a single module. The module reduces the I/O footprint, simplifies wiring architecture, and integrates easily with Unity Pro (EcoStruxure Control Expert) programming software.

Whether used in manufacturing, water treatment, energy, or infrastructure systems, the BMXDDM16022 delivers trusted Schneider Electric quality and robust performance, helping engineers and integrators build modular and scalable control systems with high signal reliability.


Product Specifications

Parameter Description
Model Number BMXDDM16022
Product Series Modicon M340
Type Discrete Mixed Input/Output Module
Number of Channels 16 total (8 inputs + 8 outputs)
Input Voltage Type DC
Input Voltage Range 24 VDC nominal (20.4 to 28.8 VDC operational)
Input Type Sink (positive logic)
Output Type Transistor (Source)
Output Voltage Range 20.4 to 28.8 VDC
Max Output Current per Channel 0.5 A
Max Output Current per Module 4 A total
Isolation Voltage 500 V between channels and internal logic
Protection Features Short-circuit, overvoltage, reverse polarity
Response Time ≤ 0.5 ms for inputs, ≤ 0.5 ms for outputs
Diagnostics Channel status LEDs, fault diagnostics
Communication Bus Modicon X80 / backplane of M340 system
Mounting Type DIN Rail (via rack)
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to +85°C
Relative Humidity 5% to 95% non-condensing
Protection Class IP20
Dimensions (H x W x D) 160 x 100 x 35 mm
Weight 0.115 kg
Compliance CE, CSA, UL, RoHS, EAC

Product Applications

The BMXDDM16022 is used in a broad range of industries where discrete control and monitoring are necessary. Common application domains include:

  • Automated Machinery Control – Handles machine start/stop signals, sensor inputs, and solenoid control.

  • Material Handling Systems – Interfaces with light sensors, photo-eyes, motor relays, and diverter gates.

  • Water/Wastewater Treatment – Controls pumps, valves, level switches, and monitors alarms or float statuses.

  • Packaging Lines – Manages output triggers for labeling, sealing, and rejection mechanisms.

  • Energy Sector – Monitors breaker statuses, controls panel indicator lights, and interfaces with digital interlocks.

  • Building Automation – Handles HVAC damper controls, light switching, and security sensor inputs.


Product Advantages

  • Space-Saving Design: Combines 8 digital inputs and 8 outputs into a single compact module, reducing rack space and wiring complexity.

  • Fast Switching Times: With a sub-millisecond response time, the module ensures real-time performance for dynamic applications.

  • Built-in Diagnostics: Onboard channel LEDs and diagnostic reporting help in fault detection and maintenance.

  • Protection Integrated: Overvoltage, short-circuit, and reverse polarity protection improves reliability in field installations.

  • Seamless Modicon M340 Integration: Designed specifically for the M340 platform, ensuring reliable communication over the X80 backplane.

  • Versatile Voltage Range: Operates reliably across a 20.4–28.8 VDC voltage range, allowing for tolerance in industrial power supplies.

  • UL and CE Certified: Suitable for use in regulated environments that require international compliance standards.

  • EcoStruxure Compatible: Fully programmable and configurable using EcoStruxure Control Expert (Unity Pro).


Frequently Asked Questions (FAQ)

  1. Q: Is the BMXDDM16022 compatible with other Schneider Electric PLC platforms besides M340?
    A: No, it is specifically designed for the Modicon M340 platform and connects via the X80 backplane.

  2. Q: Can the inputs and outputs be used simultaneously on the module?
    A: Yes, all 8 inputs and 8 outputs can be used at the same time without performance degradation.

  3. Q: What is the maximum current supported by each output channel?
    A: Each output can handle up to 0.5 A, with a total maximum of 4 A for the entire module.

  4. Q: Are the outputs protected against short circuits?
    A: Yes, the outputs are equipped with electronic short-circuit protection.

  5. Q: What is the wiring type for the module – sink or source?
    A: The inputs use sink (positive logic), and the outputs are source type.

  6. Q: Does this module support hot swapping?
    A: No, the BMXDDM16022 does not support hot swapping. Power must be off during module insertion/removal.

  7. Q: What programming software is used with the BMXDDM16022?
    A: Schneider’s EcoStruxure Control Expert (formerly Unity Pro) is used to configure and program the module.

  8. Q: How can I monitor the input/output status during operation?
    A: Each channel has a dedicated LED indicator to show ON/OFF status in real time.

  9. Q: Is external power required for the module?
    A: Yes, the module requires an external 24 VDC power supply for the I/O circuitry.

  10. Q: Can this module be used in outdoor environments?
    A: It is not designed for direct outdoor use. It should be housed in a suitable enclosure if used in harsh environments.
