Product Introduction

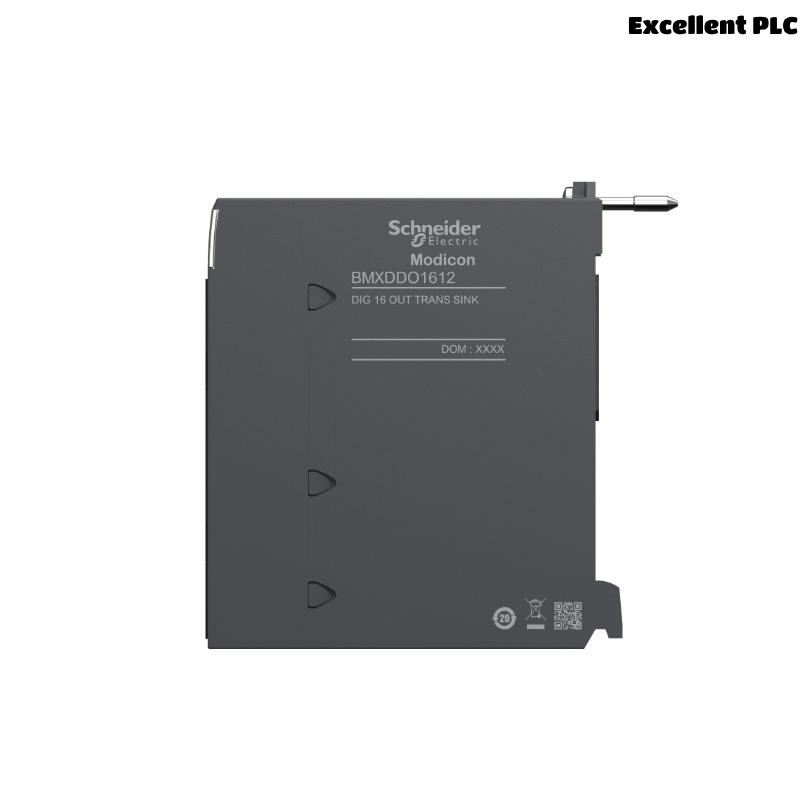

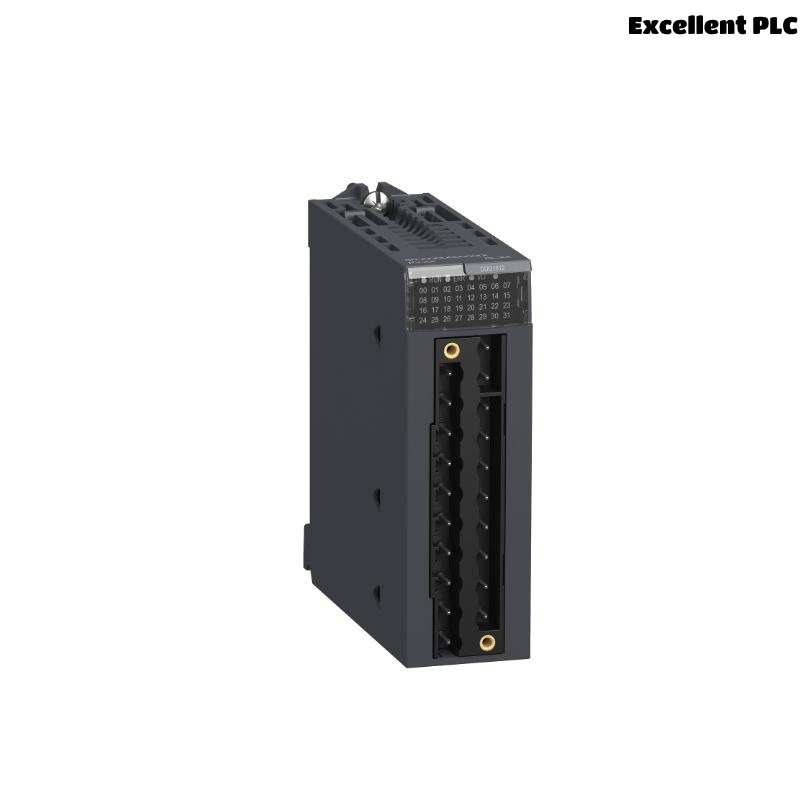

The Schneider BMXDDO1612 is a discrete output module designed for use within the Modicon M258 and M262 PLC platforms, delivering reliable and efficient switching capabilities. It provides 16 channels of discrete outputs, making it ideal for controlling various actuators, relays, and other field devices in industrial automation environments. Engineered to meet stringent industrial standards, this module ensures high performance in demanding conditions with excellent noise immunity and long service life.
This module integrates seamlessly with the Schneider Electric PLC ecosystem, allowing for flexible and scalable automation solutions. It supports a wide range of industrial applications, from simple on/off control to complex automated processes, and it is designed with user-friendly installation and maintenance in mind.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Outputs | 16 Discrete Outputs |
| Output Type | Transistor (24 V DC sourcing) |
| Rated Voltage | 24 V DC |
| Maximum Current per Channel | 0.5 A |
| Total Current (max) | 8 A |
| Response Time | < 1 ms |
| Isolation | Optical isolation between outputs and logic |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Mounting | DIN Rail |
| Dimensions (HxWxD) | 115 × 118 × 55 mm |
| Weight | 0.145 kg |
| Certifications | CE, UL, CSA |
| Communication Interface | Backplane bus for Modicon M258/M262 PLC |
| Status LEDs | Output status indication per channel |
Applications
The BMXDDO1612 module is widely used in industrial automation where discrete output control is required. Typical applications include:
-
Controlling industrial actuators such as solenoid valves and contactors.
-
Switching indicator lights and alarms.
-
Driving relays for secondary control circuits.
-
Operating motors or pumps in process automation.
-
Integration in factory automation lines for packaging, assembly, and material handling.
-
Building management systems for lighting and HVAC control.
-
Infrastructure automation, including water treatment plants and energy management.
Advantages
-
High Reliability: Robust design with optical isolation protects against electrical noise and transients, ensuring stable operation in harsh environments.
-
Compact Size: Space-saving design fits easily into standard DIN rail panels without compromising performance.
-
Fast Switching: Quick response time (<1 ms) allows precise control of connected devices.
-
Easy Integration: Fully compatible with Modicon M258 and M262 PLC families, simplifying system architecture.
-
Clear Diagnostics: Individual channel status LEDs provide immediate visual feedback for troubleshooting and maintenance.
-
Energy Efficient: Low power consumption design helps reduce overall energy usage in control cabinets.
-
Flexible Configuration: Supports up to 16 discrete outputs, enabling a wide range of automation tasks.
-
Certified Safety: Compliance with international standards ensures safe deployment in industrial environments.
Frequently Asked Questions (FAQ)
-
What type of outputs does the BMXDDO1612 module have?
It uses 24 V DC transistor outputs with sourcing capability. -
Can this module be used in high-temperature environments?
The module operates reliably between 0 °C and 60 °C. -
How is the module mounted?
It is designed for easy DIN rail mounting. -
What kind of devices can I control with this module?
Suitable for solenoid valves, relays, lamps, motors, and other discrete devices. -
Is the module protected against electrical noise?
Yes, it features optical isolation for noise immunity. -
What communication interface does it use?
It connects via the Modicon backplane bus for M258 and M262 PLCs. -
How do I know if an output channel is active?
Each output channel has an individual LED status indicator. -
What is the maximum current per output channel?
Each channel can handle up to 0.5 A. -
Can I use the module for AC loads?
No, it is intended for DC load control only. -
Is the BMXDDO1612 compatible with other Schneider PLCs?
It is specifically designed for M258 and M262 series, compatibility with others may vary.
Recommended Related Models (Same Series or Functionality)
| Model | Description | Number of Outputs | Output Type | Voltage | Dimensions (HxWxD) | Weight (g) |
|---|---|---|---|---|---|---|
| BMXDDO1602 | 16-Channel Discrete Output | 16 | Transistor DC | 24 V DC | 90 x 35 x 60 mm | 120 |
| BMXDDO1610 | 16-Channel Discrete Output | 16 | Relay | 24 V DC | 90 x 35 x 60 mm | 130 |
| BMXDDO0802 | 8-Channel Discrete Output | 8 | Transistor DC | 24 V DC | 90 x 35 x 45 mm | 90 |
| BMXDDO1604 | 16-Channel Discrete Output | 16 | Transistor DC | 24 V DC | 90 x 35 x 60 mm | 125 |
| BMXDDO3202 | 32-Channel Discrete Output | 32 | Transistor DC | 24 V DC | 90 x 70 x 60 mm | 200 |
| BMXDDO1608 | 16-Channel High-Speed Output | 16 | Transistor DC | 24 V DC | 90 x 35 x 60 mm | 130 |
