Product Introduction

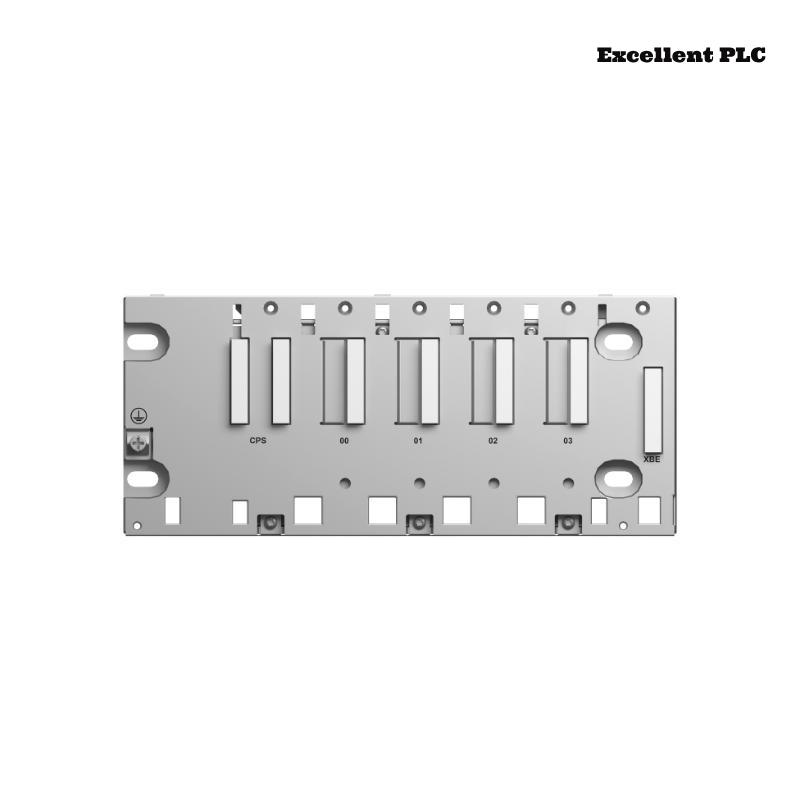

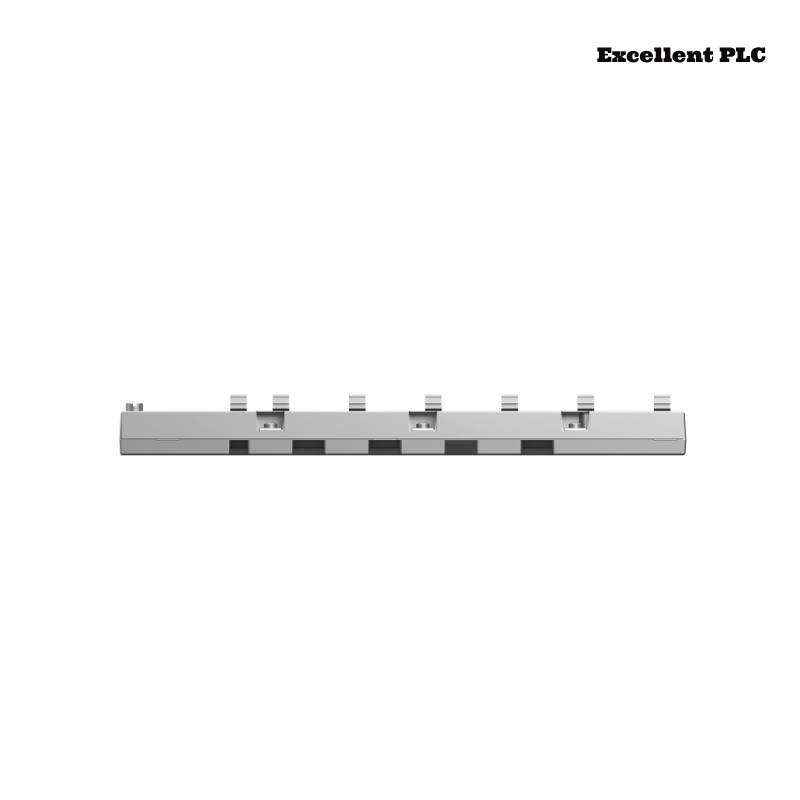

The Schneider Electric BMXXEP0400 is a 4-slot Ethernet backplane designed for the Modicon X80 automation platform. It facilitates communication between I/O modules, processors, and other compatible devices within the Modicon X80 system. Featuring both X-bus and Ethernet connectivity, this backplane offers flexibility and efficiency in various industrial applications.
Product Specifications:
| Parameter | Details |
|---|---|
| Product Range | Modicon X80 |
| Number of Slots | 4 |
| Compatibility | I/O modules, BMX processors, specific application modules, BMXCPS power supply |
| Power Consumption | 1 W |
| Electrical Connection | 1 connector (XBE) for expansion module |
| Mounting Options | Panel mounting with 4 screws (diameter: 4.32–6.35 mm), plate mounting with 4 M6 screws, or 35 mm symmetrical DIN rail mounting |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 60°C |
| Dimensions (W x H x D) | 242.4 x 105.11 x 19 mm |
| Weight | 0.705 kg |
Applications:
The BMXXEP0400 backplane is suitable for medium to large process applications, providing a robust and reliable communication backbone for various industrial automation tasks.
Advantages:
-
Dual Bus Architecture: Combines X-bus and Ethernet connectivity for enhanced communication flexibility.
-
Versatile Mounting Options: Supports panel, plate, or DIN rail mounting to accommodate different installation requirements.
-
Robust Design: IP20 protection rating ensures durability in industrial environments.
-
Wide Operating Temperature Range: Operates effectively between 0°C and 60°C, suitable for various industrial settings.
Frequently Asked Questions (FAQs):
-
What is the primary function of the BMXXEP0400 backplane?
The BMXXEP0400 serves as a 4-slot Ethernet backplane, facilitating communication between I/O modules, processors, and other devices within the Modicon X80 system.
-
Which modules are compatible with the BMXXEP0400?
It is compatible with I/O modules, BMX processors, specific application modules, and the BMXCPS power supply.
-
What are the mounting options for this backplane?
The backplane can be mounted using panel mounting with 4 screws (diameter: 4.32–6.35 mm), plate mounting with 4 M6 screws, or on a 35 mm symmetrical DIN rail.
-
What is the operating temperature range of the BMXXEP0400?
It operates within a temperature range of 0°C to 60°C.
-
Does the backplane support both X-bus and Ethernet communication?
Yes, it features a dual bus architecture that supports both X-bus and Ethernet communication.
-
What is the protection rating of the BMXXEP0400?
It has an IP20 protection rating, indicating protection against solid objects larger than 12.5 mm.
-
How much does the BMXXEP0400 weigh?
The backplane weighs 0.705 kg.
-
What are the dimensions of the BMXXEP0400?
The dimensions are 242.4 x 105.11 x 19 mm.
-
Is the BMXXEP0400 suitable for harsh environments?
Yes, its robust design and IP20 rating make it suitable for various industrial environments.
-
What is the power consumption of the BMXXEP0400?
The backplane consumes 1 W of power.
