Product Introduction:

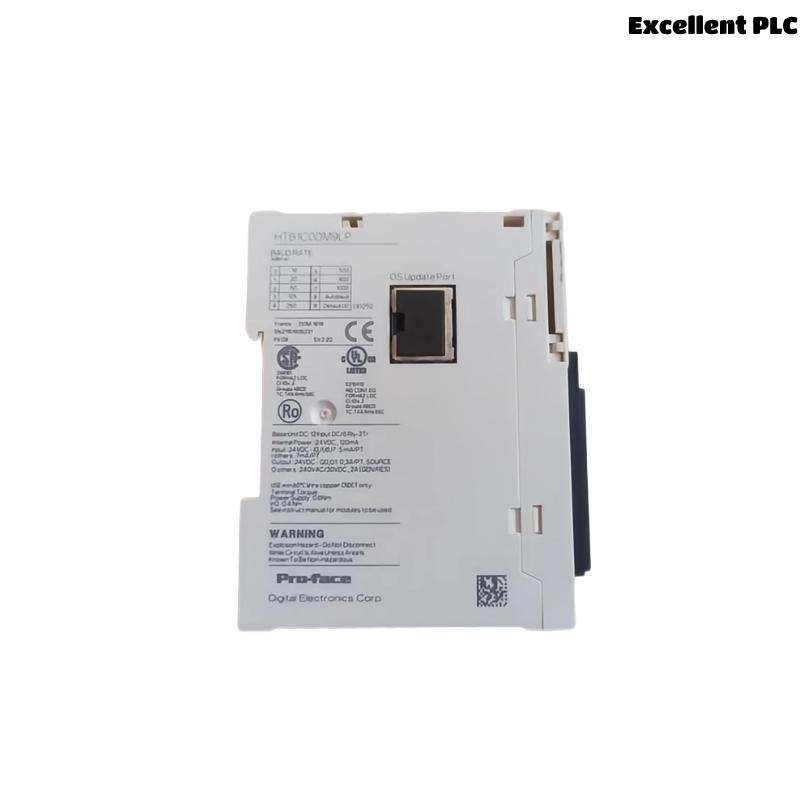

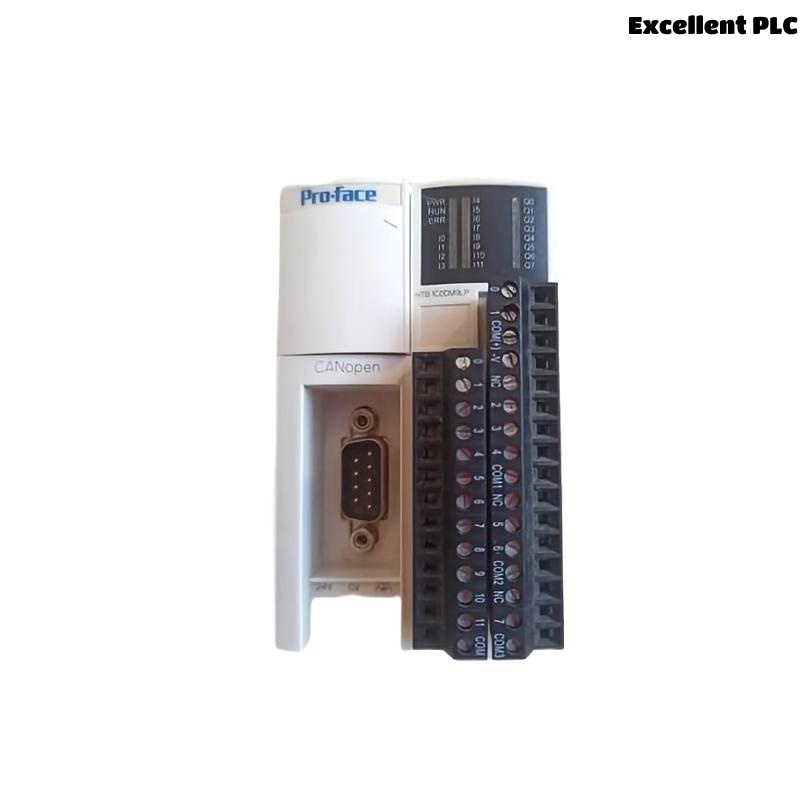

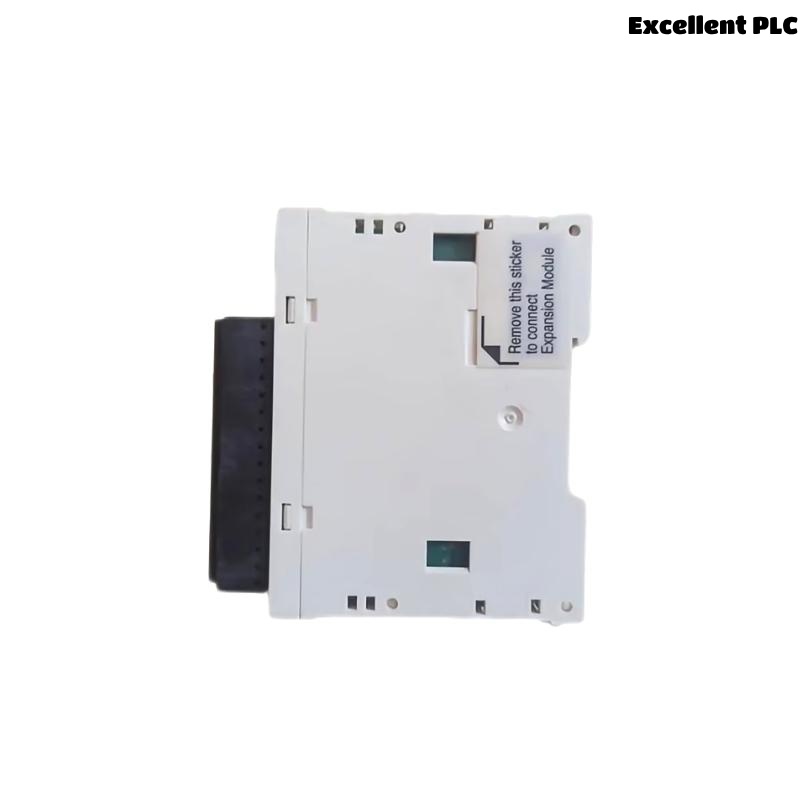

The Schneider HTB1CODM9LP is a high-performance distributed I/O module designed for use in advanced industrial automation systems. It is part of Schneider Electric’s robust lineup of Modicon I/O modules and is specifically developed to facilitate seamless connectivity, accurate signal transmission, and decentralized control within distributed architectures.
This module allows for the reliable acquisition of input signals and the transmission of control signals across various remote field devices. Engineered for scalability and compactness, the HTB1CODM9LP supports integration into both small and large control systems, including PLC and DCS-based environments. Its robust construction, high-speed communication capabilities, and compatibility with multiple communication protocols make it a trusted choice for modern industrial automation demands.
Product Specifications:
| Parameter | Details |
|---|---|
| Product Name | Schneider HTB1CODM9LP |
| Product Type | I/O Distributed Module |
| Communication Interface | CANopen |
| Supported Protocols | CANopen, Modbus |
| Input/Output Type | Digital I/O |
| Operating Voltage | 24 V DC |
| Input Channels | 8 digital inputs |
| Output Channels | 8 digital outputs |
| Output Type | Transistor (Sourcing) |
| Power Consumption | Approx. 3 W |
| Mounting Type | DIN Rail |
| LED Indicators | Yes (Status, Communication, I/O) |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Degree of Protection | IP20 |
| Dimensions (W x H x D) | 75 × 105 × 130 mm |
| Weight | 0.29 kg |
| Certifications | CE, UL, RoHS, CSA |
Product Applications:
-
Industrial Automation Systems: Used in factory floors for machinery and process automation.
-
Manufacturing Lines: Ideal for controlling and monitoring conveyor systems, packaging lines, and robotics.
-
Energy Sector: Deployed in smart grids and substation automation for signal interfacing.
-
Water and Wastewater: Supports SCADA and pump control systems.
-
Material Handling: Controls sorting systems, cranes, and automated storage systems.
-
Building Automation: Integrates lighting, HVAC, and access systems into central control networks.
Product Advantages:
-
Compact and Space-Saving: Small footprint allows easy installation in tight control panels.
-
High-Speed Communication: Ensures rapid data exchange with low latency.
-
Robust Design: Built for demanding environments, with high EMC immunity and temperature tolerance.
-
Plug-and-Play Configuration: Quick integration into existing systems with minimal downtime.
-
Scalable Architecture: Can be expanded with additional modules without changing core setup.
-
Wide Protocol Support: Compatibility with Modbus and CANopen enhances flexibility.
-
Diagnostic Features: Built-in LEDs and fault indicators reduce troubleshooting time.
-
Energy Efficient: Low power consumption helps reduce operational costs.
-
Global Certification: Meets international safety and performance standards.
-
Backed by Schneider Quality: Assurance of durability and long-term reliability.
Frequently Asked Questions (FAQ):
-
What type of signals can the HTB1CODM9LP handle?
It handles digital input and output signals, suitable for binary sensing and actuation. -
Can the HTB1CODM9LP be used in outdoor environments?
It is rated IP20 and is intended for indoor use unless housed in a protective enclosure. -
What communication protocol does it use?
It supports CANopen primarily and is also compatible with Modbus systems. -
How is the module mounted?
It uses DIN rail mounting for quick and secure installation. -
Is the module hot-swappable?
While it supports modularity, power should be turned off during installation or replacement. -
Can I use this module with Schneider’s Modicon PLCs?
Yes, it is fully compatible with the Modicon PLC platform. -
What kind of outputs does it support—relay or transistor?
It uses transistor outputs for fast switching capabilities. -
Is there diagnostic information available through software?
Yes, the module provides status monitoring and diagnostic data via the communication interface. -
Does it require an external power supply?
Yes, it operates on a 24V DC external power source. -
What is the average lifespan of the module?
With normal use in rated conditions, the average lifespan exceeds 10 years.
Related Models (Same Series or Similar Purpose):
| Model | Description | I/O Type | Communication | Dimensions (mm) | Weight (g) |
|---|---|---|---|---|---|
| HTB1CODM9LT | CANopen distributed module (Low Temp) | Digital | CANopen | 100 x 120 x 75 | 370 |
| TM5SAI2H | Analog input module, Modicon TM5 | Analog Input | CANopen/Modbus | 90 x 110 x 70 | 350 |
| TM5SDO4R | Digital output, relay type | Digital Output | Modbus | 95 x 110 x 75 | 410 |
| BMXDDI1602 | 16-channel digital input module | Digital Input | Modbus | 110 x 125 x 80 | 420 |
| BMXDRA0805 | 8 relay outputs for Modicon X80 | Relay Output | Modbus TCP/IP | 105 x 130 x 85 | 430 |
| TM7BAI4LG | 4-channel analog input, rugged series | Analog Input | CANopen | 115 x 130 x 75 | 460 |
