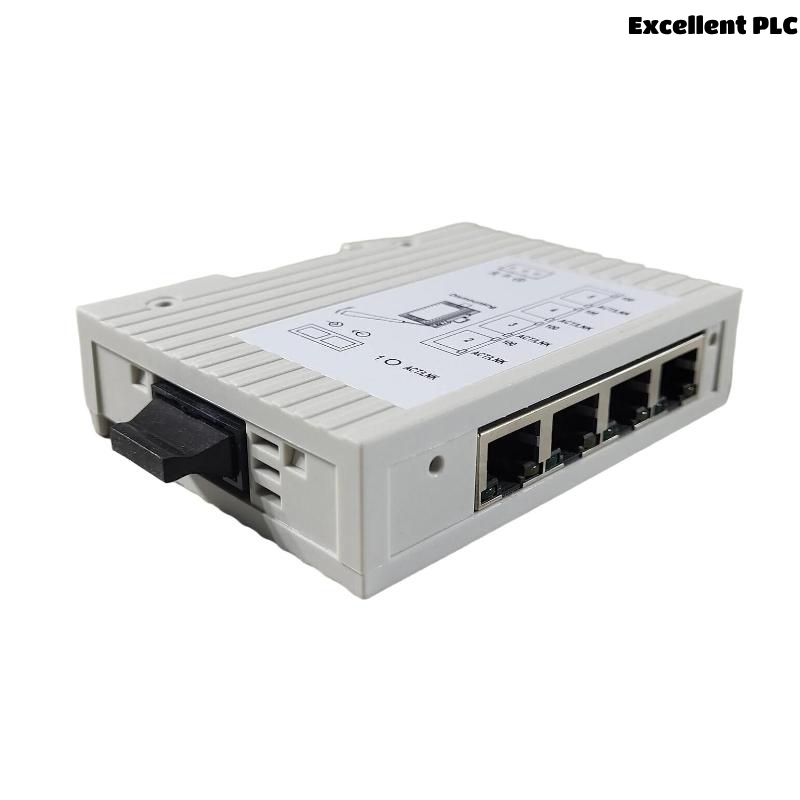

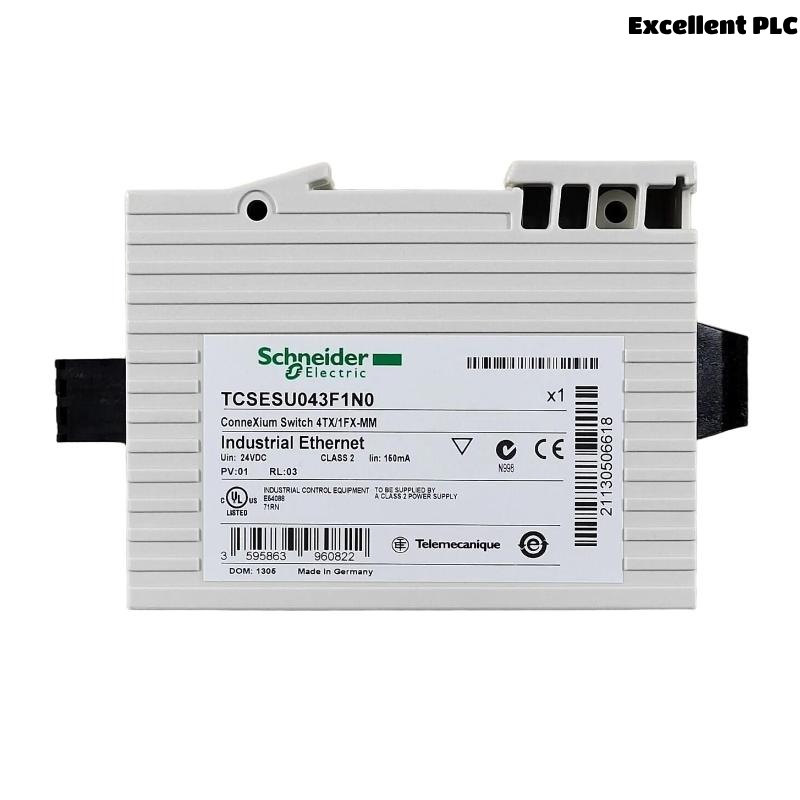

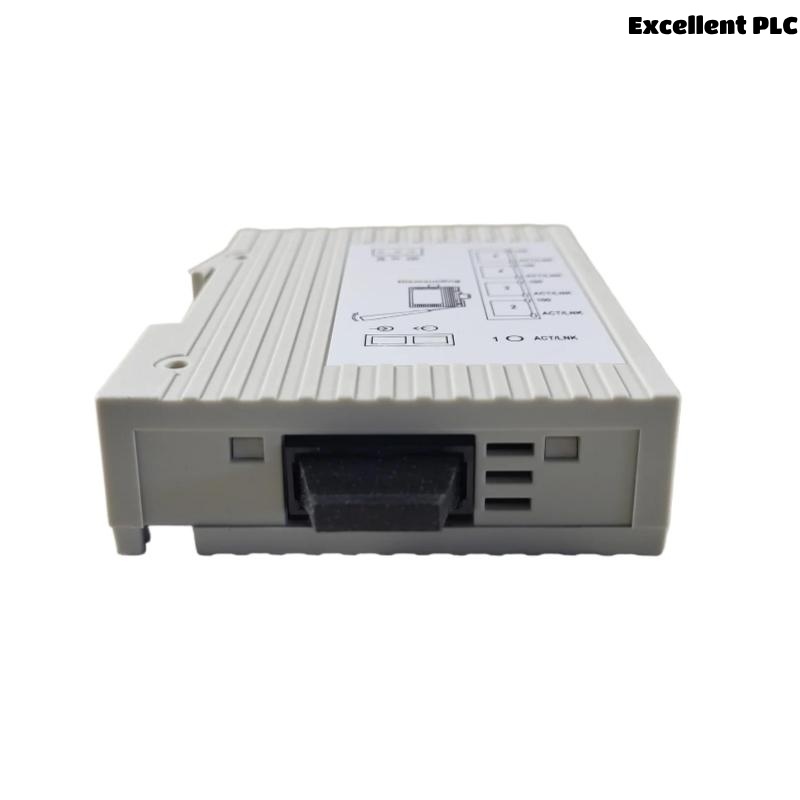

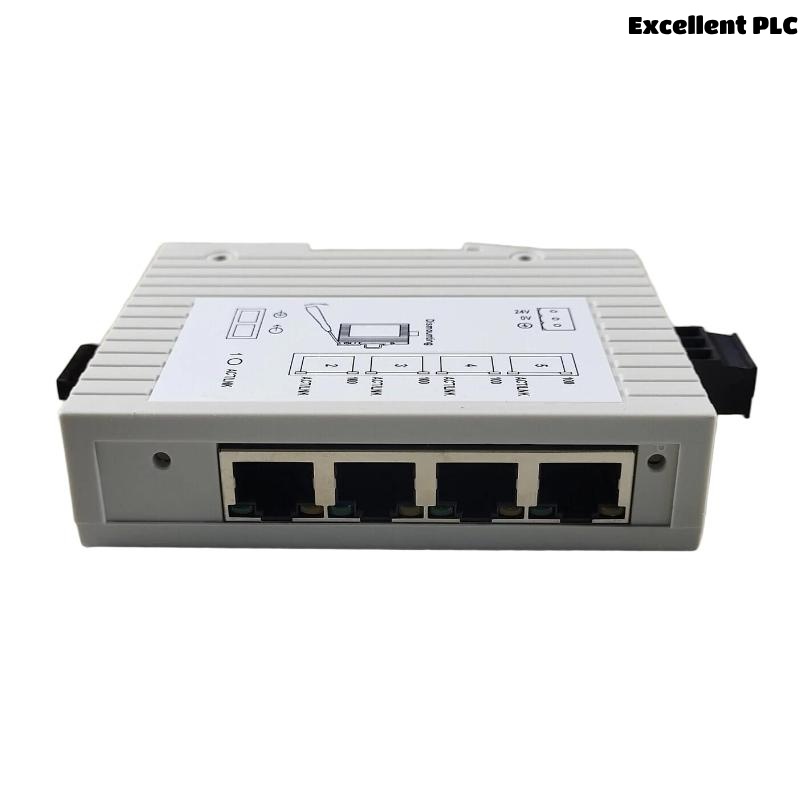

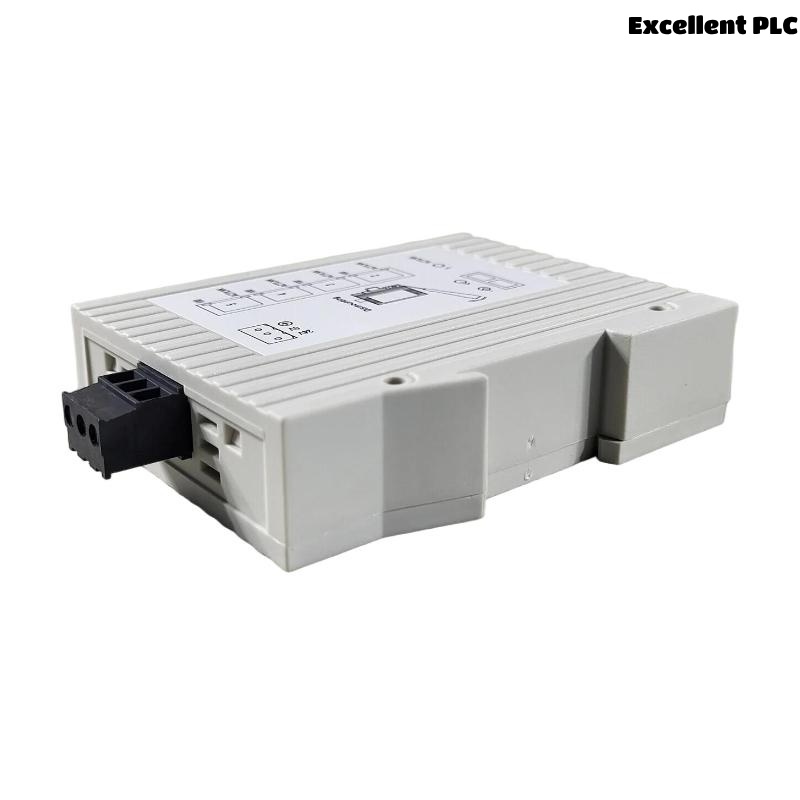

Schneider TCSESU043F1N0 Ethernet TCP/IP Unmanaged Switches

Product Overview

The Schneider Electric TCSESU043F1N0 is a rugged and compact unmanaged Ethernet switch from the ConneXium™ range, specifically designed for industrial automation networks. Featuring four Fast Ethernet ports, this switch provides reliable plug-and-play connectivity for Ethernet-enabled devices, such as PLCs, HMIs, sensors, and I/O modules.

With its DIN rail-mountable format, fanless operation, and industrial-grade durability, the TCSESU043F1N0 ensures robust communication within control panels and harsh environments. It supports 10/100 Mbps auto-negotiation and MDI/MDIX auto-crossover on all ports, enabling quick deployment without configuration.

Key Features

• 4 Fast Ethernet ports (10/100 Mbps)

• Industrial-grade unmanaged switch

• Auto-negotiation and auto-MDI/MDIX on all ports

• DIN rail-mountable design

• Redundant 24 V DC power input with alarm relay output

• Compact housing with IP30 protection

• Broadcast storm protection

• Extended temperature and vibration tolerance

• Plug-and-play operation with no software required

• Compliant with CE, UL, CSA, and RoHS standards

Technical Specifications

Industry Applications

• Factory Automation: Reliable network backbone for PLCs, I/O, drives, and HMIs

• Material Handling: Network infrastructure for conveyors, sorters, and AGVs

• Water and Wastewater: Ethernet connectivity for SCADA and telemetry systems

• Food & Beverage: Networked control for packaging and bottling lines

• Building Automation: Connecting access, lighting, and HVAC controllers

• Transportation Systems: Network control for signaling and monitoring devices

Product Advantages

• Plug-and-Play Simplicity: No configuration required for startup

• Compact Footprint: Slim design fits in tight control panel spaces

• Redundant Power Input: Increases system reliability with dual 24 V DC inputs

• Broadcast Storm Protection: Enhances network stability in unmanaged environments

• Industrial Durability: Designed for vibration, temperature, and EMI resistance

• Universal Port Compatibility: Auto-detects cable type and speed

• Cost-Effective: Unmanaged design reduces setup and maintenance time

• Integrated Alarm Relay: Alerts users to power failure events

• Metal Housing with IP30 Rating: Suitable for industrial cabinets

• Global Certification: Supports installations worldwide

Frequently Asked Questions (FAQ)

1. Q: What type of switch is the TCSESU043F1N0?
   A: It is an unmanaged Ethernet switch with 4 Fast Ethernet ports.

2. Q: Does it require any configuration software?
   A: No, it is plug-and-play with auto-negotiation and no setup required.

3. Q: Is it suitable for outdoor use?
   A: It must be installed in a protected enclosure; it is IP30 rated for indoor industrial use.

4. Q: Can it be DIN-rail mounted?
   A: Yes, it is designed for 35 mm DIN rail mounting.

5. Q: Does it support redundant power inputs?
   A: Yes, it has dual 24 V DC input terminals.

6. Q: What happens during a power failure?
   A: It includes a relay alarm output that signals power failure events.

7. Q: Can I use this with PLCs from other brands?
   A: Yes, it supports standard Ethernet and works with all Ethernet-compatible devices.

8. Q: Is it fan-cooled?
   A: No, it uses passive convection cooling with no moving parts.

9. Q: Does it support gigabit speeds?
   A: No, the ports support up to 100 Mbps (Fast Ethernet).

10. Q: What is the expected operating temperature range?
    A: It operates from -10°C to +60°C in industrial environments.
