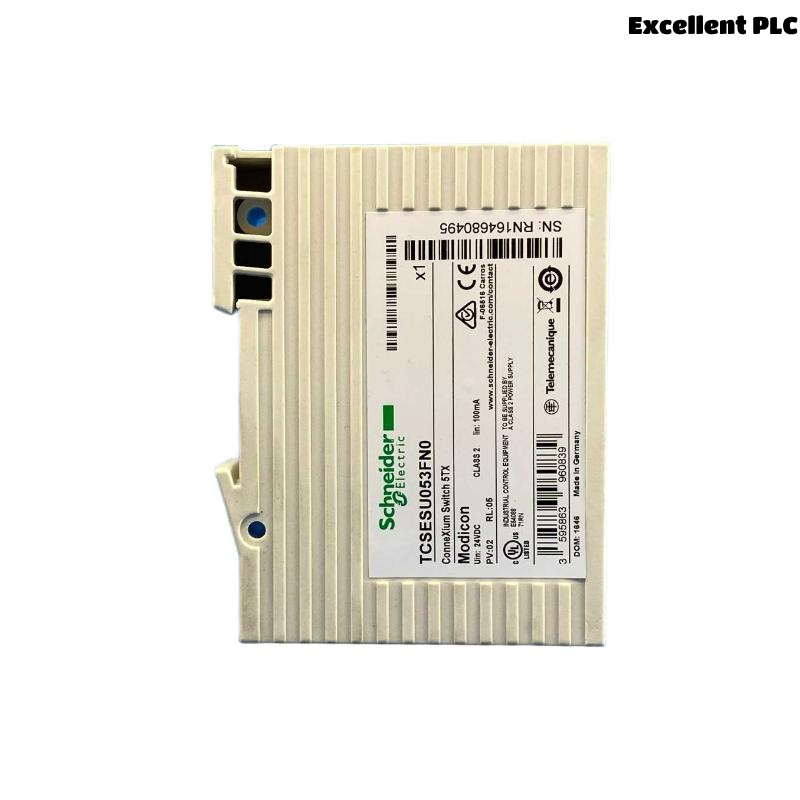

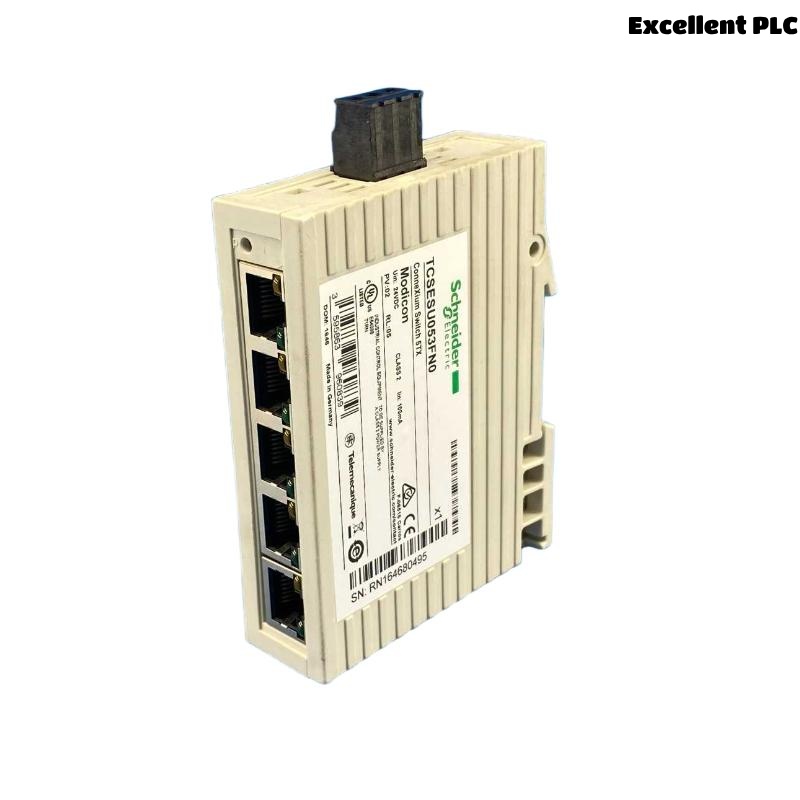

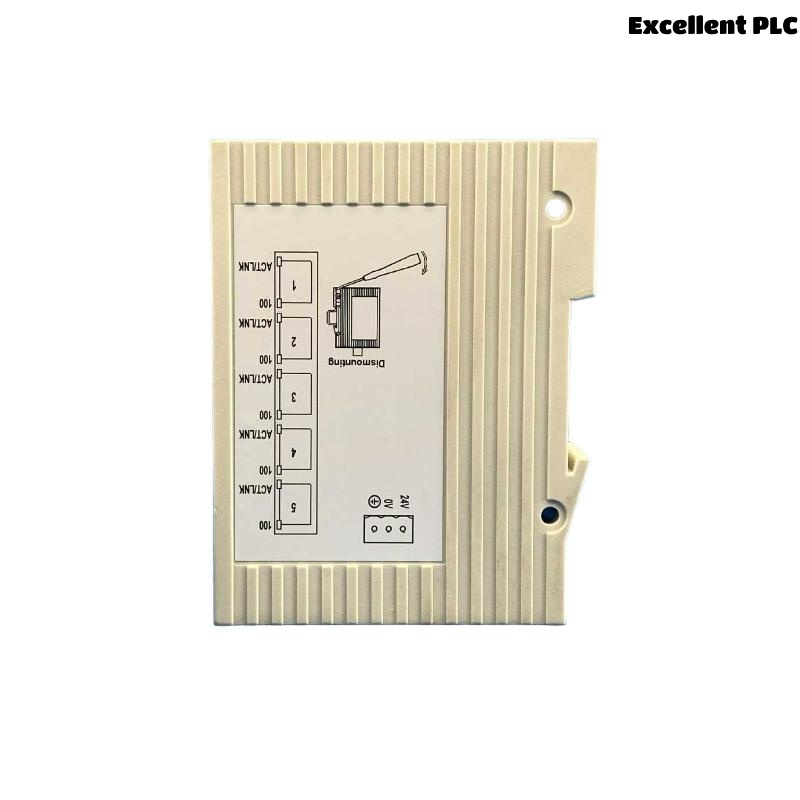

Schneider TCSESVO53FNO Product Overview
The Schneider TCSESVO53FNO is an advanced Ethernet switch designed for industrial automation systems. It is part of Schneider Electric’s extensive portfolio of communication and networking solutions tailored for harsh industrial environments. With robust features, high durability, and excellent performance, this switch plays a pivotal role in facilitating reliable and fast data exchange within a factory or plant network.
This device is engineered to support Ethernet-based networking protocols, ensuring smooth communication between control systems, sensors, actuators, and other devices that require high-speed and fault-tolerant data transmission. With features such as support for different network topologies, enhanced security features, and reliable performance, it is ideal for applications in industries like manufacturing, energy, and automation.
Schneider TCSESVO53FNO Technical Specifications
Below is a detailed specification table for the Schneider TCSESVO53FNO Ethernet Switch:
| Specification | Details |
|---|---|
| Model | TCSESVO53FNO |
| Type | Industrial Ethernet Switch |
| Port Configuration | 5 x 10/100/1000Mbps Ethernet Ports |
| Mounting | DIN Rail or Panel Mount |
| Power Supply | 24V DC |
| Operating Temperature | -40°C to 75°C |
| Dimensions | 25x114x79mm |
| Weight | 0.113 kg |
| Network Redundancy | Supports Ring Topology, STP, and RSTP |
| Communication Protocols | Ethernet, TCP/IP, Modbus TCP |
| LED Indicators | Power, Link, Activity |
| Mounting Style | DIN Rail or Wall Mountable |
| Ingress Protection | IP30 |
| Operating Humidity | 5% to 95% non-condensing |
Applications of Schneider TCSESVO53FNO
The Schneider TCSESVO53FNO Ethernet Switch is versatile and suitable for a wide range of industrial applications, including:
-
Industrial Automation Networks: Connects PLCs, SCADA systems, sensors, and other automation devices to a secure and stable network.
-
Process Control Systems: Provides high-speed data transfer for continuous monitoring and control processes in industries like oil & gas, chemical plants, and food processing.
-
Energy Management Systems: Ideal for monitoring and controlling energy distribution networks, ensuring efficient data flow between controllers and smart meters.
-
Building Automation: Facilitates communication between building management systems (BMS) to control HVAC, lighting, and security systems.
Advantages of Schneider TCSESVO53FNO
-
High Reliability: Built to withstand the tough conditions in industrial environments, such as extreme temperatures and electrical noise.
-
Easy Integration: Supports standard communication protocols like Modbus TCP, ensuring seamless integration with existing network infrastructure.
-
Redundancy Features: Offers network redundancy through support for Ring Topology, STP (Spanning Tree Protocol), and RSTP (Rapid Spanning Tree Protocol), ensuring continuous operation.
-
Compact and Space-Saving Design: The DIN rail mount design makes it easy to install in control panels, saving space and ensuring neat installation.
-
Low Power Consumption: Designed to operate on 24V DC, making it energy-efficient, ideal for low-power environments.
-
Industrial Grade Protection: With IP30 ingress protection, it is well-suited for deployment in dusty or rugged environments.
Frequently Asked Questions (FAQ)
1. What is the power supply requirement for the Schneider TCSESVO53FNO?
Answer: The power supply requirement is 24V DC, suitable for industrial control environments.
2. What is the maximum operating temperature range?
Answer: The switch operates effectively in temperatures ranging from -40°C to 75°C.
3. How many Ethernet ports does this switch have?
Answer: It has 5 Ethernet ports, each supporting 10/100/1000 Mbps speeds.
4. Can this switch be mounted on a DIN rail?
Answer: Yes, the Schneider TCSESVO53FNO can be mounted on a DIN rail or directly on a wall.
5. What kind of network redundancy does the switch support?
Answer: The switch supports Ring Topology, Spanning Tree Protocol (STP), and Rapid Spanning Tree Protocol (RSTP), ensuring network reliability.
6. What type of ingress protection does this device have?
Answer: The device has an IP30 rating, meaning it is protected against dust ingress and suitable for industrial environments.
7. Does the switch support Modbus TCP?
Answer: Yes, it supports Modbus TCP, which is commonly used in industrial automation systems for device communication.
8. What is the weight of the Schneider TCSESVO53FNO?
Answer: The switch weighs 0.113 kg, making it lightweight and easy to install.
9. Can this switch be used in outdoor environments?
Answer: No, the TCSESVO53FNO is designed for indoor use, given its IP30 ingress protection.
10. What is the mounting style of the device?
Answer: The switch can be mounted on a DIN rail or directly on a panel/wall.
