Schneider TM2DDI8DT Logic Controller

Schneider TM2DDI8DT Product Introduction

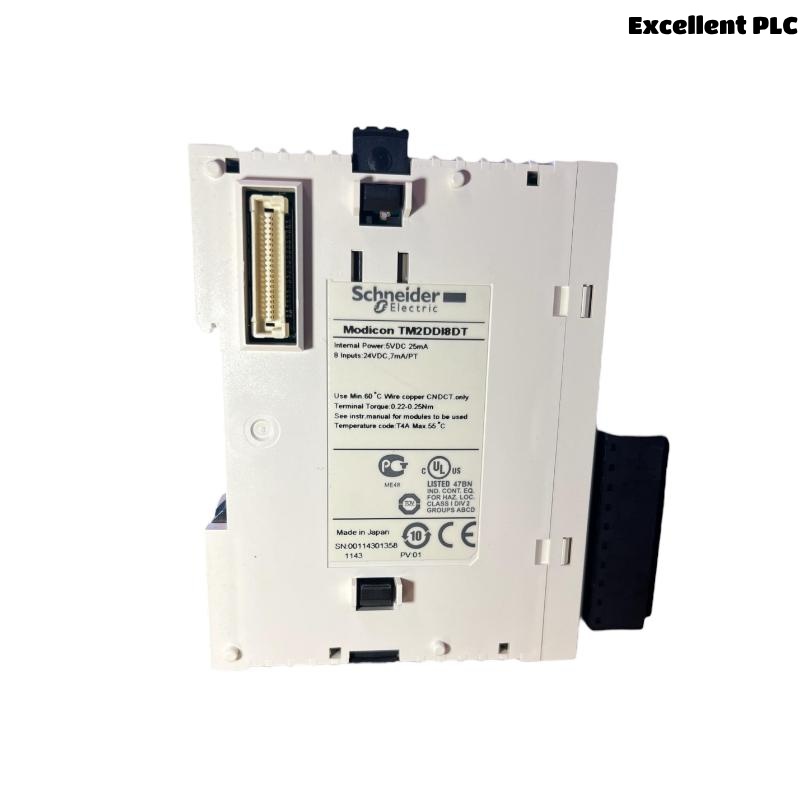

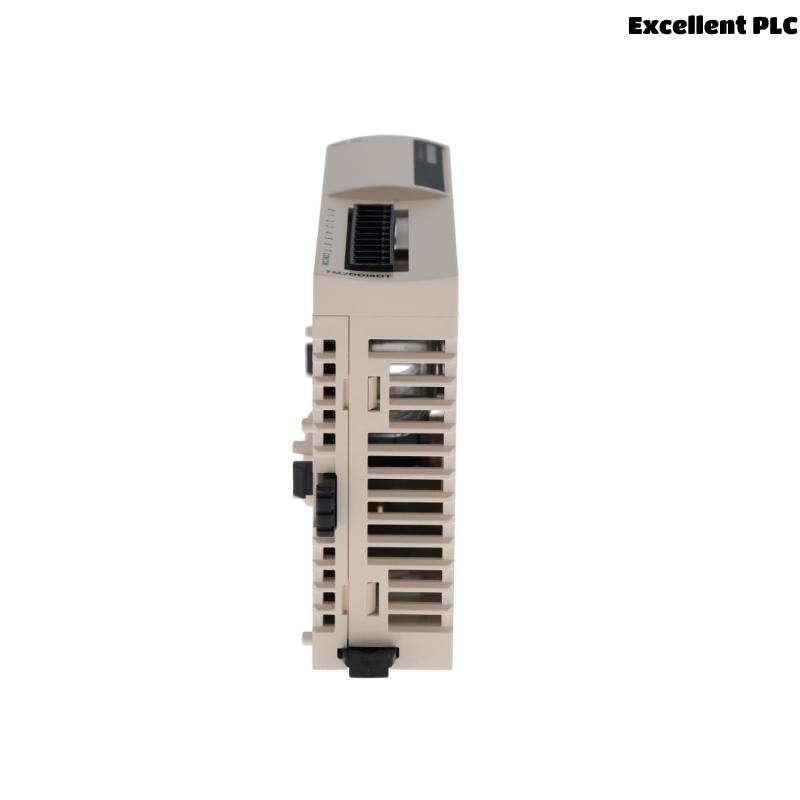

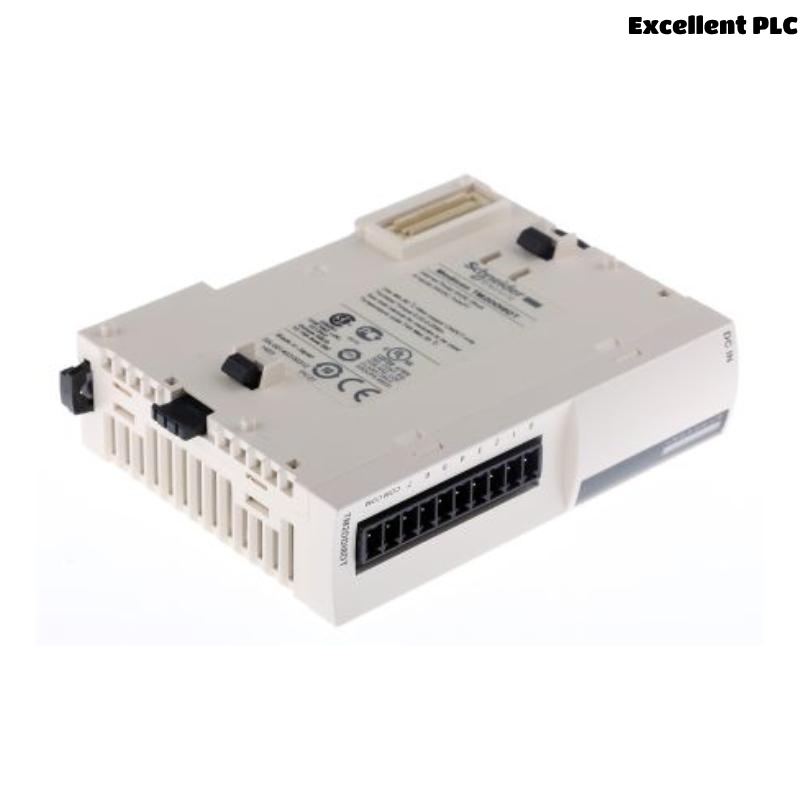

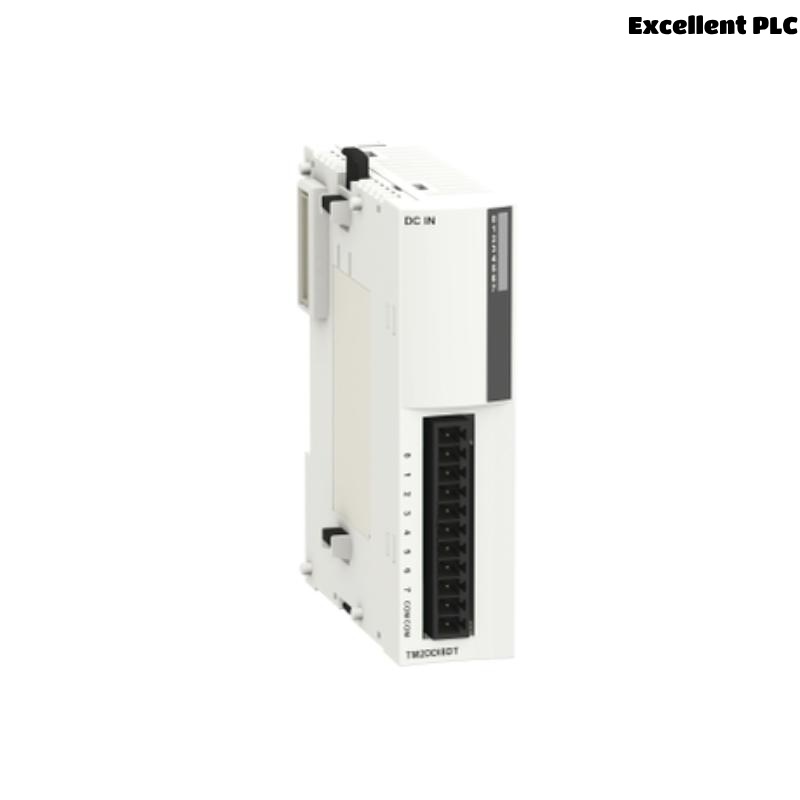

The Schneider TM2DDI8DT is a high-performance digital input module from the Telemecanique Modicon TM2 series. Designed for industrial automation applications, this module provides reliable and efficient data acquisition capabilities. It is compatible with Modicon M221, M241, and M251 PLCs, making it a versatile solution for various control systems. The TM2DDI8DT is known for its compact design, robust construction, and ease of integration, making it ideal for harsh industrial environments.

Product Parameters

The TM2DDI8DT features 8 digital inputs with advanced filtering and diagnostics. Below are the detailed specifications:

Product Applications

The TM2DDI8DT is widely used in industrial automation for:

• Machine Control: Monitoring sensors, switches, and buttons in automated machinery.

• Process Automation: Data acquisition in manufacturing and assembly lines.

• Material Handling: Integration with conveyor systems and robotic arms.

• Energy Management: Input signal processing in power distribution systems.

• Building Automation: HVAC and lighting control applications.

Product Advantages

1. High Reliability: Built to withstand industrial environments with robust isolation and filtering.

2. Easy Integration: Compatible with Modicon PLCs for seamless system expansion.

3. Compact Design: Space-saving form factor for dense control panels.

4. Flexible Input Configuration: Supports both sink and source input wiring.

5. Fast Response Time: Ensures real-time data acquisition for critical applications.

6. Diagnostic Capabilities: LED indicators for input status and fault detection.

Frequently Asked Questions (FAQ)

1. What PLCs are compatible with the TM2DDI8DT?
   It is compatible with Modicon M221, M241, and M251 PLCs.

2. Can this module handle both sink and source inputs?
   Yes, it supports both sink and source input configurations.

3. What is the maximum input voltage?
   The module accepts 24V DC inputs with a range of 15-30V DC.

4. How fast is the response time?
   The response time is ≤ 3ms per input.

5. Is the module isolated?
   Yes, it provides 500V AC isolation between field and logic sides.

6. What is the operating temperature range?
   It operates from -25°C to +70°C.

7. Does it have diagnostic LEDs?
   Yes, each input channel has an LED for status indication.

8. What is the protection rating?
   The module has an IP20 rating for basic dust protection.

9. Can I expand the number of inputs?
   Yes, multiple TM2DDI8DT modules can be added to a compatible PLC.

10. What is the weight of the module?
    It weighs 0.1 kg.
