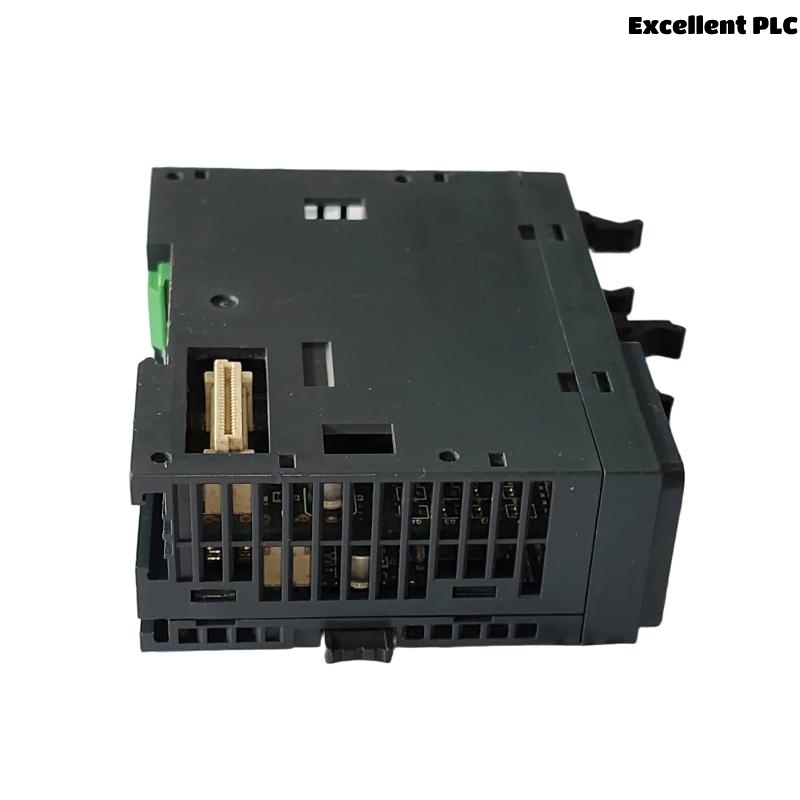

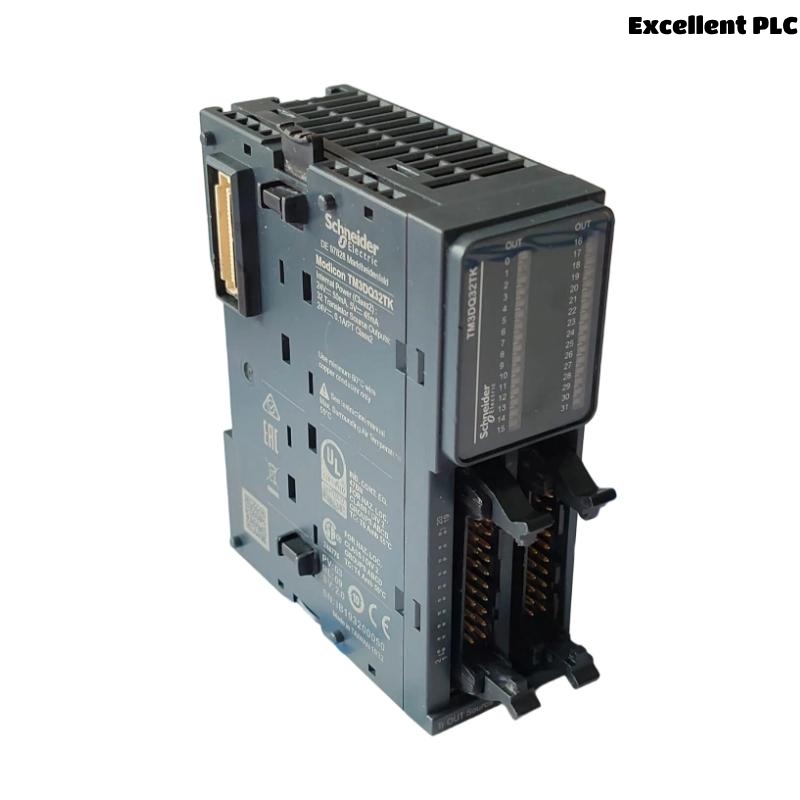

Schneider TM3DQ32TK Discrete Output Module

Product Introduction

The Schneider TM3DQ32TK Discrete Output Module is a high-performance component designed for use in industrial control systems. It is part of the Modicon TM3 I/O series and is primarily used for managing discrete outputs in various applications. This module is engineered to control digital devices, such as relays, solenoids, motors, and other equipment that require on/off control.

The TM3DQ32TK module offers a high-density configuration, with 32 output channels that allow for efficient control of multiple outputs in a compact space. Its primary application is in environments where space optimization, flexibility, and reliability are crucial for system performance. It features fast response times and robust communication protocols, making it ideal for integration in modern automation systems that demand precise control.

---

Product Specifications

---

Product Applications

The Schneider TM3DQ32TK Discrete Output Module is used in various industrial applications that require precise control of digital devices. Its applications include:

• Industrial Automation Systems: Used for controlling various types of industrial devices, such as solenoids, motors, and actuators, in automation systems.

• PLC Systems: Integrated within programmable logic controllers (PLC) to manage discrete digital outputs for controlling machinery and processes.

• Control Systems for Robotics: This module is used to drive discrete outputs for robotic actuators and end-effectors, contributing to precise and coordinated robotic movements.

• Process Control: The module plays a crucial role in process control applications, where it is used to control on/off operations such as valve actuators, pumps, and other discrete devices in a controlled environment.

• Energy Management Systems: It is utilized in energy management applications to control energy distribution, circuit breakers, and other devices that require discrete on/off control.

---

Product Advantages

1. High Channel Density: With 32 discrete outputs in a compact form factor, the TM3DQ32TK module provides high channel density, reducing the need for multiple separate modules and saving space in control cabinets.

2. Robust Communication: The module supports Modbus TCP and Modbus RTU communication protocols, making it easy to integrate with existing systems and ensuring reliable communication for industrial control.

3. Flexible Installation: The TM3DQ32TK module is designed for DIN rail mounting, which provides flexibility and ease of installation in various control panel configurations.

4. Energy Efficient: With a power consumption of only 2.5W, the module is energy-efficient, helping reduce overall operational costs in large-scale installations.

5. Reliable Performance: Built with industrial-grade components, the module offers robust performance even in harsh operating conditions, ensuring minimal downtime and increased reliability.

6. Wide Range of Applications: The TM3DQ32TK is suitable for a broad range of industrial control applications, from PLC-controlled systems to energy management, robotics, and process control.

---

FAQs

1. What is the purpose of the Schneider TM3DQ32TK Discrete Output Module?
   The TM3DQ32TK is designed to control digital devices that require on/off operations, such as motors, relays, and solenoids, in industrial automation systems.

2. What communication protocols does the TM3DQ32TK support?
   The module supports Modbus TCP and Modbus RTU protocols, ensuring seamless integration with existing control systems.

3. How many outputs does the TM3DQ32TK have?
   The TM3DQ32TK has 32 discrete outputs, allowing for the control of multiple devices in a compact space.

4. What is the maximum output current per channel for the TM3DQ32TK?
   The module supports a maximum output current of 0.5A per channel.

5. Can the TM3DQ32TK module be used in a distributed control system?
   Yes, the module is suitable for use in distributed control systems (DCS), especially in applications requiring high-density output control.

6. What voltage does the TM3DQ32TK module operate at?
   The TM3DQ32TK operates at 24V DC, which is standard for many industrial automation components.

7. How is the TM3DQ32TK mounted in a control system?
   The module is mounted on a DIN rail, making it easy to integrate into control cabinets and panel systems.

8. What is the power consumption of the TM3DQ32TK module?
   The TM3DQ32TK consumes only 2.5W of power, making it an energy-efficient component in automation systems.

9. Is the TM3DQ32TK compliant with industry standards?
   Yes, the module is CE, UL, and CSA certified, ensuring that it meets international safety and quality standards.

10. What types of devices can the TM3DQ32TK control?
    The module can control a wide variety of digital devices, including motors, solenoids, valve actuators, and other on/off devices used in industrial automation systems.

---
