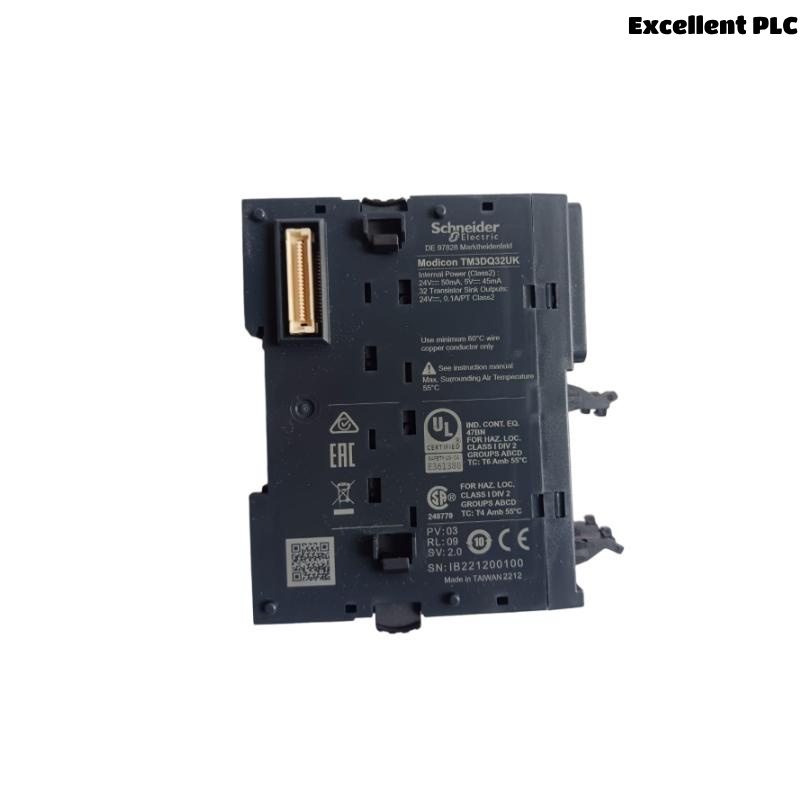

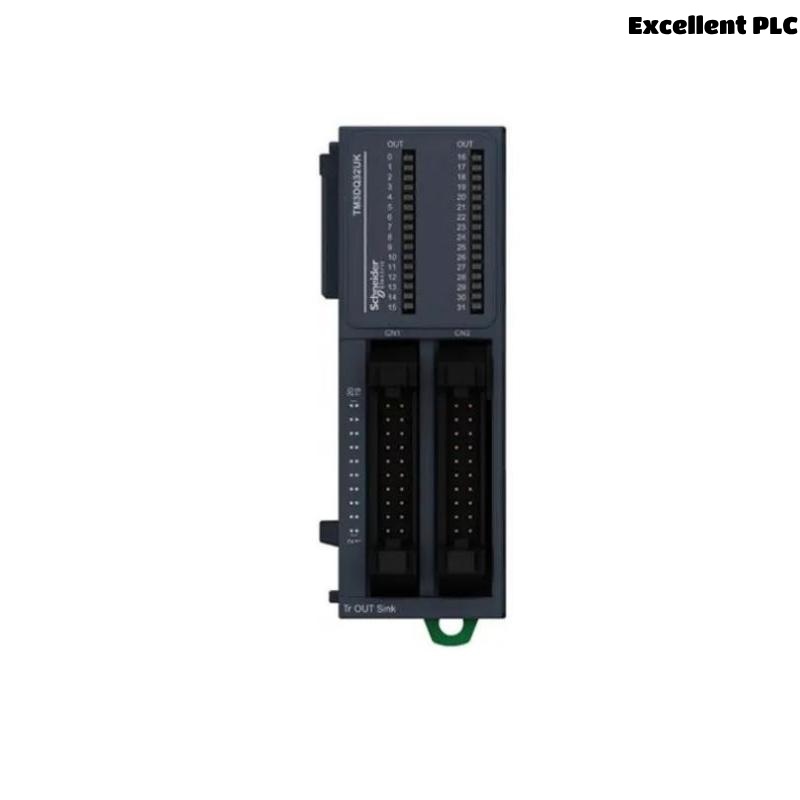

The Schneider TM3DQ32UK is a high-performance 32-point transistor NPN output module designed for Modicon TM3 I/O systems. This module is part of the TM3 I/O family, which is a collection of modular and compact input/output solutions for Schneider Electric’s Modicon PLCs. The TM3DQ32UK is specifically engineered to provide digital output control for industrial automation applications, enabling high-speed, reliable switching of 32 NPN transistor outputs.
With a compact design and built to fit into HE10 connectors, the TM3DQ32UK integrates seamlessly into Modicon TM3 I/O systems, offering scalability and flexibility. It supports various industrial automation requirements, providing accurate control over actuators, relays, and other digital devices in factory automation systems, process control systems, and more.
The module features a robust design, offering low power consumption and high operational reliability, making it ideal for use in harsh environments with temperature ranges from -20°C to +60°C. The TM3DQ32UK also offers easy integration with various communication protocols such as Modbus and CANopen, ensuring seamless compatibility with other industrial devices.
Product Parameters
Here are the detailed parameters for the Schneider TM3DQ32UK 32-Point Transistor NPN Output Module:
| Parameter | Value |
|---|---|
| Model | TM3DQ32UK |
| Dimensions (HxWxD) | 90 x 81.3 x 33.5 mm |
| Weight | 0.112 kg |
| Output Type | 32 Transistor NPN Outputs |
| Output Voltage | 24V DC |
| Current Rating | 0.5 A per channel |
| Mounting Type | DIN Rail Mountable |
| Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Communication Protocol | Modbus, CANopen |
| Certification | CE, UL, UL (Canada), RoHS compliant |
| Application | Industrial Automation, Machine Control, Process Control |
Product Applications
The Schneider TM3DQ32UK 32-point transistor NPN output module is versatile and highly effective in various industrial environments. Below are the key applications:
-
Manufacturing Automation: The TM3DQ32UK provides fast and reliable digital output control in production lines, managing relays, actuators, and other control devices essential for machinery automation.
-
Process Control: In process industries like chemical plants, water treatment facilities, and food processing, the TM3DQ32UK drives digital outputs for controlling pumps, valves, and other equipment to ensure efficient and accurate process operations.
-
Industrial Machine Control: The module is ideal for machine control applications, such as controlling robotic arms, CNC machines, conveyors, and other automation systems requiring precise digital output signals.
-
Building and Energy Automation: The TM3DQ32UK can be used in HVAC systems, lighting controls, and energy management systems to manage high-speed switching of actuators, sensors, and other devices in building and energy automation applications.
-
Robotics: It is used in industrial robotics systems to manage actuators, sensors, and relays, offering quick and efficient control over robotic movements and processes.
-
Power and Energy Management: The module offers efficient control in power plants, managing relay switches for breakers, generators, and voltage regulators to ensure system stability and efficiency.
The TM3DQ32UK is highly effective for controlling a wide variety of digital devices and systems that require reliable, high-speed switching.
Product Advantages
The Schneider TM3DQ32UK offers several distinct advantages for industrial control systems:
-
High-Speed Digital Output: With 32 NPN transistor outputs, the module offers fast and reliable digital control for industrial devices, ensuring that processes and machines run smoothly.
-
Compact Design: With dimensions of 90 x 81.3 x 33.5 mm, the module is compact and takes up minimal space in control panels, making it ideal for use in environments where space is at a premium.
-
High Performance: Each output can handle 0.5 A, enabling the module to drive a large number of outputs with precision and efficiency, essential for high-speed industrial applications.
-
Wide Temperature Range: With an operating temperature range from -20°C to +60°C, the TM3DQ32UK can function reliably in both hot and cold industrial environments, making it versatile for a variety of applications.
-
Low Power Consumption: The module is designed to be energy-efficient, consuming minimal power while still providing optimal performance in industrial settings.
-
Easy Integration: As part of the Modicon TM3 I/O series, it integrates seamlessly into Modicon PLC systems, allowing for simple and straightforward expansion of existing control systems.
-
DIN Rail Mounting: The DIN rail mounting option ensures quick installation and easy maintenance, reducing downtime during setup and repairs.
-
Enhanced Communication: It supports Modbus and CANopen communication protocols, allowing easy connectivity and integration with a wide range of industrial devices.
-
Certifications for Safety: The module meets international safety and environmental standards, including CE, UL, and RoHS, ensuring reliability and compliance with industry regulations.
-
Scalability: The TM3DQ32UK can be easily expanded with additional modules to meet the growing needs of your system, making it an excellent choice for scalable automation solutions.
Frequently Asked Questions (FAQ)
-
What is the primary function of the Schneider TM3DQ32UK?
-
It provides 32 NPN transistor outputs for controlling digital devices like actuators, relays, and sensors in automation systems.
-
-
What is the input voltage for the TM3DQ32UK module?
-
The module operates with 24V DC voltage.
-
-
What are the dimensions of the TM3DQ32UK module?
-
The module measures 90 x 81.3 x 33.5 mm.
-
-
How much does the TM3DQ32UK weigh?
-
It weighs 0.112 kg, making it lightweight and easy to handle.
-
-
What communication protocols does the TM3DQ32UK support?
-
It supports Modbus and CANopen protocols, ensuring compatibility with a wide range of devices.
-
-
What is the maximum current that each output can handle?
-
Each output can handle 0.5 A.
-
-
Can the TM3DQ32UK be used in extreme temperature environments?
-
Yes, it has an operating temperature range from -20°C to +60°C, suitable for both hot and cold environments.
-
-
How is the TM3DQ32UK mounted?
-
It is designed for DIN rail mounting, making installation quick and efficient.
-
-
Is the TM3DQ32UK suitable for industrial automation?
-
Yes, it is perfect for industrial automation, including applications in machine control, process control, and energy management.
-
-
Does the TM3DQ32UK meet safety certifications?
-
Yes, it is certified with CE, UL, and RoHS standards, ensuring safety and environmental compliance.
-
