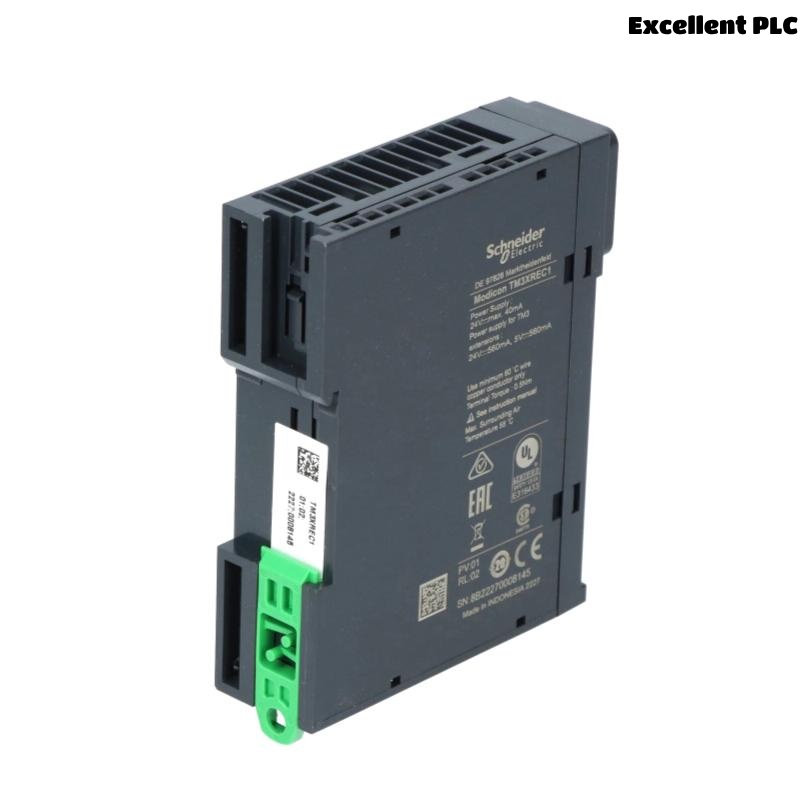

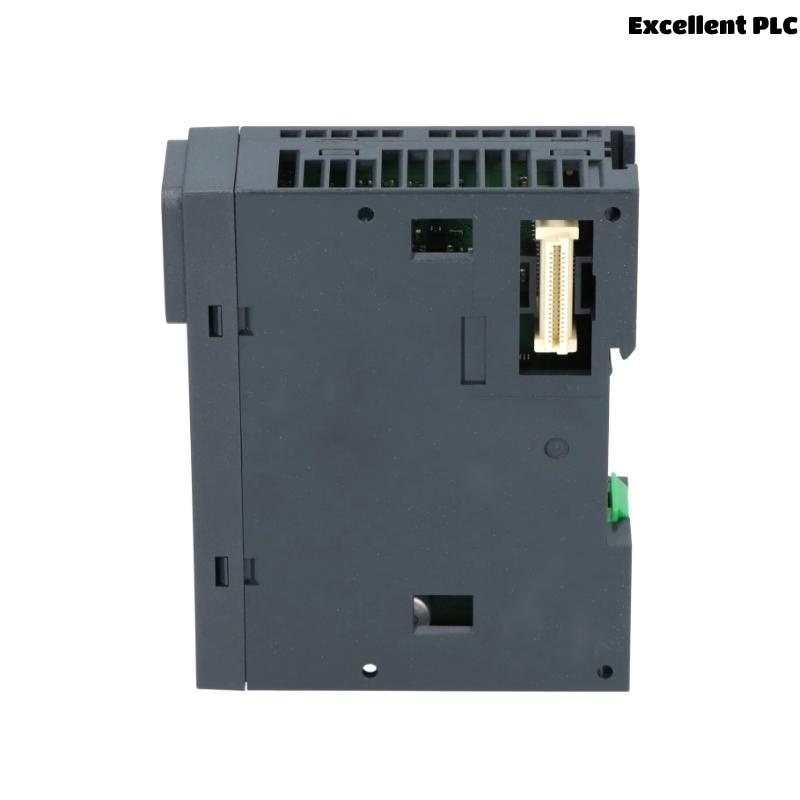

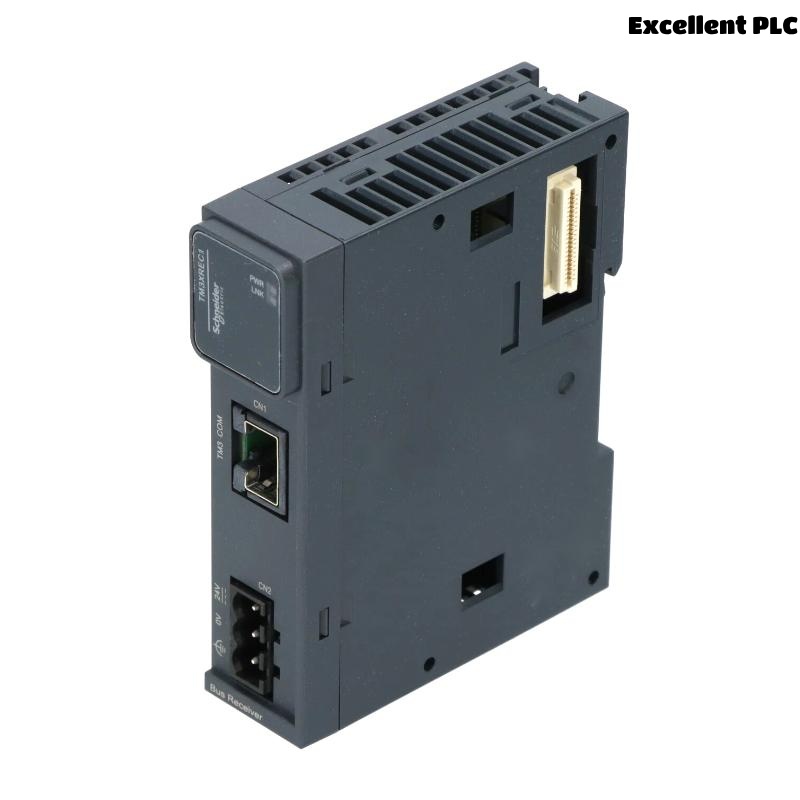

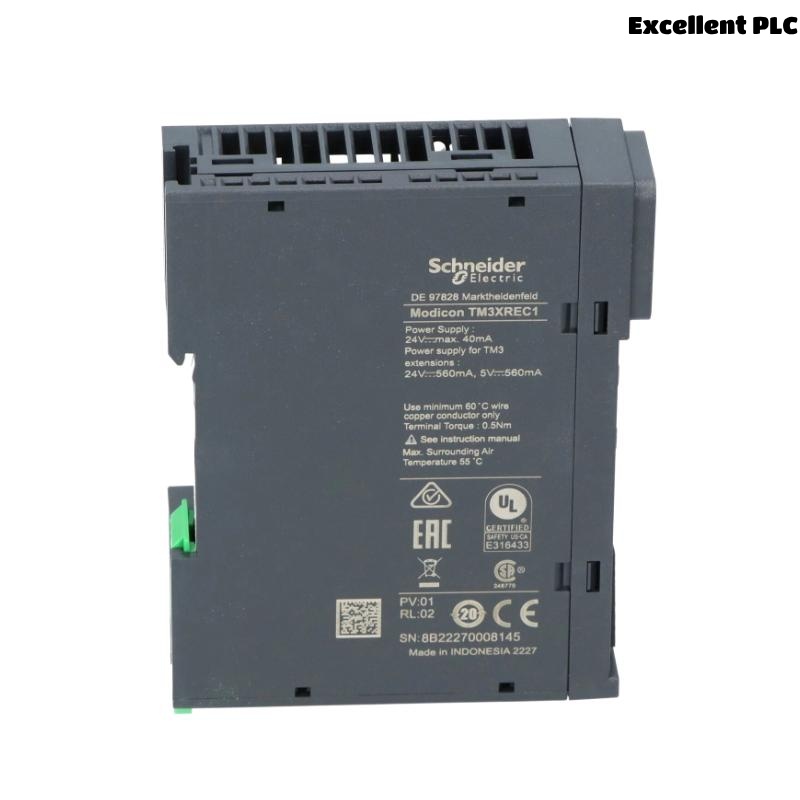

Schneider TM3XREC1 Remote Receiver Module

Product Introduction

The Schneider TM3XREC1 Remote Receiver Module is an integral part of Schneider Electric’s TM3 I/O system that offers reliable communication for remote control and monitoring applications. This module is designed to receive signals from external remote devices, facilitating the extension of I/O capabilities beyond the physical limitations of a centralized control panel.

The TM3XREC1 module enables the connection of remote sensors, actuators, and other field devices to a central control system over a reliable communication link. It is ideally suited for use in distributed control systems where centralized control is required but with remote device monitoring and data acquisition. The module uses modern communication protocols, providing seamless integration with Schneider Electric’s PLCs, controllers, and automation solutions. Its compact design and robust performance ensure it performs reliably in demanding industrial environments.

---

Product Specifications

---

Product Applications

The Schneider TM3XREC1 Remote Receiver Module is designed for a wide variety of industrial and commercial applications that require remote monitoring and control of field devices. Some of the primary applications include:

• Distributed Control Systems (DCS): The TM3XREC1 is often used in DCS environments where remote monitoring and data acquisition from field devices are necessary. It ensures centralized control of processes spread over large industrial sites.

• Building Automation: In building management systems, the module is used to extend the reach of HVAC systems, lighting control, and environmental monitoring sensors, all while maintaining centralized control.

• Energy Management: The module allows remote communication for energy metering, monitoring, and control in energy management systems, enabling real-time data acquisition for optimized performance.

• Machine Monitoring: In industries where large numbers of machines need to be monitored, the TM3XREC1 provides remote signal reception from machine-mounted sensors, providing valuable performance data to the central system.

• Remote Sensing and Automation: It is employed in remote sensing systems such as weather stations, water quality monitoring, and environmental data collection systems, enabling continuous data reception for analysis.

• Process Industries: The module is used in oil & gas, chemical, and water treatment plants, where sensors and other equipment are located far from central control rooms, allowing for seamless integration of remote devices.

---

Product Advantages

1. Flexible Remote Communication: The TM3XREC1 supports both Modbus RTU and Modbus TCP, ensuring compatibility with a wide range of industrial devices and making it easy to integrate into existing systems.

2. Enhanced Signal Reception: With the ability to receive signals from remote devices over long distances, the module extends I/O functionality beyond traditional centralized setups, offering increased system scalability.

3. Robust and Reliable: Designed to operate in harsh industrial environments, the TM3XREC1 is built to handle temperature variations, mechanical stress, and electrical interference, ensuring continuous operation even in demanding conditions.

4. Compact Design: Its small footprint makes the module ideal for installations in space-constrained environments, such as control panels and compact automation systems.

5. Seamless Integration: The TM3XREC1 easily integrates with Schneider Electric’s range of PLCs, I/O systems, and other automation solutions, providing a streamlined approach to remote monitoring and control.

6. Low Power Consumption: The module consumes only 3W of power, contributing to the energy efficiency of the overall system, especially important in systems where multiple remote devices are deployed.

7. Modular Expansion: The TM3XREC1 is part of the modular TM3 I/O series, allowing for easy expansion of the system by adding more remote receiver modules as required.

---

FAQs

1. What is the function of the Schneider TM3XREC1 Remote Receiver Module?
   The module is designed to receive digital signals from remote devices, enabling centralized control and monitoring over a communication network.

2. How many input channels does the TM3XREC1 have?
   The module supports up to 16 digital input channels for receiving signals from remote devices.

3. What communication protocols are supported by this module?
   The TM3XREC1 supports Modbus RTU and Modbus TCP, which are widely used in industrial control systems for reliable communication.

4. How is the TM3XREC1 mounted?
   The module is designed for DIN rail mounting, making it easy to install and integrate into control panels and automation systems.

5. What type of applications is the TM3XREC1 module suitable for?
   The module is suitable for distributed control systems, building automation, energy management, machine monitoring, and remote sensing applications.

6. Can the TM3XREC1 be integrated with Schneider Electric PLCs?
   Yes, the TM3XREC1 is fully compatible with Schneider Electric PLCs and other Schneider automation devices, providing seamless integration into industrial automation systems.

7. What is the operating temperature range of the module?
   The module operates within a temperature range of -20°C to 70°C, making it suitable for use in a wide variety of industrial environments.

8. How much power does the TM3XREC1 consume?
   The module has a low power consumption of just 3W, contributing to overall system energy efficiency.

9. Is the TM3XREC1 module certified for industrial use?
   Yes, it is CE, UL, and CSA certified, ensuring it meets the necessary safety and regulatory standards for industrial environments.

10. Can the TM3XREC1 be used for remote monitoring in large-scale systems?
    Yes, the module is designed to handle remote monitoring for large-scale industrial systems, allowing for the extension of I/O capabilities to remote areas.

---
