Product Introduction

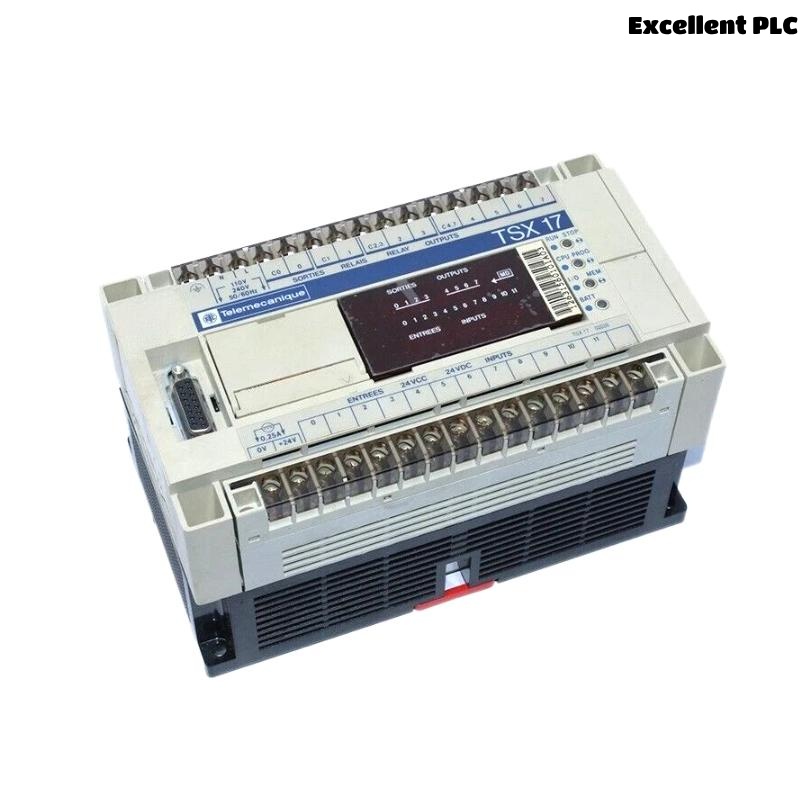

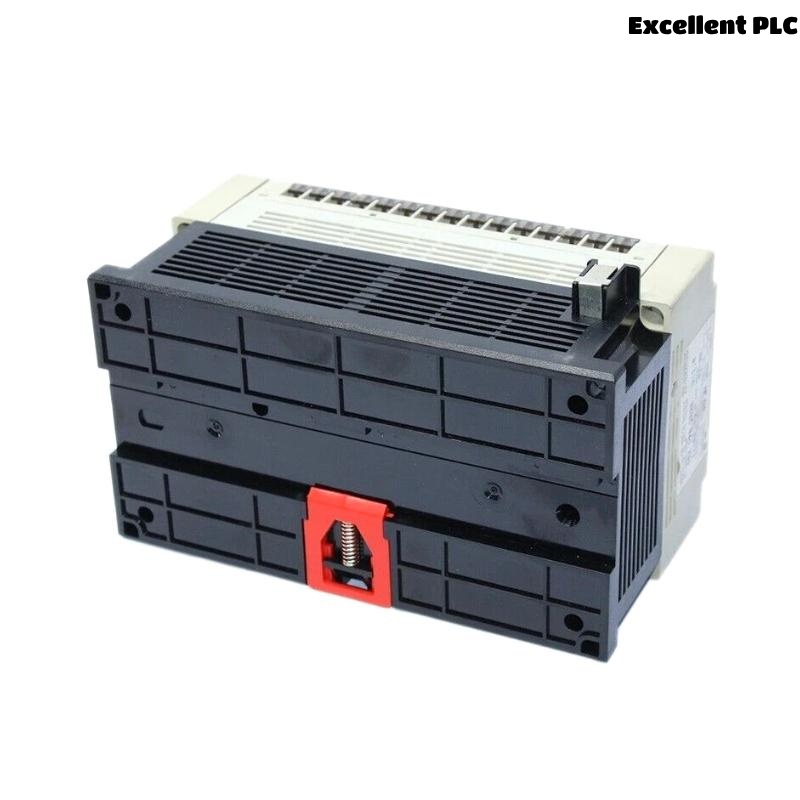

The Schneider TSX1702028 programmable controller is a compact, versatile control unit designed for industrial automation applications. As part of the Schneider Modicon TSX series, this controller delivers reliable performance in process control, machine automation, and discrete manufacturing. It combines programming flexibility with powerful hardware, providing a cost-effective solution for small to medium-sized control systems.
Designed to meet the demanding requirements of modern industrial environments, the TSX1702028 supports a variety of I/O configurations, high-speed processing capabilities, and compatibility with multiple communication protocols. Its modular design enables seamless integration into existing automation architectures while providing convenient expansion options for future system upgrades.
Product Specifications
| scope | value |
|---|---|
| model | TSX1702028 |
| Manufacturer | Schneider Electric |
| Product Type | Program controller |
| series | Modicon TSX Series |
| CPU type | Integrated microprocessor |
| Memory capacity | 16 KB – 32 KB user memory (depending on configuration) |
| Supported I/O points | Up to 128 discrete I/Os (expandable) |
| Communication Port | RS-232、RS-485 |
| Supported protocols | Modbus RTU, proprietary Schneider protocol |
| Scan time for each instruction | 0.3–0.5 milliseconds |
| programming language | Ladder logic, instruction list |
| power supply | 24 VDC nominal (18–30 VDC) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| Mounting Type | DIN rail or panel mounting |
| Housing Material | Industrial-grade thermoplastic |
| Safety Certifications | UL, CE, CSA |
| Compliance Standards | IEC 61131-2, EN 61000-6-2, EN 61000-6-4 |
| Dimensions (W × H × D) | 220 × 110 × 65 mm |
| Weight | 1.18 kg |
Product Applications
-
Machine Control: Suitable for controlling discrete manufacturing machines and assembly lines.
-
Process Automation: Manages process variables in small to medium-scale industrial plants.
-
Energy Management: Integrates with monitoring systems to optimize energy usage.
-
Packaging Systems: Provides reliable sequencing and control for automated packaging equipment.
-
Material Handling: Controls conveyors, sorters, and automated warehouse systems.
-
HVAC Control: Used in building automation for managing heating, ventilation, and air conditioning systems.
-
Water Treatment Plants: Handles pump sequencing and process control for treatment facilities.
Product Advantages
-
Compact and Modular Design: Fits into tight control panels and allows easy expansion.
-
Fast Processing: Provides quick scan times for time-critical applications.
-
Flexible Communication: Supports RS-232/RS-485 interfaces and Modbus RTU for easy integration.
-
Wide Application Range: Suitable for discrete, process, and building automation.
-
Industrial Durability: Built with robust housing and compliant with international safety standards.
-
Easy Programming: Supports standard ladder logic and instruction list languages.
-
Low Power Consumption: Energy-efficient design with a 24 VDC power supply.
-
Seamless Integration: Works with Schneider’s Modicon ecosystem and third-party devices.
FAQ
-
What communication protocols are supported by the TSX1702028?
It supports Modbus RTU and proprietary Schneider communication protocols via RS-232/RS-485. -
How many I/O points can the controller handle?
It supports up to 128 discrete I/O points with expansion options. -
What programming languages are compatible with the TSX1702028?
It supports Ladder Logic and Instruction List programming. -
What is the typical scan time per instruction?
The controller has a scan time of approximately 0.3–0.5 ms per instruction. -
Can the TSX1702028 be DIN rail mounted?
Yes, it supports both DIN rail and panel mounting configurations. -
What type of memory does the controller use?
It includes 16 KB to 32 KB of user-programmable memory depending on the model configuration. -
Is the TSX1702028 suitable for high vibration environments?
Yes, it is designed to meet IEC and industry standards for vibration and shock resistance. -
Can this controller be used for motion control?
When paired with compatible I/O modules, it can handle basic motion control tasks. -
Does the controller have built-in diagnostics?
Yes, it includes status LEDs and system diagnostics for troubleshooting. -
What is the recommended power supply range for the TSX1702028?
The recommended power supply is nominally 24 VDC, with an operating range of 18–30 VDC.
