Product Introduction

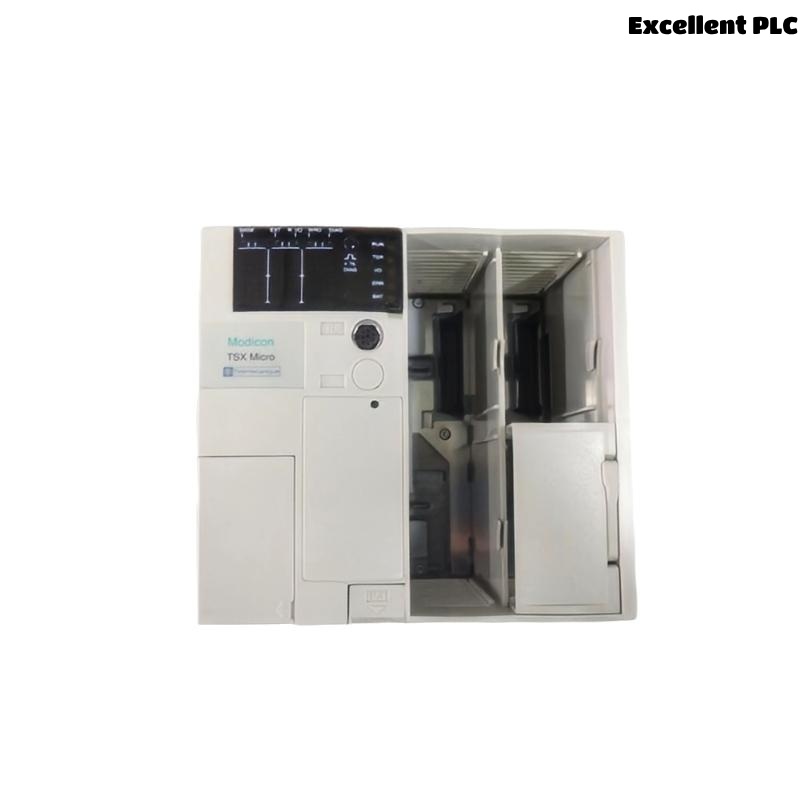

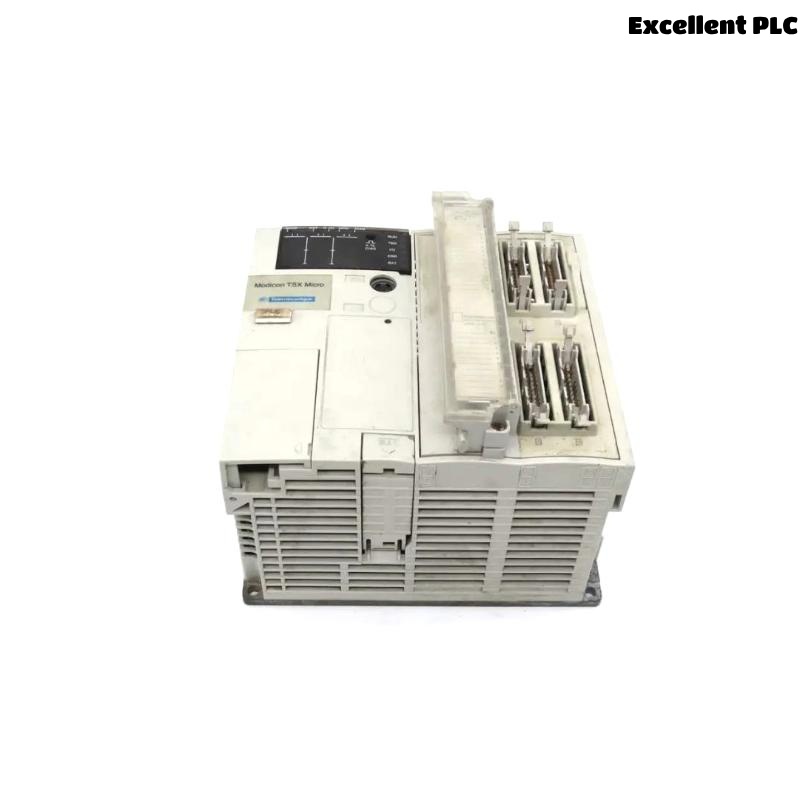

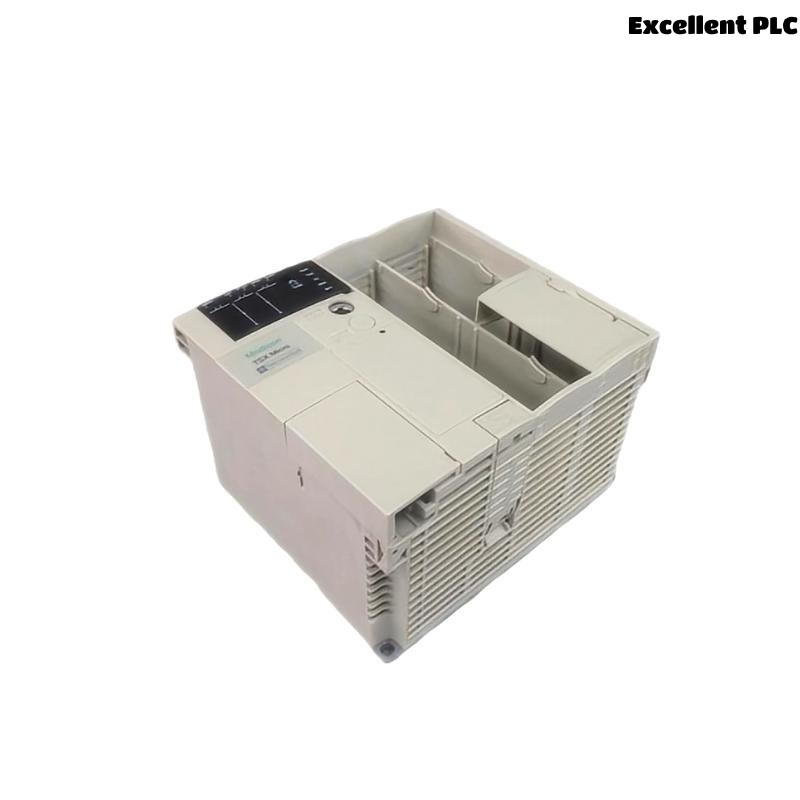

The Schneider TSX3710101 is part of the well-established Modicon TSX Micro series, a family of modular base controllers designed for reliable and efficient industrial automation tasks. This model features a compact design integrating 24 digital inputs and 16 relay outputs within a single base unit, enabling users to implement control logic without requiring numerous expansion modules.
Designed by Schneider Electric, a global leader in automation technology, the TSX3710101 supports 24 VDC power supply and relay-type outputs, making it suitable for controlling devices that require mechanical switching. It is commonly used in industrial environments where space is limited but the need for robust control logic is high. The controller utilizes the UNI-TELWAY communication protocol over RS-485, which allows connection to legacy control networks and devices.
Despite its proven durability and reliability, this controller has been phased out of production in favor of newer platforms. Nonetheless, it remains a key component in many existing systems worldwide, particularly where backward compatibility and long-term stability are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | TSX3710101 |
| Series | Modicon TSX Micro |
| Type | Modular Base Controller |
| Power Supply | 24 VDC |
| Digital Inputs | 24 channels |
| Digital Outputs | 16 relay outputs |
| Output Type | Electromechanical relay |
| Max Switching Current | 0.5 A per channel |
| Communication Protocol | UNI-TELWAY (RS-485) |
| Programming Software | PL7-07, PL7 Micro |
| Mounting | DIN Rail |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 282.7 x 151 x 152 mm |
| Weight | 1.91 kg |
| Certifications | CE, UL, CSA, GOST |
Applications
The TSX3710101 Modular Base Controller is a versatile automation device deployed in numerous industrial and infrastructure sectors, including but not limited to:
-
Manufacturing Automation: Controls assembly lines, packaging machines, and robotic interfaces.
-
Material Handling Systems: Manages conveyor belts, sorting mechanisms, and automated storage.
-
Building Automation: Operates lighting, HVAC systems, and security access points.
-
Water and Wastewater Treatment: Oversees pumps, valves, and filtration units.
-
OEM Equipment: Embedded within machinery requiring compact, reliable control solutions.
-
Energy Management: Monitors and controls electrical loads and switchgear operations.
Advantages
-
High Integration: Combines extensive input/output channels in a single compact unit.
-
Reliable Relay Outputs: Suitable for switching higher power devices and loads.
-
Legacy Protocol Support: Enables seamless integration with existing UNI-TELWAY-based networks.
-
Robust Build: Designed to operate in demanding industrial environments.
-
Ease of Use: Programming with PL7 software offers straightforward setup and maintenance.
-
Reduced Wiring Complexity: Centralized I/O reduces the need for external modules and wiring clutter.
Frequently Asked Questions (FAQ)
-
What programming software is used with the TSX3710101?
It is programmed using Schneider Electric’s PL7-07 or PL7 Micro software. -
Does this controller support Ethernet communications?
No, it only supports the UNI-TELWAY protocol over RS-485. -
What is the maximum current the relay outputs can handle?
Each relay output can switch up to 0.5 A. -
Can this controller be expanded with additional I/O modules?
The base unit is modular but has limited options for expansion. Check compatibility with other TSX Micro modules. -
Is the TSX3710101 still available for purchase new?
No, it is discontinued but can be sourced from industrial surplus and aftermarket suppliers. -
What mounting options are available?
It is designed for DIN rail mounting in standard control cabinets. -
What are the operating temperature limits?
The device operates reliably between 0°C and 60°C. -
Is this controller suitable for safety-critical applications?
It is designed for general automation and control but not certified for safety functions. -
How is the controller powered?
It requires a 24 VDC power supply. -
Are there newer alternatives to this model?
Yes, Schneider Electric offers newer Modicon M221 and M241 controllers with enhanced features.
Related Models (Same Series or Function)
| Model Number | Description |
|---|---|
| TSX3710028DR1 | Smaller base controller with 16 inputs and 12 outputs |
| TSX3710128DT1 | 24V DC input with 12 transistor outputs |
| TSX3710164DR1 | Larger I/O count version with 16 inputs and 64 outputs |
| TSX3721001 | TSX Micro controller with extended programming features |
| TSX3721101 | DC variant with enhanced digital I/O |
| TSX3710204 | Expansion module for additional digital outputs |
