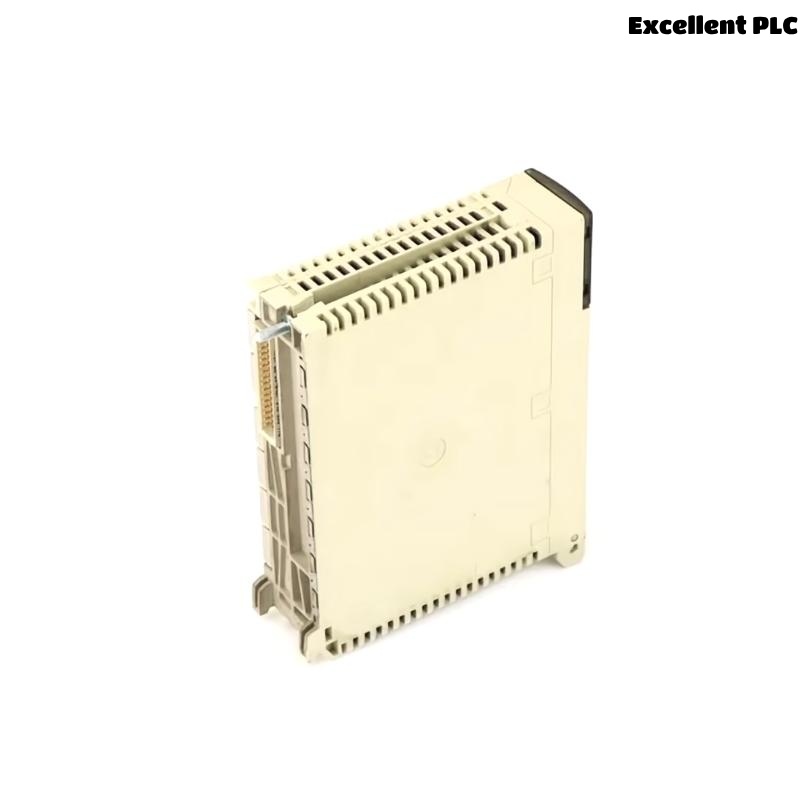

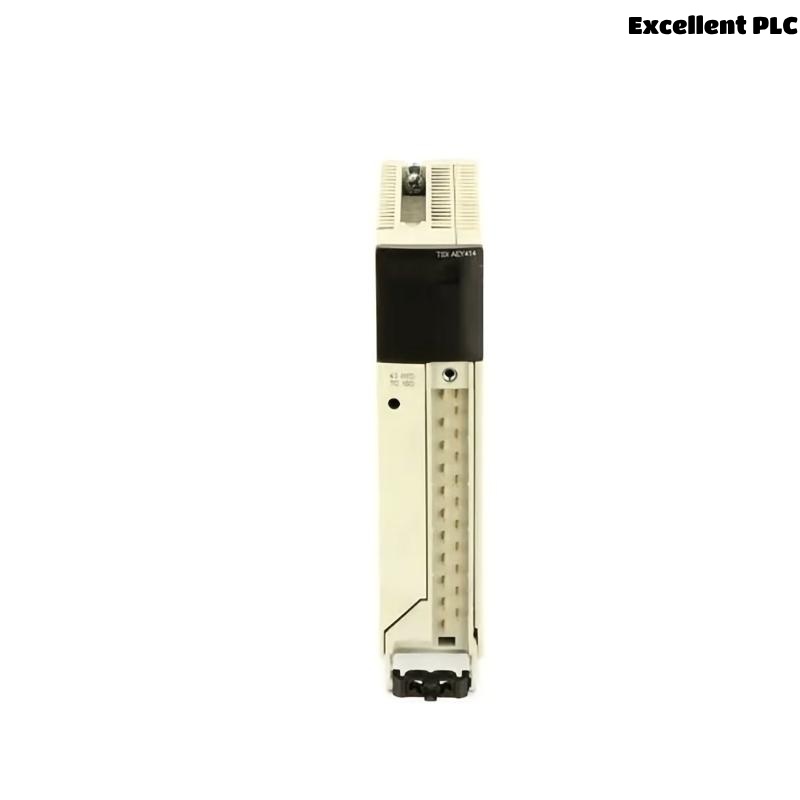

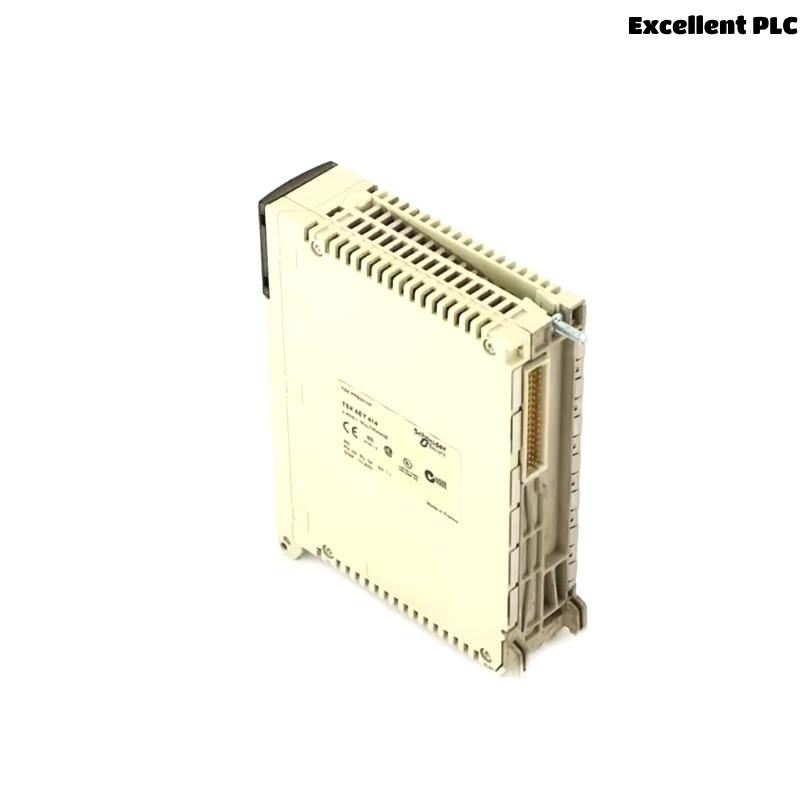

Schneider TSXAEY414 Analog Input Module

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The Schneider TSXAEY414 is a 4-channel analog input module belonging to the Modicon Premium automation platform. This module is specifically designed to interface with analog signals from sensors and transmitters in industrial environments. Supporting high-resolution 16-bit analog-to-digital conversion, it provides precise data collection essential for accurate process control. Built with robustness in mind, the TSXAEY414 is engineered to operate reliably in demanding industrial conditions, ensuring consistent system performance.

---

Technical Specifications

---

Applications

The TSXAEY414 is ideal for industries that rely on precise analog signal processing:

• Manufacturing Plants: For monitoring temperature, pressure, or fluid levels.

• Pharmaceutical and Food Processing: Where precision in measurements is critical to safety and compliance.

• Water Treatment Facilities: Monitoring flow and chemical concentrations.

• HVAC and Building Automation: To ensure accurate climate control.

• Energy and Utility Monitoring: In power generation and distribution environments.

---

Advantages

• High Accuracy: Delivers 16-bit resolution for superior signal fidelity.

• Robust Isolation: Reduces the risk of interference between input channels.

• Wide Compatibility: Accepts both voltage and current input types.

• Modular Integration: Easily fits into existing Modicon Premium PLC setups.

• Durable Design: Built for high-performance operation in harsh industrial environments.

• Ease of Use: Plug-and-play integration within Schneider’s ecosystem.

---

Frequently Asked Questions (FAQ)

1. What types of input signals are supported by TSXAEY414?

   • The module supports both 0–10 VDC and 4–20 mA analog signals.

2. Can this module be used with sensors requiring high resolution?

   • Yes, it provides 16-bit resolution suitable for precision applications.

3. Is the TSXAEY414 compatible with Modicon M340 or M580?

   • No, it is specifically designed for the Modicon Premium series.

4. Does this module provide electrical isolation?

   • Yes, channel-to-bus and channel-to-channel isolation is included.

5. What is the main use of TSXAEY414?

   • It is primarily used for measuring and digitizing analog process signals.

6. What is the power consumption of the module?

   • It consumes approximately 660 mA at 5 VDC.

7. Is the TSXAEY414 hot-swappable?

   • No, modules should only be inserted or removed when the system is powered down.

8. What certifications does it hold?

   • It is CE marked, UL listed, and RoHS compliant.

9. Can it function in high humidity environments?

   • Yes, it is designed to operate in environments with up to 95% non-condensing humidity.

10. Is there a recommended replacement for this module?

• For new systems, Schneider recommends using analog modules from the Modicon M340 or M580 series.

---
