Product Introduction

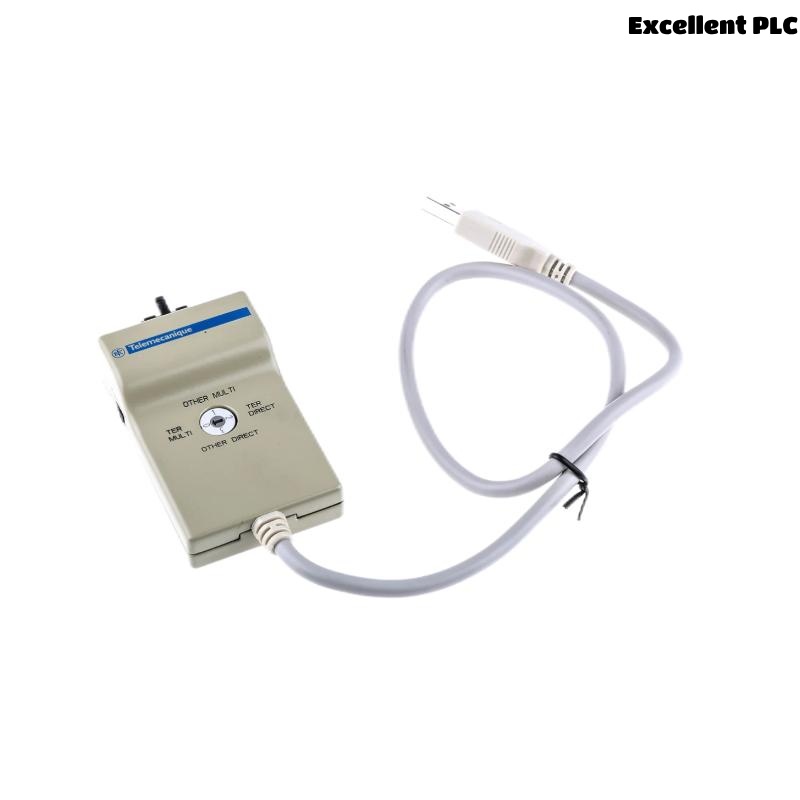

The Schneider TSXCUSB485 is a specialized PC connection cable designed to facilitate communication between a personal computer and Schneider Electric’s Modicon TSX Micro and TSX Premium programmable logic controllers (PLCs). This USB to RS-485 cable provides a reliable and efficient interface for programming, configuration, and monitoring tasks within industrial automation environments.
With a robust design tailored for industrial applications, the TSXCUSB485 simplifies data transfer between devices and supports various Schneider Electric software tools. The cable converts USB signals from the PC to RS-485 serial communication, which is the standard protocol used in many PLC networks, ensuring stable and error-free connections.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | TSXCUSB485 |
| Cable Type | USB to RS-485 Serial Communication |
| USB Connector | USB Type A |
| RS-485 Connector | 2-wire RS-485 (terminal block) |
| Cable Length | 0.4 meters |
| Weight | 0.144 kg |
| Supported Protocols | Modbus RTU, Schneider Electric proprietary protocols |
| Compatible Devices | Modicon TSX Micro and TSX Premium PLCs |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –20°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Compliance | CE, RoHS |
| Shielding | Twisted pair with shielding for noise immunity |
Product Advantages
-
Seamless USB to RS-485 Conversion
Enables modern PCs without serial ports to communicate efficiently with legacy PLCs using RS-485 protocol. -
Compact and Lightweight
The 0.4-meter length is ideal for close-proximity connections, minimizing cable clutter and signal loss. -
Reliable Industrial Communication
Designed to resist electrical noise and interference common in industrial environments, ensuring stable data transmission. -
Easy Installation
Plug-and-play USB interface allows for quick setup without complex driver installation in most operating systems. -
Broad Compatibility
Works with Schneider Electric’s Modicon TSX Micro and Premium series, as well as supporting Modbus RTU. -
Durable Construction
Robust connectors and shielded cabling extend service life under demanding factory conditions.
Applications
The TSXCUSB485 cable is suited for various industrial and automation settings where Schneider PLCs are used:
-
PLC Programming and Configuration
Used by engineers and technicians to program, update, and configure Modicon TSX Micro and Premium PLCs. -
Industrial Automation Maintenance
Facilitates communication for diagnostics and troubleshooting in automated production lines. -
Factory Data Collection
Connects PCs for data acquisition from controllers in manufacturing monitoring systems. -
Remote Equipment Control
Enables secure and reliable connection between a PC and remote control modules via RS-485. -
Educational and Training Environments
Allows students and trainees to interface with industrial PLC systems during hands-on learning. -
System Integration Testing
Used in development and testing phases to ensure proper communication between PLCs and supervisory systems.
Frequently Asked Questions (FAQs)
-
What is the length of the TSXCUSB485 cable?
The cable length is 0.4 meters, suitable for close-range connections. -
Which PLCs are compatible with this cable?
It is compatible with Schneider Electric Modicon TSX Micro and TSX Premium series. -
Does this cable require drivers for Windows?
Most modern Windows versions support the cable without additional drivers; some older systems may need drivers. -
Can this cable be used with USB 3.0 ports?
Yes, the cable is backward compatible and works with USB 2.0 and 3.0 ports. -
Is the cable shielded against industrial noise?
Yes, it has a shielded twisted-pair design to minimize interference. -
What communication protocols does it support?
Supports Modbus RTU and Schneider Electric proprietary protocols. -
Can this cable be used for programming non-Schneider PLCs?
Primarily designed for Schneider PLCs; compatibility with other brands is not guaranteed. -
What is the weight of the cable?
The cable weighs approximately 0.144 kg. -
Is the cable suitable for harsh industrial environments?
Yes, it is designed with industrial-grade shielding and durable connectors. -
How does this cable connect to RS-485 devices?
It connects via a terminal block designed for 2-wire RS-485 communication.
