Product Introduction

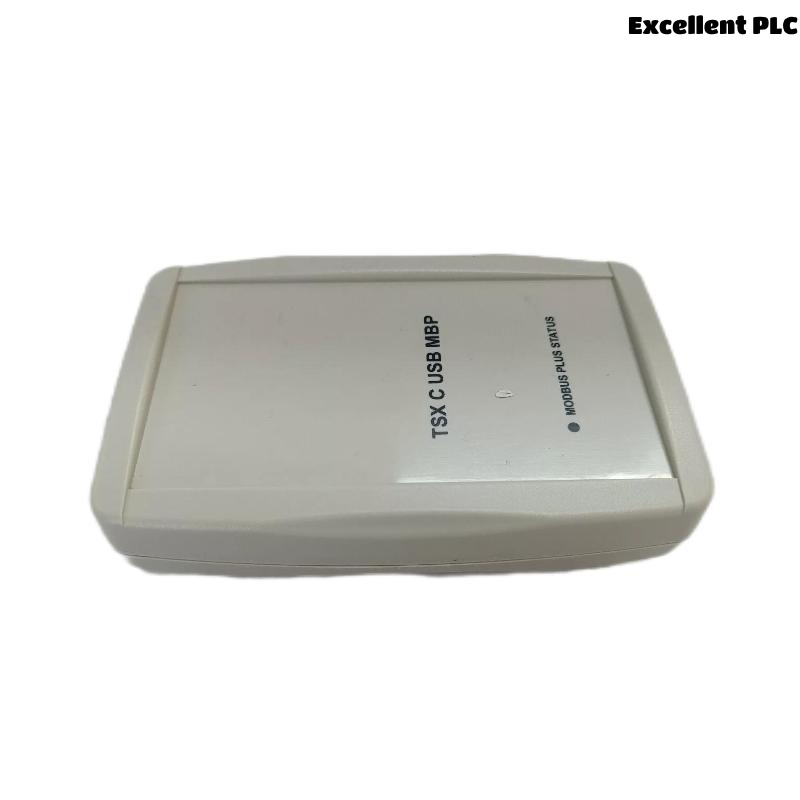

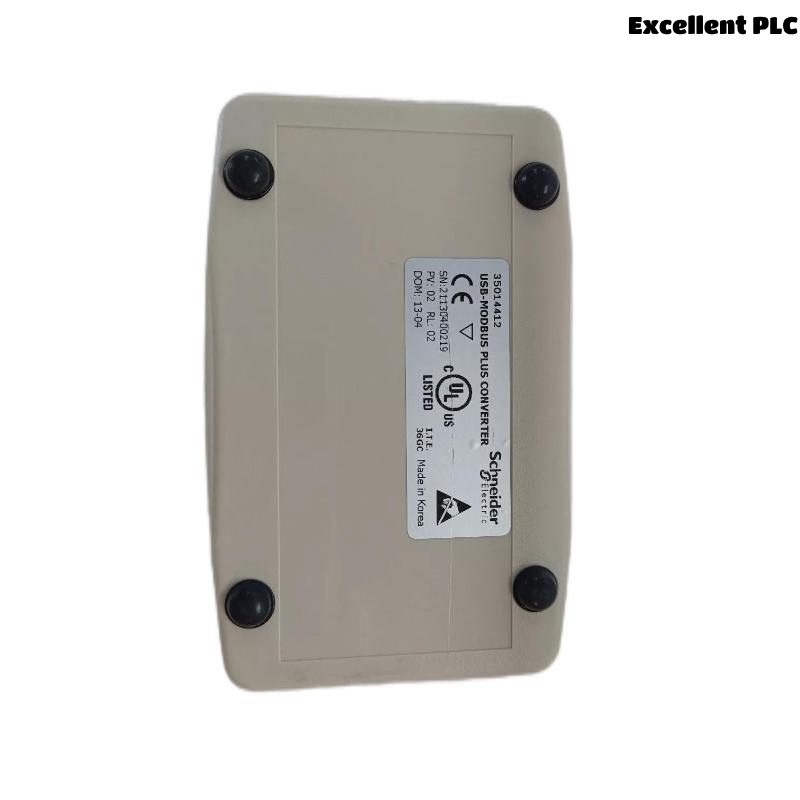

The Schneider TSXCUSBMBP is a reliable and robust Modbus Plus to USB converter designed to enable seamless communication between a PC and Schneider Electric’s Modbus Plus networks. This device acts as a bridge, converting USB signals from modern computers to Modbus Plus protocol signals used in industrial automation systems, facilitating data transfer, programming, diagnostics, and system monitoring.
The TSXCUSBMBP supports efficient and stable connectivity for system integrators and maintenance personnel working with Schneider Electric’s automation equipment. The converter is compact and easy to install, making it an essential tool for interfacing PCs with legacy Modbus Plus networks without requiring a dedicated serial port.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | TSXCUSBMBP |
| Device Type | Modbus Plus to USB Converter |
| USB Connector | USB Type B |
| Modbus Plus Interface | RJ45 connector |
| Package Dimensions | 55 × 142 × 225 mm |
| Weight | 0.315 kg |
| Supported Protocols | Modbus Plus |
| Data Transfer Rate | Up to 1 Mbps |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | –20°C to 70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Supply | Bus-powered via USB |
| Compliance | CE, RoHS |
| LED Indicators | Power, Data Activity |
| Cable Included | USB A to USB B cable |
Product Advantages
-
Efficient Protocol Conversion
Converts USB signals from modern PCs to Modbus Plus protocol, enabling legacy device communication without additional hardware. -
Plug-and-Play Compatibility
Easy to install with most operating systems recognizing the device automatically without complex driver installation. -
Compact and Portable
Small form factor and light weight (0.315 kg) make it ideal for mobile technicians and field service engineers. -
Reliable Industrial Communication
Designed for stable operation in industrial environments, ensuring consistent data transfer and minimal communication errors. -
LED Status Indicators
Provides real-time visual feedback on power and data transmission activity for easier troubleshooting. -
Bus-Powered Operation
Draws power directly from the USB port, eliminating the need for external power adapters or batteries.
Applications
The TSXCUSBMBP converter is widely used across industries and applications where Modbus Plus networks need to interface with PCs:
-
Industrial Automation Programming
Used by engineers to program, configure, and monitor Schneider Electric Modbus Plus devices through PCs. -
System Diagnostics and Troubleshooting
Facilitates communication during fault-finding and system testing in industrial environments. -
Data Acquisition and Logging
Enables PCs to collect real-time data from Modbus Plus networks for analysis and reporting. -
Factory Floor Monitoring
Provides connection for supervisory control and data acquisition (SCADA) systems to monitor PLC networks. -
Maintenance and Upgrades
Essential for updating firmware and performing upgrades on Modbus Plus network devices. -
Training and Education
Allows learners to interface with Modbus Plus equipment using standard PCs in labs and workshops.
Frequently Asked Questions (FAQs)
-
What devices does the TSXCUSBMBP support?
It supports all Schneider Electric devices using the Modbus Plus network protocol. -
What type of USB connector does it use?
It uses a USB Type B connector on the device end and typically connects to a PC’s USB Type A port. -
Is an external power supply needed?
No, the device is powered via the USB connection from the PC. -
What is the maximum data transfer rate?
The converter supports data transfer speeds up to 1 Mbps. -
Can it be used with non-Schneider Modbus Plus networks?
It is primarily designed for Schneider Electric Modbus Plus networks; compatibility with other brands is not guaranteed. -
Does the converter require software drivers?
Most modern operating systems support it natively, but Schneider’s software provides enhanced compatibility. -
What are the physical dimensions of the converter?
The package dimensions are 55 × 142 × 225 mm. -
How heavy is the device?
The device weighs approximately 0.315 kg. -
Does it provide any diagnostic LEDs?
Yes, it includes LED indicators for power and data activity. -
Can it be used for continuous operation in industrial settings?
Yes, it is designed for reliable, continuous use in industrial environments.
