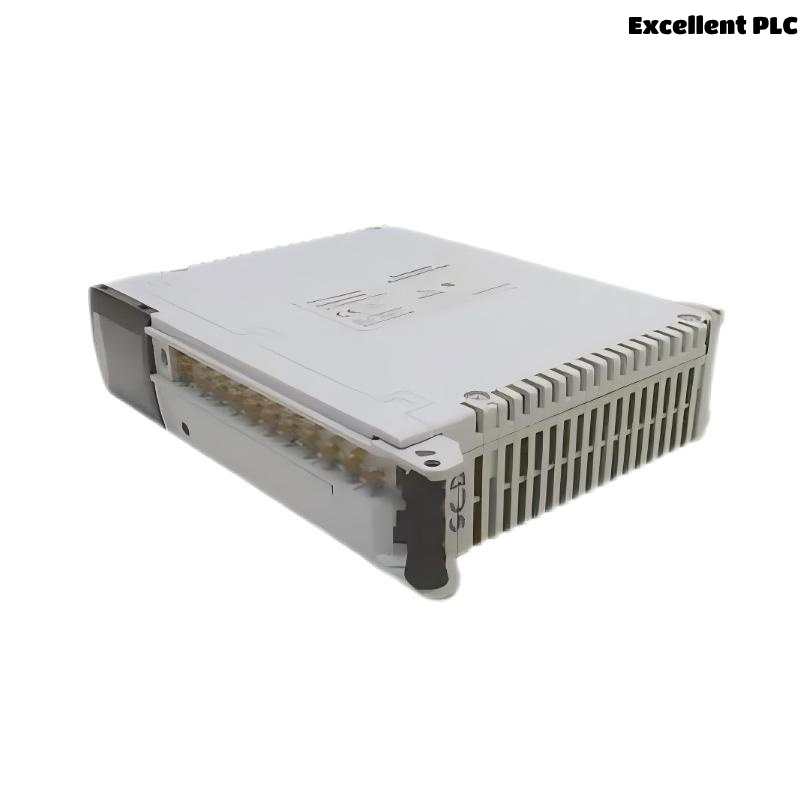

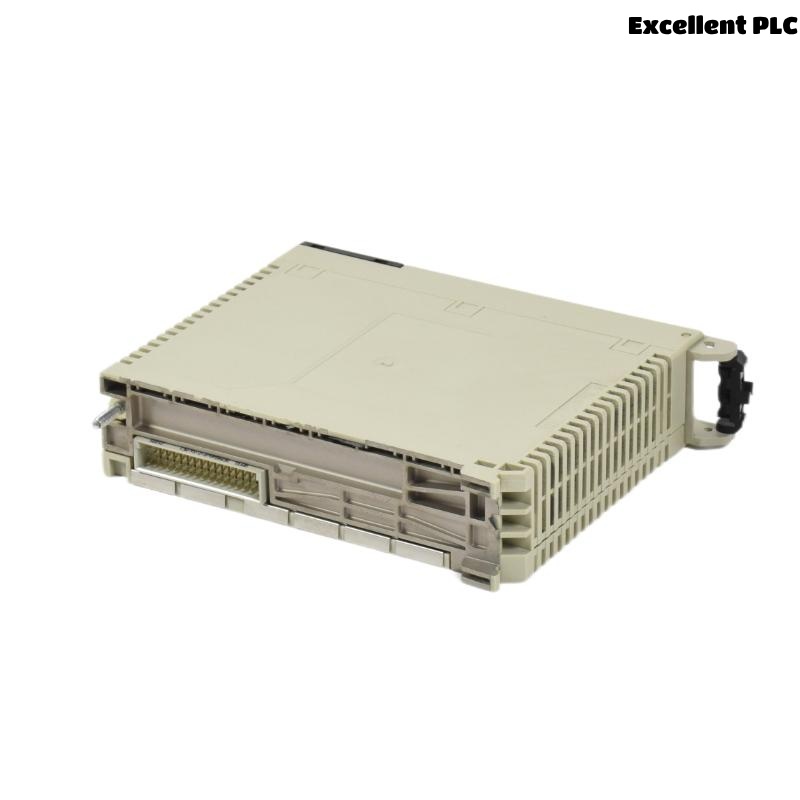

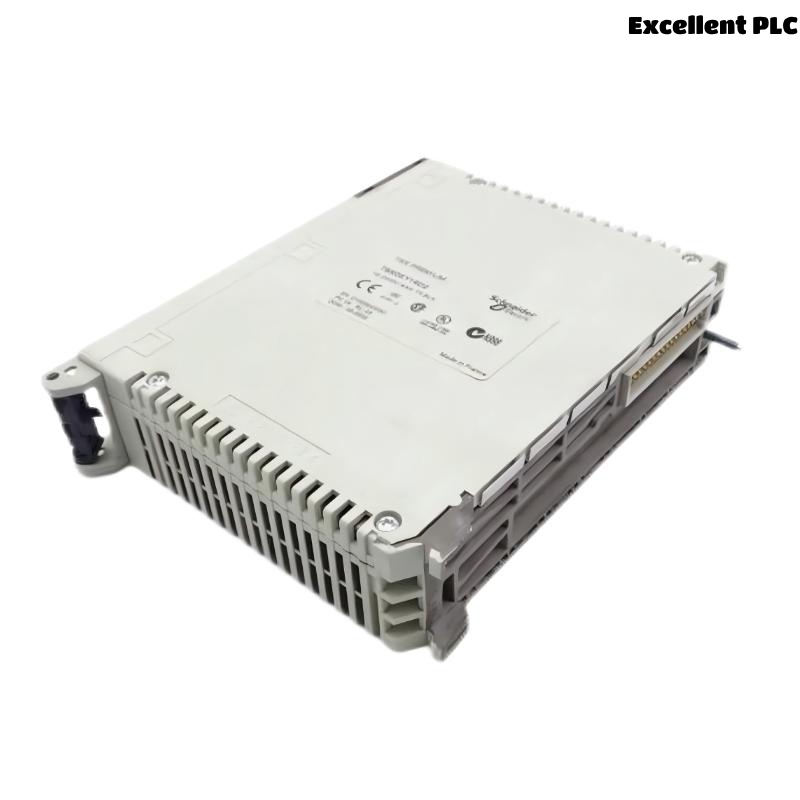

Schneider TSXDEY16D2 Product Introduction
The Schneider TSXDEY16D2 is a high-performance digital output module designed for industrial automation systems. It is part of the Telemecanique Modicon range, known for its reliability and flexibility in control applications. This module is widely used in PLC (Programmable Logic Controller) systems to provide efficient and precise digital signal control.
Product Parameters
Below are the detailed specifications of the TSXDEY16D2 module:
| Parameter | Value |
|---|---|
| Type | Digital Output Module |
| Number of Outputs | 16 (Sourcing) |
| Voltage Rating | 24V DC |
| Current per Output | 0.5A |
| Total Current | 4A (max) |
| Isolation Voltage | 500V AC |
| Response Time | <1ms |
| Connection Type | Screw Clamp Terminal |
| Dimensions | 55 x 180 x 260mm |
| Weight | 0.3 kg |
| Operating Temp. | -25°C to +70°C |
| Protection Class | IP20 |
| Compatibility | Modicon Premium/Quantum PLCs |
Product Applications
The TSXDEY16D2 is suitable for a wide range of industrial automation scenarios, including:
-
Manufacturing Lines: Controlling actuators, solenoids, and relays.
-
Packaging Systems: Managing conveyor belts and sorting mechanisms.
-
Energy Management: Switching circuits in power distribution systems.
-
Building Automation: HVAC and lighting control.
-
Water Treatment: Valve and pump control.
Product Advantages
-
High Reliability: Robust design ensures long-term operation in harsh environments.
-
Fast Response Time: <1ms switching speed for precise control.
-
Easy Integration: Compatible with Modicon Premium/Quantum PLCs.
-
Compact Design: Space-saving dimensions for efficient cabinet installation.
-
Overload Protection: Built-in safeguards to prevent damage from excessive current.
-
Wide Voltage Range: Supports 24V DC industrial standards.
Frequently Asked Questions (FAQ)
-
What is the maximum load current per channel?
Each channel supports up to 0.5A. -
Can this module be used with 12V DC systems?
No, it is designed for 24V DC only. -
Is the TSXDEY16D2 compatible with Modicon M340 PLCs?
No, it is designed for Premium/Quantum series. -
What is the isolation voltage between channels?
500V AC for safe operation in high-noise environments. -
Does it support hot swapping?
No, the module must be powered off before installation/removal. -
What is the operating temperature range?
-25°C to +70°C. -
Can it drive inductive loads like relays?
Yes, but external flyback diodes are recommended. -
What is the expected lifespan?
Over 100,000 switching cycles under normal conditions. -
Is there a diagnostic LED for fault detection?
Yes, each channel has an LED for status indication. -
Where can I find the wiring diagram?
Refer to the Schneider Electric official documentation.
