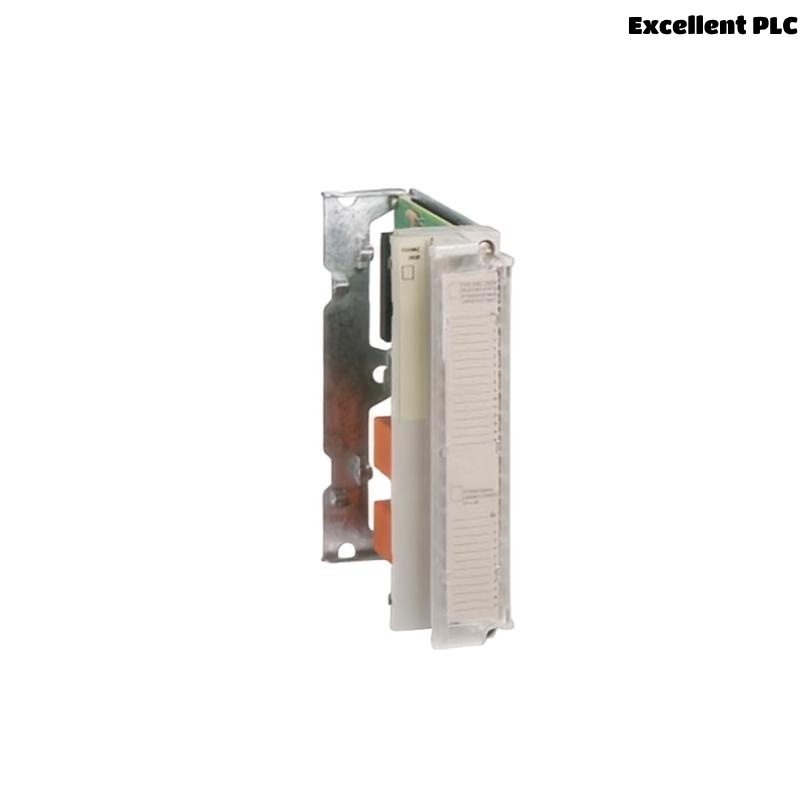

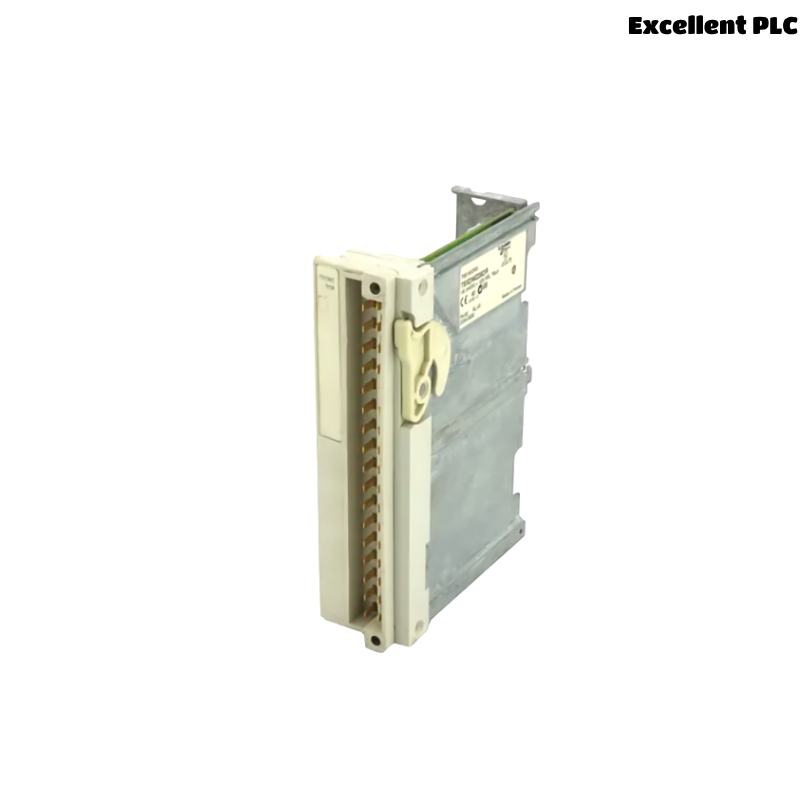

Schneider TSXDMZ16DTK Discrete Solid State I/O Base

Product Introduction

The Schneider TSXDMZ16DTK is a discrete solid-state I/O base module designed for Modicon Premium automation systems. As a part of the TSX series by Schneider Electric, this module is engineered to integrate seamlessly with industrial control architectures requiring both input and output functions in a single, compact unit.

This hybrid module includes 8 discrete digital inputs and 8 discrete digital outputs, making it an efficient solution for applications where both control and monitoring tasks are required at the same point. Designed for 24 VDC operation, it uses transistor-based switching, which provides faster response and higher reliability than mechanical relays.

It is particularly suited for machine automation, packaging, material handling, and other industrial applications requiring precise control logic and rapid switching.

Product Specifications

Product Applications

The TSXDMZ16DTK is widely used in industrial automation systems that require compact and dual-purpose I/O modules. Its blend of inputs and outputs makes it ideal for:

• Automated Assembly Lines
  Control actuators and simultaneously receive sensor feedback.

• Conveyor Control Systems
  Trigger motor relays while monitoring position sensors.

• Packaging Machines
  Precise control of stepper motors and packaging sensors.

• Water/Wastewater Systems
  Activate pump circuits while logging input from flow/level sensors.

• Industrial HVAC Control
  Switch relays and read digital status from temperature switches.

• Robotic Cells
  Enable logic control and signal monitoring in robotic arms or end effectors.

Product Advantages

1. All-in-One Design
   Combines input and output functions in one module to reduce panel space and wiring.

2. Solid-State Outputs
   Transistor-based design ensures faster switching and longer life than mechanical relays.

3. High Signal Density
   16 channels (8 in / 8 out) make it ideal for I/O-intensive applications in compact footprints.

4. Fast Response Times
   Ensures real-time control and responsiveness for critical automation processes.

5. Flexible Mounting Options
   Supports both DIN rail and panel mounting for versatile installation.

6. Integrated Protection
   Offers overload and short-circuit protection, enhancing reliability and equipment safety.

7. Industrial Grade Build
   Operates reliably under a wide range of environmental conditions.

8. Ease of Integration
   Fully compatible with Modicon Premium PLCs and Schneider Electric automation software.

Frequently Asked Questions (FAQ)

1. Q: What is the input/output configuration of TSXDMZ16DTK?
   A: It has 8 digital inputs and 8 solid-state (transistor) outputs.

2. Q: Can I use the module for high-speed switching applications?
   A: Yes, it supports switching times of ≤ 1 ms, making it ideal for fast processes.

3. Q: What type of output does this module use?
   A: It uses source-type solid-state transistor outputs.

4. Q: Is this module suitable for outdoor applications?
   A: No, it is rated IP20 and must be installed inside an enclosure.

5. Q: What connector is used for wiring?
   A: A 20-pin connector is used for both input and output wiring.

6. Q: Does it support both source and sink input types?
   A: Yes, it is compatible with both source and sink digital inputs.

7. Q: What is the total current capacity of the output section?
   A: The maximum total output current is 4 A.

8. Q: Can the module be replaced without shutting down the system?
   A: No, the system should be powered down before replacing the module.

9. Q: Does it have diagnostic LEDs?
   A: Yes, it includes status indicators for inputs and outputs.

10. Q: Is it compatible with Unity Pro or EcoStruxure software?
    A: Yes, it integrates with Schneider’s automation software platforms.
