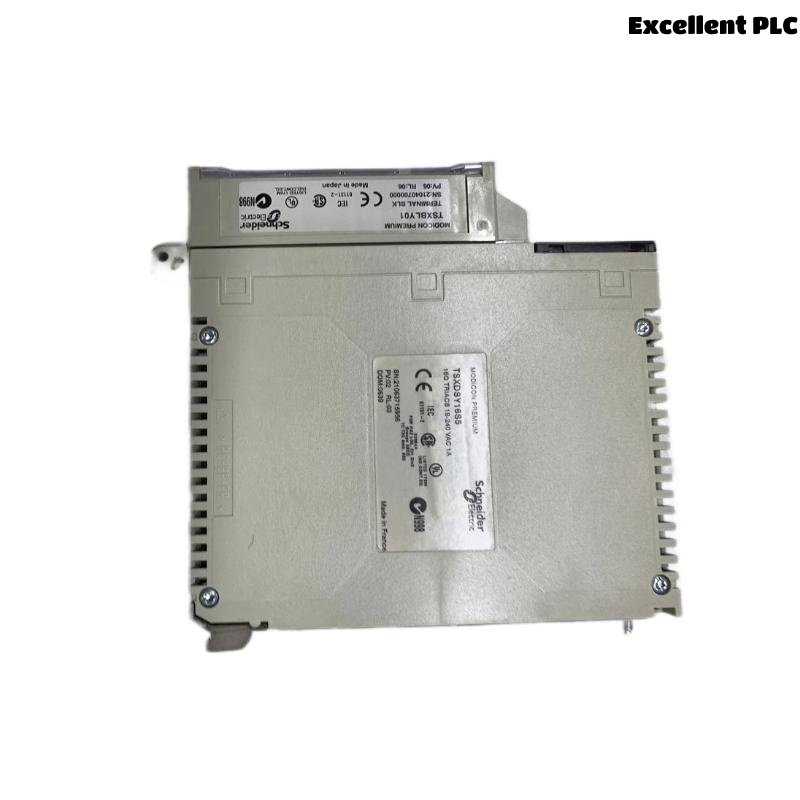

Schneider TSXDSY16S5 Discrete Output Modules

Product Overview

The Schneider Electric TSXDSY16S5 is a discrete output module designed for use with the Modicon Premium automation platform. It features 16 logic output channels designed for sourcing (positive logic) digital signals, delivering reliable control for a wide range of industrial automation systems.

With a 24 VDC output voltage and short-circuit protection, the TSXDSY16S5 offers efficient and safe switching of actuators, indicators, and other field devices. It’s particularly valued for its high-density configuration and robust performance in industrial environments.

Key Features

• 16 sourcing (positive logic) discrete outputs

• Compatible with Modicon Premium PLCs

• 24 VDC output voltage

• Electronic protection against short-circuits

• LED channel status indicators

• Isolated outputs with high electrical noise immunity

• DIN rail or rack-mountable (via backplane)

• Ideal for controlling solenoids, relays, and lamps

Technical Specifications

Industry Applications

• Manufacturing Automation – Actuator and indicator control in production lines

• Food & Beverage – Sanitary machinery automation and bottle/can handling systems

• Packaging Machinery – Controlling diverters, labeling, and cartonizing equipment

• Material Handling – Conveyor and sorting automation

• Building Automation – Lighting, HVAC, and door/gate systems

• Energy and Utilities – Supervisory control of remote equipment and facilities

Product Advantages

• High Channel Density – 16 channels in a compact footprint

• Fast Switching Response – Ensures real-time control precision

• LED Status Feedback – Immediate diagnostics and troubleshooting

• Reliable Output Protection – Protects the module and system wiring

• Industrial-Grade Durability – Operates in harsh environments

• Direct Rack Integration – No external power supply or adapters required

• Standardized Wiring – Simplifies installation and maintenance

• Enhanced Compatibility – Seamless operation with Modicon Premium PLCs

Frequently Asked Questions (FAQ)

1. What is the voltage rating of TSXDSY16S5 outputs?
   Each output is rated for 24 VDC sourcing.

2. How many outputs does the module provide?
   It offers 16 discrete sourcing output channels.

3. Is the TSXDSY16S5 protected against short circuits?
   Yes, it includes internal electronic protection.

4. Can this module be hot-swapped?
   No, the TSXDSY16S5 should be powered down before replacement.

5. What does each LED on the front panel indicate?
   Each LED shows the status (ON/OFF) of the corresponding output channel.

6. Can it drive inductive loads like solenoids and relays?
   Yes, it is suitable for such loads within the 0.5 A/channel limit.

7. Is it compatible with TSX Premium racks?
   Yes, it is fully compatible with TSX Premium system racks and CPUs.

8. Does it support output diagnostics?
   It offers basic LED indication but not advanced diagnostics.

9. What is the maximum current load for the entire module?
   The total load should not exceed 8 A across all channels.

10. Can this module be used in a redundant system?
    While not redundant by itself, it can be part of a redundant control system architecture.
