Product Overview

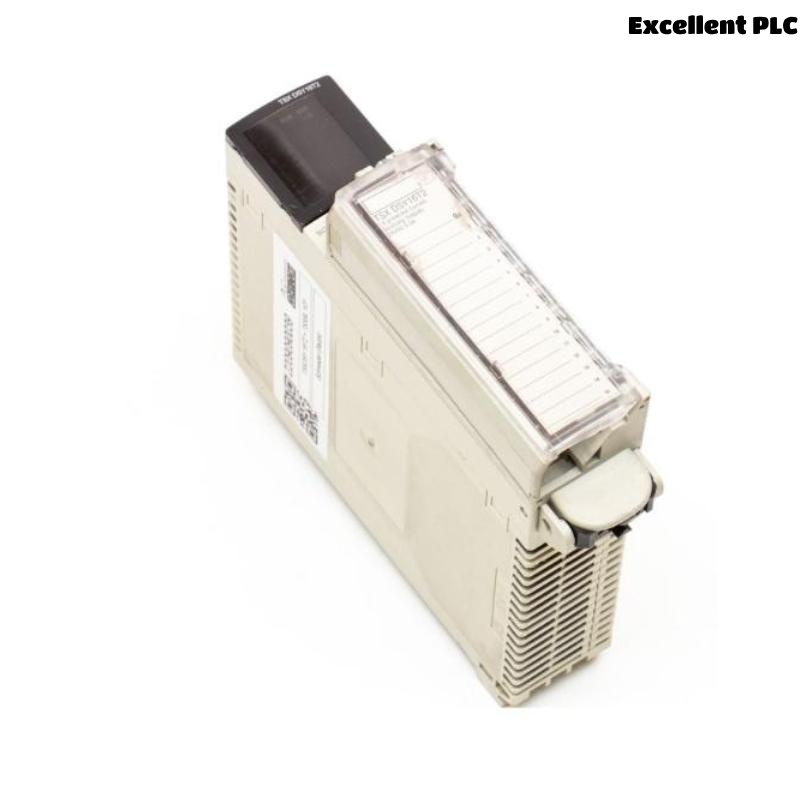

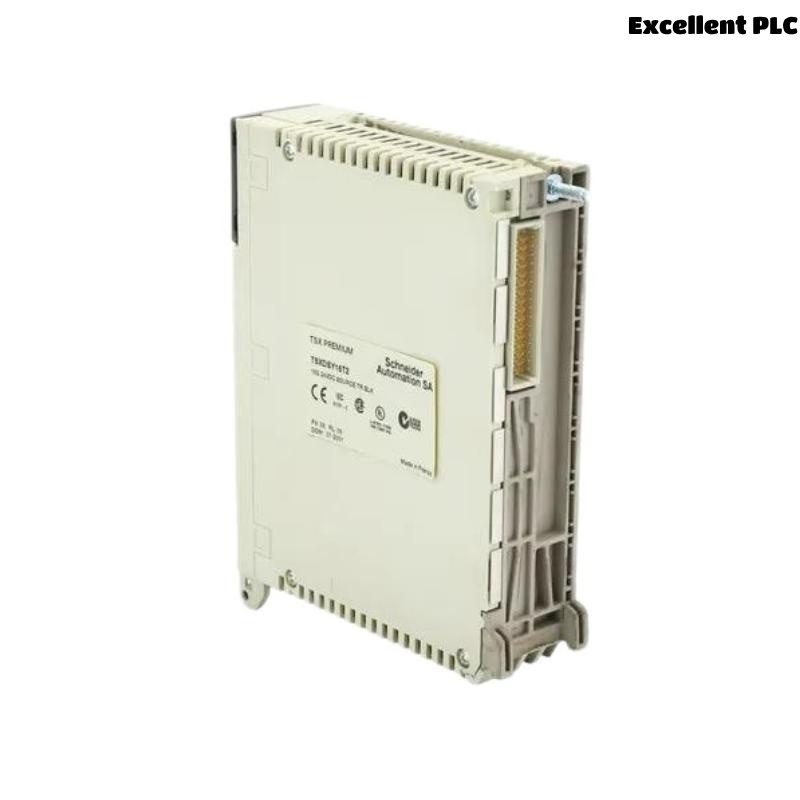

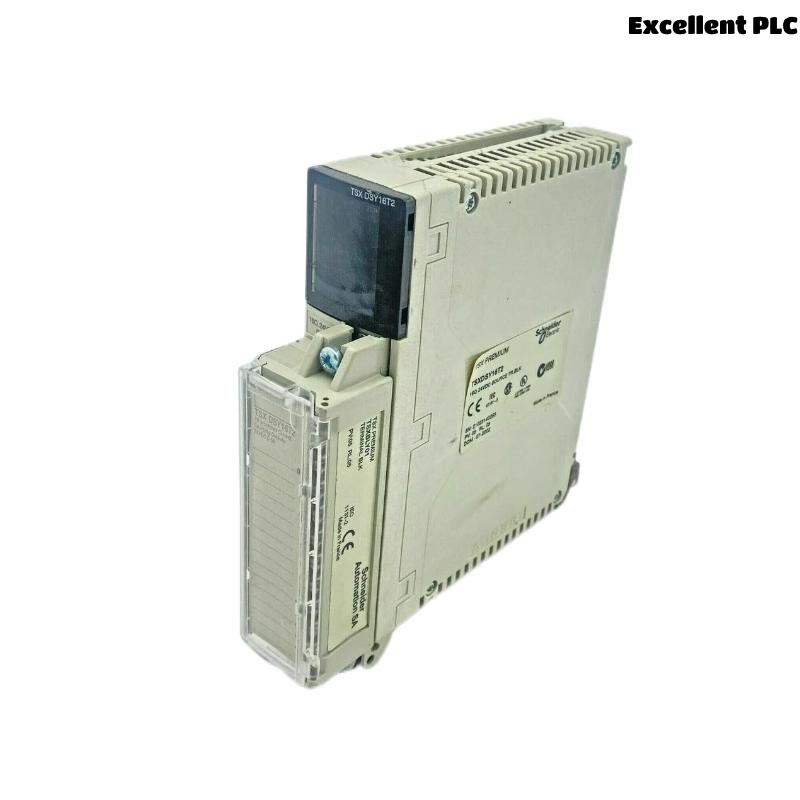

The Schneider TSXDSY16T2 is a 16-channel digital transistor output module designed for use in the Modicon Premium PLC automation platform. It supports sourcing (positive logic) 24 VDC outputs, suitable for a wide range of industrial control systems. Designed for high-speed switching, the TSXDSY16T2 is ideal for real-time control of discrete devices such as relays, actuators, and lamps.
This module features integrated short-circuit protection, channel status LEDs, and strong immunity to electrical interference, making it a robust and reliable solution for industrial environments.
Key Features
-
16 transistor-type sourcing (positive logic) outputs
-
Designed for 24 VDC operation
-
High-speed switching for precise real-time control
-
Individual LED indicators for each output
-
Electronic overload and short-circuit protection
-
Modular integration with Modicon Premium racks
-
Enhanced noise immunity and signal isolation
-
Wide temperature range operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TSXDSY16T2 |
| Product Type | Discrete Output Module |
| Number of Channels | 16 outputs |
| Output Type | Transistor (sourcing) |
| Output Voltage | 24 VDC |
| Max Current per Output | 0.5 A |
| Max Module Load | 8 A total |
| Output Protection | Electronic short-circuit and overload |
| Response Time | 0.2 ms ON / 0.2 ms OFF |
| Output State Indicators | LED per channel |
| Isolation | 500 V between output groups and logic |
| Backplane Current Draw | 70 mA |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 55 × 180 × 260 mm |
| Weight | 0.435 kg |
| Certifications | CE, UL, CSA |
Industry Applications
-
Factory Automation – Discrete control in assembly and processing lines
-
Logistics & Conveying – Controlling actuators, gates, and sorting systems
-
Water and Wastewater – Monitoring valves and motorized components
-
Pharmaceuticals – Real-time I/O in packaging and batching systems
-
HVAC Control – Operating fans, dampers, and switches
-
Food and Beverage – High-speed packaging and filling line automation
Product Advantages
-
Fast Switching Time – Ideal for high-speed discrete control applications
-
Reliable Protection – Short-circuit and overload safeguards enhance longevity
-
Integrated Diagnostics – Channel LED indicators simplify troubleshooting
-
Compact Format – Fits into Modicon Premium racks without additional wiring
-
High Electrical Isolation – Ensures safe and stable operation in noisy environments
-
Modular Compatibility – Fully compatible with Modicon Premium CPUs and I/O bases
-
Industrial-Grade Construction – Withstands harsh industrial settings
Frequently Asked Questions (FAQ)
-
What type of outputs does TSXDSY16T2 offer?
It provides 16 sourcing (positive logic) transistor outputs. -
What is the rated voltage for each output?
Each output is designed for 24 VDC operation. -
Is the module protected from short circuits?
Yes, it includes internal electronic protection for each channel. -
What kind of devices can I control with this module?
You can control relays, solenoids, lamps, and other DC-powered actuators. -
How can I monitor output status?
Each channel has a corresponding LED indicator. -
Can this module be hot-swapped?
No, always power down the system before removing or inserting the module. -
Is it compatible with older TSX Premium systems?
Yes, it’s fully compatible with Modicon Premium racks and CPUs. -
What is the switching speed?
The module offers fast response: 0.2 ms ON / 0.2 ms OFF. -
How is it mounted in the system?
It is inserted into the Modicon Premium rack and powered through the backplane. -
What certifications does this module meet?
CE, UL, and CSA certified for global industrial use.
