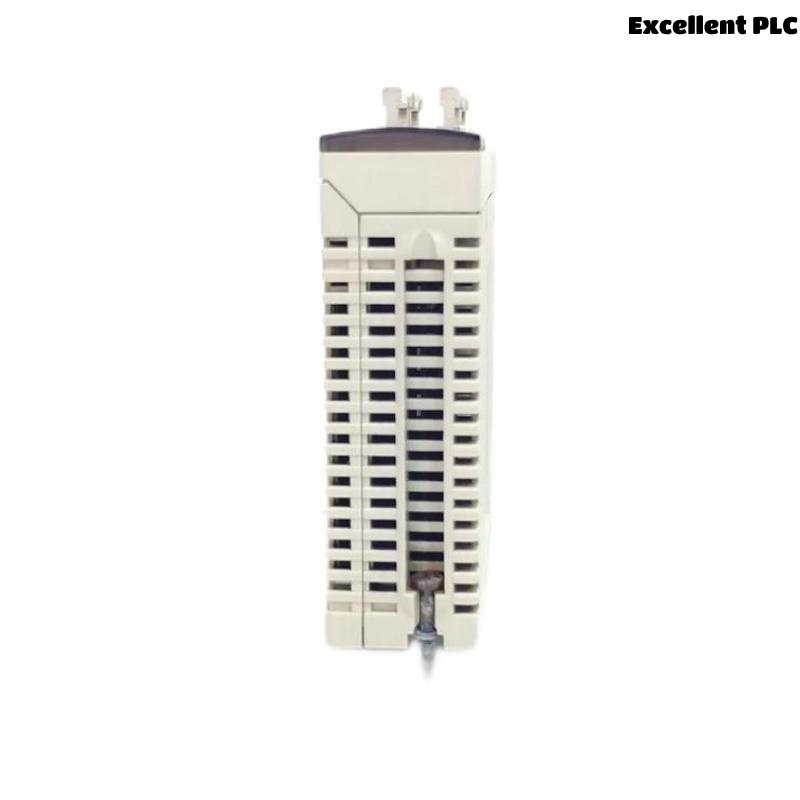

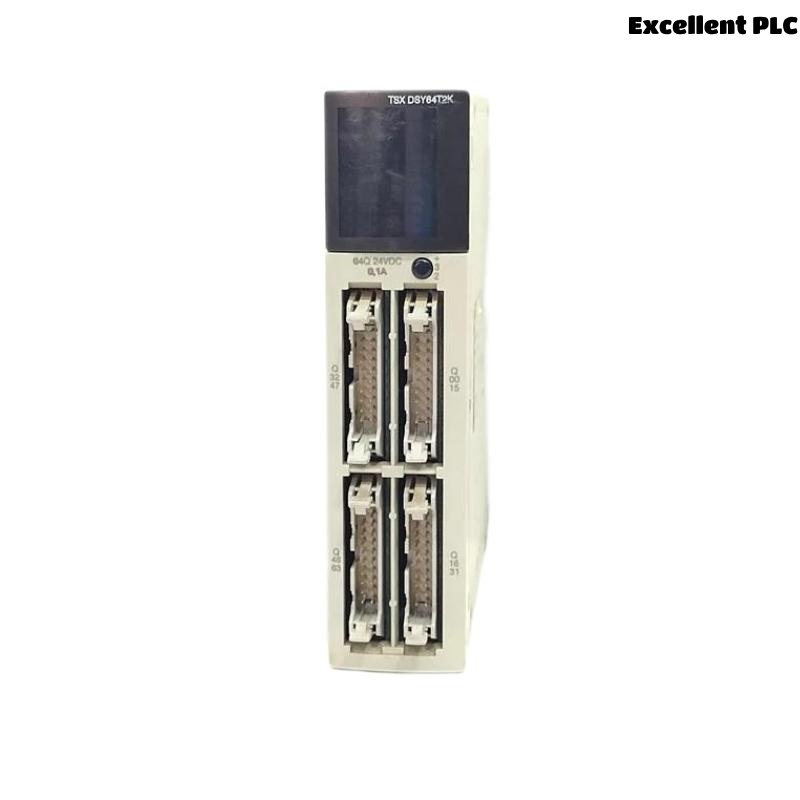

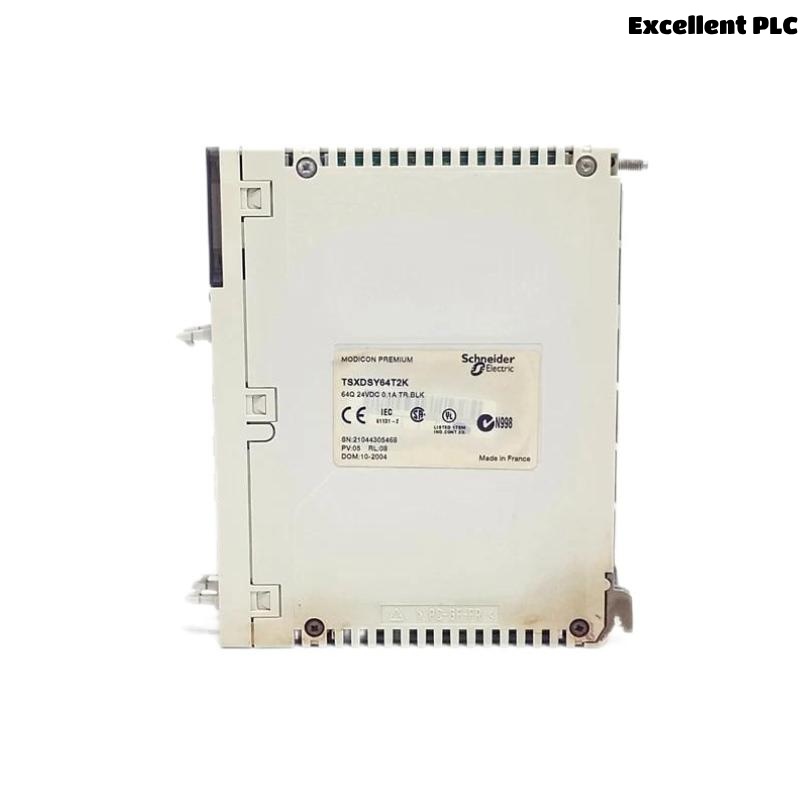

Schneider TSXDSY64T2K Product Introduction

---

The Schneider TSXDSY64T2K is a high-performance digital output module designed for industrial automation applications. It is part of Schneider Electric’s extensive range of modular I/O solutions, known for their reliability, flexibility, and ease of integration. This module is ideal for controlling actuators, solenoids, and other digital devices in harsh industrial environments.

---

Product Parameters

---

---

Product Applications

---

The TSXDSY64T2K is widely used in industrial automation systems where high-density digital outputs are required. Key applications include:

• Manufacturing Lines: Controlling conveyor belts, robotic arms, and assembly machines.

• Material Handling: Managing solenoid valves, pneumatic systems, and sorting mechanisms.

• Packaging Systems: Actuating sealing, labeling, and filling devices.

• Energy Management: Monitoring and controlling power distribution units.

• Water Treatment: Operating pumps, valves, and filtration systems.

---

Product Advantages

---

1. High Density: 64 outputs in a compact form factor save space in control cabinets.

2. Robust Design: Built to withstand industrial environments with wide temperature tolerance.

3. Easy Integration: Compatible with Schneider’s Modicon PLCs for seamless system expansion.

4. Flexible Output Configuration: Supports both sink and source wiring.

5. Low Power Consumption: Energy-efficient design reduces operational costs.

6. Diagnostic Features: LED indicators for quick fault detection and troubleshooting.

---

Frequently Asked Questions (FAQ)

---

1. What PLCs are compatible with the TSXDSY64T2K?
   It is designed for use with Schneider Modicon M340 and M580 PLCs.

2. What is the maximum load current per channel?
   Each channel supports up to 0.5A, with a total module current of 8A.

3. Can this module be used in high-vibration environments?
   Yes, it is built to withstand industrial vibrations and shocks.

4. What is the protection rating of the module?
   It has an IP20 rating, suitable for panel-mounted installations.

5. How do I troubleshoot a faulty output?
   Use the LED indicators to identify the problematic channel and check wiring/load conditions.

6. Is hot-swapping supported?
   No, the module must be powered down before installation or removal.

7. What is the operating voltage range?
   It operates at 24V DC (±10%).

8. Can I mix sink and source outputs?
   No, the entire module must be configured as either sink or source.

9. What is the lifespan of the module?
   Typically 10+ years under normal operating conditions.

10. Where can I find the wiring diagram?
    Refer to the product manual or Schneider Electric’s official website.

---
