Product Introduction

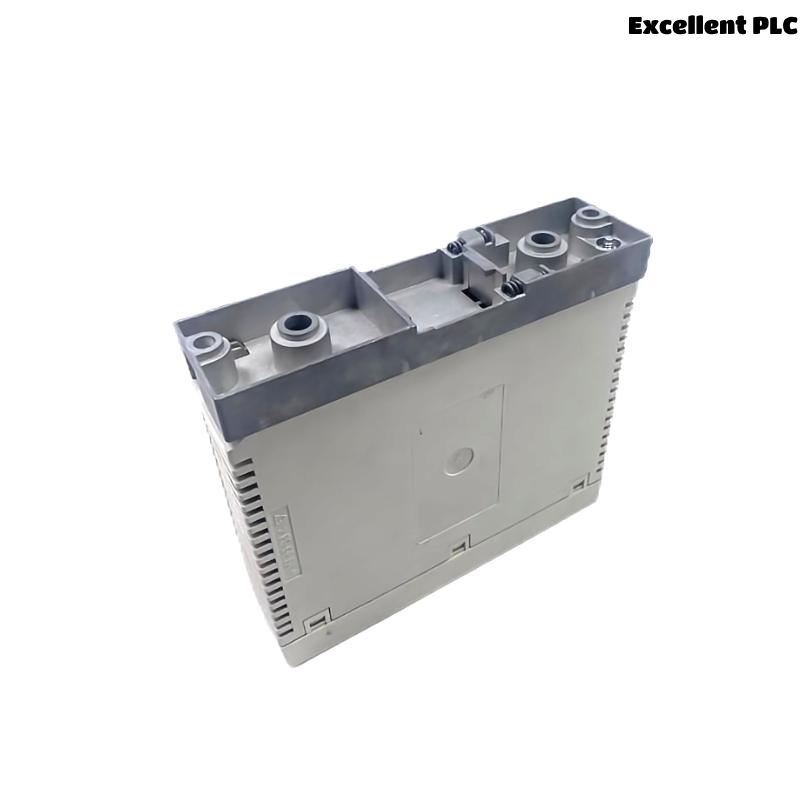

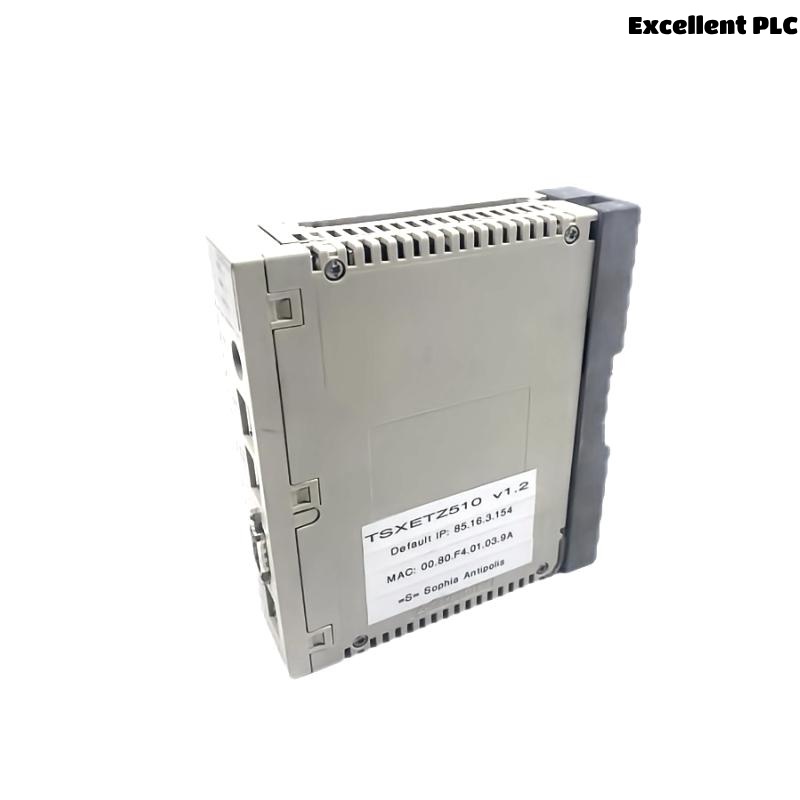

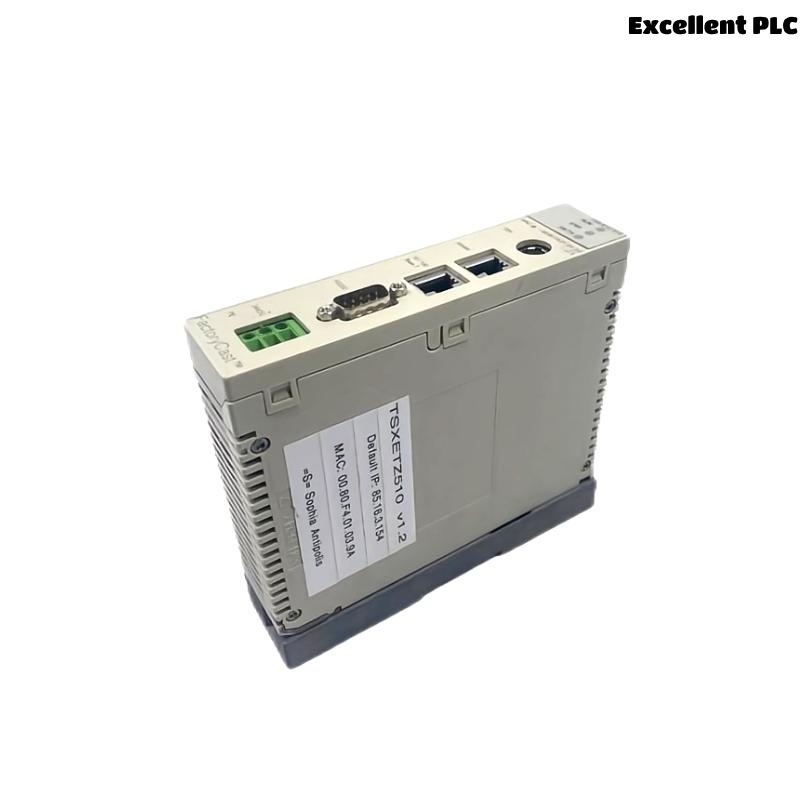

The Schneider TSXETZ510 Ethernet Module is a high-performance module designed to provide seamless communication in industrial environments. It is part of the Modicon range of programmable logic controllers (PLCs) from Schneider Electric. The TSXETZ510 module allows for easy integration of Ethernet networks with automation systems, ensuring high-speed data transfer and enhanced connectivity. The module is primarily used in industrial applications where real-time communication and system efficiency are paramount.

This module connects to the Modicon Premium PLC and offers a versatile solution for Ethernet-based communications. It supports multiple protocols such as TCP/IP, UDP, and FTP, enabling a wide range of industrial communication solutions. Whether you’re controlling machinery, monitoring systems, or implementing complex automation solutions, the TSXETZ510 ensures reliable communication.

---

Product Specifications

---

Product Applications

The Schneider TSXETZ510 Ethernet Module is designed to integrate industrial systems with high-speed Ethernet networks. Below are some of its key applications:

• Industrial Automation Systems: Used to connect PLCs and other control systems to Ethernet networks for monitoring and control.

• Remote Monitoring: Enables real-time monitoring of industrial equipment through Ethernet communication.

• Machine-to-Machine (M2M) Communication: Facilitates data exchange between machines in a factory environment, optimizing the production process.

• Data Acquisition: Collects and transmits data from field devices to control systems for analysis and decision-making.

• Building Automation: Can be used in large buildings for managing lighting, HVAC systems, and security.

---

Product Advantages

1. High-Speed Data Transfer: The TSXETZ510 offers fast data transmission rates of 10/100 Mbps, which ensures minimal latency and faster communication between systems.

2. Compatibility: It is fully compatible with the Modicon Premium PLC range and other Schneider Electric systems, offering seamless integration.

3. Flexibility: Supports multiple Ethernet communication protocols, making it adaptable to a wide range of industrial applications.

4. Compact and Lightweight: With its small dimensions (39.83 x 151.5 x 116.7 mm) and weight of just 0.28 kg, the TSXETZ510 can easily fit into various industrial setups.

5. Rugged Design: Built to withstand challenging industrial environments with a wide operating temperature range and robust design.

6. Ease of Installation: The module can be quickly mounted on a DIN rail, simplifying installation and maintenance.

7. Energy Efficiency: Operates with a low 24 V DC power supply, ensuring energy savings in industrial operations.

8. Future-Proofing: The module supports both IPv4 and IPv6, ensuring it remains compatible with future network upgrades.

---

Frequently Asked Questions (FAQ)

1. What is the TSXETZ510 Ethernet Module used for?

   • It is used to provide Ethernet communication for Modicon Premium PLCs, allowing integration with industrial Ethernet networks.

2. Which communication protocols are supported by this module?

   • The module supports TCP/IP, UDP, and FTP protocols for robust and versatile communication.

3. What is the power supply requirement for the TSXETZ510?

   • The module requires a 24 V DC power supply for operation.

4. Can this module be used with other Schneider Electric PLCs?

   • The TSXETZ510 is primarily designed for use with the Modicon Premium PLC. Compatibility with other models may vary.

5. What is the operating temperature range of the TSXETZ510?

   • The module can operate in temperatures ranging from -20°C to 70°C.

6. How does the TSXETZ510 support real-time communication?

   • It supports high-speed data transfer rates (10/100 Mbps), ensuring minimal latency for real-time communication.

7. Can the TSXETZ510 be mounted on a panel or DIN rail?

   • Yes, the module is designed to be mounted on a DIN rail, making installation quick and efficient.

8. What is the size of the TSXETZ510 module?

   • The module has dimensions of 39.83 x 151.5 x 116.7 mm.

9. Is the TSXETZ510 compatible with IPv6?

   • Yes, the module supports both IPv4 and IPv6 communication protocols.

10. What is the weight of the TSXETZ510 module?

    • The weight of the module is 0.28 kg.

---
