Product Description

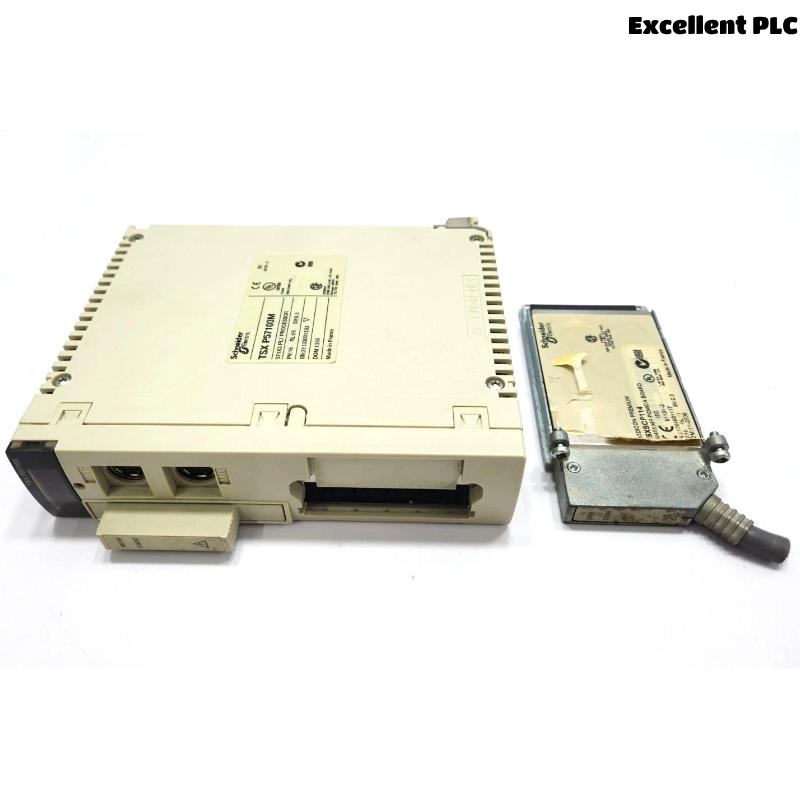

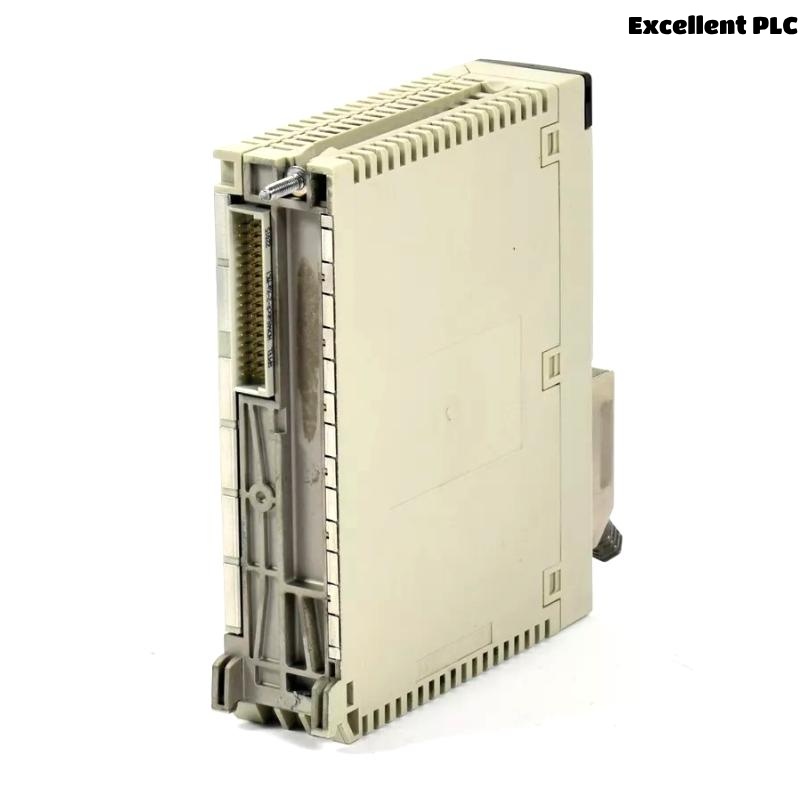

The Schneider TSXP57103M is a high-performance Single-Format PL7 I/O Processor, designed as part of the Modicon Premium Automation platform. This processor module is developed to meet rigorous industrial automation requirements, supporting complex control tasks and offering robust communication capabilities. The TSXP57103M supports up to 32 slots and is compatible with a wide range of discrete and analog I/O modules, making it highly flexible for various applications. It features integrated non-isolated serial links, multiple memory options, fast execution times, and supports advanced programming using the PL7 Junior/Pro software suite. Its rugged build and extensive certification portfolio make it suitable for deployment in demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Series | Modicon Premium Automation Platform |
| Product Type | Single-format PL7 Processor |
| Software Designation | PL7 Junior/Pro |
| Number of Racks | 2 (12 slots), 4 (4/6/8 slots) |
| Number of Slots | 16, 24, 32 |
| Discrete I/O Processor Capacity | 512 I/O |
| Analogue I/O Processor Capacity | 24 I/O |
| Application Specific Channels | 8 |
| Integrated Connection Type | Non-isolated serial link (2 female mini DIN, 19.2 kbit/s) |
| Communication Module Processor Capacity | 1 network module, 2 AS-Interface bus, 1 CANopen |
| Internal RAM | 32 Kwords (w/ or w/o PCMCIA card) |
| PCMCIA Card Storage | 128 Kwords (data), 64 Kwords (program) |
| Max Size of Object Areas | 30.5% MWi internal words, 32% KWi constant words, 4096 %Mi internal bits |
| Application Structure | 1 master task, 1 fast task, 32 event tasks |
| Execution Time (Boolean, no PCMCIA) | 0.5 µs |
| Execution Time (Boolean, w/ PCMCIA) | 0.6 µs |
| Execution Time (Word/Fixed-point) | 0.62 µs (no PCMCIA), 0.87 µs (w/ PCMCIA) |
| Execution Time (Floating Point) | 44 µs (both with and without PCMCIA) |
| Instructions per ms (Boolean w/ PCMCIA) | 1.18 Kinst/ms |
| Instructions per ms (Boolean no PCMCIA) | 1.52 Kinst/ms |
| System Overhead (Fast/Master Task) | 0.8 ms / 1.5 ms |
| Local Signalling | RUN (green), I/O fault (red), ERR (red), TER (yellow) LEDs |
| Current Consumption | 440 mA at 5 V DC |
| Module Format | Standard |
| Dimensions (W x H x D) | 55 x 180 x 260 mm |
| Net Weight | 0.38 kg |
| Protection Rating | IP20 |
| Pollution Degree | 2 |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -25 to 70 °C (-13 to 158 °F) |
| Relative Humidity (Operation/Storage) | 10–95% / 5–95% (non-condensing) |
| Operating Altitude | 0–2000 m |
| Protective Treatment | TC |
| Certifications | CE, DNV, GL, RMRS, BV, ABS, LR, RINA |
| Compliance Standards | UL 508, CSA C22.2, IEC 61131-2, various EEC |
Product Applications
-
Industrial process automation in manufacturing, water treatment, and energy sectors.
-
Distributed control systems in oil & gas, chemicals, and pharmaceuticals.
-
High-speed logic control for packaging lines and material handling systems.
-
Infrastructure automation for transport, building, and utility management.
-
Integration with SCADA, MES, and other supervisory systems via communication modules.
Product Advantages
-
Versatility: Supports a wide range of I/O and communication modules, allowing adaptation to diverse applications.
-
High Performance: Fast execution times and multi-tasking capabilities increase process throughput and reliability.
-
Robust Memory Options: Expandable memory with PCMCIA cards supports large programs and historical data storage.
-
Integrated Diagnostics: LED signaling for system and I/O faults enables quick identification and troubleshooting.
-
Industrial Certifications: Certified for use in critical environments, ensuring compliance with international standards.
-
Environmental Resistance: Operates across a wide temperature range, high humidity, and moderate altitudes, suitable for harsh industrial sites.
-
Modular Design: Scalable architecture simplifies system expansion and maintenance.
-
Long Product Lifecycle: Designed for longevity and stable supply, supporting long-term industrial investment.
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the TSXP57103M processor?
A1: The TSXP57103M is engineered for controlling and managing automation processes within Modicon Premium PLC systems, providing fast, reliable, and programmable logic processing.
Q2: How much memory does the TSXP57103M support?
A2: It supports 32 Kwords of internal RAM, with the option to add up to 128 Kwords for data storage and 64 Kwords for program storage using PCMCIA cards.
Q3: What are the I/O handling capabilities of this processor?
A3: It can handle up to 512 discrete I/O points and 24 analog I/O points, with support for up to 8 application-specific channels.
Q4: Which programming software is compatible with this model?
A4: The processor is compatible with PL7 Junior and PL7 Pro software platforms for logic programming and configuration.
Q5: What communication interfaces are available on this processor?
A5: It provides non-isolated serial links (2 female mini DIN), and supports network, AS-Interface, and CANopen modules.
Q6: Can the processor be used in hazardous environments?
A6: Yes, it is certified for industrial standards including CSA, UL, and marine certifications, suitable for various regulated environments.
Q7: What diagnostic features are included?
A7: Diagnostic LEDs for RUN, ERR, I/O faults, and terminal activity provide clear operational and fault status at a glance.
Q8: What is the physical size and weight of the TSXP57103M?
A8: The module measures 55 x 180 x 260 mm and weighs 0.38 kg, allowing for easy installation in standard racks.
Q9: How is system reliability ensured?
A9: With redundant certifications, robust construction, and a wide operating temperature range, the processor ensures continuous and reliable operation.
Q10: What expansion options does the TSXP57103M offer?
A10: It supports multiple racks and a large number of I/O and communication modules, enabling easy system expansion.
