Product Introduction

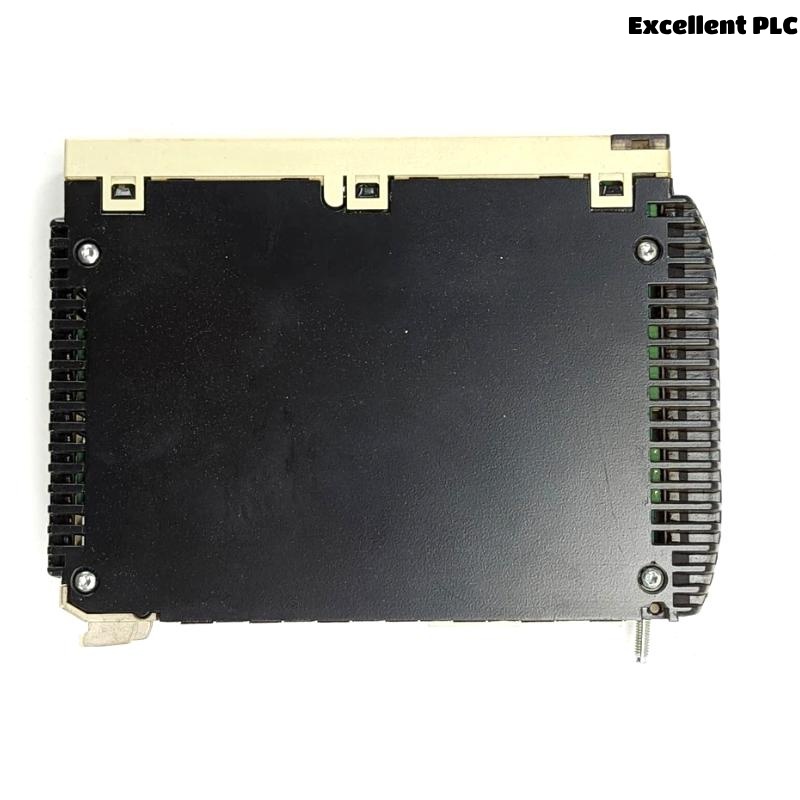

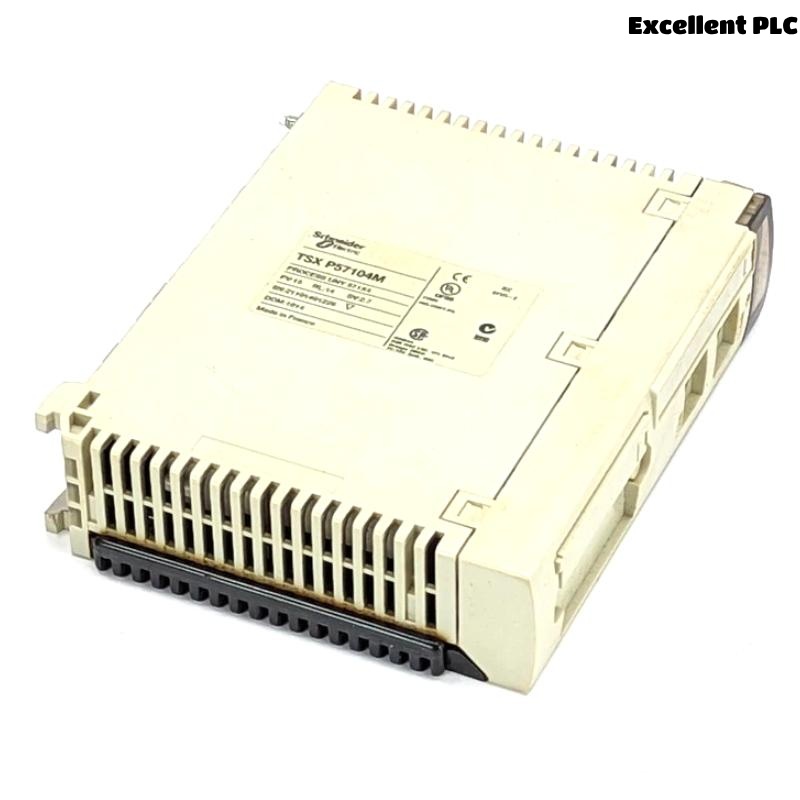

The Schneider Electric TSXP57104M Unity Processor is a high-performance CPU module designed for use within the Modicon Premium Automation platform. Developed to manage demanding industrial control applications, the TSXP57104M provides robust processing power, superior memory capabilities, and flexible integration options for both discrete and analogue processes. Supporting the Unity Pro software environment, this processor enables advanced programming, fast execution, and seamless communication across automation networks. The module is engineered to deliver outstanding reliability and continuity in mission-critical control systems, making it a preferred choice for manufacturing plants, infrastructure, and process industries.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Series | Modicon Premium |
| Product Type | Unity Processor |
| Software Platform | Unity Pro |
| Supported Racks | 2 × 12 slots, 4 × 4/6/8 slots |
| Number of Slots | 16, 24, 32 |
| Discrete I/O Capacity | 512 I/O |
| Analogue I/O Capacity | 24 I/O |
| Application Specific Channels | 8 |

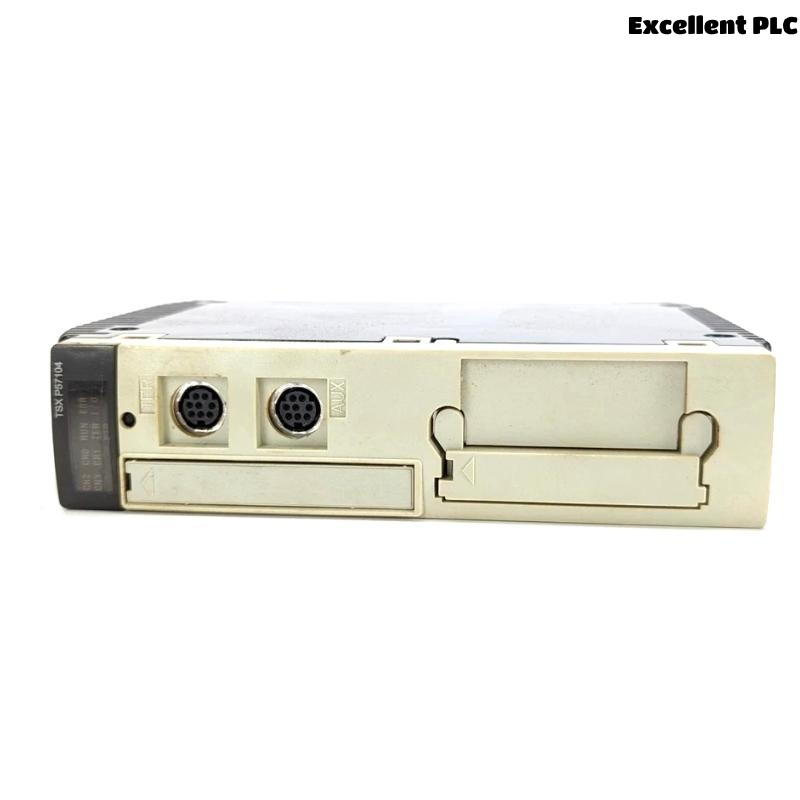

| Integrated Connection | 2 × Mini DIN (RS485, non-isolated, 19.2 kbit/s) |
| Communication Modules Supported | 2, 1 |
| Internal RAM (w/ PCMCIA) | 224 kB (program), 96 kB (data) |
| Internal RAM (w/o PCMCIA) | 96 kB (program + data) |
| PCMCIA Card | 256 kB additional data storage |
| Object Area Size | 32 kB unlocated internal data (elementary/derived), 4096 %Mi bits, 64 %KWi constant words, 64 %MWi internal words, 64 kB (DFB/EFB blocks) unlocated data |
| Application Structure | 32 event tasks, 1 master task, 1 fast task |
| Execution Time per Instruction | Boolean: 0.19 μs (w/o PCMCIA), 0.25 μs (w/ PCMCIA) Word/Fixed Point: 0.25 μs (w/o), 0.5 μs (w/) Floating Point: 1.75–2.6 μs (w/ or w/o PCMCIA) |
| Instructions per ms | 3.71 Kinst/ms (65% Boolean/35% fixed, w/o PCMCIA) 4.76 Kinst/ms (100% Boolean, w/o) 2.1 Kinst/ms (65% Boolean/35% fixed, w/ PCMCIA) 3.1 Kinst/ms (100% Boolean, w/ PCMCIA) |
| System Overhead | Fast task: 0.3 ms, Master task: 1 ms |
| Marking | CE |

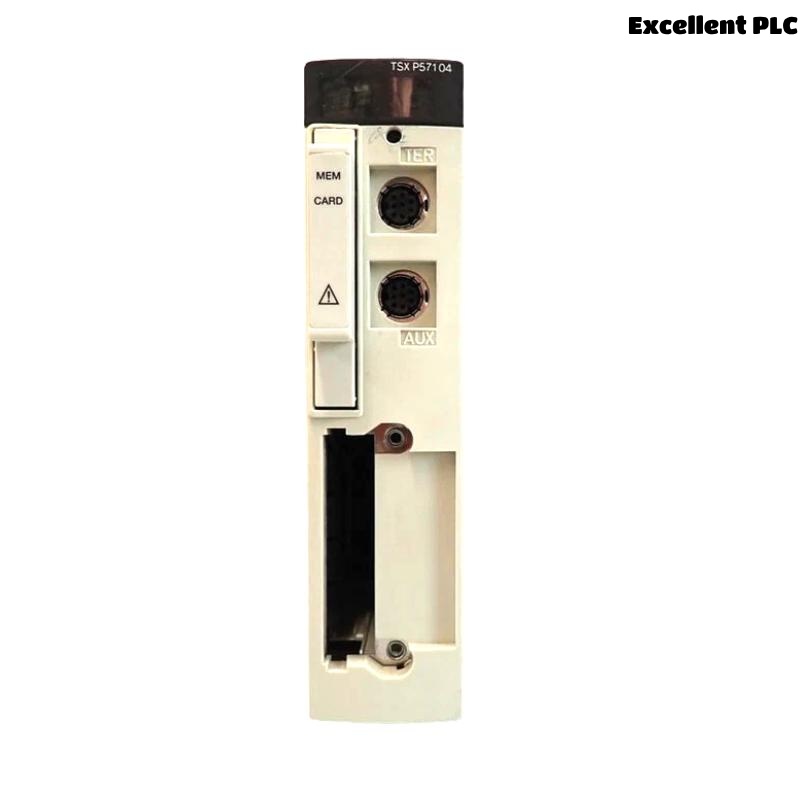

| Local Signalling | RUN (green LED), I/O fault (red LED), Processor/System fault (red LED), Terminal activity (yellow LED) |
| Power Consumption | 850 mA @ 5 V DC |
| Module Format | Standard |
| Dimensions (W×H×D) | 55 × 180 × 260 mm |
| Net Weight | 0.38 kg (0.84 lb) |
| Protection Class | IP20 |
| Pollution Degree | 2 |
| Operating Temp | 0…60 °C (32…140 °F) |
| Storage Temp | -25…70 °C (-13…158 °F) |
| Operating Humidity | 10–95% RH (non-condensing) |
| Storage Humidity | 5–95% RH (non-condensing) |
| Operating Altitude | 0–2000 m (0–6561.68 ft) |
| Standards Compliance | IEC 61131-2, UL 508, CSA C22.2, 73/23/EEC, 89/336/EEC, 92/31/EEC, 93/68/EEC |
| Certifications | RMRS, GL, LR, ABS, BV, DNV, RINA |
| Protective Treatment | TC |
Applications
The TSXP57104M Unity Processor is widely deployed in the following scenarios:
-
Industrial automation for production lines and machine control
-
Process automation in industries such as oil & gas, chemical, water treatment, and food & beverage
-
Infrastructure automation including building management, transportation, and utilities
-
Batch control and recipe management in pharmaceuticals and manufacturing
-
Distributed control systems (DCS) in complex multi-rack installations
-
High-reliability systems requiring extensive I/O and fast processing
Its flexible architecture and high I/O capacity make it an ideal fit for both central control and distributed control scenarios, ensuring precise, consistent, and scalable automation.
Advantages
-
High Performance: Fast execution of Boolean and arithmetic instructions, ensuring minimal response times for demanding applications.
-
Large Memory Capacity: Ample internal RAM, with further expansion via PCMCIA cards, supports large, complex applications and extensive data logging.
-
Robust Connectivity: Supports multiple serial communication ports and modules, allowing seamless integration with legacy and modern devices.
-
Advanced Diagnostics: Comprehensive local signaling with clear status LEDs improves troubleshooting efficiency and reduces downtime.
-
Certified Quality: Meets global standards and certifications (CE, UL, DNV, ABS, etc.), supporting safe installation in diverse environments.
-
Wide Environmental Tolerance: Reliable operation across a broad range of temperatures and humidity levels, suited for harsh industrial conditions.
-
Flexible Architecture: Supports multi-rack configurations, making it easy to scale up as system requirements grow.
-
Comprehensive Software Support: Full compatibility with Unity Pro, enabling advanced programming, diagnostics, and simulation tools for easier deployment and maintenance.
-
Extensive I/O Capabilities: Supports a broad mix of discrete and analogue I/O, as well as application-specific channels for specialized tasks.
-
Long Lifecycle and Support: Schneider Electric’s Modicon Premium series ensures continued support, updates, and spare parts availability.
Frequently Asked Questions (FAQ)
Q1: What software is compatible with the TSXP57104M Unity Processor?
A1: The TSXP57104M is fully compatible with Unity Pro software, enabling advanced programming, diagnostics, and configuration.
Q2: What is the maximum number of discrete I/O points supported?
A2: The processor can manage up to 512 discrete I/O points.
Q3: How much memory does the module provide for user programs?
A3: With a PCMCIA card, it provides 224 kB for programs and 96 kB for data; without a card, it supports 96 kB total for program and data.
Q4: What is the supported operating temperature range?
A4: The module operates reliably from 0°C to 60°C (32°F to 140°F).
Q5: Which industrial standards and certifications does it meet?
A5: The TSXP57104M is certified to IEC 61131-2, UL 508, CSA C22.2, and holds certifications such as RMRS, GL, LR, ABS, BV, DNV, and RINA.
Q6: What are the dimensions and weight of the TSXP57104M?
A6: The module measures 55 × 180 × 260 mm and weighs 0.38 kg (0.84 lb).
Q7: How many event tasks can be configured in an application?
A7: The processor supports up to 32 event tasks, in addition to a master and a fast task.
Q8: What is the power consumption of the module?
A8: The current consumption is 850 mA at 5 V DC.
Q9: Does the TSXP57104M support communication module expansion?
A9: Yes, it supports up to two communication modules, depending on configuration.
Q10: What is the protection class of this processor?
A10: The protection class is IP20, suitable for installation in enclosed cabinets or industrial racks.
Recommended Related Models (Modicon Premium Series)
| Model | Description | I/O Capacity | Memory | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| TSXP57103M | Unity Processor, entry level | 256 I/O | 128 kB program/data | 55 × 180 × 260 | 0.38 |
| TSXP57153M | High-memory Unity Processor | 1024 I/O | 512 kB program/data | 55 × 180 × 260 | 0.38 |
| TSXP57453M | Advanced Unity Processor | 2048 I/O | 2 MB program/data | 55 × 180 × 260 | 0.38 |
| TSXP57203M | Standard Unity Processor | 512 I/O | 224 kB program/data | 55 × 180 × 260 | 0.38 |
| TSXP57303M | Extended Unity Processor | 1024 I/O | 384 kB program/data | 55 × 180 × 260 | 0.38 |
| TSXP57253M | Unity Processor with Ethernet | 512 I/O | 256 kB program/data | 55 × 180 × 260 | 0.38 |
