Product Introduction

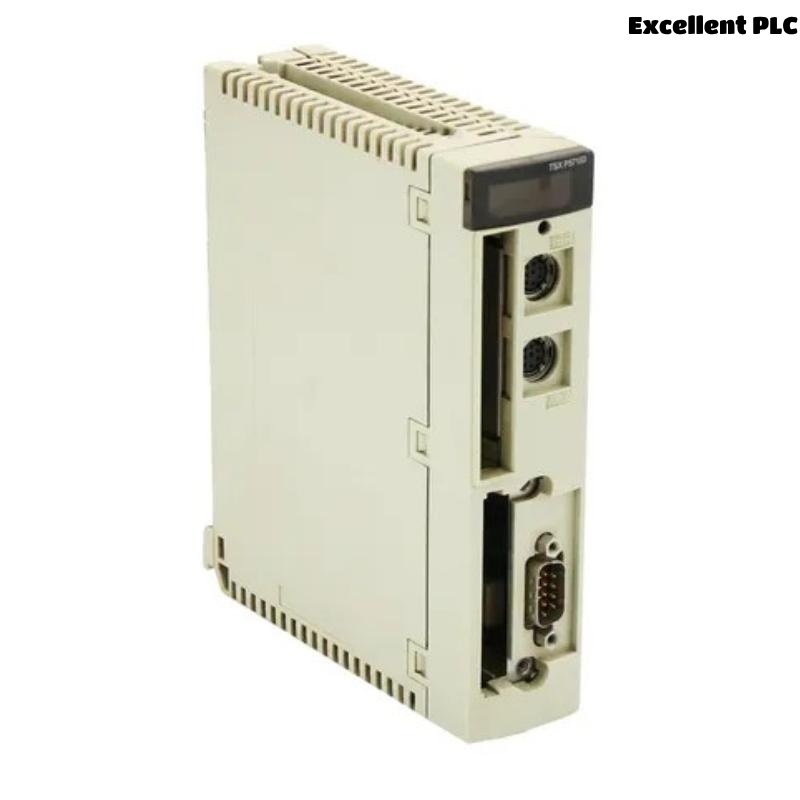

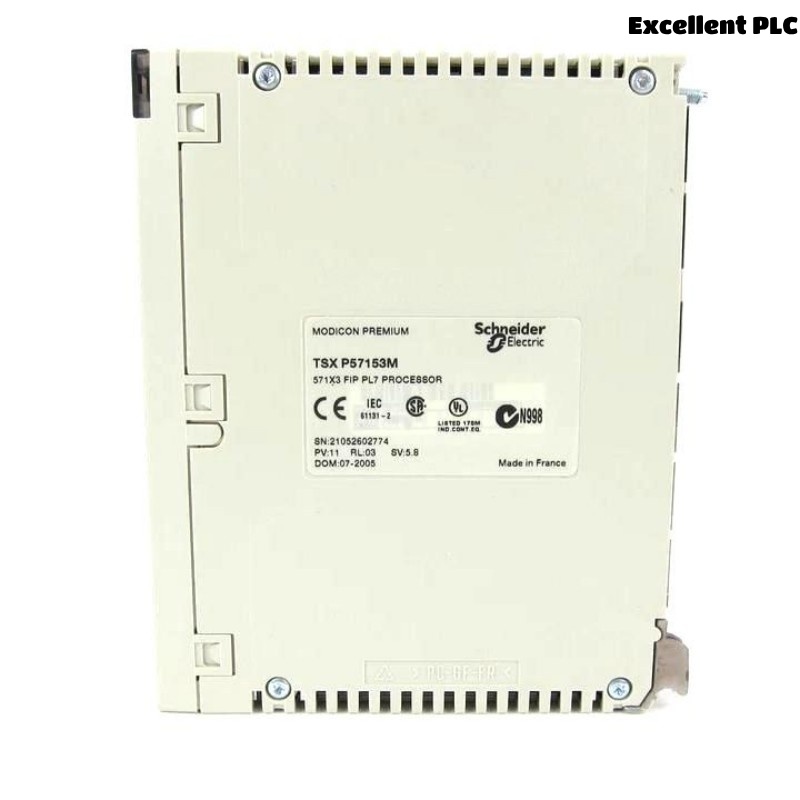

The Schneider TSXP57153M is a robust and high-performance Single-Format PL7 Processor, designed specifically for use within the Modicon Premium Automation platform. This processor delivers advanced control capabilities and seamless integration for industrial automation tasks, catering to diverse requirements in process and discrete automation. With its support for both PL7 Junior and Pro software, the TSXP57153M enables engineers to design and implement sophisticated control strategies, supporting reliable communication, expansive I/O processing, and high-speed instruction execution.
This model features comprehensive memory management, integrated serial communication, and advanced diagnostics, making it suitable for complex industrial environments where uptime, reliability, and processing speed are critical. The TSXP57153M ensures compliance with leading international standards, making it a reliable component for automation projects across various sectors, including manufacturing, energy, infrastructure, and utilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Range of Product | Modicon Premium Automation Platform |
| Product or Component Type | Single-Format PL7 Processor |
| Software Compatibility | PL7 Junior / Pro |
| Number of Racks Supported | 2 (12 slots), 4 (4/6/8 slots) |
| Maximum Number of Slots | 16, 24, 32 |
| Discrete I/O Processor Capacity | 512 I/O |
| Analog I/O Processor Capacity | 24 I/O |
| Application-Specific Channels | 8 |
| Integrated Connection Type | Non-isolated serial link (2 female mini DIN, 19.2 kbit/s); Fipio manager (63 agents) SUB-D 9 |
| Communication Module Capacity | 1 network module; 2 AS-Interface bus modules |
| Memory Description | Internal RAM: 32 Kwords data (with PCMCIA card) / 32 Kwords program & data (without card); PCMCIA: 128 Kwords data, 64 Kwords program |
| Maximum Object Areas | 30.5% MWi internal words; 32% KWi constant words; 4096 %Mi internal bits |
| Application Structure | 1 fast task, 1 master task, 32 event tasks |
| Execution Time Per Instruction | 0.5 µs (Boolean, no PCMCIA), 0.6 µs (Boolean, PCMCIA), 0.62 µs (word/fixed, no PCMCIA), 0.87 µs (word/fixed, PCMCIA), 44 µs (floating point) |
| Instructions Per ms | 0.85 Kinst/ms (65% Boolean + 35% fixed arithmetic, PCMCIA), 1.05 Kinst/ms (no PCMCIA), 1.18 Kinst/ms (100% Boolean, PCMCIA), 1.52 Kinst/ms (no PCMCIA) |
| System Overhead | 0.8 ms (fast task), 3.1 ms (master task) |
| Local Signalling | RUN (green LED), FIP (red LED), I/O fault (red LED), ERR (red LED), TER (yellow LED) |
| Current Consumption | 8530 mA at 5 V DC |
| Module Format | Standard |
| Dimensions (W x H x D) | 55 x 180 x 260 mm |
| Net Weight | 0.38 kg (0.93 lb US) |
| Environmental Standards | IEC 61131-2, 93/68/EEC, 92/31/EEC, 89/336/EEC, 73/23/EEC, UL 508, CSA C22.2 (Various Groups), ABS, DNV, LR, RINA, GL, RMRS, BV |
| Ambient Temperature (Operation) | 0 to 60°C (32 to 140°F) |
| Ambient Temperature (Storage) | -25 to 70°C (-13 to 158°F) |
| Relative Humidity (Operation) | 10% to 95% (non-condensing) |
| Relative Humidity (Storage) | 5% to 95% (non-condensing) |
| Operating Altitude | 0 to 2000 m (0 to 6561.68 ft) |
| Protective Treatment | TC |
| Degree of Protection (IP) | IP20 |
| Pollution Degree | 2 |
Applications
The Schneider TSXP57153M is widely utilized in applications demanding reliability, flexibility, and rapid processing capabilities. Typical sectors and uses include:
-
Manufacturing Automation: Orchestrating complex machinery, conveyors, robotic cells, and batch processes.
-
Process Industries: Managing chemical, pharmaceutical, oil and gas, food and beverage processes requiring continuous operation and precise control.
-
Utilities & Energy: Supporting water/wastewater treatment, power generation, and renewable energy facilities with high-availability needs.
-
Infrastructure: Automation of building management systems, transportation, and logistics hubs.
-
OEM Solutions: Custom machine control for original equipment manufacturers across various industries.
-
SCADA Integration: Serving as a reliable processing unit in supervisory control and data acquisition systems.
Advantages
-
High Performance: Fast instruction execution (as low as 0.5 µs per Boolean operation) enables real-time response for demanding automation tasks.
-
Scalability: Supports various rack and slot configurations to fit small to large system architectures.
-
Flexible Communication: Multiple integrated communication ports and network module options ensure compatibility with modern and legacy systems.
-
Advanced Memory Management: Robust internal memory, expandable with PCMCIA cards, allows for complex applications and large data sets.
-
Comprehensive Diagnostics: LED indicators and system overhead monitoring streamline troubleshooting and maintenance.
-
Robust Environmental Ratings: Operates in a wide temperature range with industrial-grade protection for harsh environments.
-
Compliance & Certifications: Meets global standards for safety, reliability, and marine/offshore deployment, making it suitable for diverse industries worldwide.
-
Easy Integration: Designed for seamless use within the Modicon Premium platform, enabling straightforward system expansion and upgrades.
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of I/O points the TSXP57153M can handle?
A1: The TSXP57153M supports up to 512 discrete I/O points and 24 analog I/O points.
Q2: Can I use the TSXP57153M with both PL7 Junior and PL7 Pro software?
A2: Yes, the processor is compatible with both PL7 Junior and PL7 Pro design environments.
Q3: What memory options are available for program and data storage?
A3: It has 32 Kwords internal RAM, with PCMCIA cards allowing up to 128 Kwords for data and 64 Kwords for programs.
Q4: What types of communication are integrated into the TSXP57153M?
A4: It features non-isolated serial links (mini DIN), a Fipio manager port, support for network modules, and AS-Interface bus modules.
Q5: What is the physical size and weight of the processor?
A5: The module measures 55 x 180 x 260 mm and weighs 0.38 kg.
Q6: What is the operating temperature range for this processor?
A6: It operates reliably in environments from 0 to 60°C (32 to 140°F).
Q7: Is the TSXP57153M suitable for marine or offshore applications?
A7: Yes, it carries certifications including ABS, DNV, LR, GL, RMRS, BV, and RINA, making it suitable for marine and offshore installations.
Q8: What LED indicators are provided for local status monitoring?
A8: The processor features LEDs for RUN (green), FIP (red), I/O fault (red), ERR (red), and TER (yellow).
Q9: How many tasks can the TSXP57153M manage simultaneously?
A9: The application structure supports 1 fast task, 1 master task, and up to 32 event tasks.
Q10: What is the IP protection rating of the TSXP57153M?
A10: The module provides IP20 degree of protection.
Recommended Related or Series Models
| Model | Description | Memory Capacity | Max I/O Capacity | Dimensions (mm) | Weight (kg) | Communication Ports |
|---|---|---|---|---|---|---|
| TSXP57153M | Single-Format PL7 Processor | 32 Kwords + PCMCIA | 512 DIO, 24 AIO | 55 x 180 x 260 | 0.38 | Serial, Fipio, PCMCIA |
| TSXP57103M | Single-Format PL7 Processor | 32 Kwords + PCMCIA | 256 DIO, 16 AIO | 55 x 180 x 260 | 0.38 | Serial, Fipio, PCMCIA |
| TSXP57203M | Single-Format PL7 Processor | 64 Kwords + PCMCIA | 1024 DIO, 32 AIO | 55 x 180 x 260 | 0.39 | Serial, Ethernet, PCMCIA |
| TSXP57253M | Single-Format PL7 Processor | 64 Kwords + PCMCIA | 2048 DIO, 64 AIO | 55 x 180 x 260 | 0.39 | Serial, Ethernet, PCMCIA |
| TSXP57303M | Single-Format PL7 Processor | 128 Kwords + PCMCIA | 4096 DIO, 128 AIO | 55 x 180 x 260 | 0.41 | Serial, Ethernet, PCMCIA |
| TSXP57453M | Single-Format PL7 Processor | 256 Kwords + PCMCIA | 8192 DIO, 256 AIO | 55 x 180 x 260 | 0.42 | Serial, Ethernet, PCMCIA |
