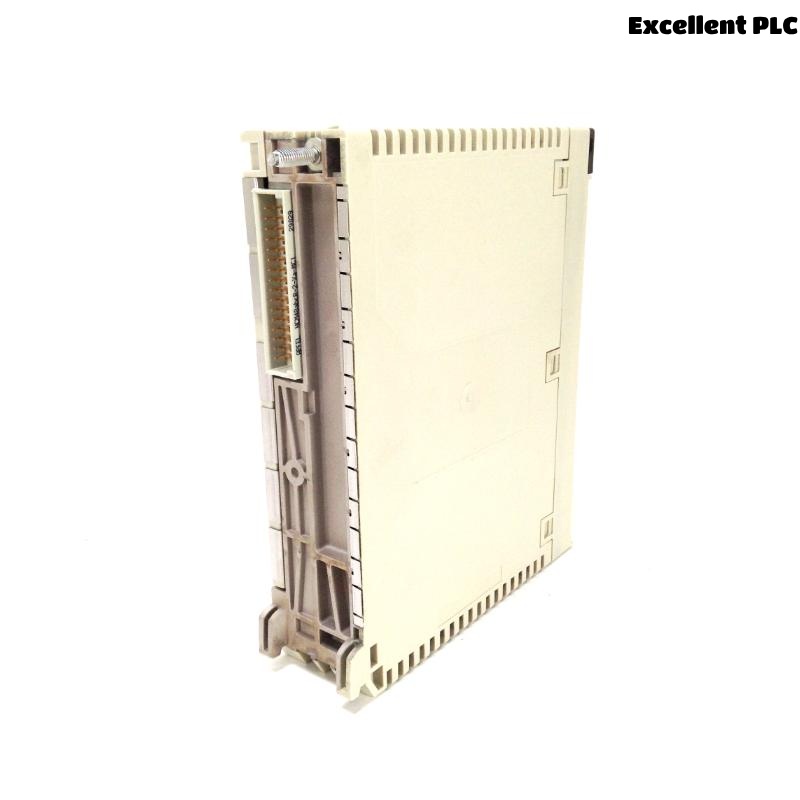

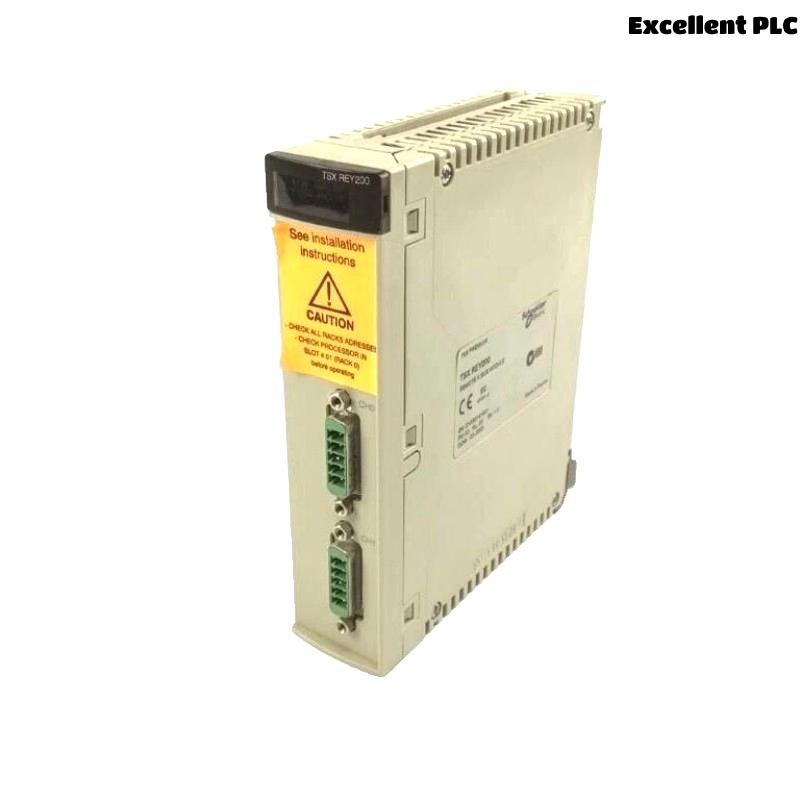

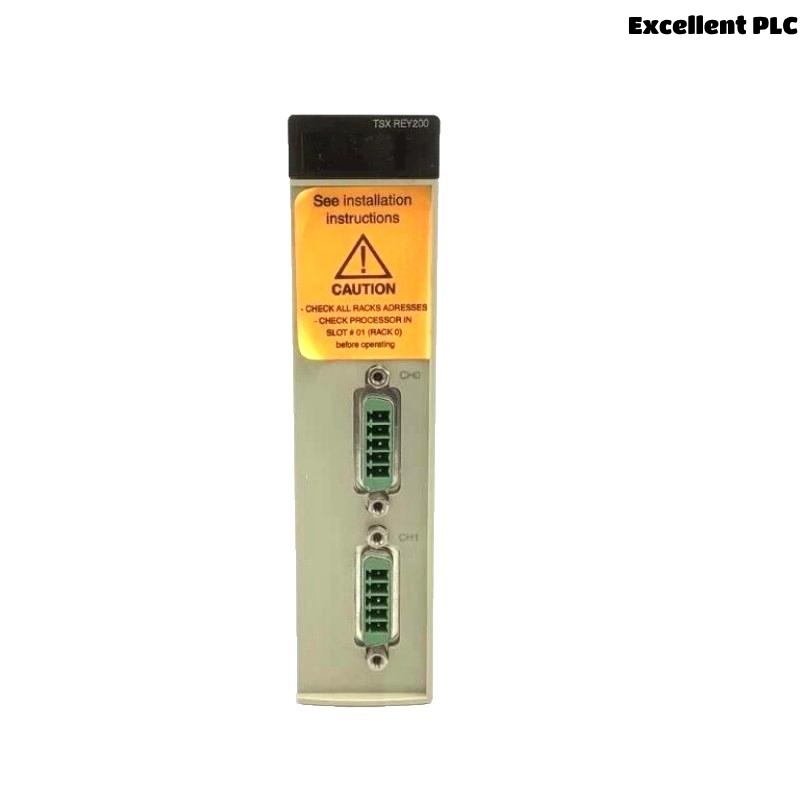

The Schneider TSXREY200 is a Bus X Remote Rackmaster Module designed for use with Modicon TSX Micro PLC systems. It enables communication between the main controller and remote I/O bases via the proprietary Bus X network. The TSXREY200 module allows the extension of automation systems where remote I/O distribution is essential for flexibility, system scalability, and performance.
It serves as the master module in a remote I/O configuration, managing communication with up to seven remote slave racks through a reliable high-speed serial link. Designed for industrial environments, the TSXREY200 ensures consistent data transfer and simplified field wiring.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Bus X Remote Rackmaster Module |
| Series | Modicon TSX Micro |
| Communication Type | Bus X |
| Number of Remote Racks | Up to 7 |
| Mounting Type | Rack-mounted |
| Operating Voltage | 5V DC (from rack) |
| Dimensions (W × H × D) | 55 × 180 × 260 mm |
| Weight | 0.425 kg |
| Status Indicators | LED for link status and diagnostics |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Protection Index | IP20 |
Applications
-
Distributed control systems for manufacturing automation
-
Remote I/O expansion in conveyor systems
-
Automotive production lines requiring decentralized I/O
-
Packaging and bottling plants
-
Material handling systems with dispersed sensor/actuator arrangements
-
Infrastructure management (e.g., water treatment, power distribution)
Advantages
-
Simplifies remote I/O architecture through Bus X connectivity
-
Reduces wiring complexity and installation time
-
Enables scalable and modular automation system design
-
Enhances communication reliability between racks
-
Space-efficient form factor for compact enclosures
-
Integrated diagnostics via LED indicators for quick troubleshooting
Frequently Asked Questions (FAQ)
Q1: What is the function of the TSXREY200 module?
A1: It acts as a master controller for Bus X remote I/O racks in a Modicon TSX Micro system.
Q2: How many remote racks can the TSXREY200 support?
A2: It can manage up to 7 remote slave racks.
Q3: Is the module hot-swappable?
A3: No, the TSXREY200 is not hot-swappable. Power should be removed during installation or replacement.
Q4: What power supply does it require?
A4: It receives 5V DC power from the rack’s backplane.
Q5: Does the module support diagnostics?
A5: Yes, LED indicators are available for link status and communication diagnostics.
Q6: What is the recommended ambient temperature for operation?
A6: The recommended operating range is 0°C to 60°C.
Q7: Can it be used with other PLC platforms outside TSX Micro?
A7: No, it is specifically designed for the Modicon TSX Micro series.
Q8: Is firmware upgrading supported?
A8: The TSXREY200 does not require firmware updates for standard operation.
Q9: What type of communication cable is needed?
A9: A shielded Bus X communication cable, as specified by Schneider, should be used.
Q10: What is the enclosure rating of the module?
A10: It has an IP20 protection rating, suitable for installation within a cabinet.
Related or Same-Series Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| TSXREY100 | Bus X Remote Slave Module | 55 × 180 × 260 | 0.415 kg |
| TSXSCY21601 | Serial Communication Module RS485 | 55 × 180 × 260 | 0.430 kg |
| TSXETY110 | Ethernet Communication Module | 55 × 180 × 260 | 0.440 kg |
| TSXRKY4EX | Remote I/O Base with 4 Slots | 55 × 180 × 260 | 0.460 kg |
| TSXRKY6EX | Remote I/O Base with 6 Slots | 55 × 180 × 260 | 0.470 kg |
| TSXPSY2600 | Power Supply Module 24V | 55 × 180 × 260 | 0.500 kg |
