Schneider TSXSCPCM4030 Cable For Isolated RS422/485 Tap Link

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

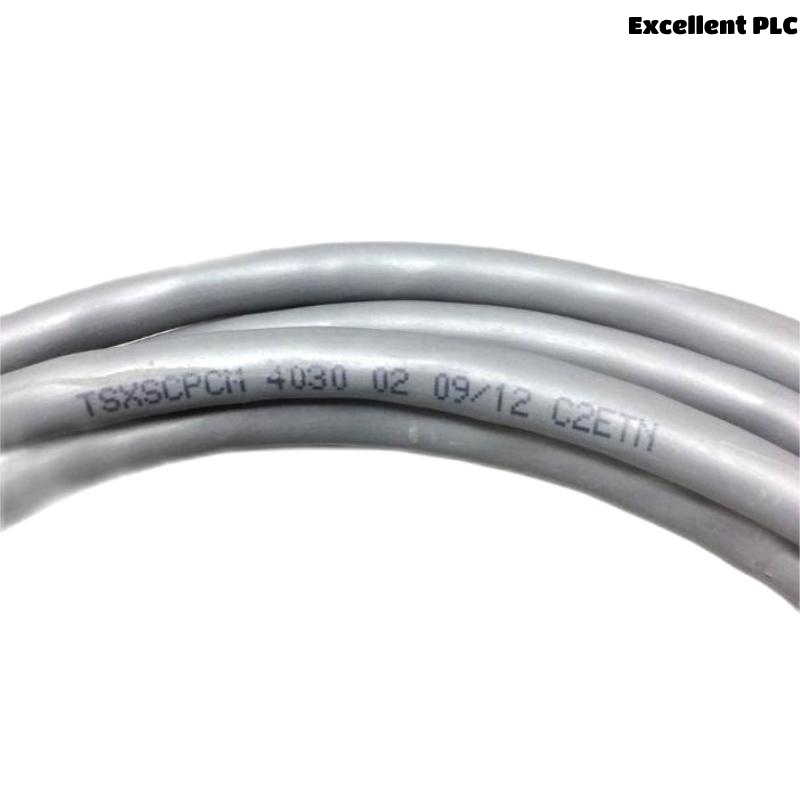

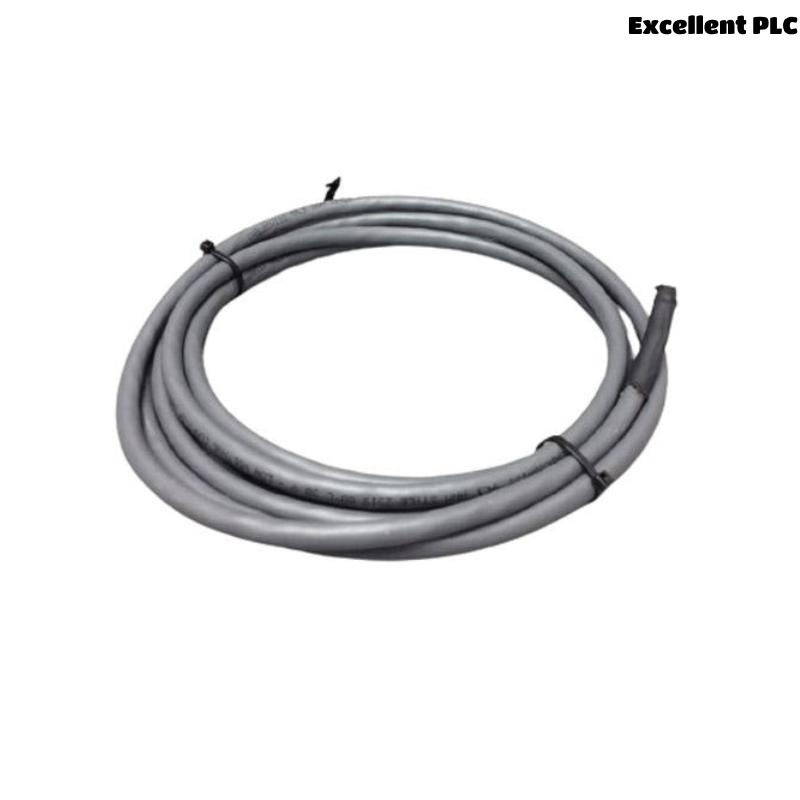

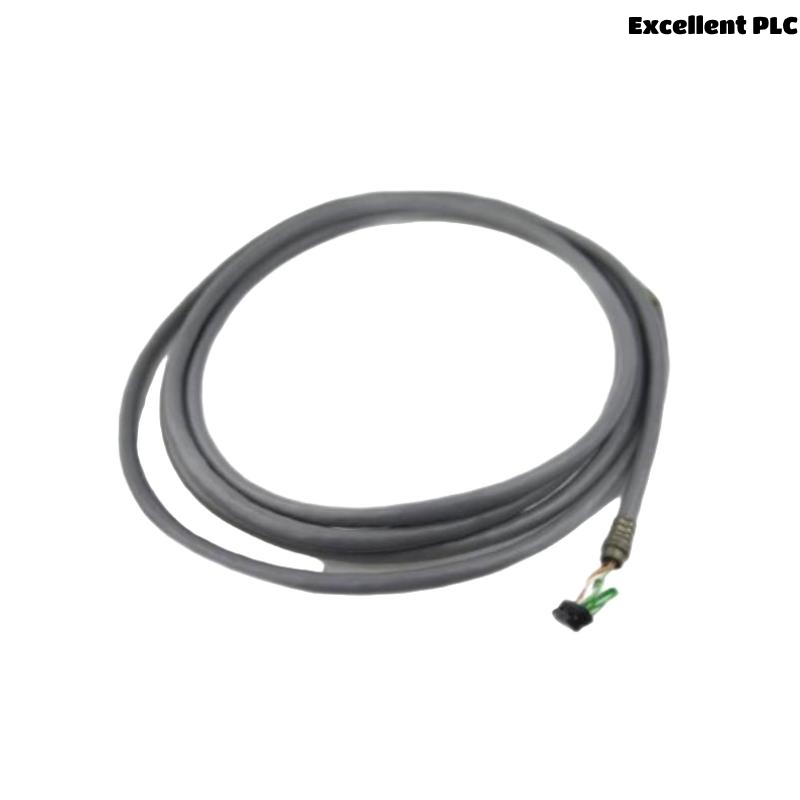

The Schneider TSXSCPCM4030 is an industrial-grade communication cable specifically designed for isolated RS422/RS485 Tap Link applications. It serves as a vital interface between Schneider Electric PLCs or automation devices and external RS422/RS485 networks, ensuring safe, reliable, and high-speed data transmission even in demanding industrial environments.

The TSXSCPCM4030 cable is optimized for use with Schneider’s Modicon Premium and Quantum series programmable logic controllers (PLCs), enabling seamless communication between PLC systems and remote devices such as HMI panels, motor drives, or third-party industrial equipment. The isolated design ensures maximum protection against ground loops, electrical noise, and voltage surges, thereby safeguarding sensitive communication electronics.

This professional-grade cable is built to withstand harsh environmental conditions commonly encountered in factory floors, manufacturing plants, and energy production facilities. Its robust shielding, durable materials, and optimal length make it the perfect choice for reliable, interference-free serial communications.

---

Product Specifications

---

Applications

The Schneider TSXSCPCM4030 isolated RS422/485 cable is widely used in various industrial automation scenarios:

• PLC-to-PLC Networking: Enables reliable data exchange between Schneider PLCs and other Modicon devices.

• Field Device Integration: Connects PLCs with third-party equipment supporting RS422/485 protocols, such as variable speed drives, sensors, or meters.

• HMI / SCADA Communication: Facilitates isolated communication between PLCs and Human-Machine Interfaces (HMI) or SCADA systems.

• Industrial Data Acquisition: Allows safe and accurate transmission of process data across factory floors.

• Machine Automation: Supports networking of multiple machines in complex manufacturing systems.

• Energy Management Systems: Provides secure connectivity for energy monitoring and control systems in industrial plants.

---

Advantages and Key Features

• Optical Isolation: Enhanced electrical isolation protects devices from ground loops and surges.

• Superior Noise Immunity: Double shielding minimizes electromagnetic interference in noisy environments.

• Robust Industrial Design: PVC jacket and rugged construction for harsh factory conditions.

• Wide Compatibility: Works with Schneider Premium and Quantum PLCs, as well as other RS422/485 devices.

• Flexible Cable Length: 3-meter cable provides an ideal balance of reach and manageability.

• Plug-and-Play Setup: Simple and straightforward integration into automation systems.

• High Data Rates: Supports communication speeds up to 115.2 Kbps for fast, responsive control.

• Certified Safety: CE and RoHS compliance for global industrial use.

• Compact and Portable: Lightweight and easy to carry for service engineers and technicians.

• Cost-Effective: Professional-grade cable at an economical price point.

---

Frequently Asked Questions (FAQ)

1. What devices are compatible with the TSXSCPCM4030 cable?
   It is compatible with Schneider Modicon Premium and Quantum series PLCs and other RS422/485 devices.

2. What type of communication does this cable support?
   It supports isolated RS422 and RS485 differential communication.

3. Does this cable provide electrical isolation?
   Yes, it is optically isolated to prevent ground loops and voltage surges.

4. What is the length of the cable?
   The TSXSCPCM4030 is 3 meters (9.8 feet) in length.

5. Can this cable be used in industrial environments?
   Absolutely, it is designed with industrial-grade materials for factory and harsh environments.

6. What connector types does the cable use?
   DB9 on the PC side, Mini-DIN 8-pin on the PLC or Tap Link side.

7. Does this cable require external power?
   No, it operates through the standard RS422/485 port and does not require an external power supply.

8. What is the supported data transfer rate?
   It supports up to 115.2 Kbps baud rate.

9. What certifications does this cable carry?
   It is CE marked and RoHS compliant.

10. What are the weight of the cable?
    The cable weight 0.16 kg.

---
