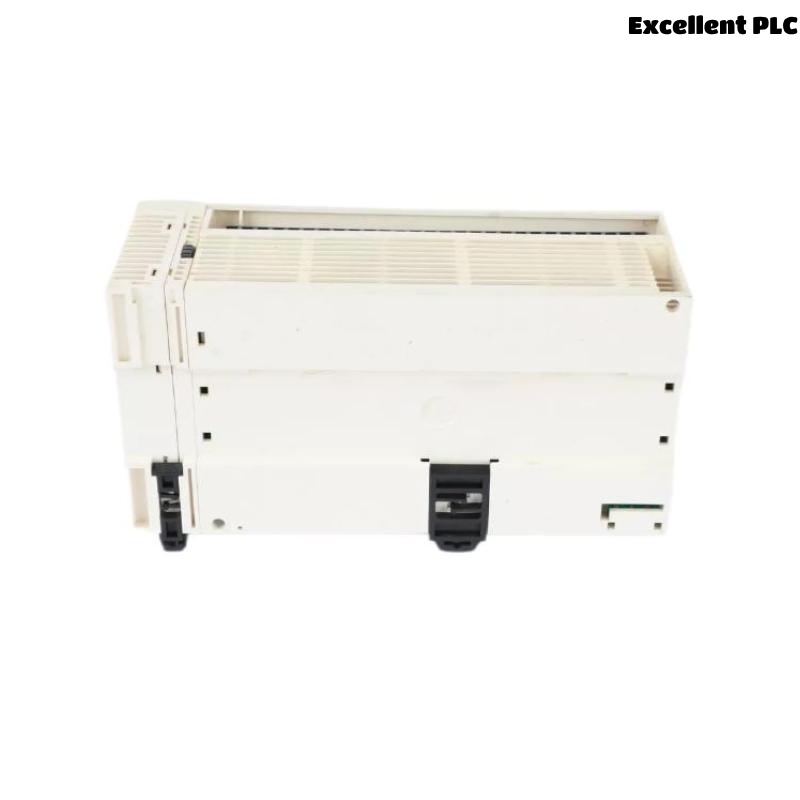

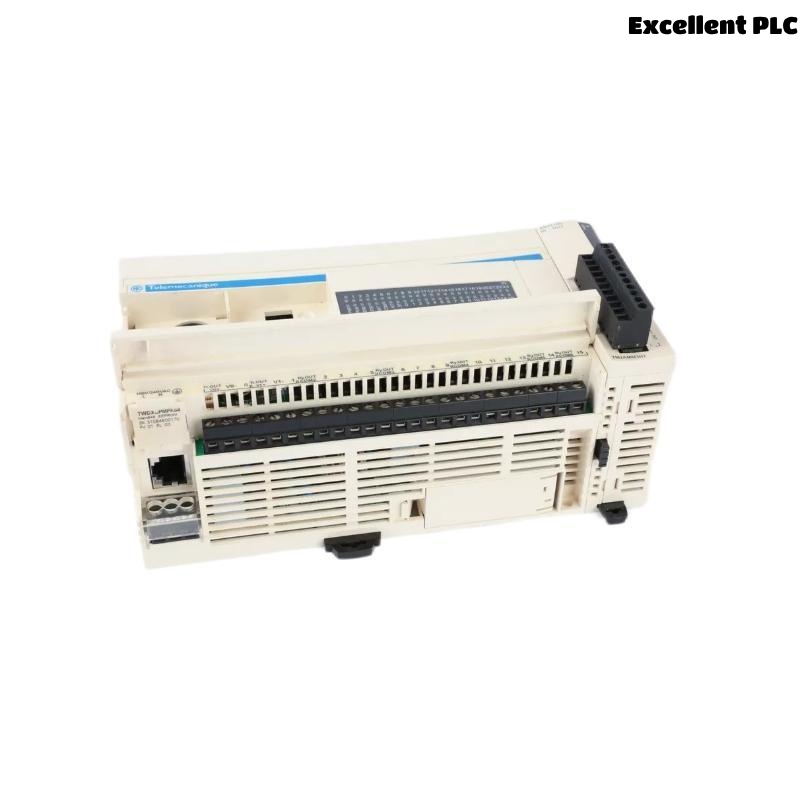

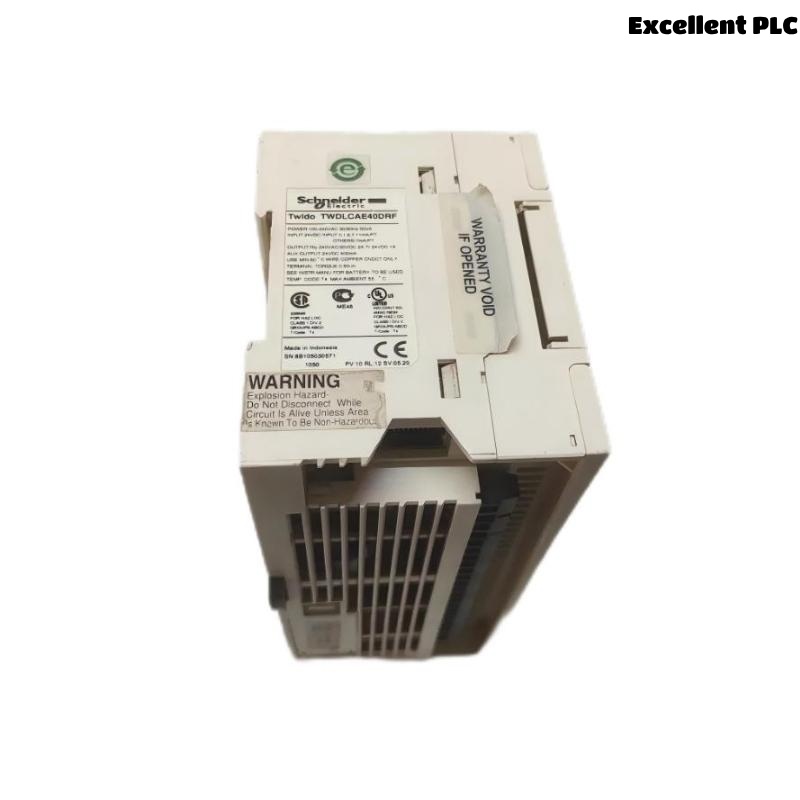

Schneider TWDLCAE40DRF Compact basic controller

Manufacturer:Schneider

Product Number:TWDLCAE40DRF

Product Type:Compact basic controller

Origin:France

Dimensions:157 x 70 x 90 mm

Weight:0.525 kg

Views:294

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
  • Product Ratings
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Schneider TWDLCAE40DRF Compact basic controller

Schneider TWDLCAE40DRF Product Introduction


The Schneider TWDLCAE40DRF is a high-performance programmable logic controller (PLC) from the Modicon M221 series. Designed for industrial automation, this compact and efficient PLC offers advanced control capabilities, making it ideal for a wide range of applications. It features a user-friendly programming environment, robust communication options, and reliable performance in demanding environments. The TWDLCAE40DRF is part of Schneider Electric’s commitment to delivering innovative and scalable automation solutions.


Product Parameters

Parameter Specification
Model TWDLCAE40DRF
Series Modicon M221
Input Voltage 100-240V AC
Input Frequency 50/60 Hz
Digital Inputs 24 (sink/source)
Digital Outputs 16 (relay)
Analog Inputs Optional (with expansion modules)
Communication Ports 1x Ethernet, 1x USB, 1x RS485
Programming Software SoMachine Basic
Memory 16 MB (for program and data)
Dimensions 157 x 70 x 90 mm
Weight 0.525 kg
Operating Temperature -20°C to +60°C
Protection Rating IP20
Certifications CE, UL, cUL

Product Applications


The TWDLCAE40DRF is widely used in industrial automation and control systems. Its versatility makes it suitable for:

  • Manufacturing Automation: Controlling conveyor systems, assembly lines, and packaging machines.

  • Building Management: HVAC control, lighting systems, and energy management.

  • Water Treatment: Pump control, valve management, and monitoring systems.

  • Food and Beverage: Process control for mixing, filling, and bottling operations.

  • Material Handling: Automated storage and retrieval systems (AS/RS).

  • Renewable Energy: Monitoring and control of solar or wind power systems.


Product Advantages


  1. Compact Design: Space-saving form factor for easy integration into control panels.

  2. Flexible I/O Configuration: Supports expansion modules for additional inputs/outputs.

  3. Advanced Communication: Ethernet, USB, and RS485 ports enable seamless connectivity.

  4. User-Friendly Programming: SoMachine Basic software simplifies development and debugging.

  5. High Reliability: Robust construction ensures stable performance in harsh environments.

  6. Energy Efficient: Low power consumption reduces operational costs.

  7. Scalability: Suitable for small to medium-sized automation projects.

  8. Wide Voltage Range: Compatible with 100-240V AC, adaptable to various power supplies.


Product FAQ


  1. What is the programming software for TWDLCAE40DRF?

    • It uses SoMachine Basic, a dedicated software for Modicon M221 PLCs.

  2. Can I expand the I/O capabilities of this PLC?

    • Yes, it supports expansion modules for additional digital/analog I/O.

  3. What communication protocols are supported?

    • Modbus TCP/IP, Modbus RTU, and Ethernet/IP.

  4. Is the TWDLCAE40DRF suitable for harsh environments?

    • Yes, it operates reliably in temperatures from -20°C to +60°C.

  5. What is the maximum number of I/O points?

    • Up to 128 I/O points with expansion modules.

  6. Does it support analog inputs/outputs?

    • Analog functionality requires additional expansion modules.

  7. What is the warranty period?

    • Schneider Electric typically offers a 1-year warranty.

  8. Can I use this PLC for motor control?

    • Yes, it can control motors via relay outputs or communication with drives.

  9. Is the module certified for industrial compliance?

    • Yes, it meets CE, UL, CSA, and RoHS standards.

  10. How do I update the firmware?

    • Firmware updates can be done via the USB or Ethernet port using SoMachine Basic.


Recommended Similar and Related Models

Model Series Key Features
TWDLCAE40DRT Modicon M221 24 DI/16 DO (transistor output)
TWDLMDA40DRT Modicon M221 24 DI/16 DO (relay + transistor hybrid)
TWDLCAE20DRF Modicon M221 12 DI/8 DO (relay output)
TWDLCDA20DRT Modicon M221 12 DI/8 DO (transistor output)
TWDLCAE40DTF Modicon M221 24 DI/16 DO (relay + Ethernet)
TWDLMDA20DRT Modicon M221 12 DI/8 DO (relay + transistor hybrid)

Popular Schneider Electric Models

Model Series Key Features
TM221CE40R Modicon M221 24 DI/16 DO (relay), Ethernet
TM241CEC24R Modicon M241 14 DI/10 DO (relay), CANopen, Ethernet
TM251MESE Modicon M251 24 DI/16 DO (relay), embedded HMI
TM262LF42DT Modicon M262 24 DI/18 DO (transistor), LTE connectivity
ATV312HU22N4 Altivar 312 2.2 kW variable speed drive
Harmony XB5R Harmony XB5 22.5mm push button (red)
