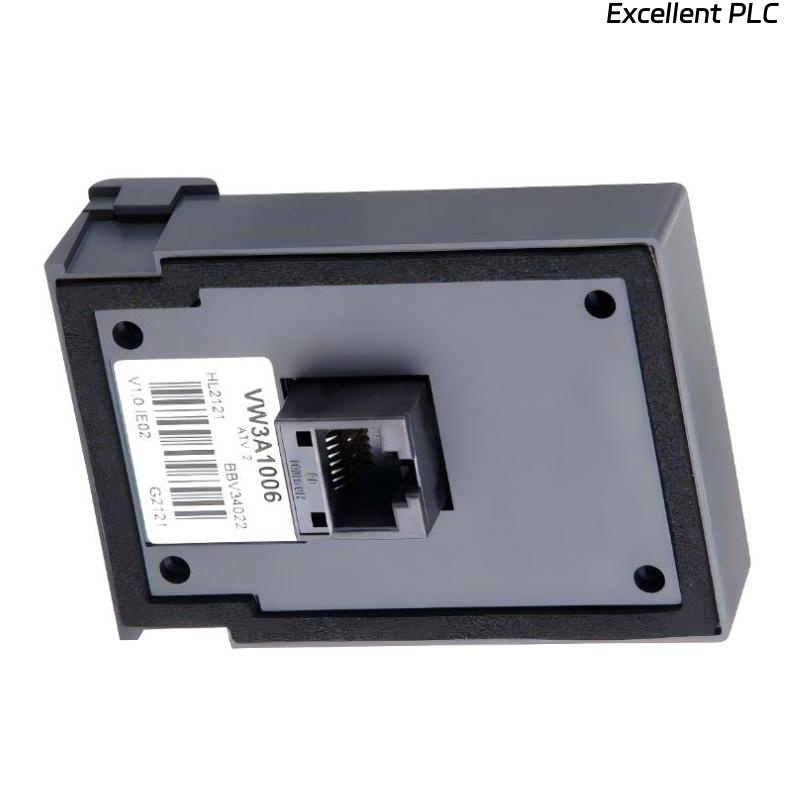

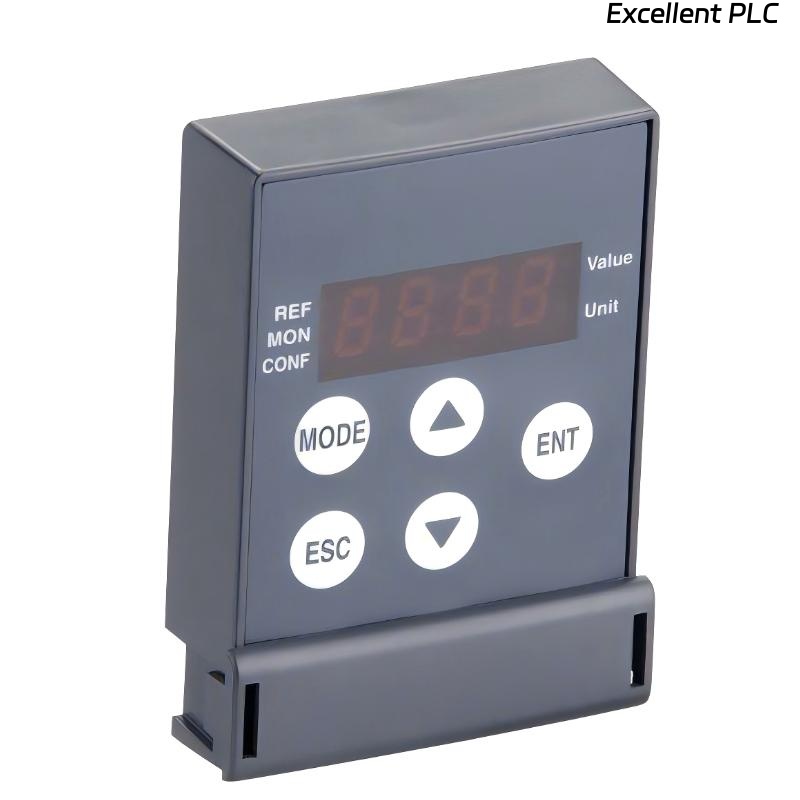

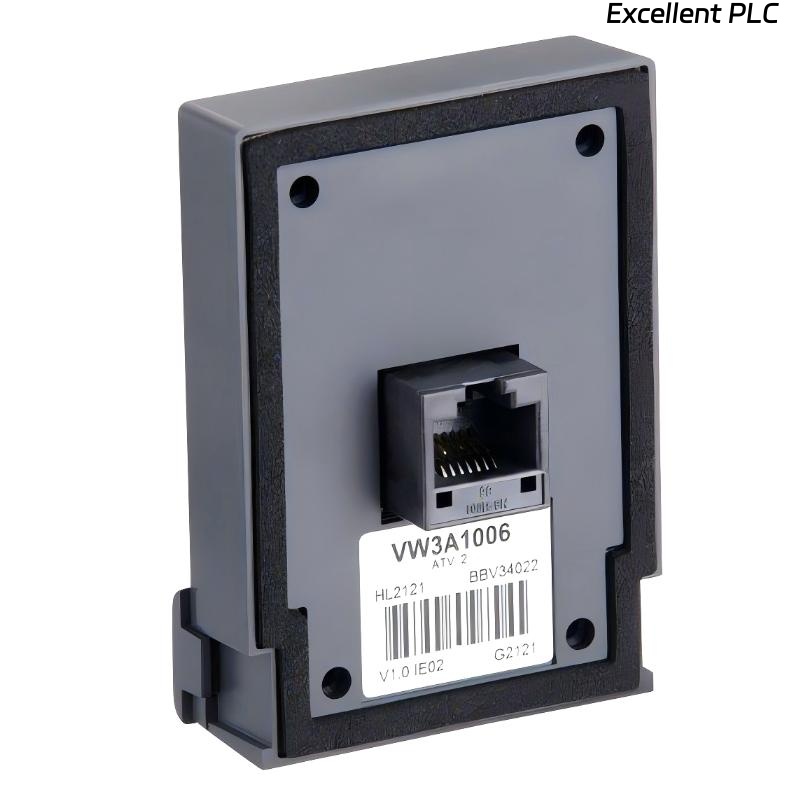

Schneider VW3A1006 Remote Terminal

Product Introduction

The Schneider VW3A1006 Remote Terminal is a compact remote interface designed for Schneider Altivar variable speed drives, specifically the ATV12 and ATV312 series. It enables operators to control and monitor the drive remotely, typically installed on the door of a control enclosure.

The terminal features IP54 protection, ensuring reliable operation in industrial environments. It provides convenient access to drive control and configuration functions, allowing operators to adjust parameters, monitor status, and perform maintenance tasks without direct interaction with the main drive unit.

---

Product Specifications

---

Applications

• Remote Drive Control: Operate ATV12 and ATV312 drives from the enclosure door for convenient access.

• Parameter Adjustment: Adjust and configure drive settings without needing direct access to the drive unit.

• Status Monitoring: Monitor drive operating conditions and performance parameters remotely.

• Industrial Enclosures: Designed for door-mounted installation to improve accessibility and safety.

• Maintenance Support: Facilitates troubleshooting and routine maintenance by providing quick access to essential drive information.

• Configuration Management: Simplifies setup by allowing verification and application of drive parameters.

---

Advantages

• IP54 Protection: Resistant to dust and splashing water in industrial environments.

• Remote Operation: Moves the control interface away from the main drive, improving operator flexibility.

• User-Friendly Interface: Provides intuitive control and monitoring functions.

• Compact and Lightweight: Easy to install without consuming significant space.

• Reliable Performance: Designed for consistent operation in industrial conditions.

• Efficient Maintenance: Reduces downtime by providing quick access to drive information.

FAQ

1. Which Altivar drives are compatible with the VW3A1006?
   It is compatible with the ATV12 and ATV312 series drives.

2. What is the protection rating of the terminal?
   The terminal has an IP54 protection rating.

3. Can it be mounted on a control panel door?
   Yes, it is specifically designed for enclosure door mounting.

4. Can operators adjust drive parameters remotely?
   Yes, it allows adjustment and configuration of drive parameters from the terminal.

5. What is the operating temperature range?
   The terminal operates from 0 to 50 °C.

6. Is the terminal compatible with multiple drives simultaneously?
   No, it connects to a single drive at a time.

7. Does the terminal require additional accessories for operation?
   No, standard cabling for connection to the drive is sufficient.

8. Can it display real-time drive status?
   Yes, it provides real-time monitoring of key drive parameters.

9. Is installation and removal straightforward?
   Yes, its compact and lightweight design allows easy installation and removal.

10. Does it support maintenance or troubleshooting functions?
    Yes, it facilitates quick access to drive information, aiding in maintenance and troubleshooting.
