Product Introduction

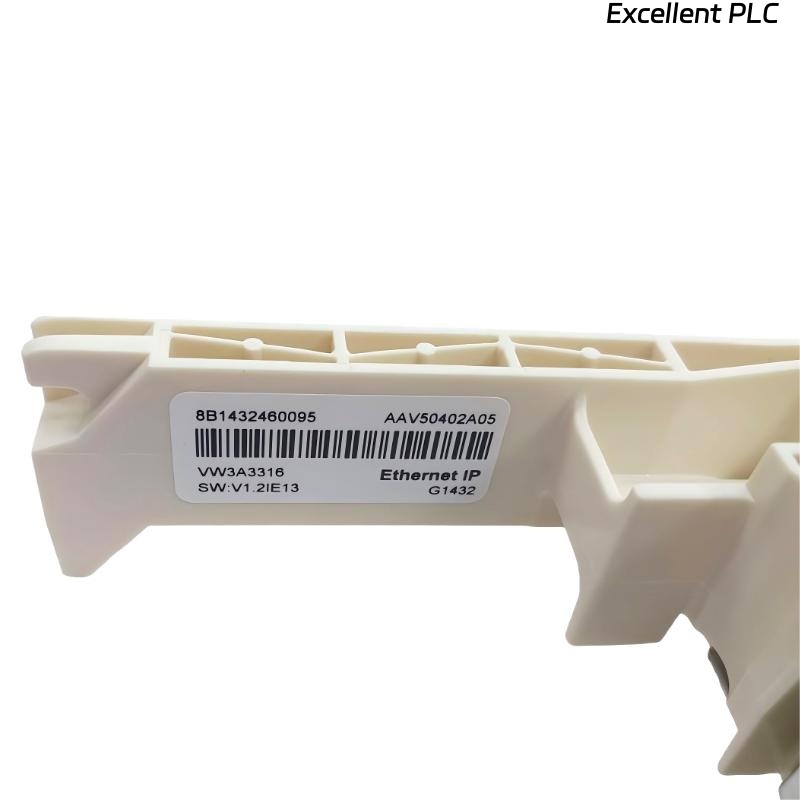

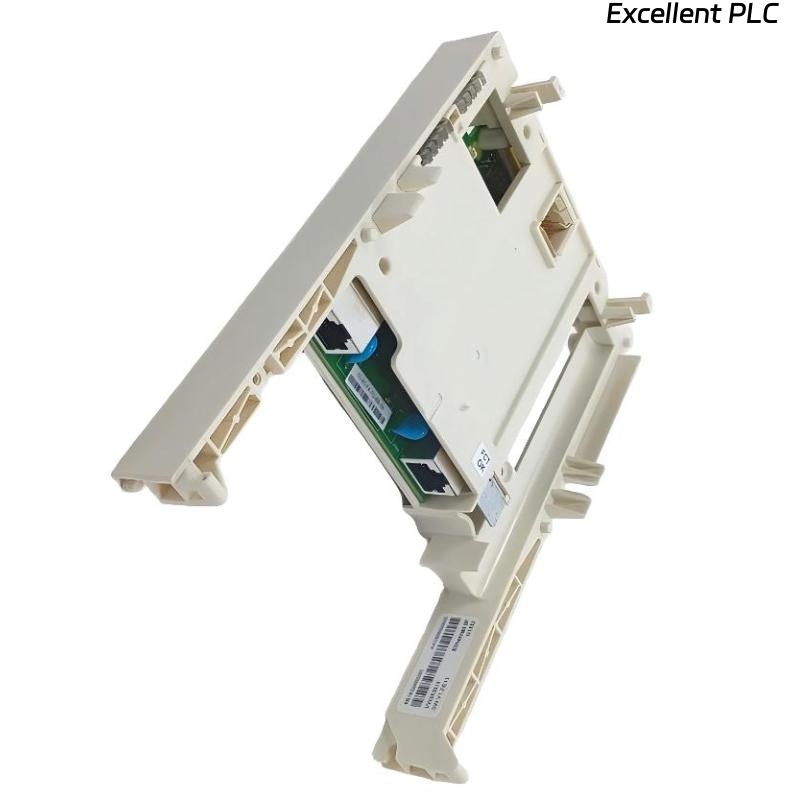

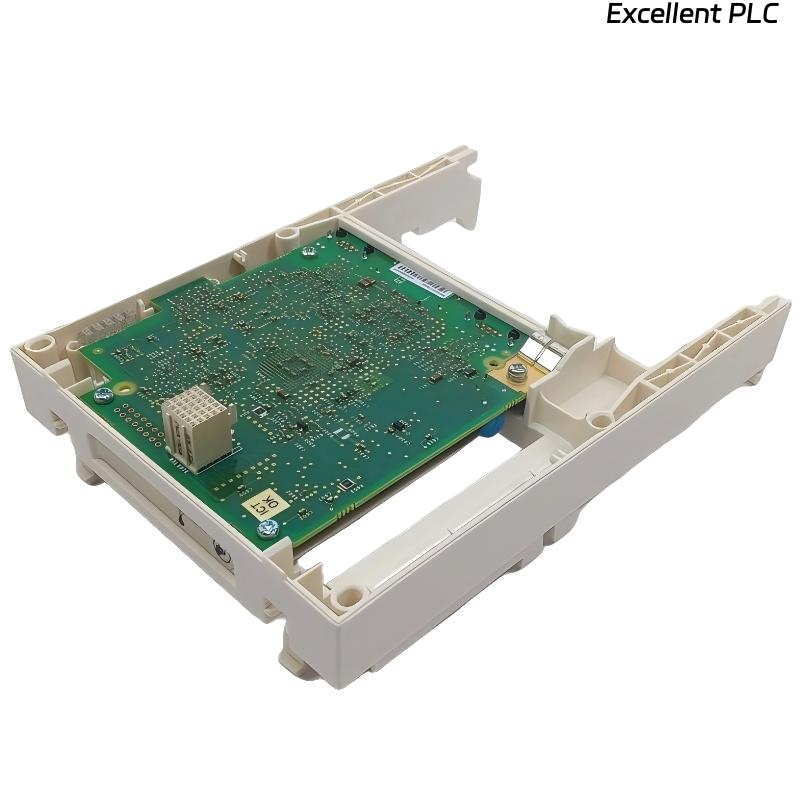

The Schneider VW3A3316 Ethernet IP Communication Card is a high-performance network module designed for industrial automation systems, providing reliable Ethernet/IP connectivity for Schneider Modicon PLCs. It enables secure and high-speed communication between controllers, I/O modules, and supervisory systems, supporting seamless data exchange in modern industrial networks.
Equipped with dual RJ45 ports, the VW3A3316 allows for flexible network topology, including daisy-chaining or redundant communication setups. It supports both 10 and 100 Mbps operation, ensuring compatibility with standard industrial Ethernet networks. The module complies with IEEE 802.3 standards, guaranteeing reliable interoperability across Ethernet/IP-enabled devices.
This card is ideal for applications in factory automation, process control, energy management, and SCADA systems, where deterministic and continuous communication is critical for operational performance and system reliability.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | VW3A3316 |
| Product Type | Ethernet IP Communication Card |
| Network Protocol | Ethernet/IP |
| Communication Port | Ethernet/IP |
| Connector Type | 2 × RJ45 Industrial Ethernet Ports |
| Data Transfer Rate | 10/100 Mbps |
| Standard Compliance | IEEE 802.3 |
| Compatibility | Schneider Modicon PLC systems |
| Operating Temperature Range | 0–60 °C |
| Housing Type | Compact modular interface card |
| Power Requirement | Powered via host PLC slot |
| Diagnostics | LED indicators for network status and activity |
| Dimensions | 120 × 100 × 20 mm |
| Weight | 0.3 kg |
Applications
● Provides Ethernet/IP network connectivity for Schneider Modicon PLCs in industrial automation systems.
● Supports real-time communication between controllers, I/O modules, and SCADA systems.
● Enables redundant or daisy-chain network topologies using dual RJ45 ports.
● Integrated into factory automation and process control networks requiring high-speed data exchange.
● Used in energy management and building automation systems for monitoring and control tasks.
● Facilitates diagnostics, remote monitoring, and configuration via Ethernet/IP network.
Advantages
● Dual RJ45 ports allow flexible network configurations, including redundancy.
● Supports 10/100 Mbps Ethernet/IP communication, compatible with most industrial networks.
● Complies with IEEE 802.3 standard, ensuring interoperability and reliability.
● Compact modular design, suitable for integration into PLC racks or control panels.
● LED indicators provide real-time network diagnostics.
● Supports robust operation in industrial environments, tolerant to vibration, noise, and temperature variations.
