Schneider VW3A3420 Digital Encoder Interface Module

Product Introduction

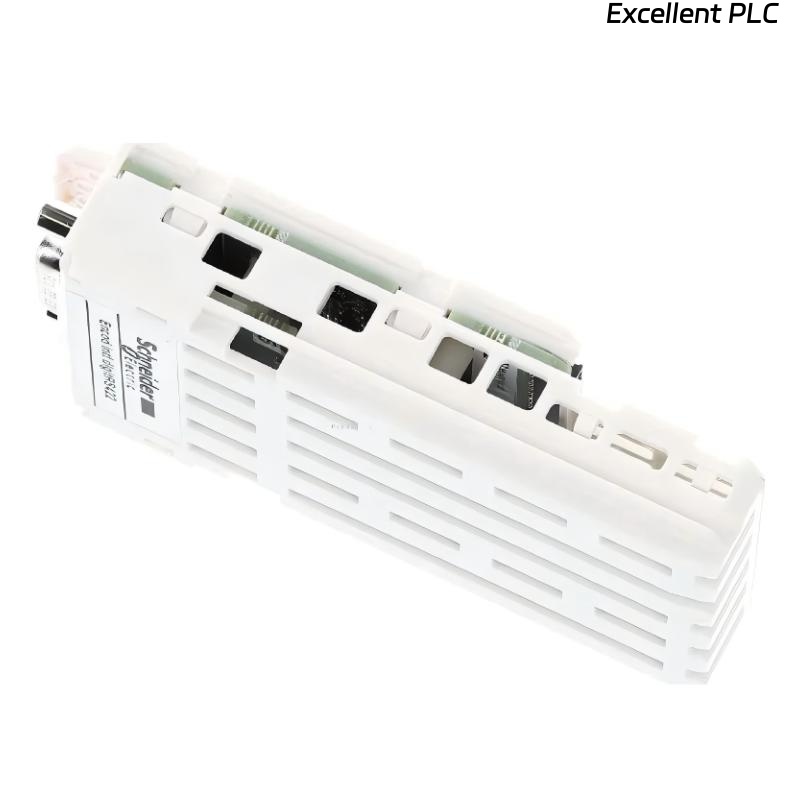

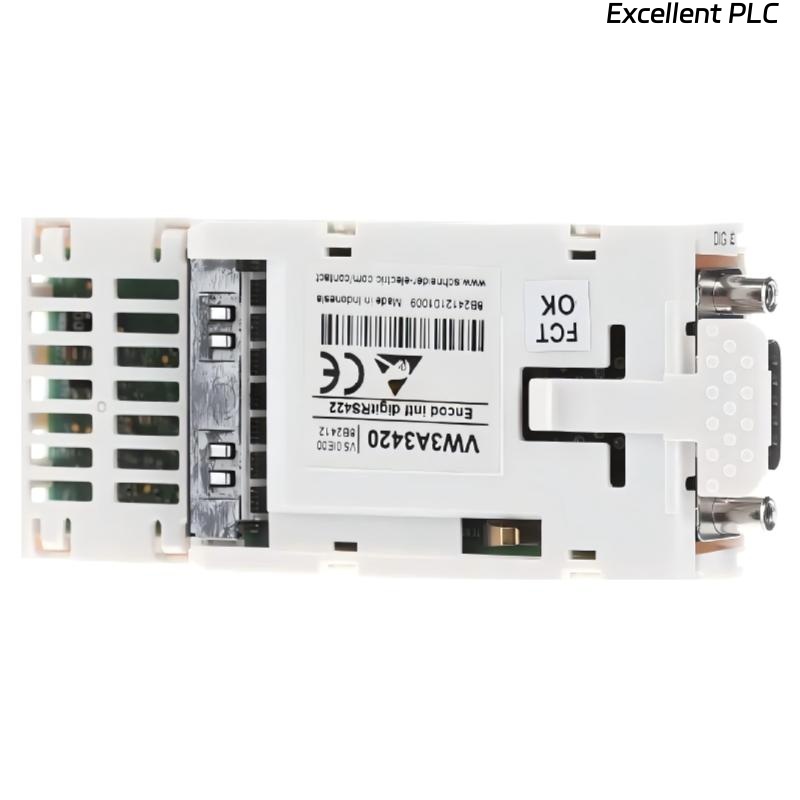

The Schneider Electric VW3A3420 Digital Encoder Interface Module is a specialized accessory for Altivar variable speed drives, designed to interface digital encoders with drives for precise motion control. It is compatible with ATV340 and ATV900 series inverters and allows accurate transmission of encoder signals to optimize drive performance.

This module supports 5/12V logic encoders and features a high-density 15-pin SUB-D female connector, enabling secure and reliable connections. Built-in overload and short-circuit protection ensures safe operation in demanding industrial environments. The VW3A3420 supports RS422 communication protocol, providing robust and high-speed data transfer for precise feedback applications.

The module’s compact and lightweight design, combined with its high operating frequency and protective features, makes it an essential accessory for high-performance Altivar applications requiring accurate encoder integration.

---

Product Specifications

---

Applications

• Digital encoder integration with ATV340 and ATV900 drives

• High-speed motion control, ensuring accurate motor speed and position regulation

• Industrial automation systems, providing precise encoder feedback

• Drive commissioning and diagnostics, enabling reliable monitoring of encoder signals

• Machine automation, enhancing control over complex motion sequences

• OEM and retrofit applications, for flexible encoder signal interfacing

---

Advantages

• High-frequency operation, supporting up to 1000 kHz signal transmission

• RS422 communication protocol, ensuring robust and reliable data exchange

• Overload and short-circuit protection, enhancing operational safety

• High-density SUB-D connector, enabling secure and compact wiring

• Compact and lightweight design, suitable for confined installation spaces

• Optimized for ATV340 and ATV900 drives, ensuring compatibility and performance

• Precise encoder feedback, improving speed, torque, and position control

FAQ

1. What is the main function of the VW3A3420 module?
   It transmits digital encoder signals to Altivar drives, improving motion control precision.

2. Which drives are compatible with this module?
   ATV340 and ATV900 series inverters.

3. What type of logic level does it support?
   It supports 5/12V logic encoders.

4. What connector is used for the encoder interface?
   High-density 15-pin SUB-D female connector for reliable connection.

5. What protections are included in the module?
   Overload and short-circuit protection to safeguard the device and drive.

6. What is the maximum operating frequency of the module?
   Up to 1000 kHz, suitable for high-speed encoder signals.

7. What is the input impedance of the module?
   121 Ω, ensuring stable RS422 communication.

8. Which communication protocol does it use?
   RS422, providing differential high-speed signal transmission.

9. Can this module be used in industrial automation applications?
   Yes, it enhances Altivar drives with precise encoder feedback.

10. Does this module improve drive accuracy?
    Yes, it allows better speed, torque, and position control.
