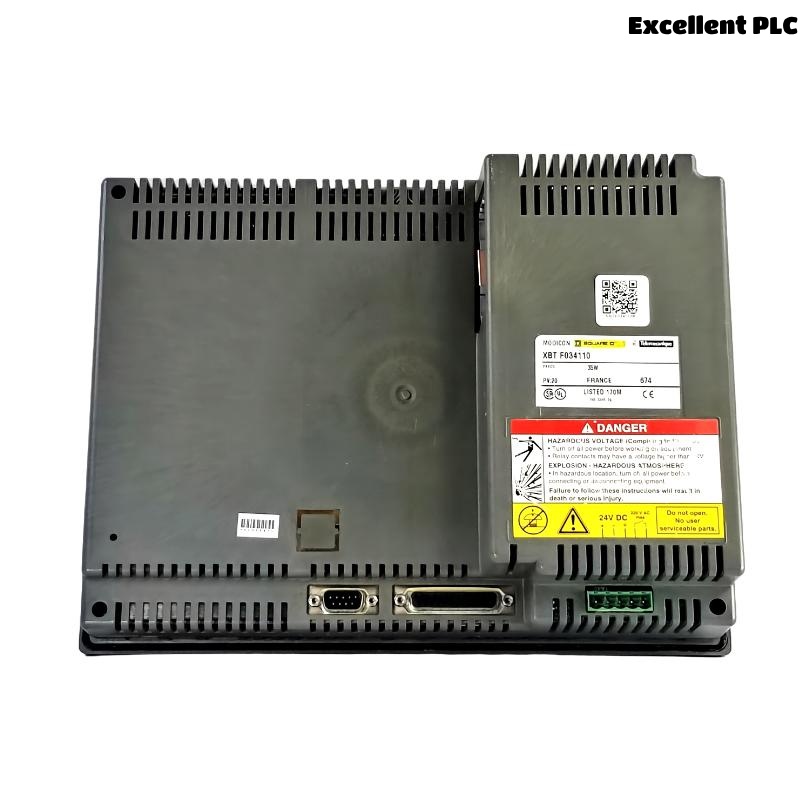

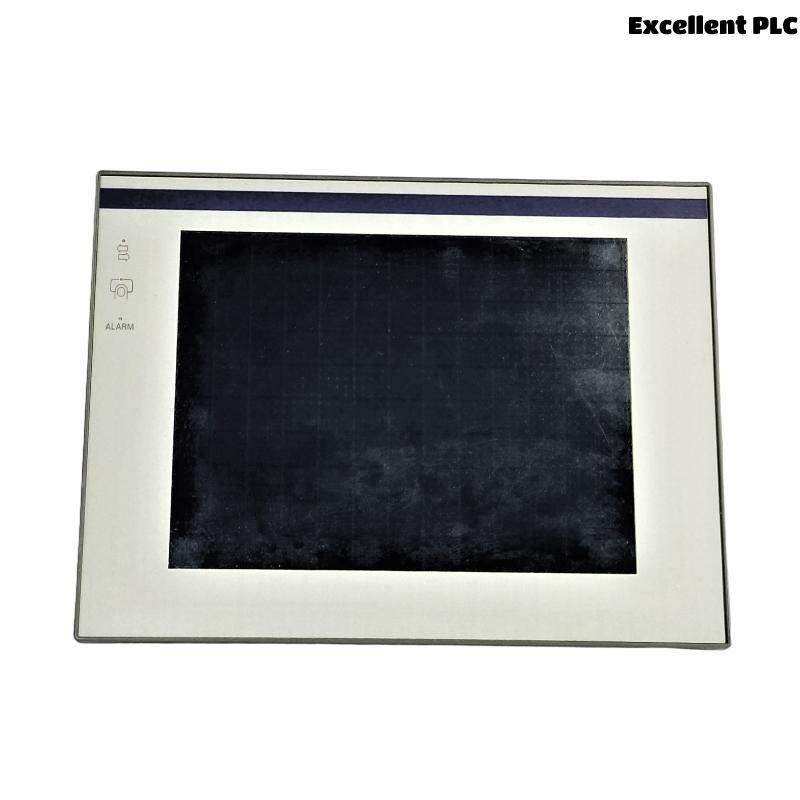

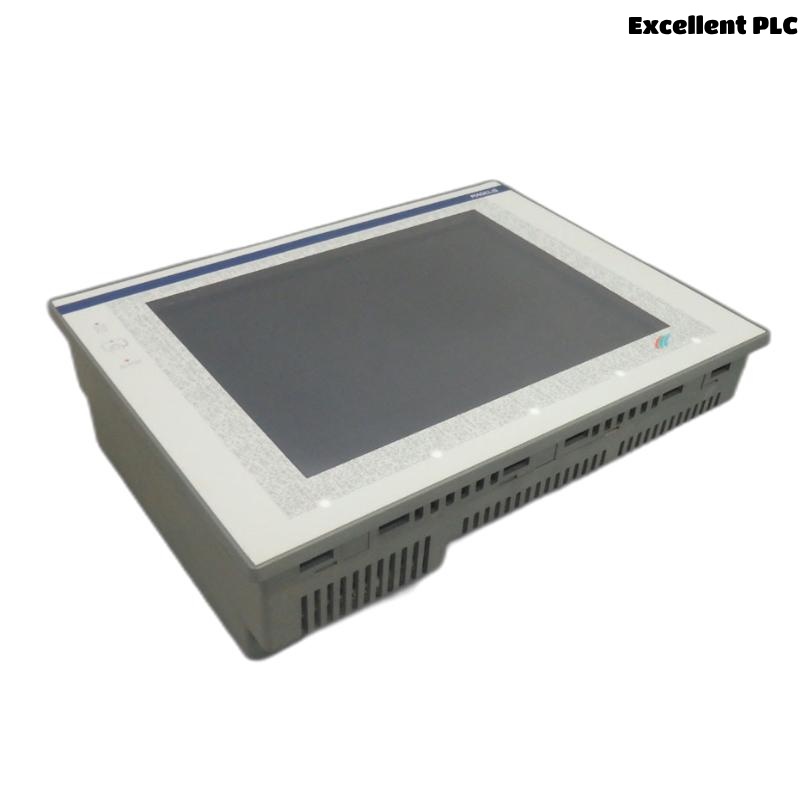

Schneider XBTF034110 Touch Screen

Product Introduction

The Schneider XBTF034110 touchscreen is an advanced industrial HMI (human-machine interface) designed for a variety of automation and process control applications. Equipped with a 10.4-inch color display, it provides operators with an intuitive, interactive platform for monitoring and controlling machinery and systems.

As part of Schneider’s Magelis XBT-F series, the XBTF034110 offers high-resolution graphics, robust connectivity, and reliable operation in harsh industrial environments. Its touch interface enables real-time interaction with PLCs and other control devices, enabling efficient operation and an enhanced user experience.

Product Specifications

Product Applications

• Industrial Automation: Used as an operator interface for PLCs in manufacturing environments.

• Process Control Systems: Monitors and controls variables in chemical, water treatment, and power generation plants.

• Machine Control: Provides operators with real-time control of machinery during production.

• Packaging and Material Handling: Interfaces with packaging machines and conveyor systems for smooth operations.

• Energy Management Systems: Displays energy consumption and control parameters in industrial facilities.

• Building Automation: Controls HVAC, lighting, and facility systems in commercial and industrial buildings.

• OEM Equipment Integration: Serves as a user-friendly interface in custom-built machinery.

Product Advantages

• Large 10.4-inch Display: Offers a clear and spacious user interface for complex processes.

• Industrial-Grade Durability: Designed for continuous operation in harsh environments.

• Flexible Communication: Supports multiple industrial communication protocols including Modbus.

• High-Resolution Graphics: Ensures accurate visualization of process data and alarms.

• Compact Panel Mounting: Saves space and integrates easily into control panels.

• Long-Life Backlight: Reduces maintenance costs and improves system reliability.

• User-Friendly Interface: Simple navigation for operators, reducing training time.

• Reliable Operation: Built with robust hardware to withstand electrical noise and vibration.

FAQ

1. Which communication protocols are supported by the XBTF034110?
   It supports Modbus RTU, Modbus TCP/IP, and Schneider proprietary communication protocols.

2. Can the XBTF034110 interface directly with Schneider PLCs?
   Yes, it is fully compatible with Schneider Modicon PLCs and other Modbus-enabled devices.

3. What is the display resolution of the unit?
   The touch screen has a VGA resolution of 640 × 480 pixels.

4. Does the XBTF034110 support Ethernet communication?
   Yes, certain configurations support Ethernet for high-speed data exchange.

5. What is the operating voltage range?
   It operates at 24 VDC nominal with an acceptable range of 18–30 VDC.

6. What type of touch technology is used?
   The unit uses a resistive touch panel suitable for industrial environments.

7. Is the front panel dust and water resistant?
   Yes, the front panel is dust and water resistant to IP65.

8. Can the device store recipes and user data?
   Yes, it has flash memory for storing application and recipe data.

9. Does it support real-time monitoring of PLC variables?
   Yes, it provides real-time variable monitoring and control capabilities.

10. Is the XBTF034110 suitable for high vibration applications?
    Yes, it meets industrial vibration and shock standards.

Recommended related models

Recommended popular Schneider models

FAQ

1. What communication protocols does XBTF034110 support?
   It supports Modbus RTU, Modbus TCP/IP, and Schneider proprietary communication protocols.

2. Can XBTF034110 connect directly to Schneider PLC?
   Yes, it is fully compatible with Schneider Modicon PLC and other Modbus-enabled devices.

3. What is the display resolution of this device?
   The touch screen has a VGA resolution of 640×480 pixels.

4. Does XBTF034110 support Ethernet communication?
   Yes, some configurations support Ethernet for high-speed data exchange.

5. What is the operating voltage range?
   The nominal operating voltage is 24 VDC, and the acceptable range is 18–30 VDC.

6. What touch technology is used?
   The device uses a resistive touch panel suitable for industrial environments.

7. Is the front panel dust and water resistant?
   Yes, the front panel is dust and water resistant to IP65.

8. Can the device store recipes and user data?
   Yes, it has flash memory for storing application and recipe data.

9. Does it support real-time monitoring of PLC variables?
   Yes, it provides real-time variable monitoring and control capabilities.

10. Is the XBTF034110 suitable for high vibration applications?
    Yes, it meets industrial vibration and shock standards.
