Product Introduction

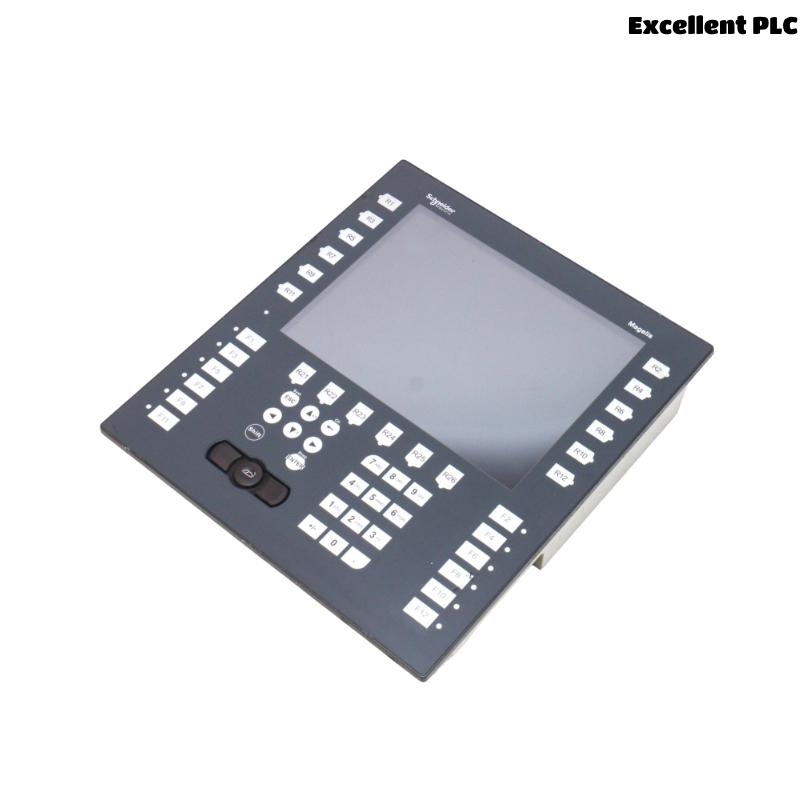

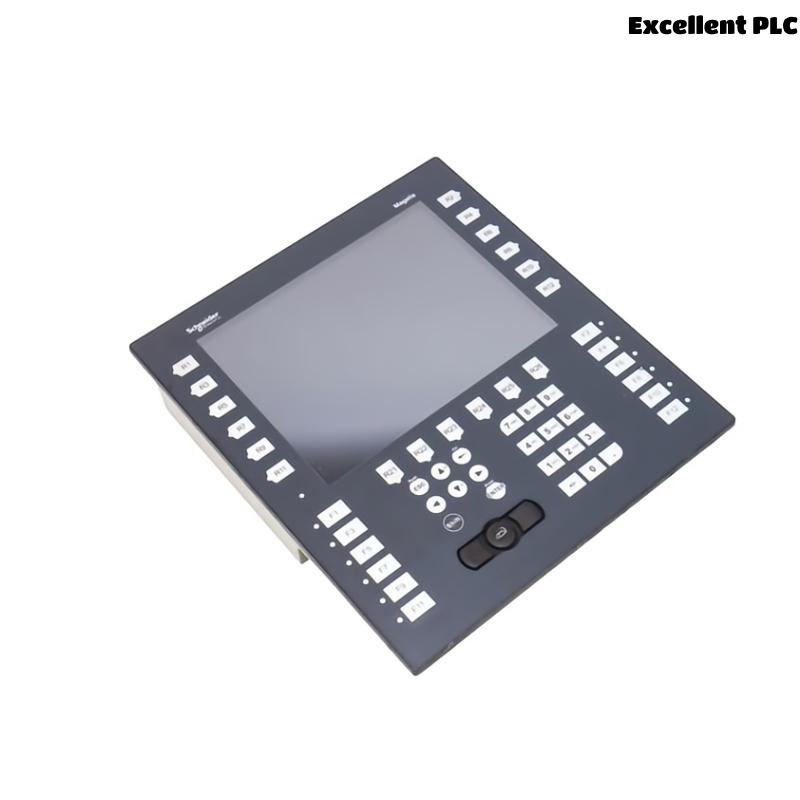

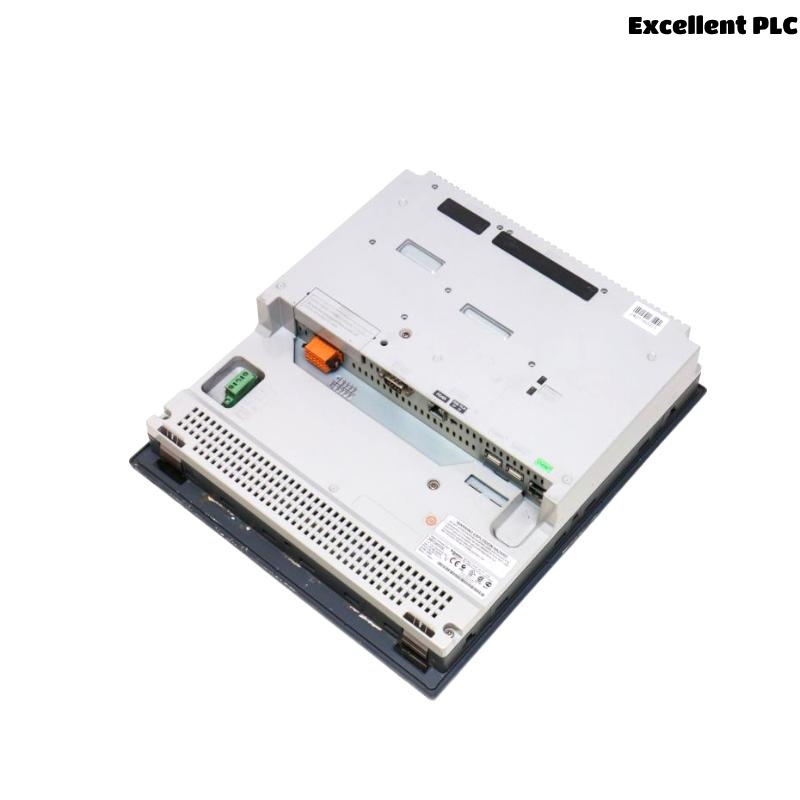

The Schneider XBTGK5330 is an advanced touchscreen panel that combines intuitive control with a physical keyboard for enhanced user interaction. Designed for industrial automation applications, this robust HMI (Human-Machine Interface) system offers a sleek, modern interface that allows operators to interact with machinery and systems in real-time.
With a user-friendly touch interface and the addition of a physical keyboard, the XBTGK5330 provides versatile control options. This makes it ideal for complex automation systems, where both touch and text-based input may be required for efficient operation. Schneider Electric’s emphasis on reliability, durability, and ease of use ensures that the XBTGK5330 is a top choice for many industrial applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | XBTGK5330 |
| Manufacturer | Schneider Electric |
| Display Type | Advanced Touchscreen Panel |
| Keyboard | Integrated Physical Keyboard |
| Screen Size | 10.4 inches |
| Resolution | 640 x 480 |
| Touch Technology | Analog Resistive |
| Keyboard Layout | Alphanumeric, Numeric, and Function Keys |
| Dimensions (L x W x H) | 296 x 332 x 72.7 mm |
| Weight | 2.4 kg |
| Operating Temperature | -10°C to +60°C |
| Material | Polycarbonate and ABS |
| Interface Compatibility | Magelis XBT Series, Custom Applications |
| Input Method | Touch Screen, Physical Keyboard |
Applications
The Schneider XBTGK5330 Advanced Touchscreen Panel With Keyboard is designed for a wide range of industrial and commercial applications where user interaction with control systems is essential. Some key areas of use include:
-
Industrial Automation Systems: It enables operators to control and monitor automated machinery and processes with both touch and keyboard input.
-
Machine Control: In environments where precise control is needed, such as CNC machines or manufacturing equipment, this HMI allows for flexible input methods.
-
Process Control Systems: Ideal for industries like oil and gas, chemical, and water treatment where operators need real-time data input and output control.
-
Building Management Systems (BMS): Used to manage energy-efficient systems such as HVAC, lighting, and security from a centralized interface.
-
Packaging and Manufacturing: Operators in packaging lines or complex manufacturing environments can use both the touchscreen and keyboard for quick data entry and operation.
Advantages
-
Dual Input Method: The combination of a touchscreen interface and a physical keyboard provides flexibility and efficiency in user input, catering to both touch and text-based control needs.
-
Durable Design: Made with high-quality polycarbonate and ABS materials, the XBTGK5330 is built to withstand the demanding conditions of industrial environments.
-
High-Resolution Display: The 640 x 480 pixel resolution offers clear visuals, ensuring operators can read and interact with data easily.
-
Wide Operating Temperature Range: Operating from -10°C to +60°C, it can perform in both cold and hot industrial environments.
-
Easy Installation: The XBTGK5330 is designed for simple integration into Schneider Electric’s Magelis XBT series systems, reducing setup time.
-
Enhanced Productivity: The physical keyboard allows for efficient data entry and rapid operation, speeding up workflow in environments requiring frequent text-based inputs.
-
Compact and Space-Saving: Its compact size allows for easy placement in various industrial environments, even where space is limited.
-
Versatile Usage: Perfect for both standalone and networked operations, allowing for customization based on the needs of the system or application.
-
Long-Term Reliability: Built for continuous operation, ensuring minimal downtime and long-term service life in tough environments.
-
User-Friendly Interface: The touch-sensitive screen offers a responsive interface, while the keyboard provides tactile feedback for precise control.
Frequently Asked Questions (FAQ)
-
What is the screen size of the Schneider XBTGK5330?
The XBTGK5330 features a 10.4 inches screen, which offers an excellent balance between clarity and compactness. -
What is the resolution of the XBTGK5330 touchscreen?
The screen resolution is 640 x 480 pixels, providing clear visuals for monitoring and controlling industrial processes. -
Does the XBTGK5330 come with a physical keyboard?
Yes, the XBTGK5330 includes an integrated physical keyboard with alphanumeric and function keys for versatile input. -
What type of touch technology is used in the XBTGK5330?
The XBTGK5330 uses analog resistive touch technology, allowing for precise input with a finger or stylus. -
Can the XBTGK5330 operate in extreme temperatures?
The operating temperature range is from -10°C to +60°C, making it suitable for most industrial environments. -
Is the XBTGK5330 compatible with other Schneider Electric systems?
Yes, the XBTGK5330 is compatible with Schneider Electric’s Magelis XBT series systems and can also be used in custom applications. -
How much does the XBTGK5330 weigh?
The unit weighs 2.4 kg, making it easy to install and handle. -
What materials is the XBTGK5330 made of?
The touchscreen panel is constructed from polycarbonate and ABS, ensuring durability and resistance to industrial conditions. -
Is the XBTGK5330 suitable for use in hazardous environments?
While the XBTGK5330 is durable and robust, it is not specifically rated for hazardous or explosive environments. Additional protection may be needed. -
Can I use both the touchscreen and the keyboard simultaneously?
Yes, the touchscreen and keyboard can be used together, offering flexibility for operators to switch between touch and text-based input as needed.
Recommended Models from the Same Series
| Model Number | Screen Size | Resolution | Keyboard | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|---|
| XBTGK5331 | 12.1 inches | 800 x 600 | Integrated Keyboard | 319 mm x 270 mm x 62 mm | 2.4 kg |
| XBTGK5310 | 10.4 inches | 640 x 480 | Integrated Keyboard | 280 mm x 240 mm x 60 mm | 1.8 kg |
| XBTGK5332 | 12.1 inches | 1024 x 768 | Integrated Keyboard | 330 mm x 280 mm x 65 mm | 2.6 kg |
| XBTGK5500 | 15 inches | 1024 x 768 | Integrated Keyboard | 350 mm x 310 mm x 70 mm | 3.2 kg |
| XBTGK5200 | 7 inches | 800 x 480 | Integrated Keyboard | 200 mm x 170 mm x 50 mm | 1.2 kg |
| XBTGK5400 | 15 inches | 1280 x 1024 | Integrated Keyboard | 360 mm x 320 mm x 75 mm | 3.5 kg |
