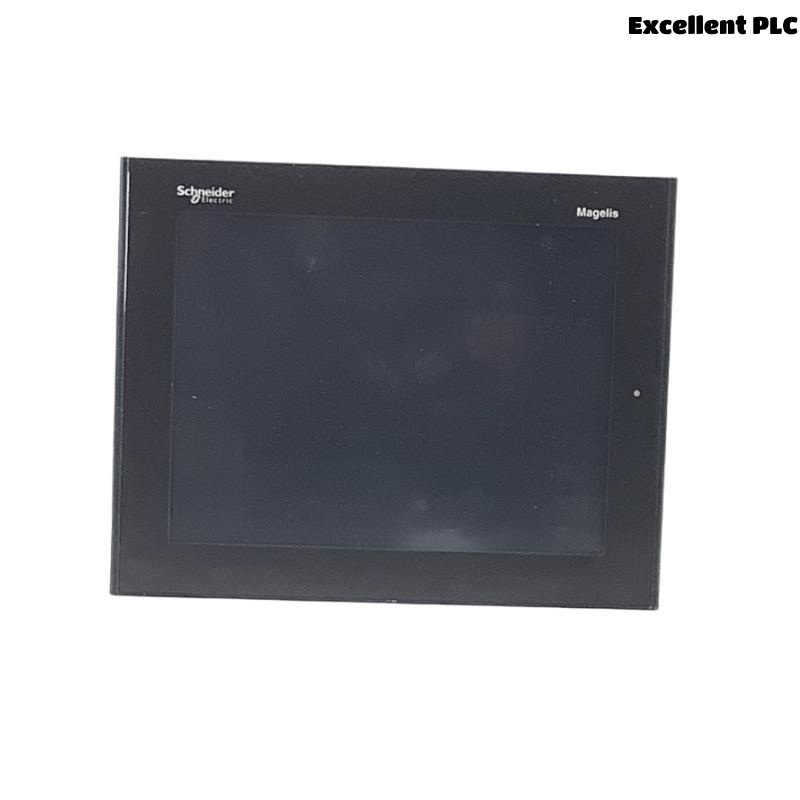

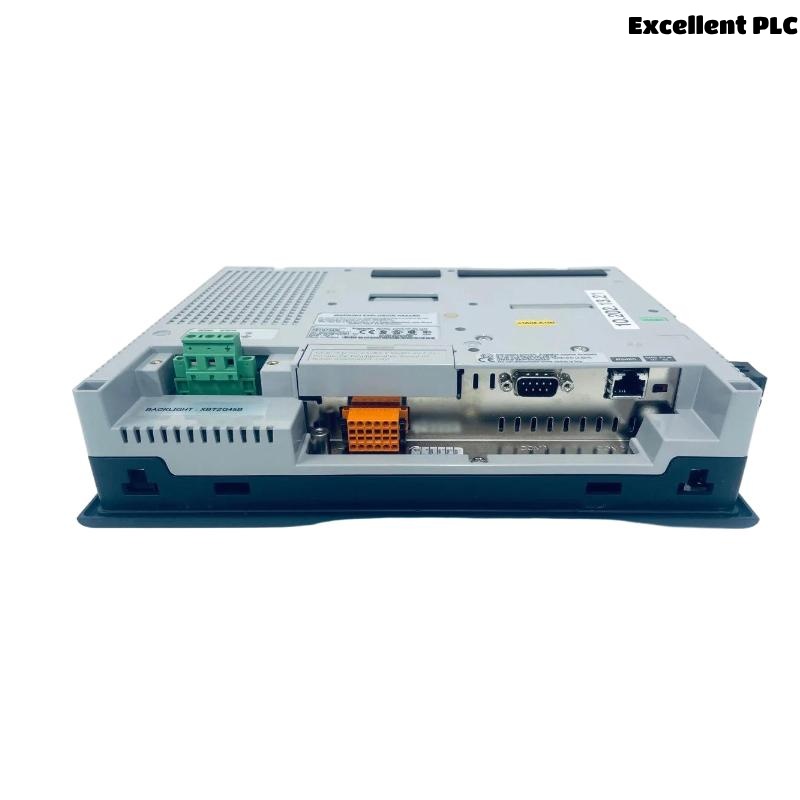

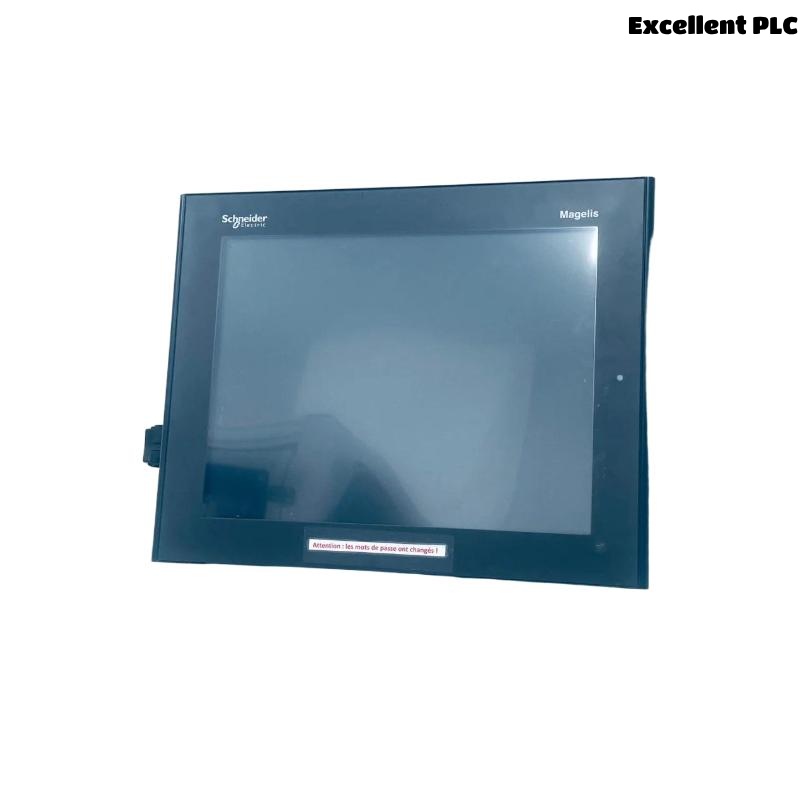

Schneider XBTGT5330 10.4-inch Advanced Touchscreen Panel

Product Introduction

The Schneider XBTGT5330 is a state-of-the-art 10.4-inch advanced touchscreen panel designed for modern industrial control systems. It is part of Schneider Electric’s Magelis™ range, which is renowned for providing high-performance human-machine interfaces (HMIs) for a wide variety of automation applications. With its sleek design, large screen, and enhanced functionality, the XBTGT5330 provides operators with intuitive control, superior display quality, and powerful features that make it an ideal choice for industrial settings.

The XBTGT5330 is equipped with a high-resolution TFT display, providing crystal-clear visuals, ideal for real-time monitoring, data visualization, and process control. The 10.4-inch touchscreen makes it easy to interact with the device, ensuring that operators can control, monitor, and adjust settings with ease. With Ethernet, USB, and serial connectivity, this HMI panel provides seamless integration with a variety of industrial automation systems, making it a flexible and versatile solution for modern factory automation.

Designed for use in demanding environments, the XBTGT5330 offers exceptional durability and resilience, even under harsh industrial conditions. With its compact design, 270.5 x 212.5 x 57mm size and 2.5kg weight, it is well-suited for installation in control panels, machinery, and equipment where space and reliability are critical.

Product Specifications:

Applications:

The Schneider XBTGT5330 10.4-inch Advanced Touchscreen Panel is designed for use in a wide range of industrial automation and control applications, offering flexibility and efficiency for operators in various industries:

• Industrial Automation: The XBTGT5330 is used as an HMI interface to monitor and control industrial machinery, production lines, and equipment, enabling seamless operation in real-time.

• Manufacturing Facilities: The panel is widely used in manufacturing plants for controlling and monitoring automated production processes, providing intuitive displays for operators.

• Machine Builders: Ideal for OEM machine builders, the XBTGT5330 can be integrated into machinery control systems, allowing operators to access machine diagnostics, set parameters, and monitor performance.

• Process Control Systems: It is perfect for process industries (such as chemicals, pharmaceuticals, and food & beverage) where operators need real-time process control and visualization.

• Energy Management Systems: The XBTGT5330 is used in energy management systems for monitoring and controlling energy consumption, ensuring optimal use of resources.

• HVAC Systems: The panel can also be used in HVAC systems to control and monitor heating, ventilation, and air conditioning equipment, optimizing energy efficiency and performance.

Advantages:

• High-Resolution Display: The 800 x 600 pixel TFT LCD display offers superior image clarity and readability, making it easy for operators to monitor control systems with real-time feedback.

• Intuitive Touchscreen Interface: The 10.4-inch touchscreen interface is user-friendly, allowing operators to interact easily with the system, adjust settings, and access diagnostic information quickly.

• Flexible Connectivity: With Ethernet, USB, and RS232/RS485 ports, the XBTGT5330 supports a variety of industrial protocols, ensuring easy integration with a wide range of automation systems.

• Compact Design: With dimensions of 270.5 x 212.5 x 57 mm and a weight of 2.5kg, the panel is compact and ideal for installations in tight spaces where larger displays may not fit.

• Durability and Reliability: The IP65-rated front panel ensures that the unit is protected from dust and water, making it ideal for harsh environments, including factories, plants, and machinery.

• Energy-Efficient LED Backlight: The LED backlight ensures long-lasting performance while consuming less power, contributing to energy efficiency and lower operating costs.

• Wide Temperature Range: Operating in temperatures ranging from 0°C to 50°C, the XBTGT5330 is suitable for a wide range of environments, from controlled factory settings to outdoor industrial applications.

• Customizable Interface: The panel’s user interface can be customized to meet specific needs, allowing users to design their own screen layouts, control buttons, and data displays.

• Secure Data Storage: Equipped with 128MB RAM and 32MB Flash storage, the panel offers secure and reliable storage for applications, configurations, and data.

• Global Compatibility: The CE, UL, and RoHS certifications ensure that the XBTGT5330 meets global safety standards, making it suitable for use in industrial applications worldwide.

FAQ (Frequently Asked Questions)

1. What is the screen size of the Schneider XBTGT5330?

   • The XBTGT5330 features a 10.4-inch touchscreen display.

2. What is the resolution of the XBTGT5330 screen?

   • The display offers a resolution of 800 x 600 pixels (TFT LCD).

3. What are the dimensions of the XBTGT5330?

   • The dimensions are 270.5 x 212.5 x 57 mm.

4. How much does the XBTGT5330 weigh?

   • The XBTGT5330 weighs 2.5 kg.

5. What operating temperature range is the XBTGT5330 designed for?

   • The panel can operate in temperatures ranging from 0°C to 50°C.

6. What kind of touchscreen technology is used?

   • The XBTGT5330 uses an analog resistive touchscreen with 5-wire resistive touch technology.

7. What connectivity options are available?

   • The XBTGT5330 supports Ethernet, USB, and RS232/RS485 connectivity.

8. What is the IP rating of the front panel?

   • The front panel has an IP65 rating, providing protection against dust and water.

9. Can the XBTGT5330 be integrated into existing systems?

   • Yes, the XBTGT5330 can be easily integrated into existing industrial control systems, thanks to its flexible connectivity options and compatibility with various protocols.

10. Is the XBTGT5330 certified for global use?

    • Yes, the XBTGT5330 is certified with CE, UL, and RoHS, meeting global safety and environmental standards.
