Schneider XBTGT5340 10.4-inch Advanced Touchscreen Panel

Product Introduction

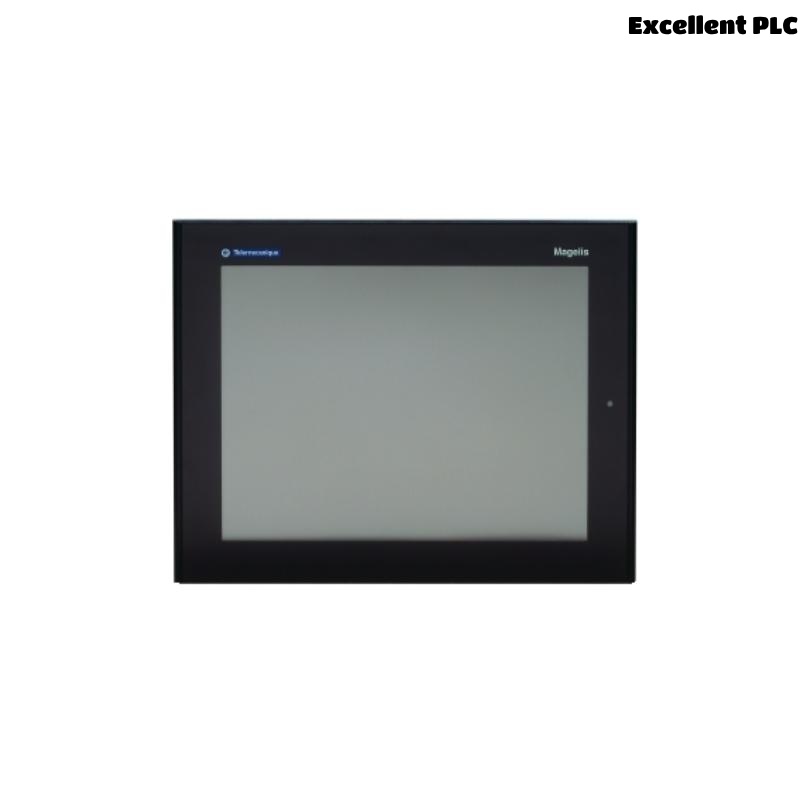

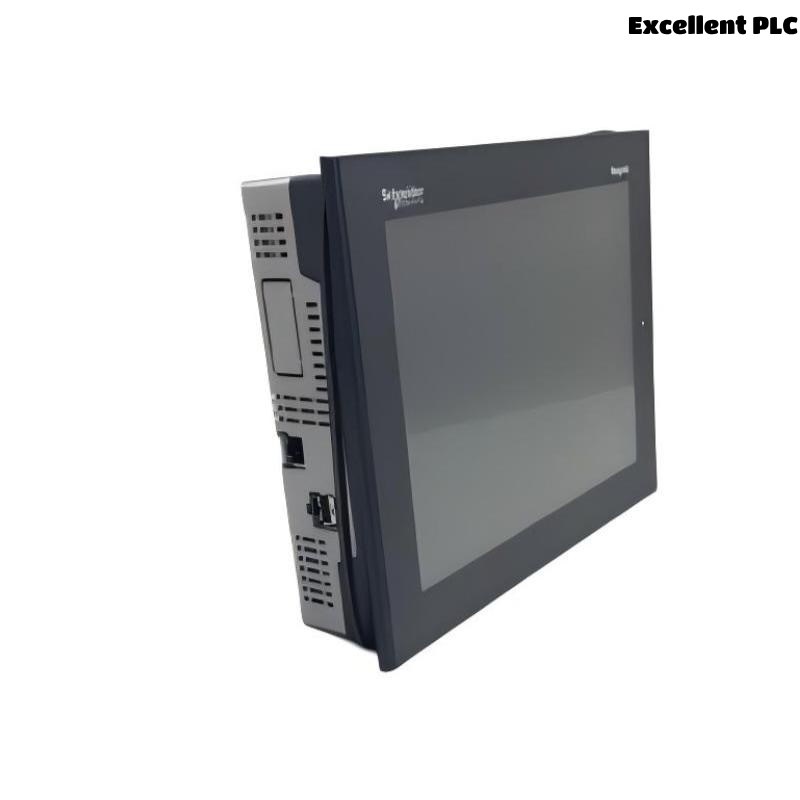

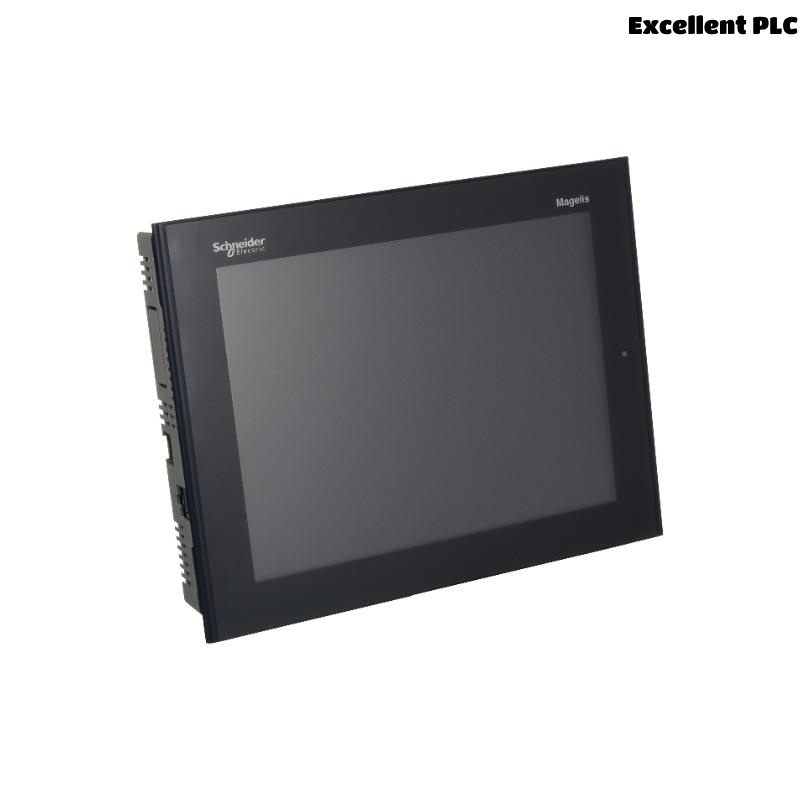

The Schneider XBTGT5340 is an advanced 10.4-inch HMI touchscreen panel designed for industrial automation and control systems. Part of the Magelis™ range by Schneider Electric, this high-performance device provides users with an intuitive interface for monitoring, controlling, and optimizing industrial processes. With its clear and responsive TFT LCD display, the XBTGT5340 is tailored to meet the needs of modern industrial environments, offering exceptional ease of use, advanced features, and robust performance.

This 10.4-inch touchscreen provides sharp, high-definition visuals, making it ideal for complex process control, real-time data visualization, and operator interaction. Featuring a compact size of 270.5 x 212.5 x 57mm and a weight of 2.5kg, the XBTGT5340 is designed to integrate seamlessly into industrial control panels, machinery, and automation systems where space optimization is crucial. With a wide range of connectivity options, including Ethernet, USB, and RS232/RS485 ports, it ensures compatibility with a variety of automation protocols, making it a highly versatile and flexible solution.

The Schneider XBTGT5340 is built to withstand the rigors of industrial environments. Whether it’s in manufacturing plants, power generation, or chemical processing, this touchscreen panel offers superior durability, high reliability, and a user-friendly interface that enhances overall operational efficiency.

Product Specifications:

Applications:

The Schneider XBTGT5340 10.4-inch Advanced Touchscreen Panel is designed for use in a wide range of industrial control applications. It’s particularly effective in environments that demand high performance, durability, and reliable human-machine interaction. Below are some of the key applications:

• Industrial Automation: The XBTGT5340 is used in industrial automation systems to monitor and control various machines, equipment, and processes. Its touchscreen interface allows operators to visualize data, configure parameters, and make real-time adjustments.

• Manufacturing and Production Lines: In manufacturing environments, the XBTGT5340 serves as an efficient HMI, enabling operators to monitor and control production lines, machinery, and material handling systems.

• Machine Builders and OEMs: This touchscreen panel is a valuable tool for OEM machine builders to integrate into their equipment for controlling machinery, displaying system diagnostics, and managing system parameters.

• Power Generation Plants: It’s widely used in power generation plants for monitoring turbine systems, generators, and other electrical equipment, helping optimize performance and reduce downtime.

• Chemical Processing: In chemical plants, the XBTGT5340 is used to manage processes, monitor critical equipment, and provide real-time process control, enhancing operational safety and efficiency.

• Energy Management Systems: The panel is used in energy management to monitor and control energy consumption, ensuring optimal operation and reducing operational costs.

• HVAC Systems: The XBTGT5340 can also be used in HVAC systems to control and monitor heating, ventilation, and air conditioning units, improving overall system efficiency.

Advantages:

• High-Resolution Display: The 800 x 600 pixel TFT LCD display provides clear, sharp images, making it easy for operators to monitor complex processes and read detailed data.

• Large Touchscreen Interface: The 10.4-inch touchscreen interface is large enough to provide ample control and display space while maintaining a compact and user-friendly design.

• Flexible Connectivity: The XBTGT5340 supports a wide range of industrial protocols, including Ethernet, USB, and RS232/RS485. This ensures easy integration with various automation systems and provides flexibility in network configuration.

• Compact Design: With a size of 270.5 x 212.5 x 57 mm and 2.5kg weight, the XBTGT5340 can be installed in spaces where other larger screens may not fit, offering space-saving advantages without compromising performance.

• Durable Construction: The IP65-rated front panel ensures that the device is protected from dust and water, making it ideal for demanding industrial environments.

• Energy-Efficient LED Backlight: The LED backlight ensures long-lasting, energy-efficient operation, while also reducing the device’s power consumption compared to traditional backlighting.

• User-Friendly Interface: The touchscreen interface is designed for intuitive navigation, making it easier for operators to interact with control systems, adjust settings, and monitor performance.

• Wide Operating Temperature Range: The device operates within a temperature range of 0°C to 50°C, making it suitable for a variety of industrial environments with varying environmental conditions.

• High Storage Capacity: Equipped with 128MB RAM and 32MB Flash memory, the XBTGT5340 can store complex applications and configurations, supporting high-performance applications.

• Global Compliance: The CE, UL, and RoHS certifications ensure that the XBTGT5340 meets global safety and environmental standards, making it suitable for use in industrial applications worldwide.

FAQ (Frequently Asked Questions)

1. What is the screen size of the Schneider XBTGT5340?

   • The screen size of the XBTGT5340 is 10.4 inches.

2. What is the resolution of the XBTGT5340 screen?

   • The XBTGT5340 offers a resolution of 800 x 600 pixels (TFT LCD).

3. What are the dimensions of the XBTGT5340?

   • The device measures 270.5 x 212.5 x 57 mm.

4. How much does the XBTGT5340 weigh?

   • The XBTGT5340 weighs 2.5 kg.

5. What is the operating temperature range for the XBTGT5340?

   • The XBTGT5340 operates within a temperature range of 0°C to 50°C.

6. What kind of touchscreen technology does the XBTGT5340 use?

   • The panel uses an analog resistive touchscreen with 5-wire resistive touch technology.

7. What connectivity options are available with the XBTGT5340?

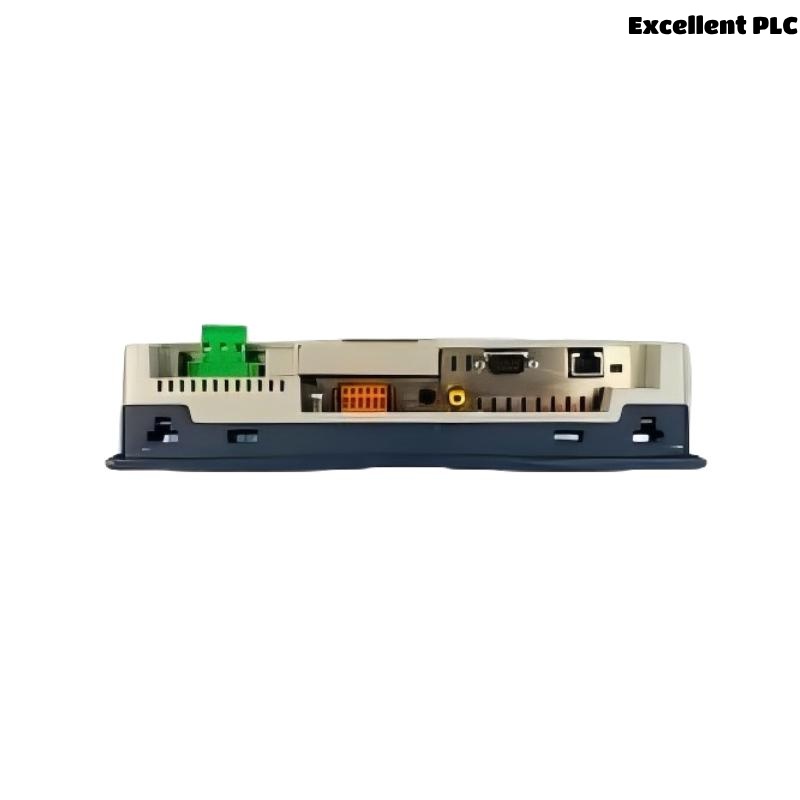

   • The XBTGT5340 supports Ethernet, USB, and RS232/RS485 connectivity.

8. What is the IP rating of the XBTGT5340?

   • The front panel of the XBTGT5340 is rated IP65, meaning it is protected against dust and water.

9. Can the XBTGT5340 be used in outdoor environments?

   • No, the device is designed for indoor use and should be installed in environments protected from harsh outdoor conditions.

10. Is the XBTGT5340 compatible with existing Schneider control systems?

    • Yes, the XBTGT5340 is compatible with Schneider Electric’s industrial control systems, including those used in automation, process control, and energy management.
