Schneider XBTGT7340 Advanced Touchscreen Panel

Product Introduction

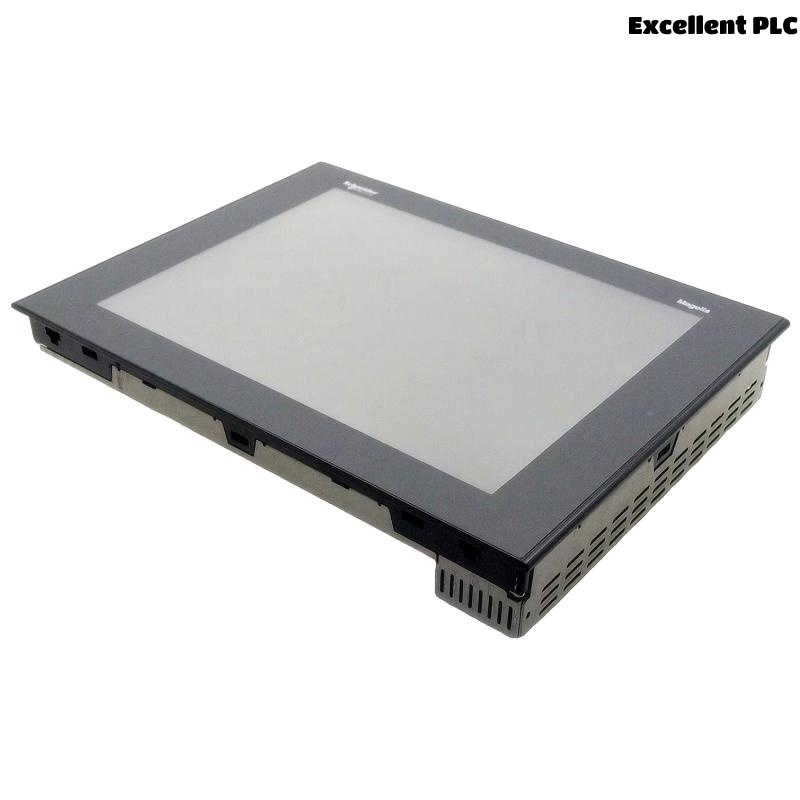

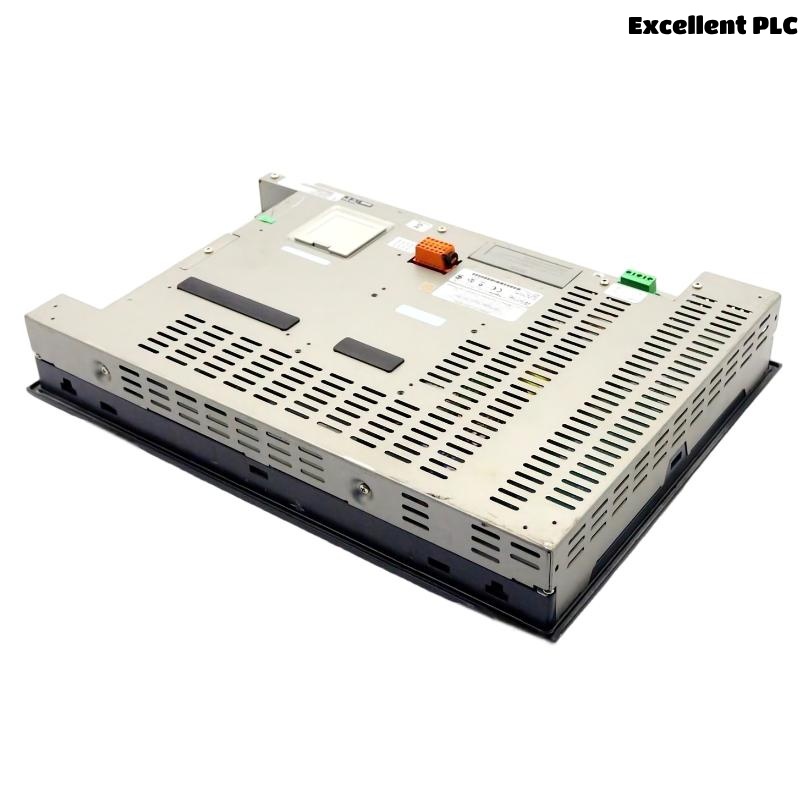

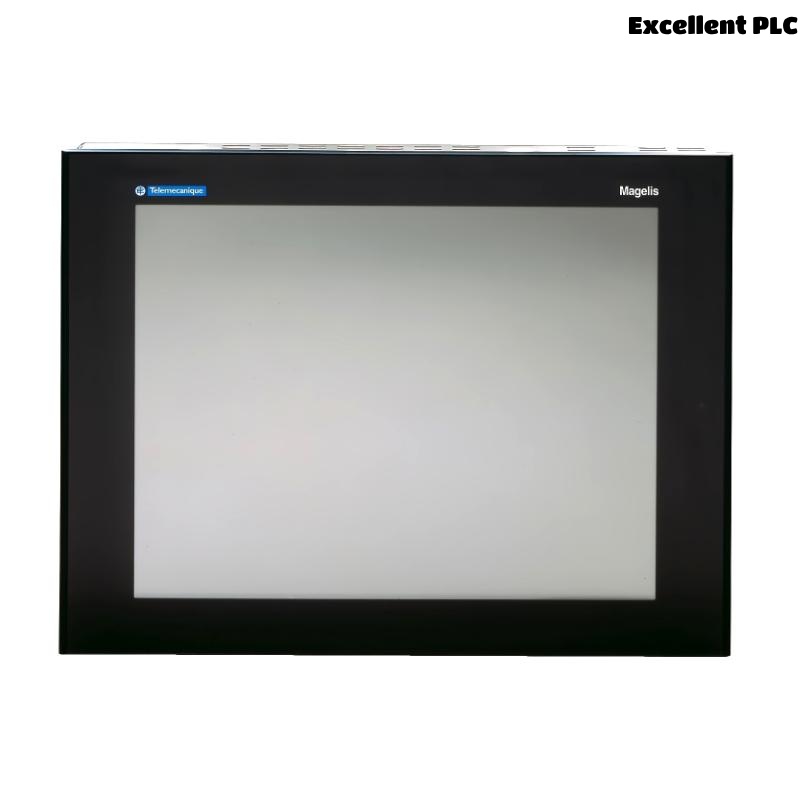

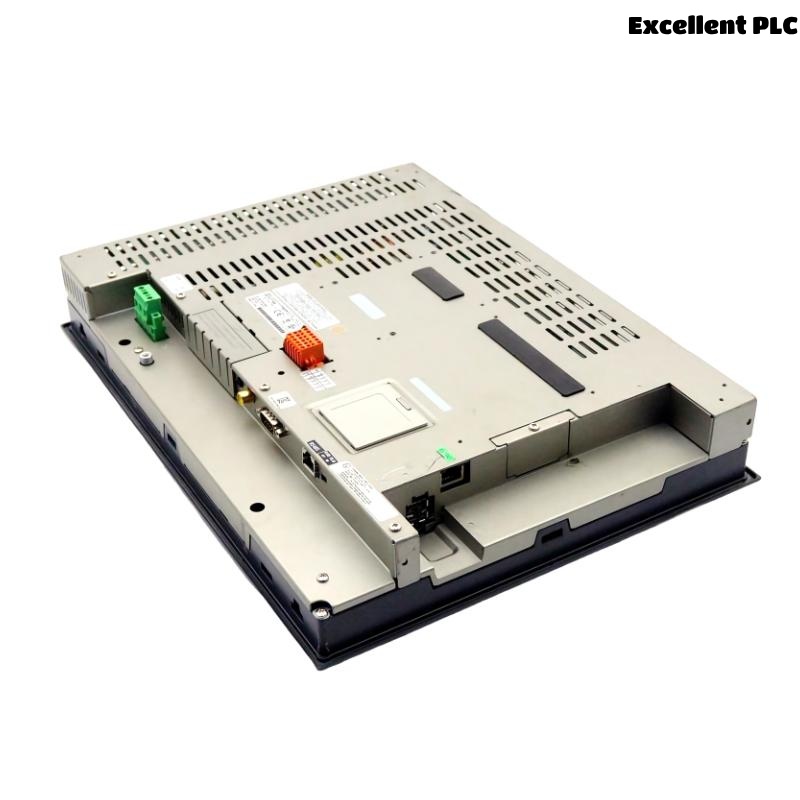

The Schneider Electric XBTGT7340 is a high-performance advanced touchscreen panel from the Magelis XBTGT series, engineered for demanding industrial Human Machine Interface (HMI) applications. Designed with a 15-inch XGA TFT display, the XBTGT7340 provides clear, vibrant visualization at 1024 x 768 resolution, enabling operators to monitor and control industrial processes with enhanced clarity and responsiveness.

This touchscreen terminal is part of Schneider’s Magelis range and integrates seamlessly into automation architectures involving PLCs, SCADA systems, and distributed control networks. It supports multiple communication protocols and features extensive connectivity options, allowing it to interact with a wide range of devices in real-time.

With high processing power, robust build quality, and flexible mounting options, the XBTGT7340 is widely deployed in manufacturing, energy, water treatment, and infrastructure automation where reliable operator interfaces are critical to system uptime and efficiency.

Product Specifications

Product Applications

The XBTGT7340 HMI panel is used in a wide range of industrial automation systems where operator interfaces are required to visualize and interact with processes:

• Manufacturing & Factory Automation: Supervises real-time machine data, supports remote diagnostics, and allows centralized control.

• Energy Management: Interfaces with energy monitoring systems to visualize load conditions and automate energy-saving routines.

• Water & Wastewater Treatment: Used for real-time process control, alarms, and SCADA integration.

• Oil & Gas Facilities: Provides rugged HMI access in refineries and drilling control systems.

• Food & Beverage: Facilitates control of batching systems, packaging lines, and cleanroom environments.

• Building Management Systems (BMS): Visualizes HVAC, lighting, and access control in commercial facilities.

Product Advantages

• High-Resolution Display: The 15-inch XGA display ensures crystal-clear graphics and data visualization.

• Versatile Connectivity: Offers a range of ports including Ethernet, serial, and USB for seamless device integration.

• User-Friendly Interface: Touchscreen navigation with flexible software support for custom HMI applications.

• Robust and Durable: IP65-rated front panel and industrial-grade components make it suitable for harsh environments.

• Modular Software Integration: Compatible with Schneider’s Vijeo Designer, facilitating efficient application development and deployment.

• Expandable Memory Options: Supports CompactFlash and USB storage devices for data logging and transfer.

• Multilingual Support: Enables deployment in global operations with language switching.

• Diagnostic and Alarming: Built-in capability for event monitoring and alarm generation.

• Easy Maintenance: Backlight status and runtime logging reduce unplanned downtime.

• Proven Industrial Compatibility: Fully compatible with Modicon PLCs and other industrial controllers.

Frequently Asked Questions (FAQ)

1. What communication protocols does the XBTGT7340 support?
   It supports Modbus TCP/IP, Modbus RTU, Uni-Telway, and Ethernet/IP among others.

2. Can the XBTGT7340 be programmed using Vijeo Designer?
   Yes, it is fully programmable using Schneider’s Vijeo Designer software.

3. Is remote access supported on this HMI?
   Yes, remote diagnostics and control can be performed using VNC or web server functionality.

4. What is the memory size available for application data?
   It includes 64MB of Flash memory and 64MB of RAM, with support for CompactFlash expansion.

5. Does it support recipe and trend functions?
   Yes, recipe handling and historical trend data logging are supported via Vijeo Designer.

6. Can the USB ports be used for firmware updates?
   Yes, firmware and project updates can be deployed via the USB host port.

7. Is Ethernet-based PLC communication supported?
   Yes, communication with Modicon M340/M580 and other Ethernet-based PLCs is supported.

8. What kind of touch technology is used in the panel?
   It uses analog resistive touchscreen technology for reliable operator input.

9. Can the HMI handle alarms and event logs?
   Yes, it provides extensive support for alarm messaging, logging, and event triggers.

10. Is it compatible with third-party PLCs?
    Yes, with appropriate communication drivers, the XBTGT7340 can interact with third-party PLCs.
