Schneider XBTZG915 XBT Terminal Adapter

Product Introduction

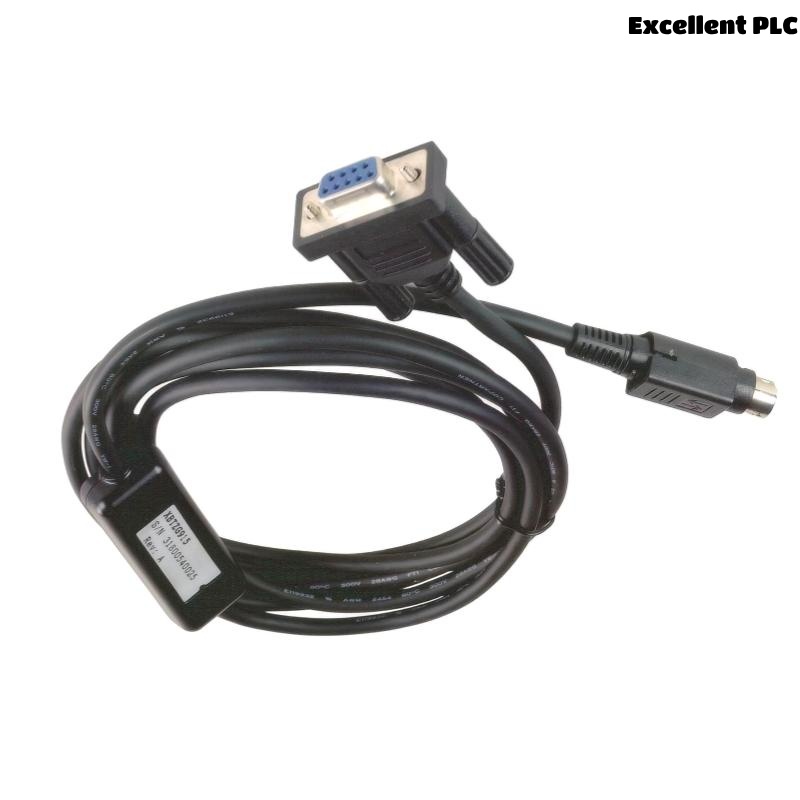

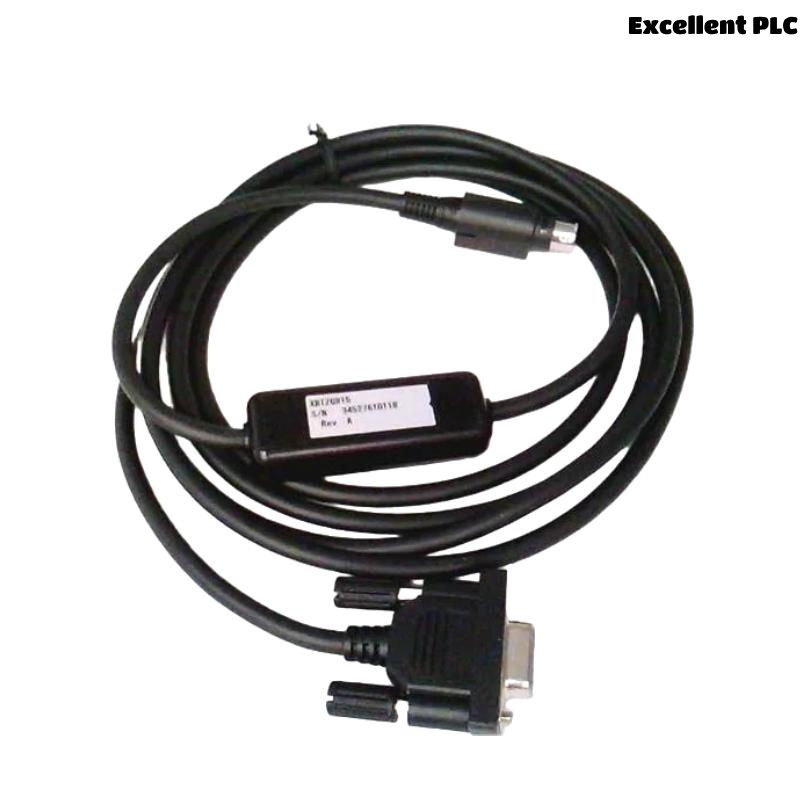

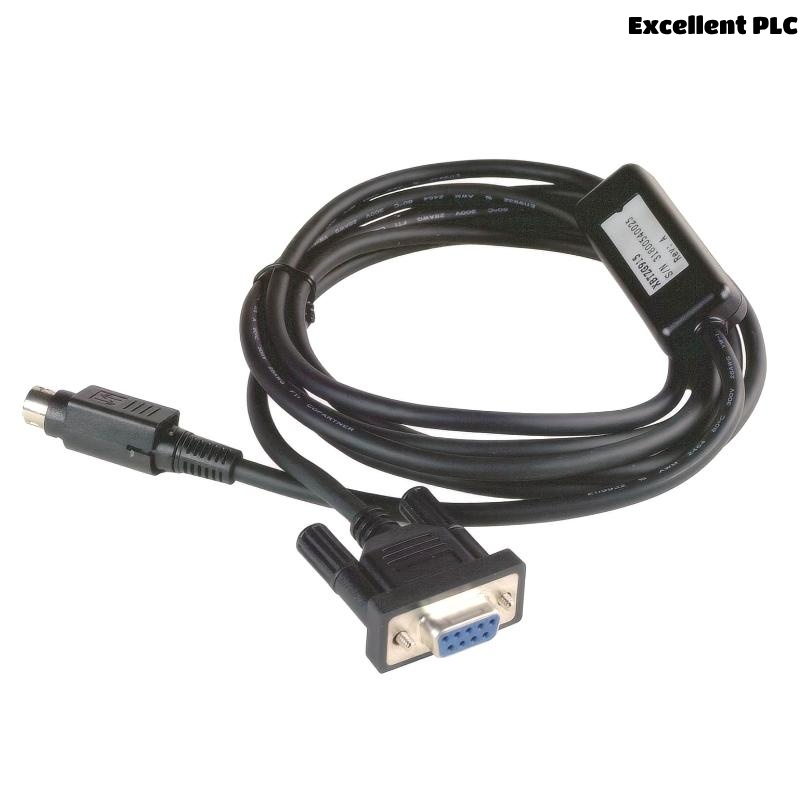

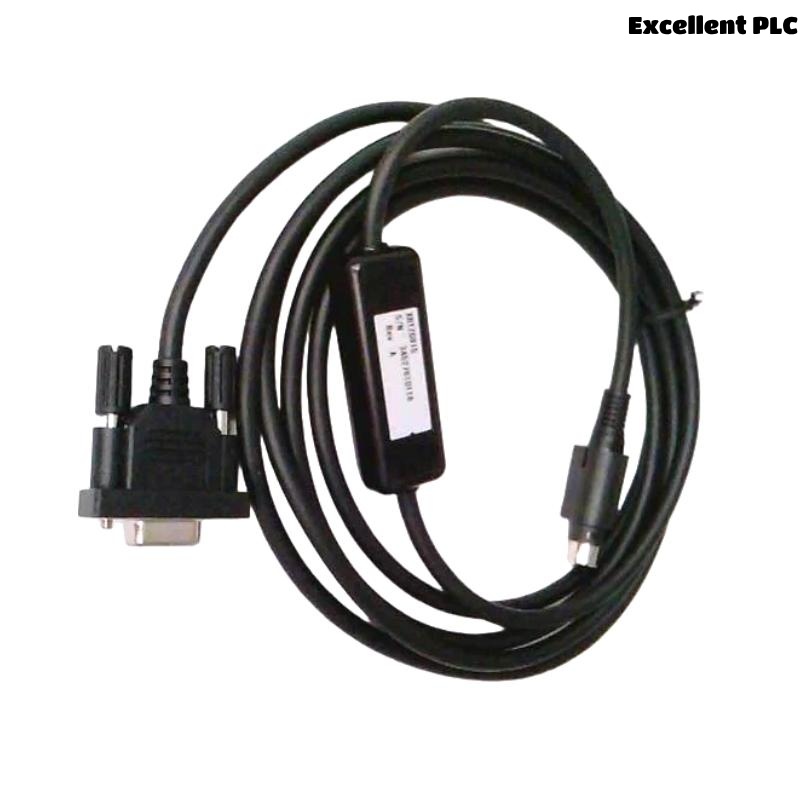

The Schneider Electric XBTZG915 is a terminal adapter cable designed for the Magelis XBT series of operator panels. This adapter plays a crucial role in facilitating communication between programming devices or other external terminals and XBT terminals during commissioning, diagnostics, or system updates.

The XBTZG915 is a programming adapter that ensures reliable and secure signal transmission, providing compatibility with Schneider’s legacy XBT-F, XBT-E, and XBT-H series HMIs. It allows seamless integration of programming tools with human-machine interfaces (HMIs) for streamlined configuration, testing, and troubleshooting.

Engineered for industrial use, the adapter offers a compact and rugged form factor, combined with high-quality shielding for signal integrity. Its short cable length of 0.2 meters makes it ideal for portable or panel-side use in maintenance and control system engineering environments.

Product Specifications

Product Applications

The XBTZG915 terminal adapter is used in a variety of automation and industrial settings where Magelis XBT terminals require programming or communication access. Its main applications include:

• PLC Programming: Connecting engineering software tools (e.g., PL7, Vijeo Designer) to XBT terminals.

• Commissioning Support: Used during HMI and system startup for initial configuration and testing.

• Troubleshooting: Provides temporary access to terminal data during fault diagnostics.

• Maintenance Operations: Facilitates firmware upgrades or interface updates.

• Retrofit Projects: Allows new programming devices to interface with older-generation Magelis XBT panels.

• SCADA Integration: Temporary communication bridge between XBT terminals and supervisory systems.

Product Advantages

• Plug-and-Play Simplicity: Quick installation with no additional configuration required.

• Secure and Stable Connection: Provides a firm link between terminals and programming interfaces, reducing signal drops.

• Wide Compatibility: Supports a broad range of Schneider Electric legacy HMI terminals.

• Shielded Design: Enhanced noise immunity in industrial electrical environments.

• Compact and Portable: Small footprint suitable for fieldwork and onsite commissioning.

• Time-Saving Tool: Facilitates rapid diagnostics and programming during critical operations.

• Supports Legacy Equipment: Bridges the gap between modern tools and older terminal platforms.

• Engineered for Harsh Environments: Durable materials and rugged connectors ensure long-term usability.

• No External Power Required: Operates entirely off host device communication voltage.

• Optimized Cable Length: 0.2m length minimizes clutter and prevents cable tangling in control cabinets.

Frequently Asked Questions (FAQ)

1. Is the XBTZG915 compatible with all XBT terminals?
   It is specifically designed for use with Schneider’s XBT-F, XBT-E, and XBT-H series HMIs.

2. What kind of interface does the XBTZG915 use?
   It converts the mini-DIN terminal connection to a standard RS232 DB9 serial interface.

3. Can I use this adapter with modern laptops?
   Yes, if your laptop has a DB9 port or with a USB-to-Serial adapter for compatibility.

4. Does the cable require external power?
   No, it operates passively using RS232 signaling voltage.

5. What is the maximum communication speed supported?
   It supports up to 115.2 kbps for serial communication.

6. Is this adapter hot-pluggable?
   Yes, it can be connected and disconnected without powering down the system.

7. Does the cable support 2-way communication?
   Yes, it supports full-duplex RS232 data exchange.

8. Can it be used for firmware updates on Magelis panels?
   Yes, it supports firmware flashing when used with compatible Schneider tools.

9. Is the adapter shielded against industrial noise?
   Yes, the cable features full shielding to minimize EMI/RFI interference.

10. What software tools are compatible with this adapter?
    Tools like PL7, Vijeo Designer, and XBTL1000 are supported depending on terminal series.
