Product Overview

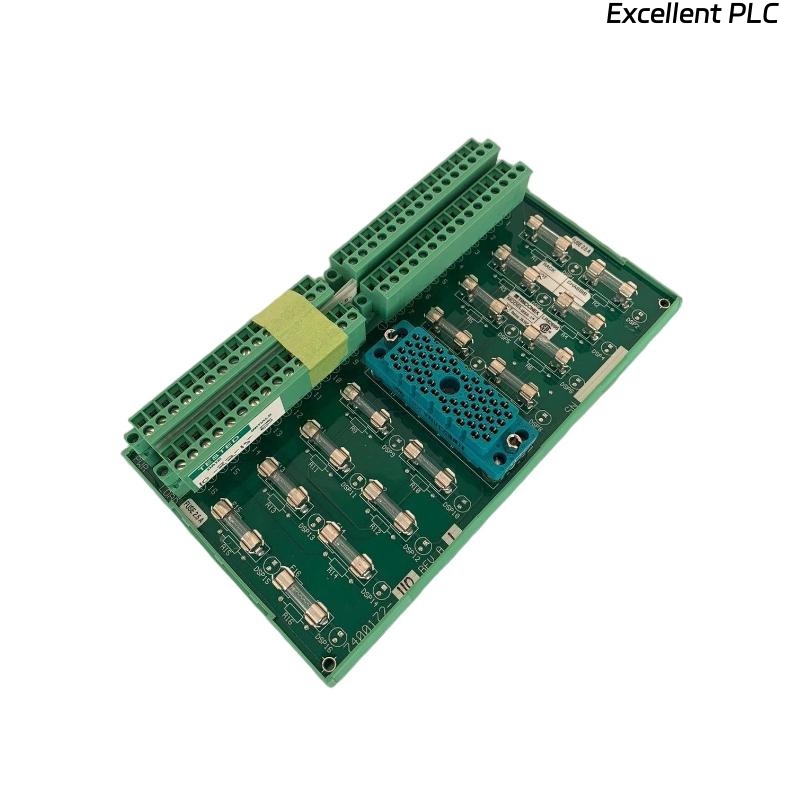

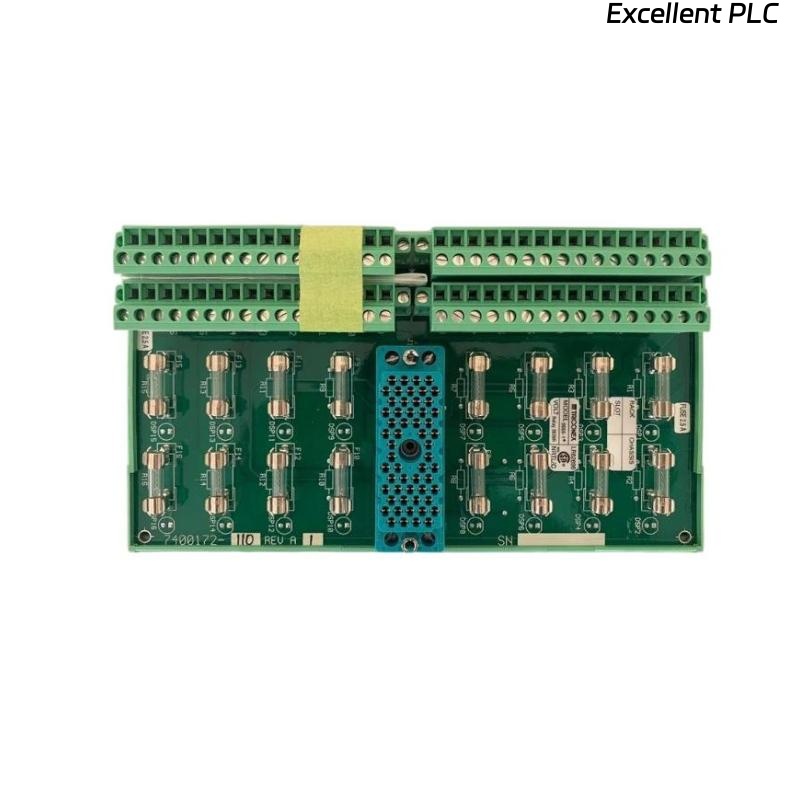

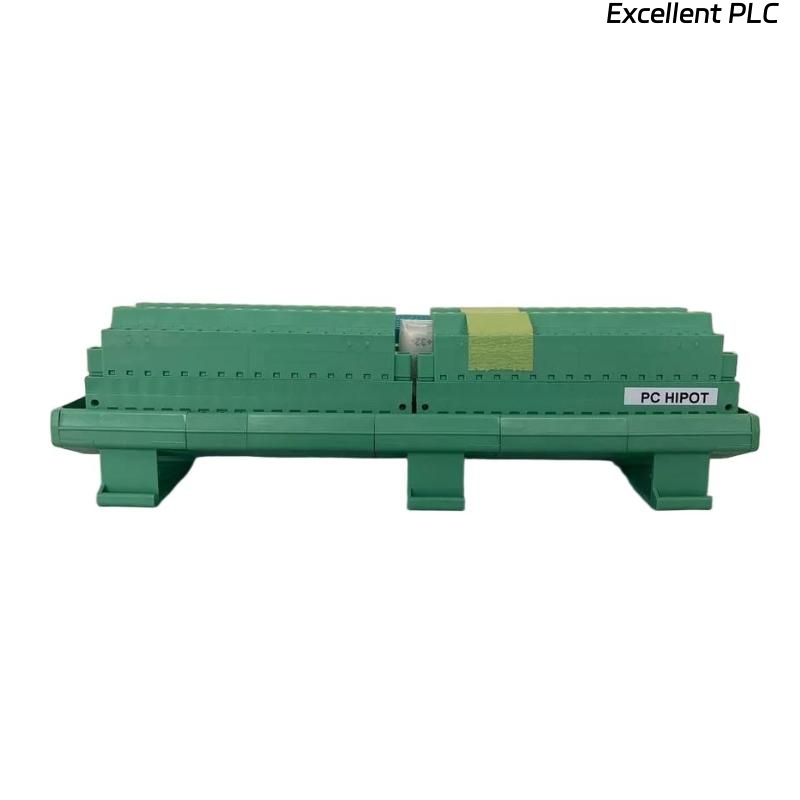

The Triconex 3000590-110 Digital Input Terminal Panel is a reliable field wiring interface designed for use with Triconex digital input modules. It facilitates secure and efficient connection of external digital signals to the safety system, ensuring high integrity and system availability. Designed for demanding industrial environments, this terminal panel supports robust connections, clear signal mapping, and simplified maintenance, making it ideal for safety and control applications in critical process industries.
Key Features
-
Supports direct interface with Triconex digital input modules
-
High-density terminal layout for efficient field wiring
-
Clearly labeled terminals for ease of installation and maintenance
-
Compatible with standard DIN rail or panel mounting
-
Industrial-grade insulation and materials
-
Suitable for use in SIL-rated systems
-
Facilitates signal isolation and diagnostics
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Digital Input Terminal Panel |
| Model Number | 3000590-110 |
| Manufacturer | Triconex (by Schneider Electric) |
| Application | Digital input field wiring interface |
| Compatibility | Triconex Digital Input Modules |
| Terminal Type | Screw clamp |
| Number of Terminals | 32 Channels (typical) |
| Supported Wire Size | 0.14 mm² to 2.5 mm² (26–14 AWG) |
| Voltage Rating | 250 V AC/DC |
| Current Rating | 5 A per channel |
| Insulation Material | Flame-retardant thermoplastic |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting Type | DIN rail or panel mount |
| Dimensions | 220 x 65 x 45 mm |
| Weight | 0.55 kg |
Industry Applications
-
Safety Instrumented Systems (SIS)
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
-
Fire and Gas Detection Systems (F&G)
-
High-Integrity Pressure Protection Systems (HIPPS)
-
Oil & Gas, Petrochemical, and Power Industries
Product Advantages
-
Reliable Connections: Provides robust and secure wiring interface for digital signals.
-
System Compatibility: Designed for seamless integration with Triconex digital input modules.
-
Simplified Maintenance: Clear terminal labeling supports fast identification and fault tracing.
-
Space-Efficient Design: Compact form factor optimizes control cabinet space.
-
Compliance Ready: Suitable for SIL-certified safety systems.
Frequently Asked Questions (FAQ)
1. What is the purpose of the Triconex 3000590-110?
It connects field digital input signals to Triconex digital input modules.
2. How many channels does this panel support?
Typically up to 32 input channels.
3. Can it be mounted on DIN rails?
Yes, it supports both DIN rail and panel mounting.
4. What type of terminals does it use?
It uses screw clamp terminals for secure wiring.
5. Is it compatible with all Triconex digital input modules?
Yes, but compatibility should be verified per specific module model.
6. What voltage and current ratings does it support?
Rated for 250 V AC/DC and 5 A per channel.
7. What is the supported wire size range?
Supports 26 to 14 AWG (0.14 mm² to 2.5 mm²).
8. Can it be used in safety-critical systems?
Yes, it’s suitable for use in SIL-rated environments.
9. Is it field replaceable?
Yes, designed for easy field replacement.
10. What is the recommended operating temperature?
-20°C to +60°C.
