Product Introduction

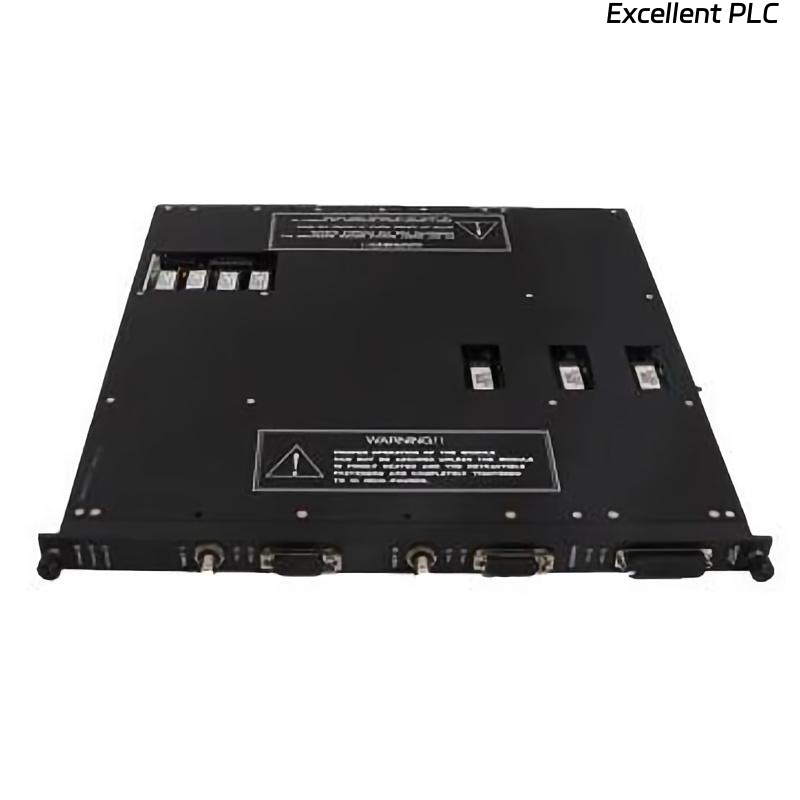

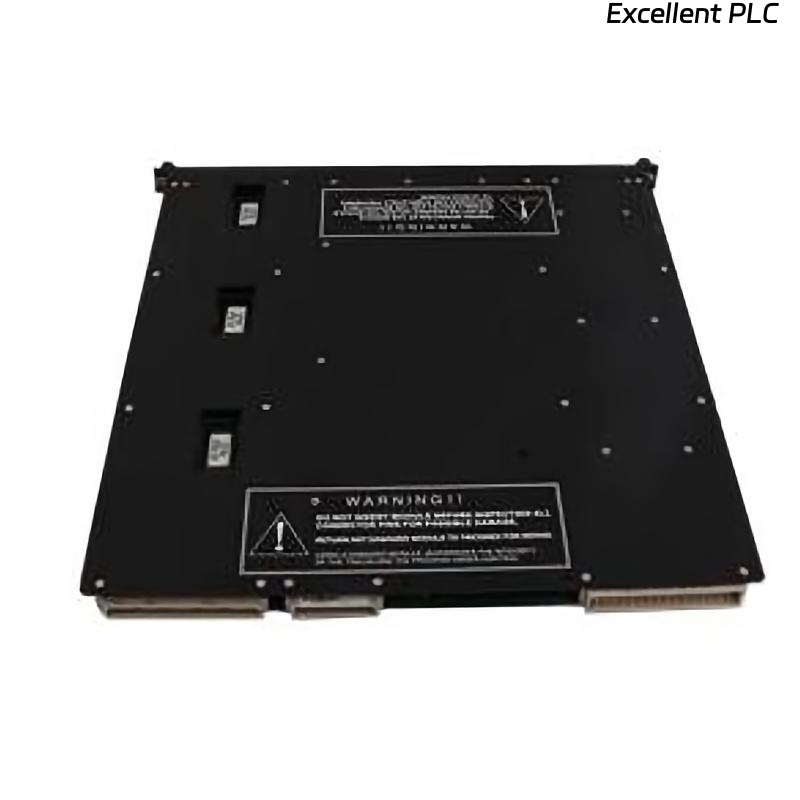

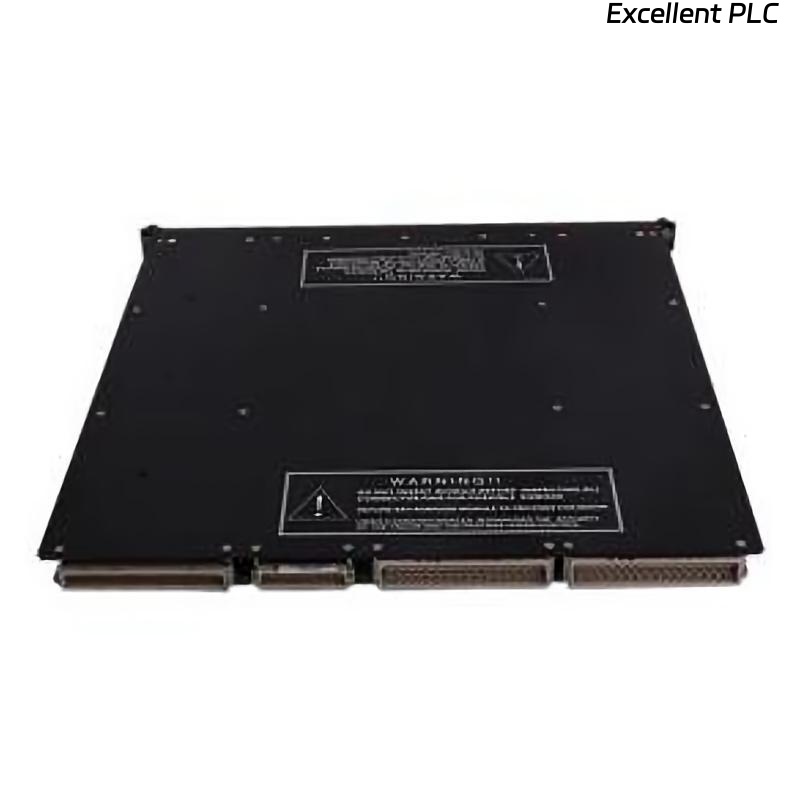

The Triconex 3000604-100 Digital Input Module is an industrial-grade module engineered for use in Triconex’s fault-tolerant safety and control systems. Designed with Triple Modular Redundancy (TMR), this digital input (DI) module ensures high integrity and reliability in critical applications. It monitors discrete input signals from field devices such as push buttons, limit switches, pressure switches, and safety interlocks.
Each input is independently isolated and monitored by the system’s logic solver, ensuring fault detection, event capture, and high-resolution diagnostics. The module supports fast response times, making it ideal for safety-critical operations where real-time performance is essential. The 3000604-100 is frequently used in Emergency Shutdown Systems (ESD), Burner Management Systems (BMS), and various other SIL3-rated industrial applications.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 3000604-100 |
| Product Type | Digital Input Module |
| System Compatibility | Triconex TMR Safety Systems |
| Input Type | Discrete (Digital) |
| Channel Count | 32 input channels |
| Input Voltage Range | 0–32 VDC |
| Input Threshold | ON: ≥15 VDC, OFF: ≤5 VDC |
| Channel Isolation | Optical isolation per channel |
| Input Signal Type | Dry contact or voltage input |
| Diagnostics | Line monitoring, fault detection |
| Redundancy | Triple Modular Redundancy (TMR) |
| Response Time | Typically <5 ms |
| Mounting Type | DIN-rail or chassis-mounted via baseplate |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Shock/Vibration Resistance | IEC 60068 compliant |
| Dimensions (W x H x D) | 265 × 235 × 40 mm |
| Weight | 1.2 kg |
Product Applications
-
Emergency Shutdown Systems (ESD): Interfaces with field interlocks and emergency sensors to trigger safe system shutdowns.
-
Fire and Gas Detection Systems: Captures digital signals from flame detectors, gas sensors, and alarm contacts.
-
Burner Management Systems (BMS): Monitors safety switches and permissive inputs for burner control.
-
Turbine and Compressor Safety Controls: Interfaces with digital limit switches for overspeed and pressure conditions.
-
Power Generation Plants: Used in turbine protection and fault indication circuits.
-
Petrochemical and Refinery Safety Systems: Critical input capture for SIL2/SIL3 certified loops.
Product Advantages
-
TMR Architecture: Provides high fault tolerance and continues operation even if one channel fails, ensuring uninterrupted performance.
-
Fast and Accurate Signal Detection: Rapid response and minimal latency make it ideal for critical control tasks.
-
High Diagnostic Coverage: Built-in diagnostics detect open/short circuits, stuck inputs, and degraded wiring conditions.
-
Electrical Isolation: Channel-level optical isolation prevents ground loops and reduces electromagnetic interference.
-
Flexible Input Compatibility: Supports both dry contact and powered voltage input, making it versatile across systems.
-
Reliable Field Integration: Designed for high-noise environments with robust filtering and shielding.
-
Easy Maintenance: Supports hot-swapping and online diagnostics, enabling minimal downtime during maintenance.
Frequently Asked Questions (FAQ)
-
What types of signals are compatible with the 3000604-100 module?
It supports both dry contact and voltage (0–32 VDC) digital signals. -
Does this module provide isolation between channels?
Yes, each input channel is optically isolated for noise immunity and safety. -
Can this module be used in SIL3 applications?
Absolutely. It is certified for use in SIL3-rated safety instrumented systems under IEC 61508. -
What is the minimum and maximum input voltage range?
It accepts voltages from 0 to 32 VDC, with logic thresholds at 5 V (OFF) and 15 V (ON). -
How many channels are available in one module?
The 3000604-100 provides 32 discrete input channels. -
Is this module capable of detecting wiring faults?
Yes, it supports advanced diagnostics including line monitoring and open/short detection. -
How fast does the module respond to input changes?
It typically responds in under 5 milliseconds, making it suitable for high-speed digital sensing. -
Can this module be replaced without shutting down the controller?
Yes, it supports hot-swapping, allowing replacement without affecting system operations. -
Is it compatible with redundant Triconex baseplates?
Yes, it integrates seamlessly with Tricon TMR baseplates and controller architecture. -
Does the module require external power for signal detection?
No, for dry contacts it sources voltage internally; for voltage inputs, it senses external signal voltage.
