Product Introduction

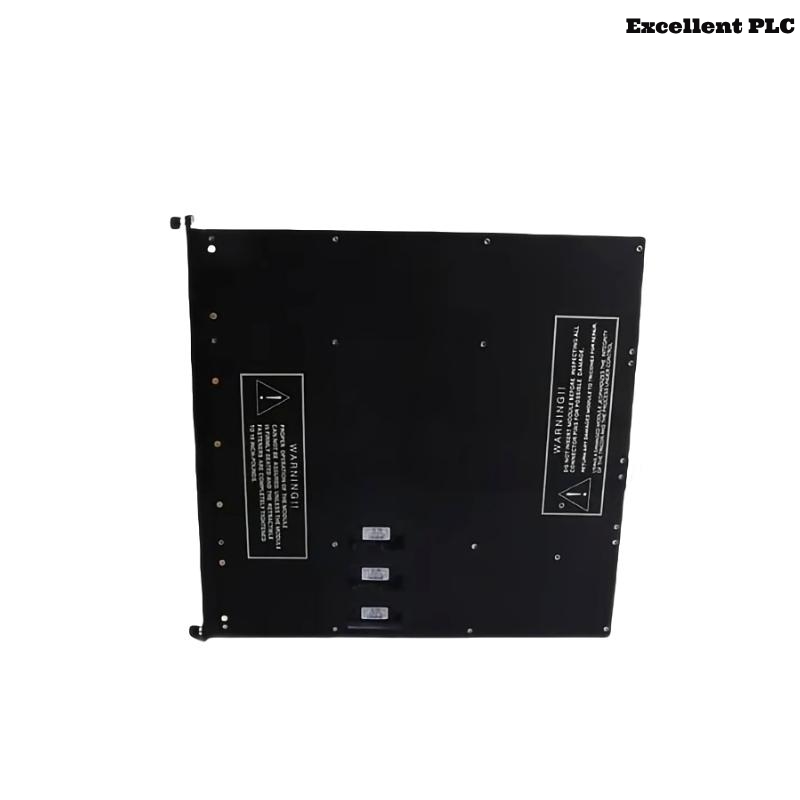

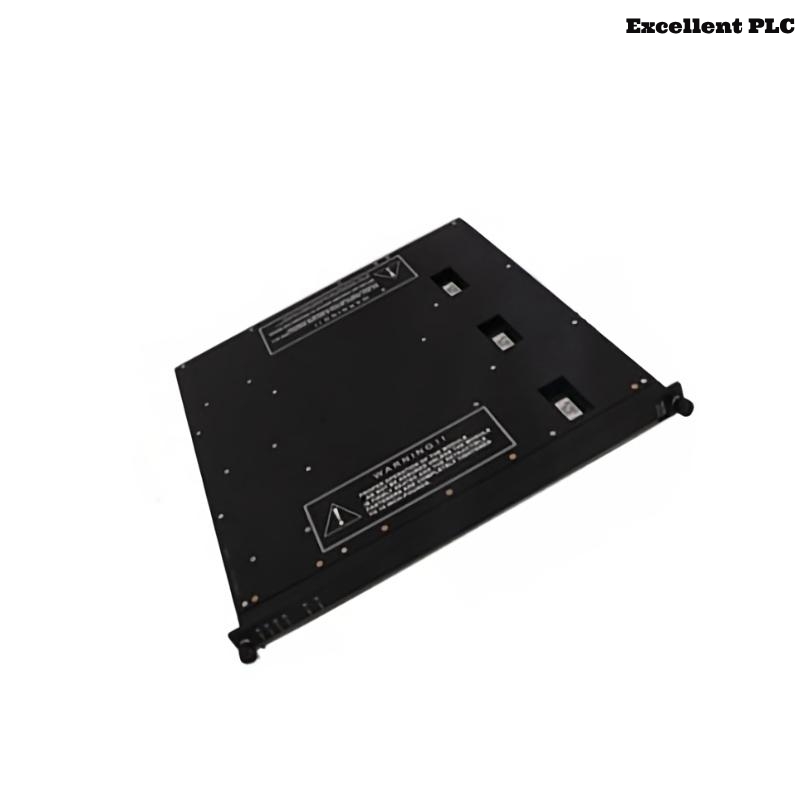

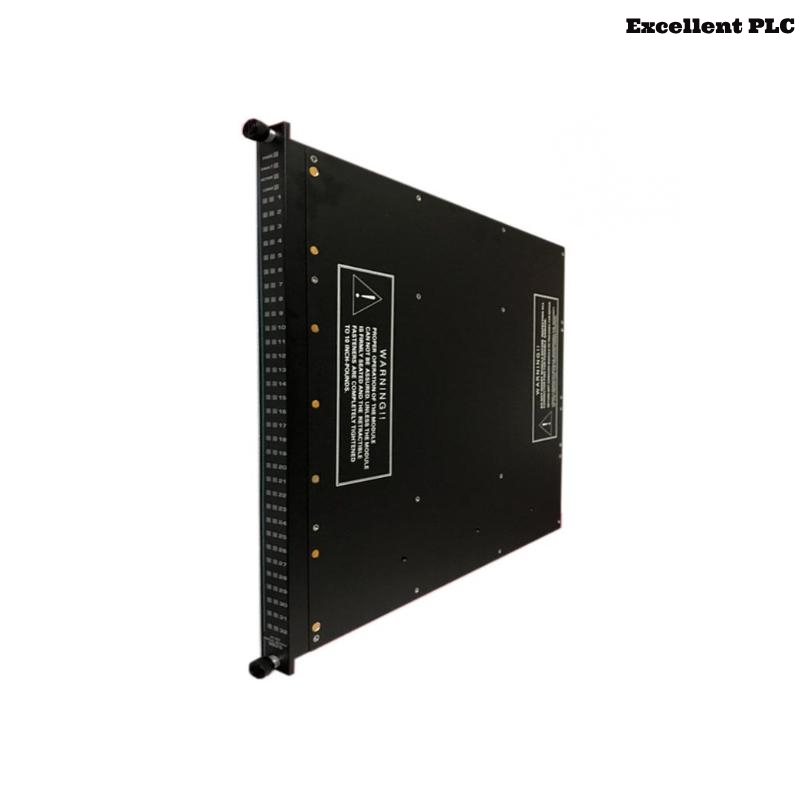

The Triconex 3625 Digital 24VDC Output Module is a critical component designed to provide high-integrity digital output capabilities in safety instrumented systems (SIS). As part of the Triconex family of safety solutions, the 3625 module is engineered to ensure reliable, fail-safe operation in industrial automation applications where safety, uptime, and precision are paramount. With a focus on providing digital outputs at 24VDC, this module is ideally suited for controlling field devices such as relays, actuators, and solenoids, and for interfacing with safety systems in industries like oil and gas, chemical, power generation, and manufacturing.
The Triconex 3625 integrates seamlessly with the Tricon safety platform, ensuring SIL 3 compliance as per IEC 61508 standards, which is essential for safety-critical applications. It features robust diagnostics, high-quality construction, and precise output control that makes it an essential choice for automated safety systems in environments where every action must be reliable and predictable.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Triconex 3625 Digital Output Module |
| Manufacturer | Triconex (Schneider Electric) |
| Output Type | Digital 24VDC Solid-State Output |
| Number of Output Channels | 8 Outputs |
| Output Load | 0.5 A per Channel |
| Nominal Output Voltage | 24 VDC |
| Output Protection | Short Circuit, Overload, Reverse Polarity |
| Response Time | < 20 ms per output |
| Mounting Type | DIN Rail |
| Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Isolation Voltage | 250 VDC |
| Dimensions (W x H x D) | 115 x 230 x 50 mm |
| Weight | 0.8 kg |
| Power Consumption | < 5 W |
| Housing Material | Flame-retardant plastic |
| Status Indicators | LED indicators for output status |
| Certifications | IEC 61508 SIL 3, CE, UL, ATEX |
| Connection Type | Screw terminal blocks |
Applications
The Triconex 3625 Digital Output Module is designed for safety-critical applications where reliable digital outputs are required for controlling various field devices. Some of the primary applications include:
-
Safety Instrumented Systems (SIS): The module provides safe control of safety functions in industries such as chemical, oil and gas, and power generation.
-
Emergency Shutdown Systems (ESD): It triggers the emergency shutdown of machinery or processes during a hazardous event, acting as a fail-safe to prevent accidents.
-
Fire and Gas Systems (F&G): Controls output to alarms, shutdown systems, and actuators in response to fire or gas leak detection, ensuring safety protocols are maintained.
-
Control of Actuators and Solenoids: Used for controlling actuators, valves, and solenoids in automated processes, ensuring that operational conditions remain within safe limits.
-
Turbine and Compressor Protection: Used to initiate shutdowns or control valves for turbines and compressors in industrial power systems.
-
Alarm and Safety Signaling: Triggers alarms and safety systems in hazardous scenarios, ensuring a quick response to potential risks.
Product Advantages
-
High Safety Integrity: Certified to SIL 3 as per IEC 61508, ensuring compliance with industry safety standards for critical processes.
-
Fast Response Time: Offers a response time of less than 20 ms per output, essential for real-time control in fast-moving industrial environments.
-
Robust Protection: Features protection against short circuits, overloads, and reverse polarity, ensuring longevity and reliability in demanding environments.
-
Compact and Modular Design: With its DIN rail mounting and compact size, the 3625 module is easy to install in control panels and can be integrated seamlessly into existing systems.
-
High Output Load Capacity: Capable of driving up to 0.5 A per output, allowing control of various field devices such as actuators and relays.
-
Reliability in Harsh Environments: Designed to operate across a wide temperature range of -20°C to +60°C and withstand 5% to 95% RH, making it suitable for use in diverse environmental conditions.
-
Comprehensive Diagnostics: Equipped with status LEDs for monitoring the health of each output, which simplifies maintenance and troubleshooting.
-
Reduced Downtime: The module’s self-diagnostic features and high-quality construction contribute to a reduced likelihood of failure, ensuring continuous operation of safety systems.
-
Ease of Integration: Compatible with the Tricon platform, allowing for easy integration into existing Tricon systems without additional configuration complexities.
-
Certification for Hazardous Areas: With ATEX certification, the module is approved for use in potentially explosive environments, expanding its application range.
Frequently Asked Questions (FAQ)
-
What is the main function of the Triconex 3625 Digital Output Module?
The main function of the 3625 module is to provide 24VDC digital output signals for controlling field devices such as actuators, relays, and solenoids in safety-critical applications. -
How many output channels does the Triconex 3625 have?
The Triconex 3625 module features 8 digital output channels, each capable of delivering up to 0.5 A of current. -
Can the Triconex 3625 module be used in hazardous areas?
Yes, the module is ATEX certified, making it suitable for use in hazardous and explosive environments. -
What kind of protection does the module offer?
The Triconex 3625 provides protection against short circuits, overload, and reverse polarity, ensuring safe operation under various fault conditions. -
What is the response time for each output?
The module offers a response time of less than 20 ms for each output channel, which is critical in real-time safety applications. -
What is the isolation voltage of the Triconex 3625?
The module provides 250 VDC isolation between inputs and outputs, ensuring electrical separation for fault tolerance. -
What are the environmental conditions for operating the 3625 module?
The module operates within a temperature range of -20°C to +60°C and can withstand 5% to 95% relative humidity (non-condensing). -
Can the 3625 module be easily installed?
Yes, the Triconex 3625 is designed for DIN rail mounting, making installation quick and straightforward in control panels and cabinets. -
What safety certifications does the Triconex 3625 hold?
The module is certified for SIL 3 under IEC 61508, and also holds CE, UL, and ATEX certifications. -
What diagnostics are available for the Triconex 3625?
The module is equipped with LED indicators to display the status of each output, allowing for easy monitoring and troubleshooting.
Recommended Models from the Same Series
| Model | Description | Output Channels | Load Rating | Dimensions (mm) |
|---|---|---|---|---|
| Triconex 3624 | Digital Output Module (4 outputs) | 4 | 0.5 A | 50 x 160 x 120 |
| Triconex 3622 | Digital Output Module (2 outputs) | 2 | 0.5 A | 50 x 160 x 120 |
| Triconex 3627 | Digital Output Module (6 outputs) | 6 | 0.5 A | 50 x 160 x 120 |
| Triconex 3626 | Isolated Digital Output Module | 4 | 0.5 A | 50 x 160 x 120 |
| Triconex 3628 | Solid-State Output Module | 4 | 1.0 A | 50 x 160 x 120 |
| Triconex 3629 | High Capacity Output Module | 8 | 1.0 A | 50 x 160 x 120 |
