Product Overview

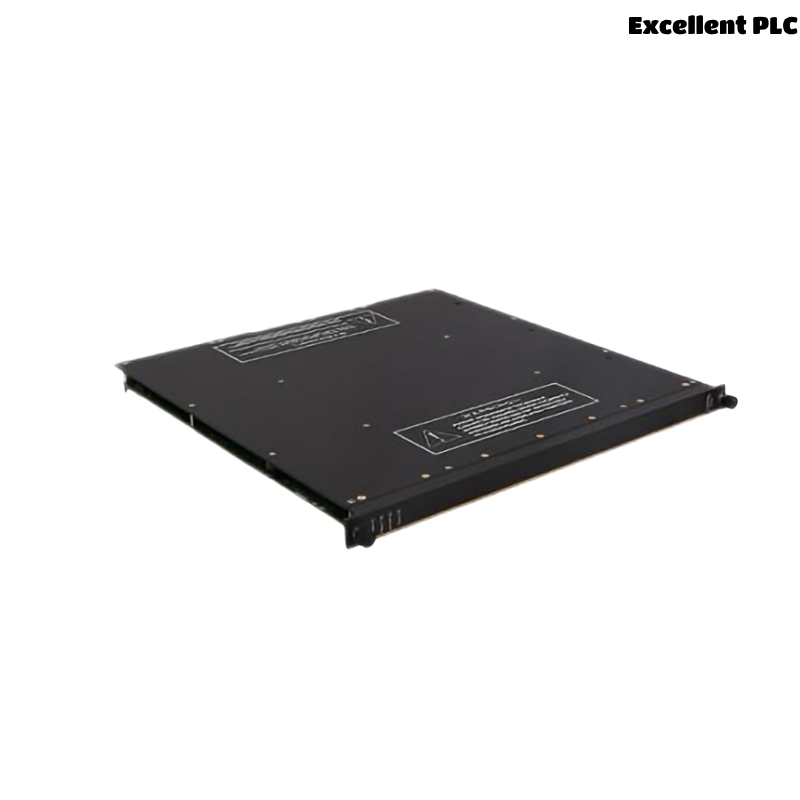

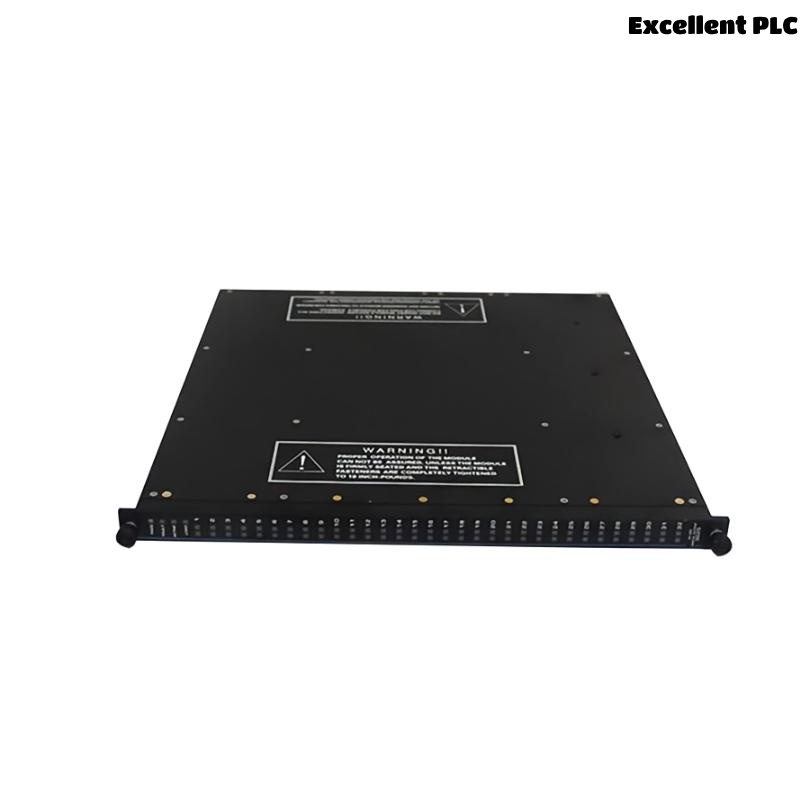

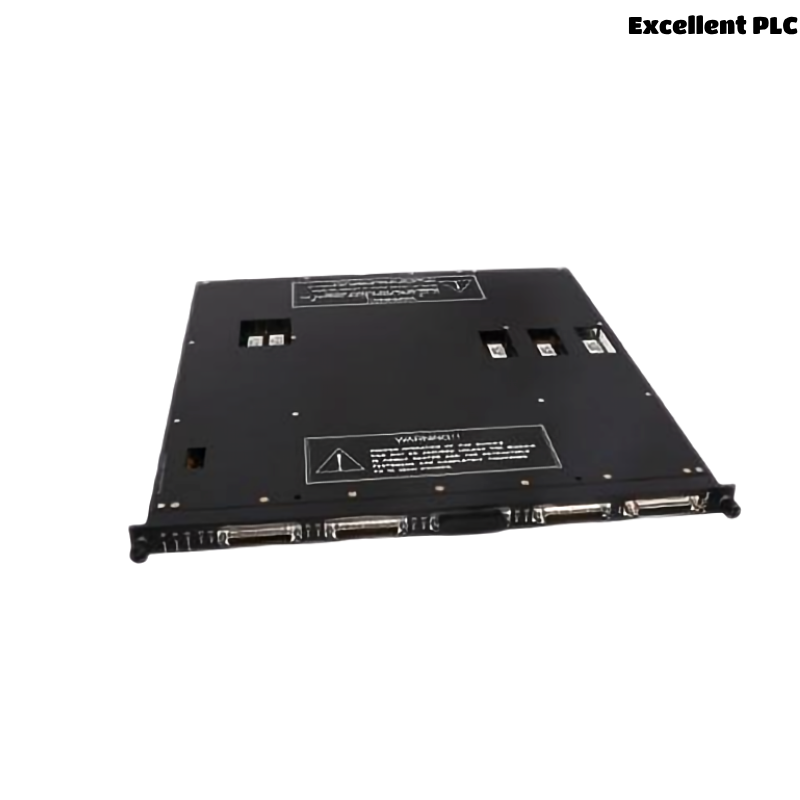

The Triconex 3805H Analog Output Module is a high-integrity, high-availability component specifically designed for use within Schneider Electric’s Triconex Tricon™ safety and critical control systems. Tailored for demanding industrial environments, this module delivers accurate and isolated analog current output signals to field devices including valves, drives, positioners, and actuators in safety-critical applications.
The 3805H model represents an evolution of the 3805 series, designed to enhance reliability, maintainability, and integration into SIL 3-certified safety systems. As part of a Triple Modular Redundant (TMR) architecture, it ensures seamless and deterministic analog control output even under fault conditions. The module is ideal for applications in refining, petrochemical, LNG, offshore platforms, power generation, and water treatment facilities, where analog precision is directly linked to operational safety.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | Triconex 3805H Analog Output Module |
| Output Type | Analog Current Output |
| Output Range | 0–20 mA or 4–20 mA (user-selectable) |
| Channel Count | 8 isolated output channels |
| Resolution | 12-bit resolution |
| Accuracy | ±0.1% of full-scale |
| Response Time | < 10 ms |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Diagnostic Features | Loop integrity monitoring, channel-level diagnostics, open/short detection |
| Redundancy | Fully compatible with TMR configurations |
| Power Supply Voltage | Supplied via Tricon main chassis |
| Hot-Swappable | Yes |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Shock Resistance | 10 g (operating), 30 g (non-operating) |
| Vibration Resistance | 1 g from 5 to 100 Hz |
| Certifications | SIL 3 (IEC 61508), CE, TÜV, ATEX, CSA |
| Mounting | Tricon chassis (backplane communication) |
| Dimensions (W x H x D) | 114.3 ×127 × 107.95 mm |
| Weight | 1.5 kg |
| Configuration | Software configurable via Triconex engineering tools |
| Compatible Systems | Tricon v10 or later |
Applications
The 3805H Analog Output Module is purpose-built for mission-critical analog control in both safety and process automation environments. Typical use cases include:
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
-
Process Valve Control
-
Compressor Surge Prevention
-
High Integrity Pressure Protection Systems (HIPPS)
-
Pipeline Monitoring and Valve Actuation
-
Turbine and Generator Control
-
Water Flow Regulation in Utilities
Its compatibility with industry protocols and deterministic output control ensures that analog devices respond precisely to the demands of the system, particularly when human safety and asset protection are paramount.
Advantages
-
Enhanced Diagnostic Coverage
Real-time monitoring of each channel helps detect faults like open loop, short circuits, and out-of-range signals, minimizing downtime and preventing unnoticed failures. -
Certified Safety Integrity Level 3 (SIL 3)
Full compliance with IEC 61508 standards, suitable for the most critical safety applications across process industries. -
High Output Accuracy and Speed
Provides precise analog signal generation with fast response times to support time-sensitive control operations. -
Field-Proven Redundancy
Designed to operate within TMR architectures, ensuring no single point of failure can affect the overall system output. -
Hot-Swappable Without Process Interruption
Module replacement or upgrade can be performed without system shutdown, enabling seamless plant operation. -
Built-In Isolation
Ensures electrical isolation between channels and system backplane, enhancing safety and reducing the risk of signal interference. -
Universal Current Output Support
Compatible with a wide range of industrial analog field instruments using either 0–20 mA or 4–20 mA signals.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between the 3805H and the 3805EN modules?
A: The 3805H is an enhanced model that includes improved diagnostics, reliability, and support for newer Tricon platforms. -
Q: Can the 3805H be installed while the system is running?
A: Yes, it is hot-swappable and can be installed or replaced without interrupting the process. -
Q: How is the module configured for 0–20 mA or 4–20 mA?
A: Output ranges are selected via Triconex software tools during system configuration. -
Q: Does the module provide isolation between channels?
A: Yes, each channel is electrically isolated from the others and from the system backplane. -
Q: What happens if one output channel fails?
A: The module’s built-in diagnostics detect and report failures, allowing maintenance while the remaining channels operate normally. -
Q: What is the output resolution of the 3805H?
A: It supports 12-bit digital-to-analog conversion for precise signal generation. -
Q: Is the module compatible with all versions of the Tricon system?
A: It is designed for use with Tricon v10 or later; compatibility with older systems should be verified. -
Q: How many channels are available per module?
A: There are 8 isolated analog output channels per 3805H module. -
Q: Can this module be used in offshore or hazardous environments?
A: Yes, it is ATEX-certified and ruggedized for harsh industrial conditions. -
Q: What kind of maintenance does the 3805H require?
A: It is low-maintenance due to robust design and diagnostics; periodic testing and firmware updates are recommended.
Related Models from the Same Series
| Model Number | Description | Type | Channel Count | TMR Support |
|---|---|---|---|---|
| 3805EN | Analog Output Module | Analog Output | 8 | Yes |
| 3700A | Analog Input Module | Analog Input | 32 | Yes |
| 3503E | Digital Output Module | Digital Output | 32 | Yes |
| 3625 | Digital Input Module | Digital Input | 32 | Yes |
| 3721 | High-Performance Analog Input Module | Analog Input | 16 | Yes |
| 3564 | High-Density Digital Output Module | Digital Output | 64 | Yes |
