Description

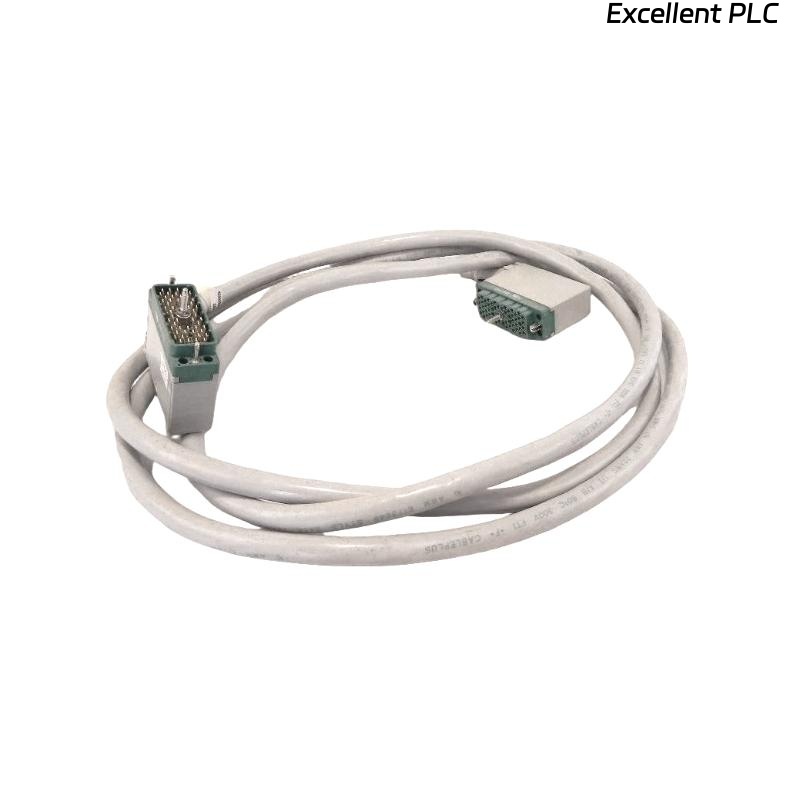

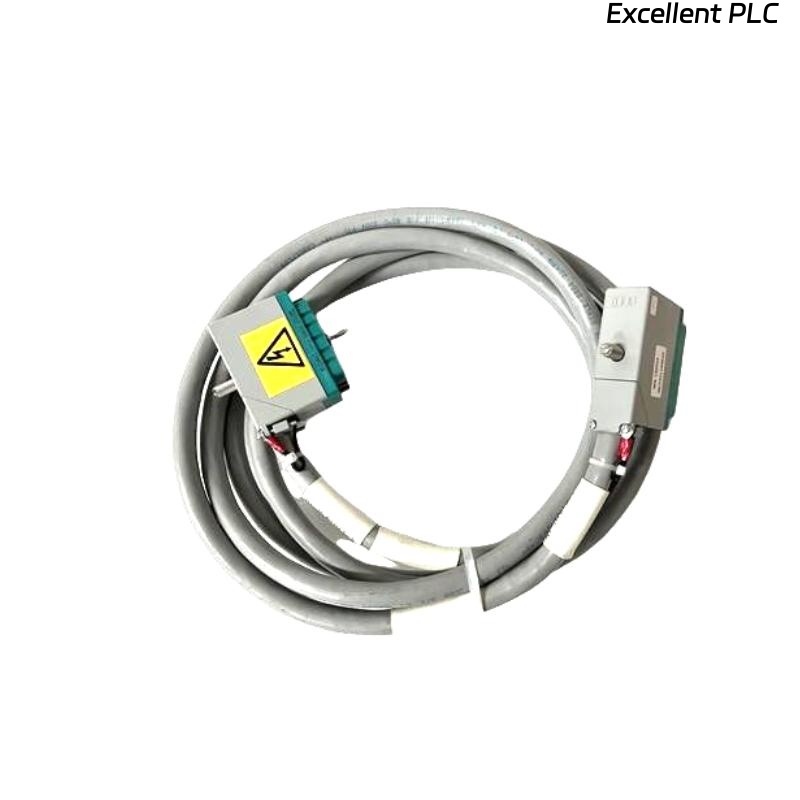

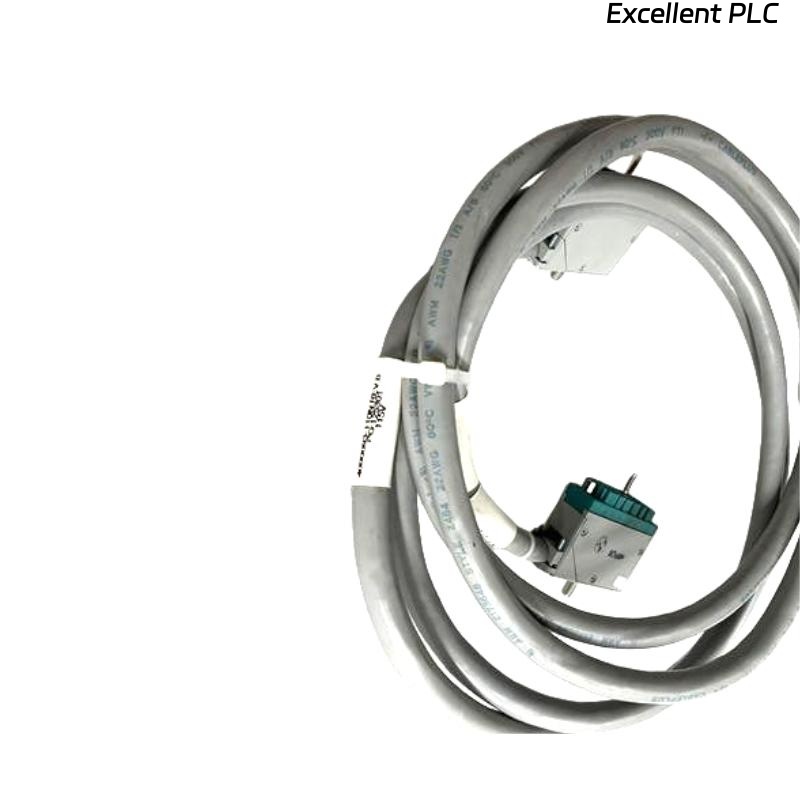

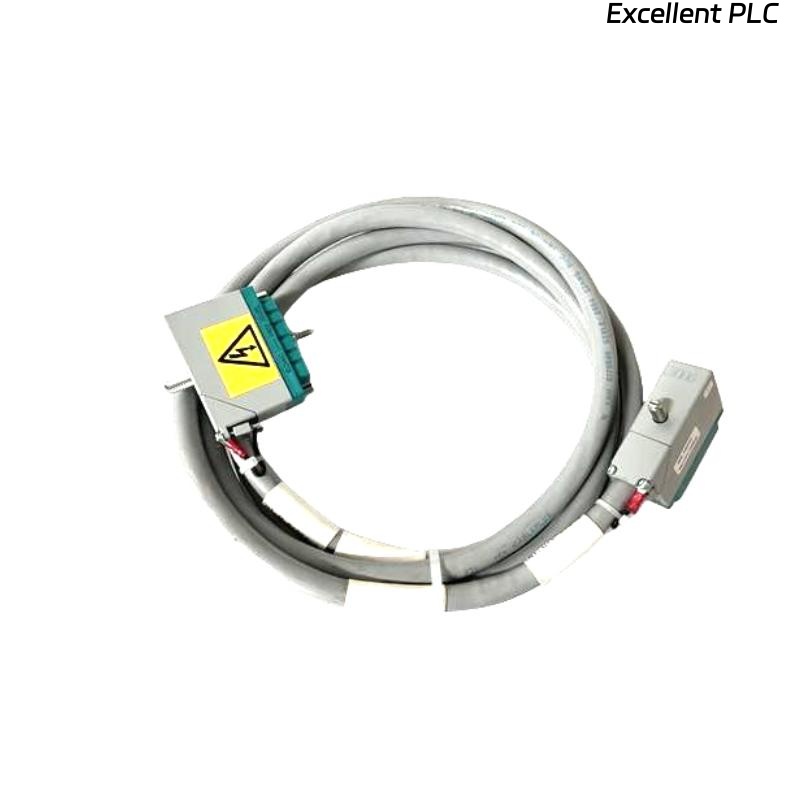

The Triconex 4000093-320 Input Terminal Cable Assembly is a high-performance cable assembly designed for reliable input connectivity between field devices and Triconex safety systems. Manufactured to meet stringent industrial standards, it facilitates secure signal transmission in critical applications where operational integrity and system safety are paramount.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 4000093-320 |
| Product Type | Input Terminal Cable Assembly |
| Cable Type | Shielded twisted pair |
| Connector Type | Custom Triconex connectors |
| Length | Factory-configured (custom lengths optional) |
| Minimum Bend Radius | 14.224 cm |
| Weight | 3 kg (Packaged) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Compatibility | Triconex TMR I/O modules |
| Insulation Material | Industrial-grade flame-retardant PVC |
Applications
-
Safety Instrumented Systems (SIS)
-
Emergency Shutdown (ESD) Systems
-
Process Automation in Oil & Gas, Power, and Petrochemical sectors
-
Critical I/O Interfacing in TMR (Triple Modular Redundant) Architectures
-
Refinery and Offshore Platform Safety Systems
Key Advantages
-
Reliable Signal Integrity – Shielded design minimizes EMI interference.
-
Industrial Ruggedness – Built to withstand harsh environments and temperature extremes.
-
Ease of Integration – Plug-and-play connectivity with Triconex systems.
-
Reduced Installation Time – Pre-terminated with high-precision connectors.
-
Enhanced System Safety – Assured signal delivery to safety-critical modules.
-
Long Service Life – Designed for extended operational durability in mission-critical systems.
FAQs
Q1: What systems is the 4000093-320 cable compatible with?
A1: It is compatible with Triconex TMR I/O modules and safety system platforms.
Q2: What is the minimum bend radius of the cable?
A2: The minimum bend radius is 14.224 cm.
Q3: Is this cable shielded for EMI protection?
A3: Yes, it features a shielded twisted pair design to minimize electromagnetic interference.
Q4: What environments is this cable suitable for?
A4: It is suitable for hazardous industrial environments including refineries, offshore rigs, and chemical plants.
Q5: Can the cable be customized in length?
A5: Yes.
Q6: What is the operating temperature range of the cable?
A6: It operates between -40°C to +70°C.
Q7: Does the cable support hot-swappable connections?
A7: No, connections should be made during system installation or maintenance shutdowns.
Q8: What is the insulation material used?
A8: The cable uses flame-retardant industrial-grade PVC insulation.
Q9: What standards does this cable comply with?
A9: It meets industrial safety and performance standards required for SIS and ESD environments.
Q10: Is this cable suitable for redundant signal paths?
A10: Yes, it supports use in redundant configurations for fault tolerance.
Related Triconex Models
| Model Number | Description | Bend Radius | Weight |
|---|---|---|---|
| 4000093-310 | Input Terminal Cable Assembly (short) | 12.5 cm | 2.8 kg |
| 4000093-330 | Extended Input Cable with Ground Lead | 14.5 cm | 3.2 kg |
| 4000093-340 | Dual Shielded Input Terminal Cable | 15.0 cm | 3.4 kg |
| 4000100-320 | Output Terminal Cable Assembly | 13.8 cm | 2.9 kg |
| 4000093-300 | Standard Input Terminal Cable | 14.0 cm | 3.0 kg |
| 4000094-320 | Input Cable with Diagnostic Support | 14.3 cm | 3.1 kg |
