Product Introduction

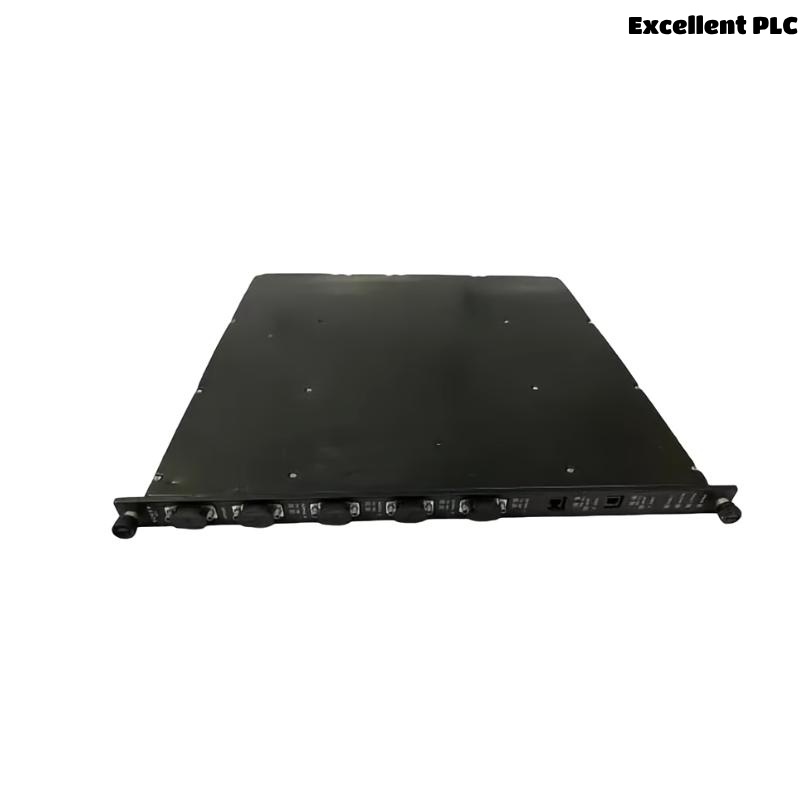

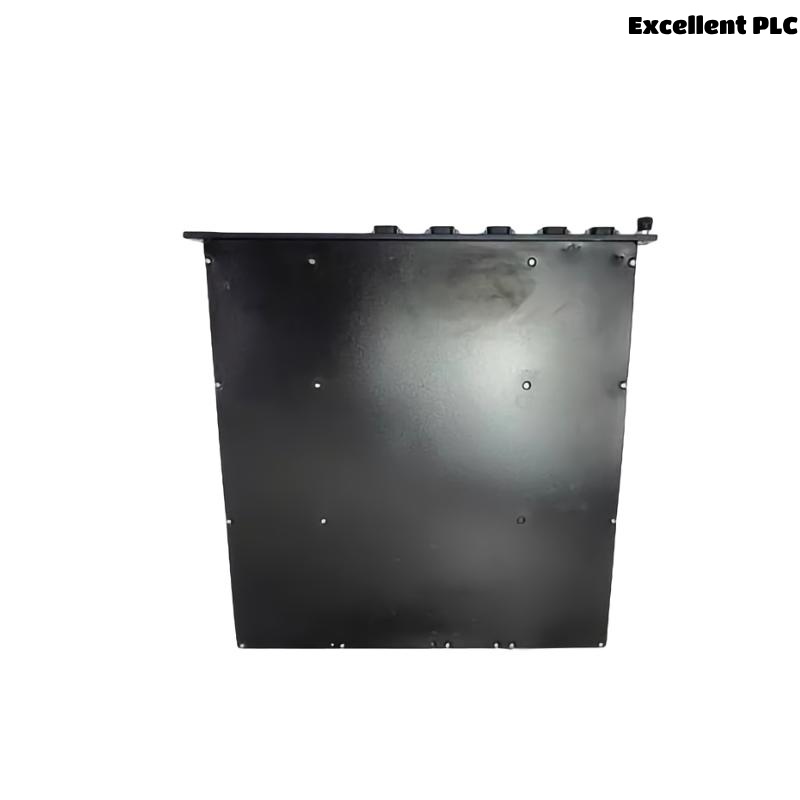

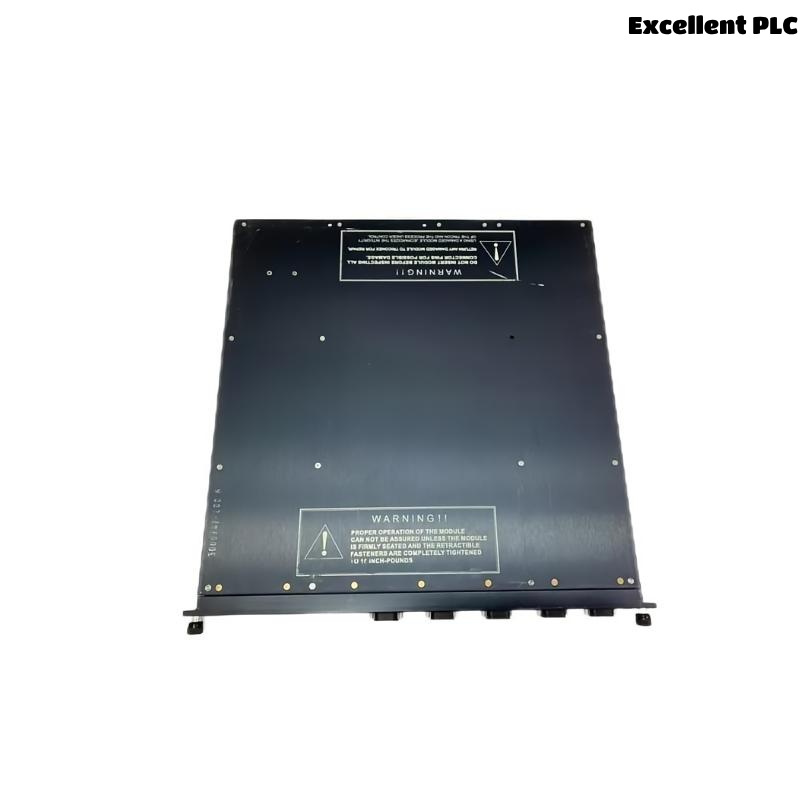

The Triconex 4352A Communication Module is a high-performance communication interface module used in the Triconex Tricon® Fault-Tolerant Safety Systems. Engineered for mission-critical applications, the 4352A module facilitates reliable and deterministic communication between the Tricon controller and other control systems or devices within the plant architecture. It supports a wide range of protocols and provides flexible communication paths to various Distributed Control Systems (DCS), Human-Machine Interfaces (HMI), SCADA systems, and engineering workstations.
Built with triple modular redundancy (TMR) and designed to comply with international safety standards such as IEC 61508 and ISA/IEC 62443, the 4352A enhances the safety, availability, and security of critical industrial processes.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric (Triconex) |
| Model | 4352A |
| Product Type | Communication Interface Module |
| System Compatibility | Triconex Tricon® v9 and later |
| Communication Protocols | Modbus (RTU & TCP/IP), OPC, serial protocols |
| Interfaces Supported | RS-232, RS-485, Ethernet |
| Redundancy Support | Triple Modular Redundancy (TMR) |
| Max Modules per System | Up to 8 communication modules per Tricon chassis |
| Mounting Type | Chassis-based rack mounting |
| Hot-Swappable | Yes |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Certifications | SIL3 (IEC 61508), CSA, CE, ATEX, GOST |
| Diagnostic Features | Built-in diagnostics, watchdog timers, error counters |
| Power Consumption | Typically 5W |
| Dimensions (H x W x D) | 21 x 405 x 400 mm |
| Weight | 2.3 kg |
| Status Indicators | LED indicators for channel, status, and diagnostics |
| Firmware Upgrade | Supported via engineering workstation |
Applications
The Triconex 4352A Communication Module is widely used in industries where functional safety and continuous availability are paramount. Its applications include:
-
Oil & Gas: Upstream, midstream, and downstream systems for emergency shutdown (ESD), fire and gas (F&G), burner management systems (BMS), and wellhead control.
-
Petrochemical Plants: Used in chemical reactors, distillation units, and hazardous process controls.
-
Power Generation: Turbine control systems, boiler protection, and nuclear safety systems.
-
Pharmaceutical Manufacturing: High-integrity control systems for batch processing and material handling.
-
Mining and Metals: Controls for smelters, refineries, and material handling units.
-
Water & Wastewater Treatment: For reliable communication between pump stations, treatment units, and central control rooms.
Advantages
-
High Reliability: Based on Triple Modular Redundancy (TMR), offering superior fault tolerance.
-
Flexible Protocol Support: Supports both serial and Ethernet-based communication protocols, making integration seamless.
-
Safety Certified: Certified up to SIL 3, meeting global safety standards.
-
Modular Architecture: Easy to scale and configure according to the needs of the plant or process.
-
Built-in Diagnostics: Real-time diagnostics and LED indicators help minimize downtime and ensure proactive maintenance.
-
Hot Swappable: Enables maintenance without system downtime, ensuring operational continuity.
-
Cybersecurity Ready: Supports secure protocols and complies with IEC 62443 cybersecurity standards.
-
Wide Compatibility: Fully compatible with other Triconex modules, DCS, SCADA, and third-party systems.
Frequently Asked Questions (FAQ)
-
Q: What is the main function of the Triconex 4352A module?
A: It provides communication pathways between the Tricon safety system and external systems like DCS, HMI, and SCADA. -
Q: Which communication protocols are supported by the 4352A?
A: It supports Modbus RTU, Modbus TCP/IP, and serial protocols like RS-232 and RS-485. -
Q: Can the 4352A module be replaced while the system is running?
A: Yes, it is a hot-swappable module designed for minimal downtime. -
Q: Is the Triconex 4352A certified for safety applications?
A: Yes, it is SIL 3 certified per IEC 61508. -
Q: How many 4352A modules can be installed in one system?
A: Up to 8 communication modules can be installed per Tricon chassis. -
Q: Does the 4352A support Ethernet communication?
A: Yes, it supports Ethernet-based communication including Modbus TCP/IP. -
Q: What diagnostics features are included?
A: It features built-in diagnostics, LED indicators, and error-checking mechanisms. -
Q: What is the physical size of the 4352A?
A: The module measures 281 mm × 49 mm × 175 mm. -
Q: Is firmware upgradeable on the 4352A?
A: Yes, firmware can be updated through an engineering workstation. -
Q: What industries typically use the Triconex 4352A?
A: Common industries include oil & gas, power generation, chemical processing, and water treatment.
