Product Introduction

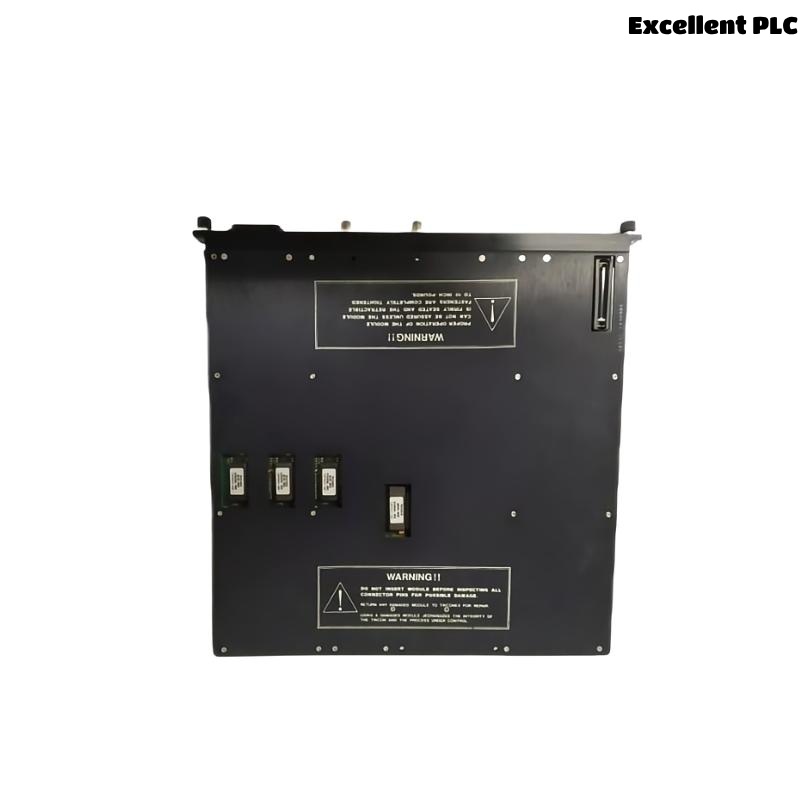

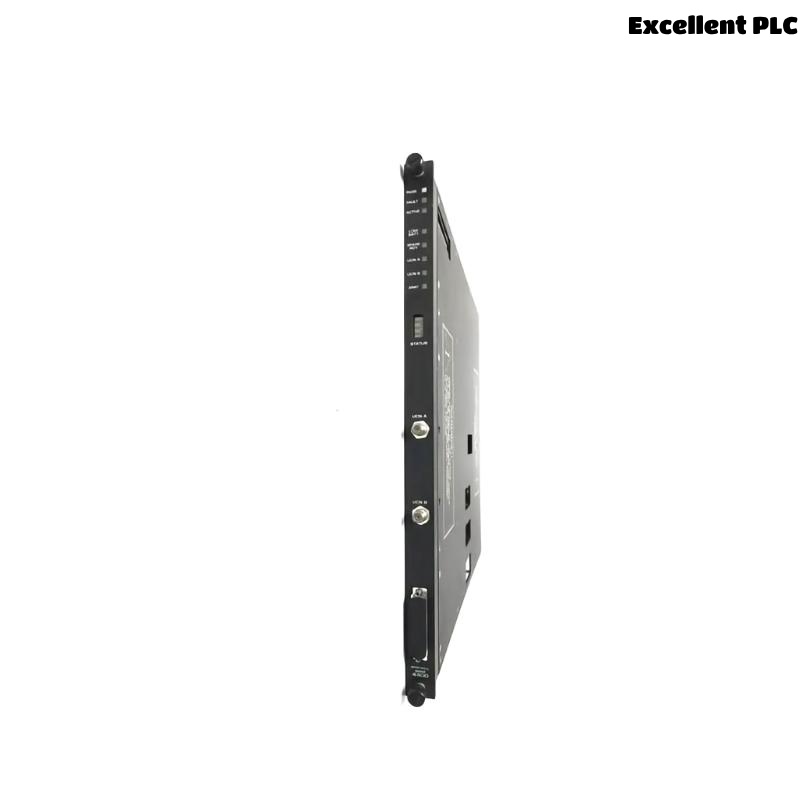

The Triconex 4400 Communication Module is an integral component of the Triconex Tricon® safety instrumented system (SIS) architecture developed by Schneider Electric. Designed for fault-tolerant, high-availability process control and safety-critical applications, the 4400 provides secure and reliable communication between the Tricon main processor and a wide array of external systems and third-party interfaces.
Capable of handling multiple industrial communication protocols, including Modbus, OPC, TCP/IP, and serial communications, the 4400 ensures seamless data exchange across control systems, asset management platforms, human-machine interfaces (HMIs), SCADA, and historian databases. It plays a crucial role in enabling SIL 3-rated safety system integration, offering both flexibility and resilience.
The 4400 module supports redundant communication paths, hot-swapping capabilities, and comprehensive diagnostic functions, making it ideally suited for continuous operation in industries such as oil & gas, chemical processing, refining, power generation, and water treatment.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric – Triconex |
| Model Number | 4400 |
| Product Type | Communication Interface Module |
| System Compatibility | Tricon v9 and later |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, OPC, RS-232, RS-485, TCP/IP |
| Redundancy Architecture | Triple Modular Redundancy (TMR) |
| Data Transmission Interface | Ethernet (10/100Base-T), Serial Ports (DB9, RJ45) |
| Hot Swappable | Yes |
| Module Status Indication | LED indicators for status, communication, errors |
| Diagnostics | On-board diagnostics, loopback, watchdog timers |
| Max Modules per Chassis | Up to 8 per Tricon system |
| SIL Certification | SIL 3 (per IEC 61508 standards) |
| Power Requirements | 5.5 W nominal |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Certifications | CE, CSA, ATEX, GOST, IECEx, UL |
| Chassis Mounting | Rack-mounted via Tricon backplane |
| Dimensions (H × W × D) | 21 x 405 x 400 mm |
| Weight | 2.3 kg |
Applications
The Triconex 4400 Communication Module is widely used in demanding industrial environments where safety, reliability, and communication integrity are paramount. Key application areas include:
-
Emergency Shutdown Systems (ESD): Ensures rapid, reliable communication with DCS and SIS systems during critical shutdown events.
-
Fire & Gas Systems (F&G): Maintains real-time communication between detection and response mechanisms.
-
Turbine and Rotating Machinery Protection: Interfaces between protection logic and operator interface panels or SCADA.
-
Distributed Control System Integration: Facilitates seamless data exchange between Tricon SIS and DCS platforms.
-
Pharmaceutical Batch Processing: Ensures real-time data collection and validation against GxP compliance.
-
Nuclear and Conventional Power Generation: Delivers safety signal communications for high-integrity operations.
Advantages
-
Versatile Protocol Support: Communicates effectively across multiple standard industrial protocols, enabling integration into mixed-vendor environments.
-
High Availability: Built with TMR (Triple Modular Redundancy) architecture, ensuring continued operation even in case of single component failure.
-
Hot-Swapping Functionality: Enables module replacement without interrupting system operations—critical for 24/7 facilities.
-
Advanced Diagnostics: Embedded error detection and watchdog timers ensure fast fault identification and system protection.
-
Rugged Design: Designed to operate under wide temperature and humidity ranges with industrial-grade EMC protection.
-
Cybersecurity Ready: Firmware and protocol handling are designed with modern ICS cybersecurity guidelines in mind (ISA/IEC 62443).
-
Modular Scalability: Multiple 4400 modules can be installed and configured depending on system needs.
Frequently Asked Questions (FAQ)
-
Q: What is the main role of the Triconex 4400 module?
A: It enables communication between the Tricon controller and external systems like DCS, HMIs, SCADA, and historian servers. -
Q: Is the 4400 suitable for SIL 3 safety systems?
A: Yes, it is certified to comply with SIL 3 per IEC 61508 standards. -
Q: What communication protocols does the 4400 support?
A: It supports Modbus RTU, Modbus TCP/IP, RS-232, RS-485, and OPC protocols. -
Q: Can the module be replaced while the system is running?
A: Yes, the 4400 is hot-swappable. -
Q: What industries typically use the 4400 module?
A: Industries include oil & gas, petrochemical, nuclear power, pharmaceuticals, and wastewater treatment. -
Q: How many communication modules can I use in a single system?
A: Up to 8 modules can be used in a single Tricon chassis depending on system configuration. -
Q: What are the available diagnostics features?
A: Onboard diagnostics include communication error tracking, LED indicators, and loopback testing. -
Q: What power does the 4400 module consume?
A: Approximately 5.5 watts under nominal operating conditions. -
Q: Is it compatible with legacy Triconex systems?
A: Yes, it is compatible with Tricon v9 and later systems. -
Q: What environmental conditions can the 4400 operate in?
A: It supports 0°C to 60°C operating temperature and 5% to 95% humidity (non-condensing).
Related Triconex Models (Same Series/Function)
| Model | Function | Protocol Support | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 4352B | Communication Module | Modbus, OPC, TCP/IP, RS-485 | 281 × 49 × 175 | 0.95 |
| 4351B | Main Processor Module | Internal bus | 281 × 49 × 175 | 0.94 |
| 8312 | Gateway Communication Module | OPC, Ethernet | 281 × 49 × 175 | 0.93 |
| 3008 | TMR Logic Solver | Tricon internal only | 281 × 49 × 175 | 0.92 |
| 3706A | High-Speed Serial I/O Module | High-speed serial | 281 × 49 × 175 | 0.90 |
| 3625 | Digital Input Module (TMR) | 24V DC | 281 × 49 × 175 | 0.88 |
Popular Triconex Models
| Model | Function | Application | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 3721 | Analog Input Module | Field signal processing | 281 × 49 × 175 | 0.95 |
| 3805E | Analog Output Module | Control loop output | 281 × 49 × 175 | 0.91 |
| T8311 | Trusted Processor Module | Logic execution in Trusted SIS | 281 × 49 × 175 | 1.00 |
| T8403 | Trusted Digital Input Module | Input from field devices | 281 × 49 × 175 | 0.90 |
| T8151B | Trusted I/O Module | TMR input/output interface | 281 × 49 × 175 | 0.94 |
| 3664 | Digital Output Module | Final element actuation | 281 × 49 × 175 | 0.87 |
