Product Introduction

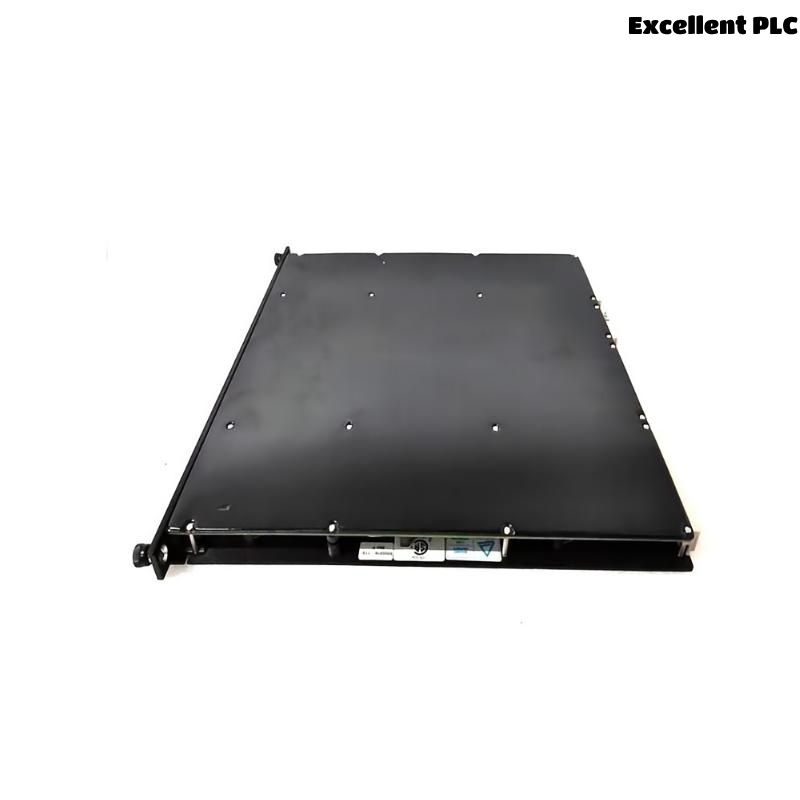

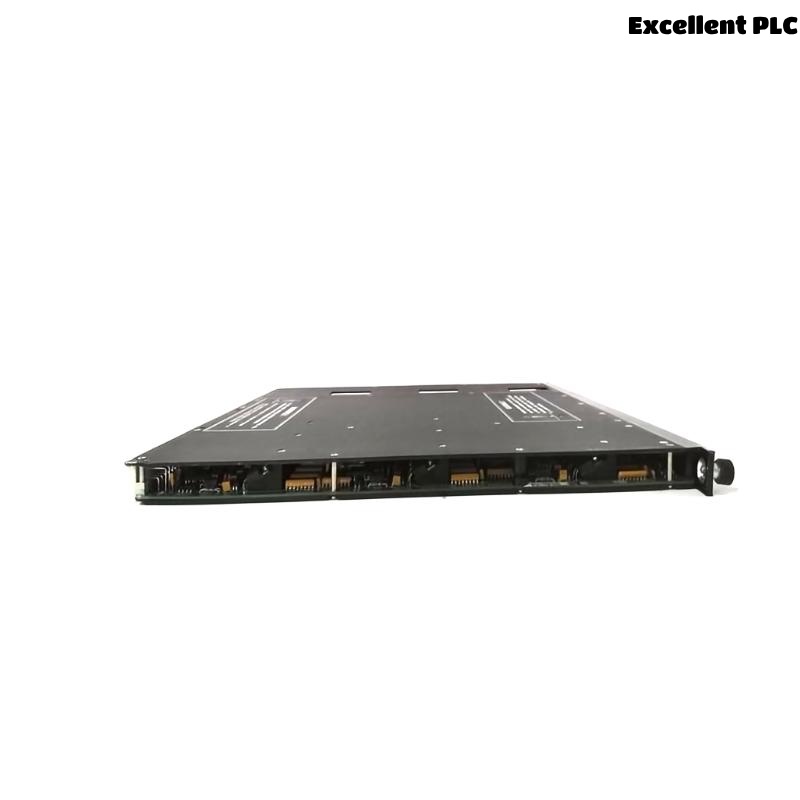

The Triconex 4409 Communication Module is an advanced interface solution designed specifically for integration within Schneider Electric’s Tricon™ Safety Instrumented System (SIS) platform. Operating in high-integrity, mission-critical environments, this module enables secure and deterministic data communication between Tricon controllers and external systems such as Distributed Control Systems (DCS), Supervisory Control and Data Acquisition (SCADA) platforms, Human-Machine Interfaces (HMI), and other enterprise software platforms.
As part of a Triple Modular Redundant (TMR) architecture, the 4409 module delivers superior reliability, robust fault tolerance, and uninterrupted system performance. It supports a range of industrial communication protocols and is commonly utilized in demanding sectors such as oil & gas, power generation, petrochemical processing, pharmaceuticals, and water treatment facilities.
What sets the 4409 module apart is its ability to facilitate seamless integration with third-party systems while maintaining SIL 3 safety compliance. It is engineered to deliver high-speed, deterministic communications, offering both serial and Ethernet connectivity, and supports hot-swapping for continuous operation in 24/7 environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric – Triconex |
| Model Number | 4409 |
| Product Type | Communication Interface Module |
| System Compatibility | Tricon v9 and later |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, OPC, RS-232, RS-485, Ethernet |
| Redundancy Architecture | Triple Modular Redundancy (TMR) |
| Connectivity Interfaces | Ethernet (10/100 Mbps), Serial (DB9, RJ45), Terminal blocks |
| Hot Swappable | Yes |
| SIL Certification | SIL 3 certified according to IEC 61508 |
| Diagnostics | Built-in diagnostics, watchdog timers, loopback testing |
| Module Status Indicators | LED indicators for communication, fault, and power |
| Max Modules Per System | Up to 8 communication modules per Tricon chassis |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Power Consumption | Approximately 5.5 W |
| Installation | Plug-in module, rack-mounted via Tricon backplane |
| Certifications | CE, ATEX, GOST, CSA, UL, IECEx |
| Dimensions (H × W × D) | 21 x 405 x 400 mm |
| Weight | 2.3 kg |
Applications
The Triconex 4409 module is widely deployed in high-integrity industrial control environments, where continuous operation and communication reliability are paramount. Typical applications include:
-
Emergency Shutdown Systems (ESD): Reliable communication with host DCS and field safety systems to trigger rapid shutdown in hazardous conditions.
-
Fire & Gas Detection Systems: Interfaces with gas detectors and alarm relays for early hazard detection and mitigation.
-
Safety and Critical Logic Communication: Enables secure data exchange between redundant logic solvers and external monitoring systems.
-
Turbine Control and Protection Systems: Communicates real-time data from rotating machinery to the control room.
-
Integrated Process Automation: Connects safety systems with process control and asset management systems.
-
Subsea and Pipeline Monitoring: Transmits sensor data and status indicators to central monitoring stations for continuous control.
Advantages
-
SIL 3 Compliance: Meets the highest international safety standards, ensuring operational integrity in critical applications.
-
Triple Modular Redundancy: Built with fault-tolerant TMR architecture to eliminate single points of failure.
-
Protocol Flexibility: Supports serial and Ethernet communication protocols, facilitating integration with diverse system architectures.
-
Hot-Swappable Design: Modules can be replaced during operation without halting the system, maximizing uptime.
-
Robust Diagnostics: Onboard self-checks and diagnostics tools assist in real-time system monitoring and rapid troubleshooting.
-
Industrial-Grade Durability: Withstands harsh environmental conditions typical of field installations.
-
High Data Integrity: Ensures reliable, deterministic data transmission, even under high system loads.
Frequently Asked Questions (FAQ)
-
Q: What is the main function of the Triconex 4409 module?
A: It serves as a communication interface between the Tricon controller and external systems using standard industrial protocols. -
Q: Is the Triconex 4409 module suitable for SIL 3 systems?
A: Yes, the module is certified for SIL 3 applications in accordance with IEC 61508. -
Q: Can the module be installed or replaced while the system is running?
A: Yes, it supports hot-swapping without interrupting operations. -
Q: What communication protocols does the 4409 support?
A: It supports Modbus (RTU and TCP/IP), OPC, RS-232, RS-485, and Ethernet communication. -
Q: In what environments can the module be operated?
A: It can be used in industrial environments with temperatures between 0°C and 60°C and humidity up to 95%. -
Q: How does the 4409 indicate faults or communication status?
A: Through LED indicators on the module’s front panel. -
Q: How many 4409 modules can be installed in a single Tricon system?
A: Up to 8 communication modules, depending on system configuration. -
Q: What power does the 4409 module consume?
A: It consumes 5.5 watts. -
Q: Is the module compatible with legacy Tricon systems?
A: Yes, it is compatible with Tricon version 9 and above. -
Q: Does it require any special configuration tools?
A: Configuration is performed via Triconex engineering tools such as TriStation 1131.
Related Models
| Model | Function | Protocols Supported | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 4400 | Communication Module | Modbus, OPC, TCP/IP, Serial | 281 × 49 × 175 | 0.96 |
| 4351B | Main Processor Module | Internal Tricon communication | 281 × 49 × 175 | 0.94 |
| 8312 | Gateway Interface Module | OPC Gateway, Ethernet | 281 × 49 × 175 | 0.93 |
| 3700A | Serial Communication Module | High-speed Serial RS-485/422 | 281 × 49 × 175 | 0.91 |
| 3625 | TMR Digital Input Module | 24V DC | 281 × 49 × 175 | 0.89 |
| 4211 | Redundant Communication Module | Redundant Link Support | 281 × 49 × 175 | 0.97 |
