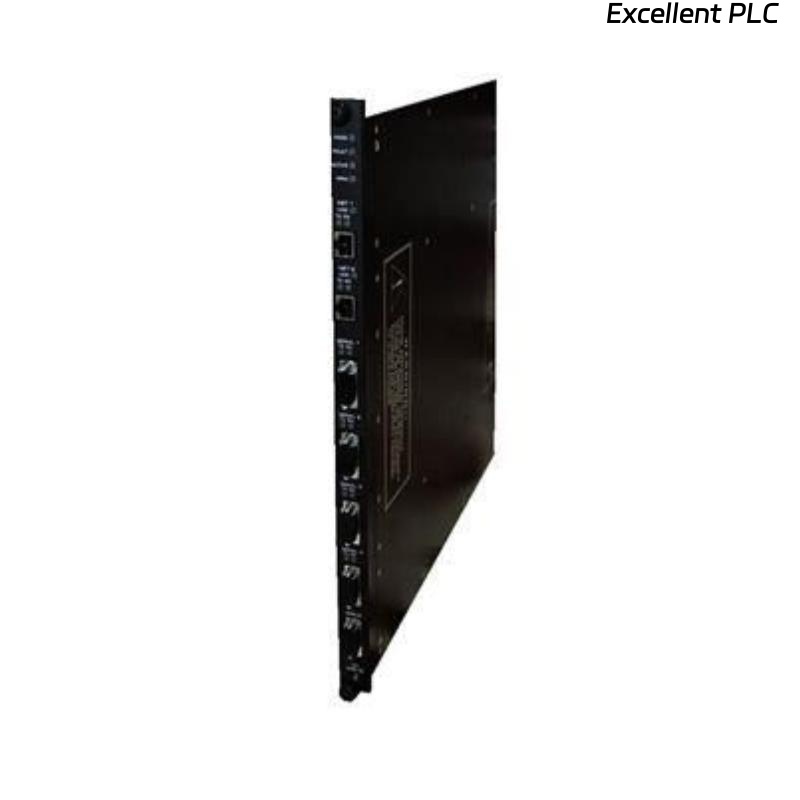

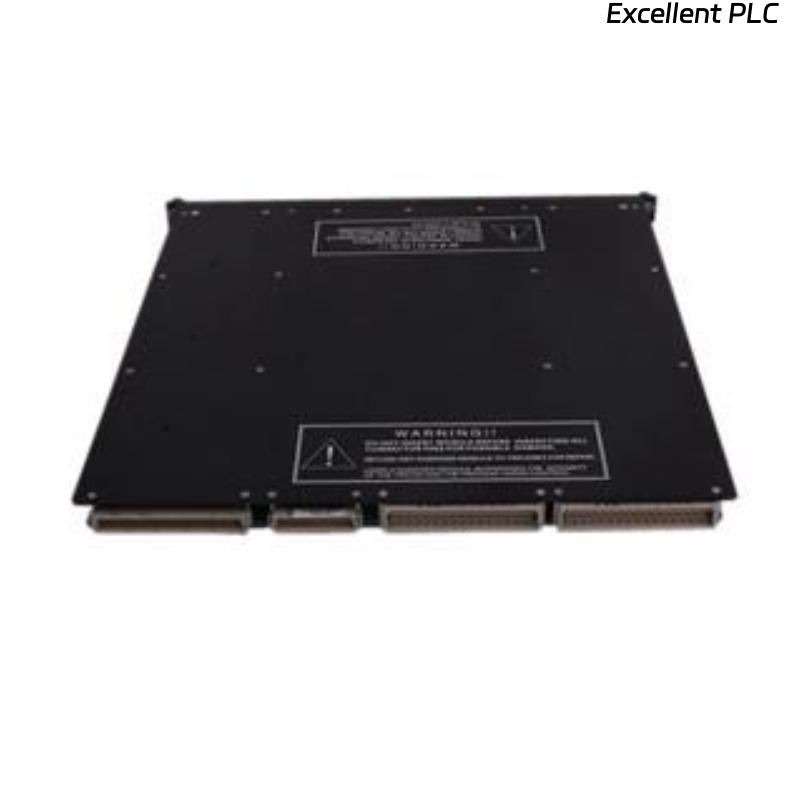

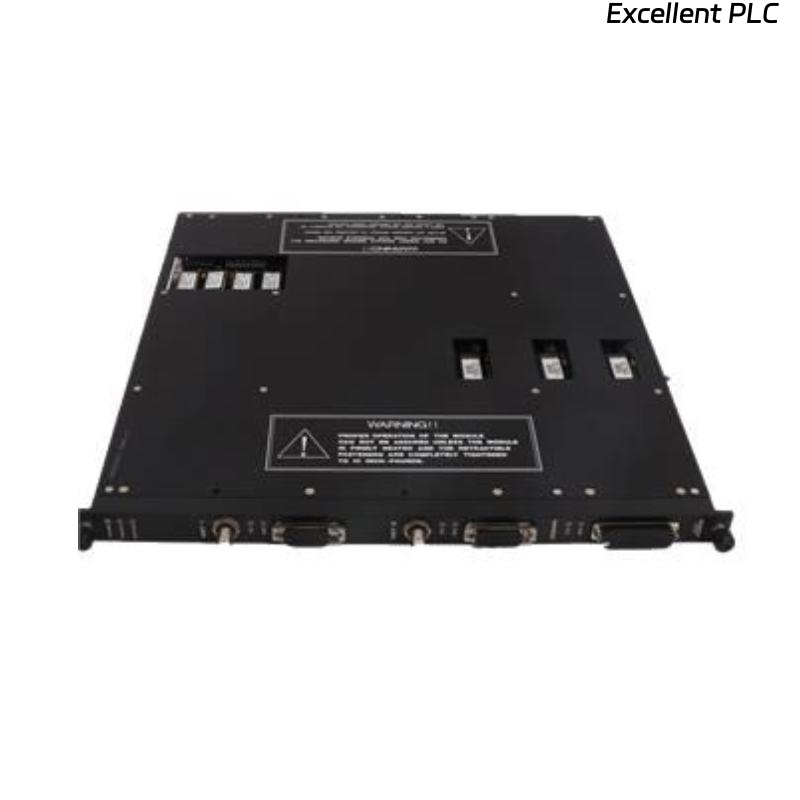

The Triconex 7400159-030 CPU Module is a high-performance central processing unit designed for use in Triconex Safety Instrumented Systems (SIS). This CPU module provides robust, fault-tolerant control processing, ensuring continuous operation and system reliability in safety-critical industrial environments. Engineered for seamless integration within Triconex’s Triple Modular Redundancy (TMR) architecture, it offers advanced diagnostics, system management, and real-time control capabilities essential for mission-critical applications.
Key Features
-
High-performance, fault-tolerant CPU for safety systems
-
Designed for Triconex TMR architecture for maximum reliability
-
Supports real-time processing and control of safety applications
-
Integrated diagnostics and self-test capabilities
-
Seamless communication with Triconex I/O modules and interface units
-
Compact, rack-mounted design optimized for industrial environments
-
Secure system management with fault isolation features
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | CPU Module |
| Model Number | 7400159-030 |
| Manufacturer | Triconex (Schneider Electric) |
| Function | Central Processing Unit for SIS |
| Architecture | Triple Modular Redundancy (TMR) |
| Processing Capability | Real-time control and diagnostics |
| Communication Interface | Backplane and system communication bus |
| Power Supply | Via Triconex chassis backplane |
| Operating Voltage | Nominal 5 VDC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Mounting Type | Rack-mounted |
| Dimensions | 240 × 38 × 230 mm |
| Weight | 0.6 kg |
Industry Applications
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
-
Fire and Gas Detection Systems (F&G)
-
High-Integrity Pressure Protection Systems (HIPPS)
-
Process Safety Management in Oil & Gas, Petrochemical, and Power Generation
-
Distributed Control System (DCS) Integration
Product Advantages
-
Fault-Tolerant Processing: Triple redundancy ensures continuous operation without failure.
-
Real-Time Control: Fast and reliable processing for critical safety functions.
-
Comprehensive Diagnostics: Built-in self-test and status monitoring reduce downtime.
-
Seamless Integration: Works effectively with other Triconex modules and systems.
-
Robust Industrial Design: Durable and compact for harsh environments.
Frequently Asked Questions (FAQ)
1. What is the main function of the 7400159-030 CPU Module?
It serves as the central processor for Triconex safety instrumented systems.
2. Does this CPU support Triple Modular Redundancy (TMR)?
Yes, it is specifically designed for TMR systems to ensure fault tolerance.
3. How is the CPU powered?
It receives power from the Triconex system backplane.
4. Can the module perform self-diagnostics?
Yes, it includes built-in diagnostics and self-test features.
5. What is the operating temperature range?
0°C to +60°C.
6. Is the CPU module hot-swappable?
No, replacement or installation requires system downtime.
7. What types of communication does it support?
Communication via the system backplane and dedicated communication buses.
8. What is the physical size of the module?
Dimensions are approximately 240mm × 38mm × 230 mm.
9. Is this module suitable for hazardous locations?
Yes, with appropriate system certification and installation.
10. How does the CPU module contribute to system safety?
By providing fault-tolerant, real-time control and diagnostics in critical safety applications.
