Product Overview

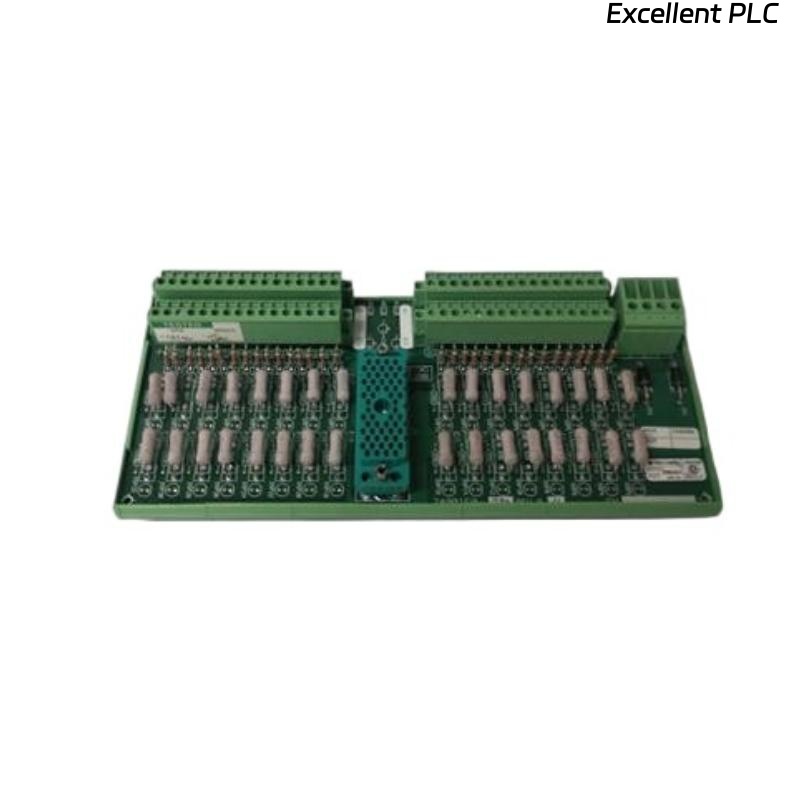

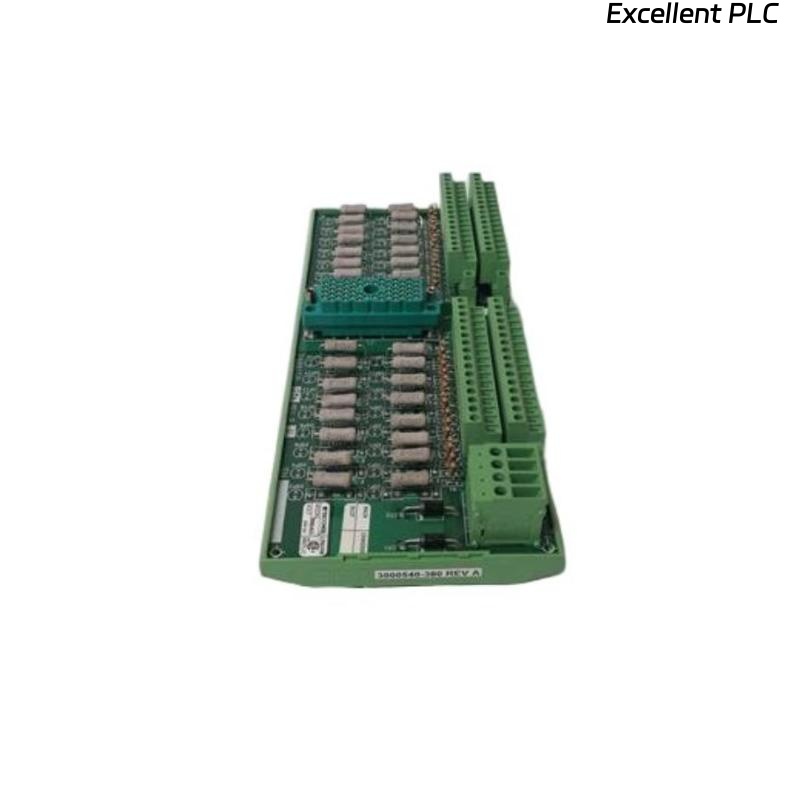

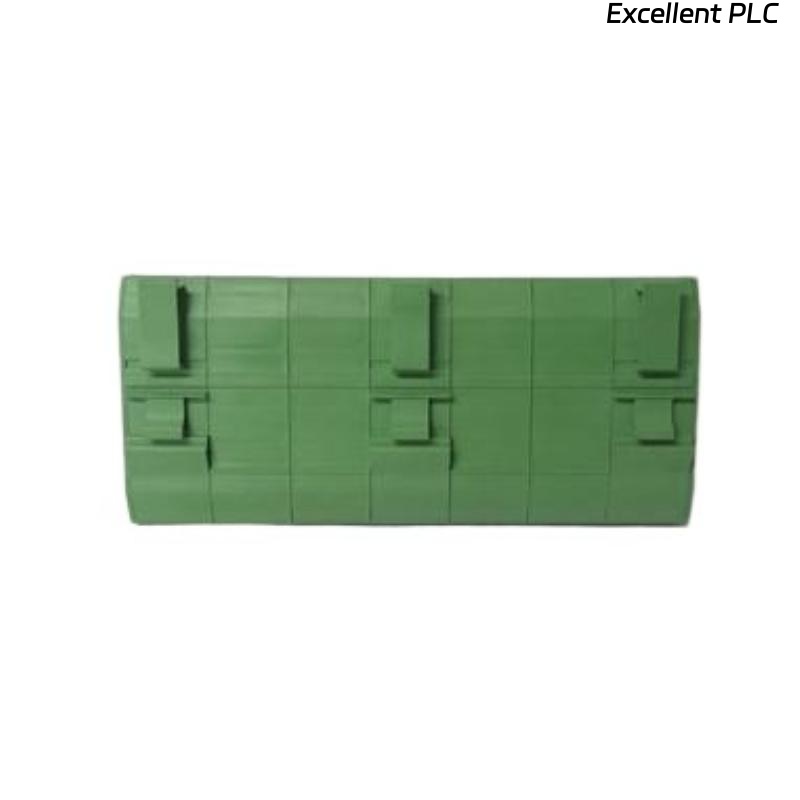

The Triconex 9566-810 Terminal Panel is an essential wiring interface designed for Triconex safety and control systems. It provides organized and secure termination points for signal wiring, ensuring reliable connectivity between field devices and system controllers. Engineered to operate in harsh industrial environments, this terminal panel supports the stringent safety and electromagnetic compatibility requirements of critical process applications.
Key Features
-
Provides secure and organized wiring termination points
-
Compatible with Triconex safety and control systems
-
Designed for robust performance in demanding industrial settings
-
Simplifies wiring installation and maintenance
-
Meets international safety and EMC standards
-
Compact, modular design for flexible installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 9566-810 |
| Module Type | Terminal Panel |
| Manufacturer | Triconex (Schneider Electric) |
| Compatible Systems | Triconex Safety & Control Systems |
| Number of Terminals | Multiple termination points |
| Mounting Type | Panel mounting |
| Dimensions | 300 × 150 × 75 mm |
| Weight | 1.4 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Safety Certifications | SIL 3 certified, CE, UL |
Industry Applications
-
Safety Instrumented Systems (SIS)
-
Oil and Gas Production and Refining
-
Power Generation and Distribution
-
Chemical and Petrochemical Industries
-
Critical Infrastructure Control Systems
Frequently Asked Questions (FAQ)
Q1: What is the function of the Triconex 9566-810 Terminal Panel?
It provides organized and secure wiring terminations for Triconex control systems.
Q2: Is the 9566-810 compatible with all Triconex systems?
Yes, it is designed for Triconex safety and control architectures.
Q3: How many terminals does it support?
Supports multiple termination points; consult the manufacturer for exact numbers.
Q4: Can it operate in harsh industrial environments?
Yes, it is built for reliable performance in demanding conditions.
Q5: What mounting options are available?
Panel mounting.
Q6: What certifications does it hold?
It is SIL 3 certified and complies with CE and UL standards.
Q7: What is the operating temperature range?
0°C to 55°C.
Q8: Is it easy to maintain?
Yes, designed for straightforward installation and maintenance.
Q9: How does it improve system reliability?
By providing organized and secure connections, it reduces wiring errors and enhances safety.
Q10: Where can I purchase or get support for this panel?
Contact Schneider Electric or authorized Triconex distributors.
Related Models
| Model Number | Description |
|---|---|
| 9566-800 | Terminal Panel, Standard Version |
| 9566-820 | Terminal Panel with Enhanced Features |
| 9566-830 | Terminal Panel with Integrated Diagnostics |
| 9566-840 | Safety Relay Terminal Panel |
| 9566-850 | Communication Terminal Panel |
| 9566-860 | Power Supply Terminal Panel |
