Product Introduction:

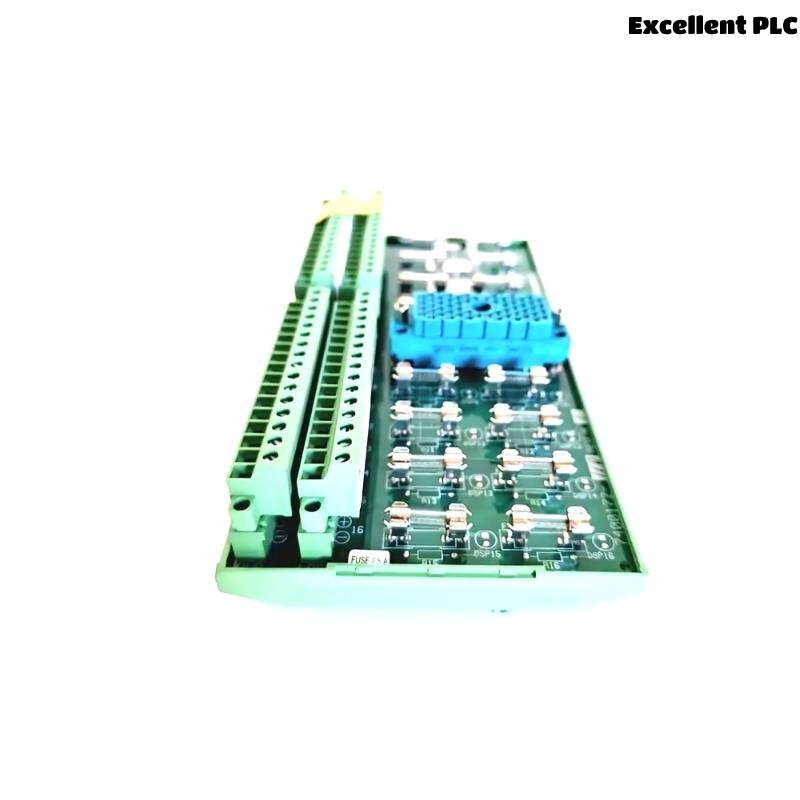

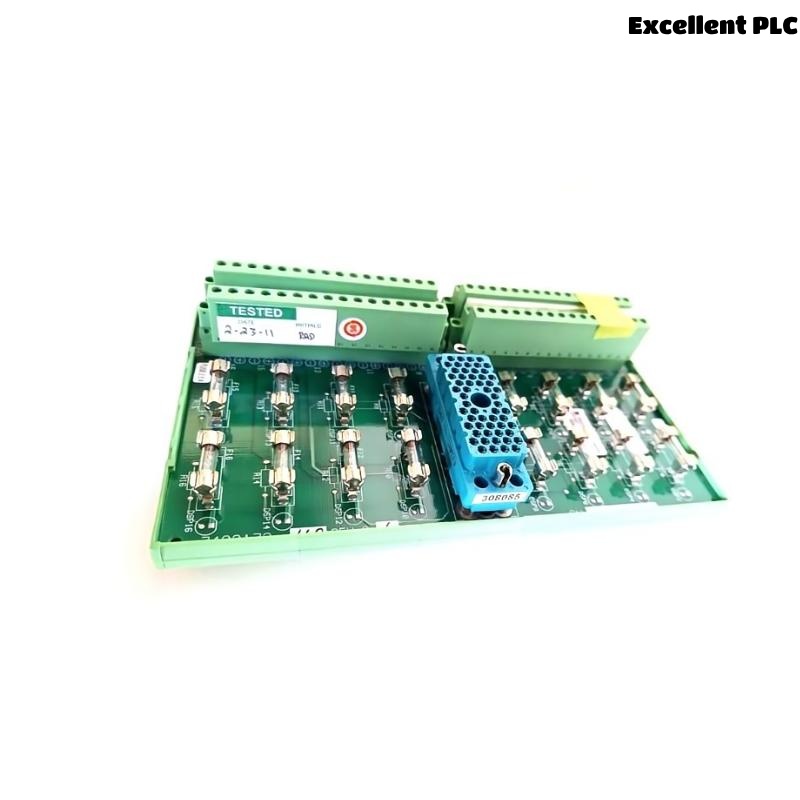

The Triconex 9668-1 3000590-110 Termination Board is a crucial component in Triconex safety instrumented systems designed to provide a reliable and organized interface between field wiring and safety controllers. This termination board plays an essential role in ensuring secure connections, facilitating system diagnostics, and supporting maintenance efficiency within industrial safety environments.
Built with robust materials and engineered to meet stringent industry safety standards, the 9668-1 model simplifies the management of complex wiring schemes. It supports seamless integration with Triconex safety systems, offering enhanced operational reliability in sectors such as oil and gas, petrochemical, power generation, and manufacturing.
Product Specifications:
| Parameter | Details |
|---|---|
| Model Number | 9668-1 (3000590-110) |
| Manufacturer | Triconex (Emerson) |
| Product Type | Termination Board |
| Number of Terminals | 48 screw clamp terminals |
| Terminal Type | Screw clamp, vibration resistant |
| Voltage Rating | Up to 30 V DC |
| Current Rating | Up to 1 A per terminal |
| Insulation Resistance | > 1 GΩ |
| Dielectric Strength | 2.5 kV AC for 1 minute |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Panel mount or DIN rail compatible |
| Dimensions (L × W × H) | 114.3 ×196.85 × 107.95 mm |
| Weight | 0.95 kg |
| Housing Material | Flame-retardant plastic, corrosion-resistant terminals |
| Certifications | SIL 3 certified, CE marked, UL recognized |
Product Applications:
-
Safety Instrumented Systems (SIS): Acts as a secure and organized termination point for field wiring in safety-critical control systems.
-
Process Control: Used in plants such as refineries and chemical processing facilities for reliable wiring connections.
-
Emergency Shutdown Systems (ESD): Facilitates clean wiring interfaces for emergency shutdown functions.
-
Power Plants: Supports critical safety wiring for turbine, boiler, and auxiliary systems.
-
Manufacturing Automation: Ensures safe and maintainable wiring within factory automation safety systems.
-
Fire and Gas Detection: Provides reliable connections for alarm and control circuits in safety monitoring systems.
Product Advantages:
-
High Reliability: Screw clamp terminals designed to withstand vibration and environmental stresses ensure long-lasting connections.
-
Compliance with Safety Standards: Certified for SIL 3, suitable for high-integrity safety systems requiring rigorous safety compliance.
-
Clear Wiring Organization: Terminal labeling and layout facilitate straightforward wiring, reducing installation and maintenance errors.
-
Durability: Flame-retardant, corrosion-resistant materials ensure durability in harsh industrial environments.
-
Versatile Mounting Options: Compatible with both panel mounting and DIN rail installation for flexible application.
-
Ease of Maintenance: Centralized termination points simplify troubleshooting and wiring modifications.
-
Compact Footprint: Designed to save space in control cabinets without sacrificing terminal accessibility.
-
Wide Temperature Range: Operates reliably under extreme industrial temperature conditions.
-
Supports Diagnostics: Enables easy access points for testing and diagnostics without disturbing field wiring.
Frequently Asked Questions (FAQ):
-
What is the main purpose of the Triconex 9668-1 3000590-110 Termination Board?
It provides an organized interface to connect field wiring securely to Triconex safety controllers. -
How many terminals does the board support?
This model has 48 screw clamp terminals for wiring connections. -
What type of terminals are used?
Screw clamp terminals that are vibration-resistant and ensure secure wire connections. -
Can the termination board be installed on a DIN rail?
Yes, it supports both panel mounting and DIN rail installation for flexibility. -
What safety certifications does this board have?
It is certified to meet SIL 3 standards, CE marked, and UL recognized. -
What temperature range can the termination board operate within?
It operates reliably from -20°C up to +70°C. -
How does this board simplify maintenance tasks?
Centralized wiring and clear terminal labeling make troubleshooting and wiring changes easier. -
What are the electrical ratings of the terminals?
Terminals support up to 30 V DC and 1 A current per terminal. -
Is the housing resistant to fire and corrosion?
Yes, the housing is made from flame-retardant plastic with corrosion-resistant terminals. -
Can the board be used in hazardous industrial environments?
Yes, it is designed to meet rigorous safety and durability requirements for harsh conditions.
Recommended Related Models (Same Series):
| Model Number | Description | Terminal Count | Mounting | Notes |
|---|---|---|---|---|
| 9668-1 (3000172-110) | Standard Termination Board | 48 | Panel / DIN Rail | Basic termination board |
| 9668-2 | Enhanced Labeling Termination Board | 50-70 | Panel mounting | Better labeling for easier wiring |
| 9668-3 | Extended Capacity Termination Board | 80+ | Panel mounting | For complex wiring needs |
| 9669 | Adapter Terminal Board | Various | DIN rail | Interface adapter |
| 9670 | Relay Output Terminal Board | 24 | Panel mount | Relay interface |
| 9671 | Digital Input Terminal Board | 32 | DIN rail | Dedicated digital inputs |
