Product Introduction

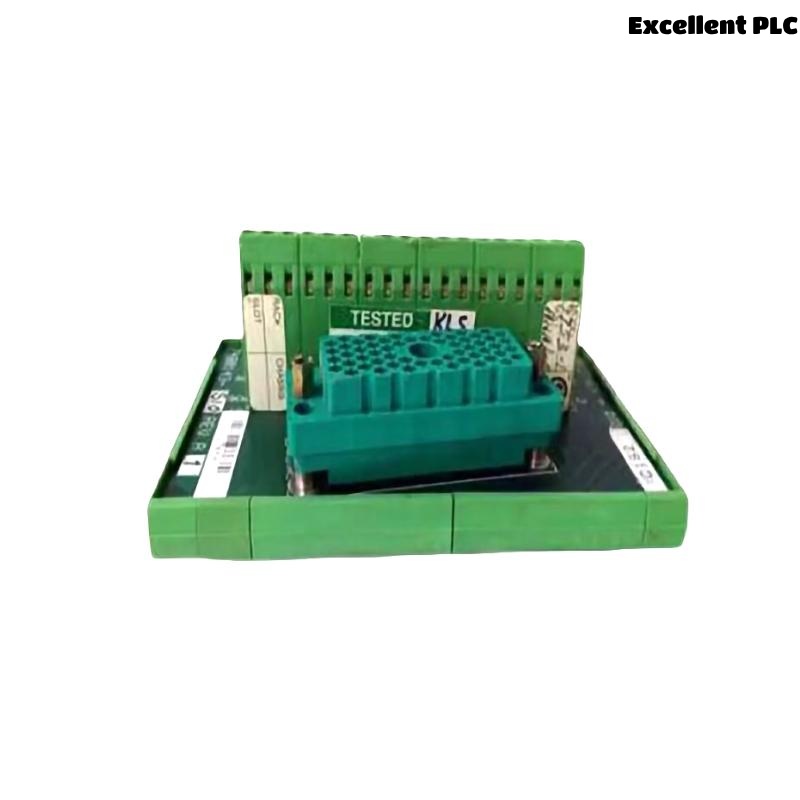

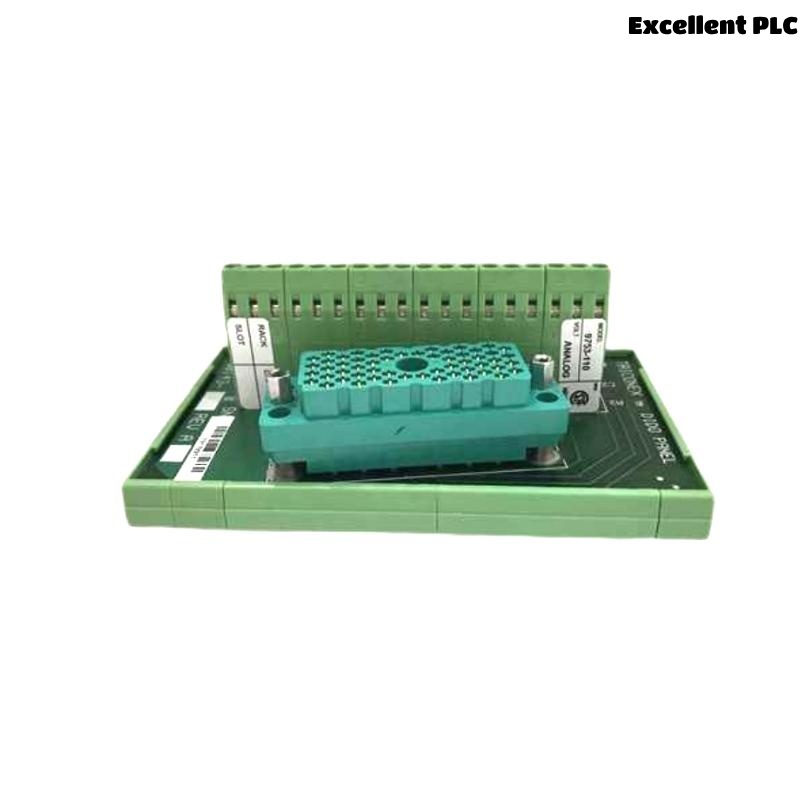

The Triconex 9753-110 (1057680000) Voltage Input Terminal Panel is an integral component of Triconex’s trusted safety and critical control systems, designed to ensure reliable signal interfacing for voltage inputs within high-integrity process automation environments. This terminal panel acts as an intermediary wiring interface between field devices and the Tricon main chassis, enhancing signal conditioning and providing easy field termination.
Crafted to meet stringent safety, reliability, and environmental standards, the 9753-110 Terminal Panel is engineered with robust materials, precision design, and long-term durability in mind. It is particularly vital in systems where electrical isolation, noise reduction, and clean signal transmission are critical.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Triconex Voltage Input Terminal Panel |
| Model Number | 9753-110 |
| Part Number | 1057680000 |
| Function | Voltage Input Signal Termination Interface |
| Compatible System | Triconex TMR (Triple Modular Redundant) Control Systems |
| Mounting Type | Panel Mounted |
| Input Type | Voltage Signal Input |
| Number of Channels | Varies based on installation (typically 32-channel support) |
| Terminal Type | Screw Terminals |
| Material | Industrial-grade PCB with protective coating |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Dielectric Strength | 1500 Vrms between channels and ground |
| Dimensions (W x H x D) | 76.2 ×127 × 107.95 mm |
| Weight | 0.75 kg |
| Compliance | CE, UL, RoHS compliant |
| Mounting Accessories | Includes panel mounting screws and wiring guide |
| Connection to I/O Module | Ribbon Cable or Field Wiring Harness |
Product Applications
The Triconex 9753-110 is used extensively in safety-critical and mission-critical industrial environments, including:
-
Oil & Gas – Pipeline monitoring, wellhead automation, compressor control
-
Chemical Processing – Reaction monitoring, pressure and flow regulation
-
Power Generation – Turbine control, substation voltage monitoring
-
Water Treatment – Voltage-based sensor interfaces, pump and actuator feedback
-
Pharmaceutical Industry – Batch process control, cleanroom safety systems
-
Nuclear Facilities – Fail-safe voltage monitoring for radiation detection and cooling systems
Product Advantages
-
High Reliability: Designed with robust architecture for continuous operation in demanding environments.
-
Ease of Integration: Plug-and-play design compatible with Triconex TMR systems and I/O modules.
-
Superior Signal Clarity: Reduces electrical noise and offers excellent signal isolation.
-
Efficient Maintenance: Clearly labeled terminals and modular design streamline diagnostics and replacement.
-
Safety Compliant: Meets stringent industrial safety and electromagnetic compatibility (EMC) standards.
-
Longevity: Built with high-grade materials that ensure long service life with minimal degradation.
Frequently Asked Questions (FAQ)
-
What systems is the 9753-110 compatible with?
This terminal panel is specifically designed for Triconex TMR safety systems. -
Can this terminal panel handle analog voltage signals?
Yes, it supports analog voltage input signals and passes them reliably to the I/O modules. -
What kind of installation environment is required?
It should be installed in a dry, non-corrosive, panel-enclosed industrial environment. -
Does it require a specific cable for connection to I/O modules?
Yes, Triconex-specified ribbon cables or harnesses are typically used. -
Is it hot-swappable?
No, the system must be powered down before replacing or wiring the panel. -
What is the typical lifecycle of this terminal panel?
With proper installation, the panel can last more than 10 years without degradation. -
Are spare parts available for this unit?
Yes, authorized distributors and service partners provide original spares. -
Is technical documentation available?
Yes, Triconex provides manuals, datasheets, and wiring guides upon request. -
Can the panel be customized for different channel counts?
The standard model supports up to 32 channels, but custom versions may be available. -
Is there electrical isolation between input channels?
Yes, it is designed with electrical isolation to prevent cross-channel interference.
Related Models (Same Series or Function)
| Model Number | Description | Application |
|---|---|---|
| 9753-100 | Digital Input Terminal Panel | Digital field signal termination |
| 9753-050 | Analog Output Terminal Panel | Analog output voltage/current interface |
| 9753-130 | Relay Output Terminal Panel | Voltage relay output connectivity |
| 9753-210 | TMR Field Terminal Base | General I/O wiring foundation |
| 9753-150 | FTA for RTD and Thermocouple Inputs | Temperature sensor interface |
| 9753-160 | 24VDC Digital Output Terminal Panel | Digital output with 24VDC signal handling |
