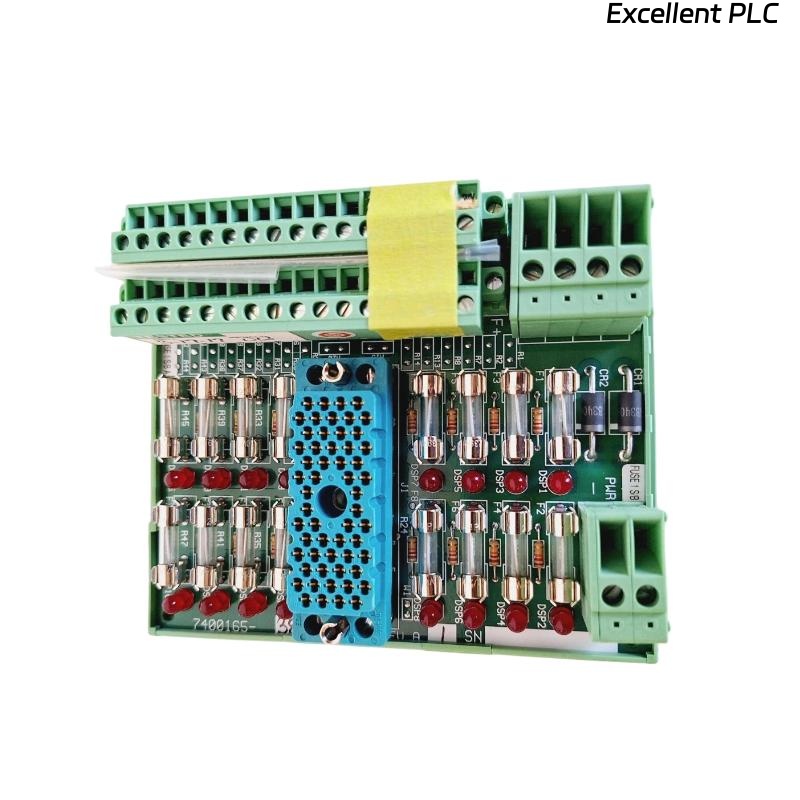

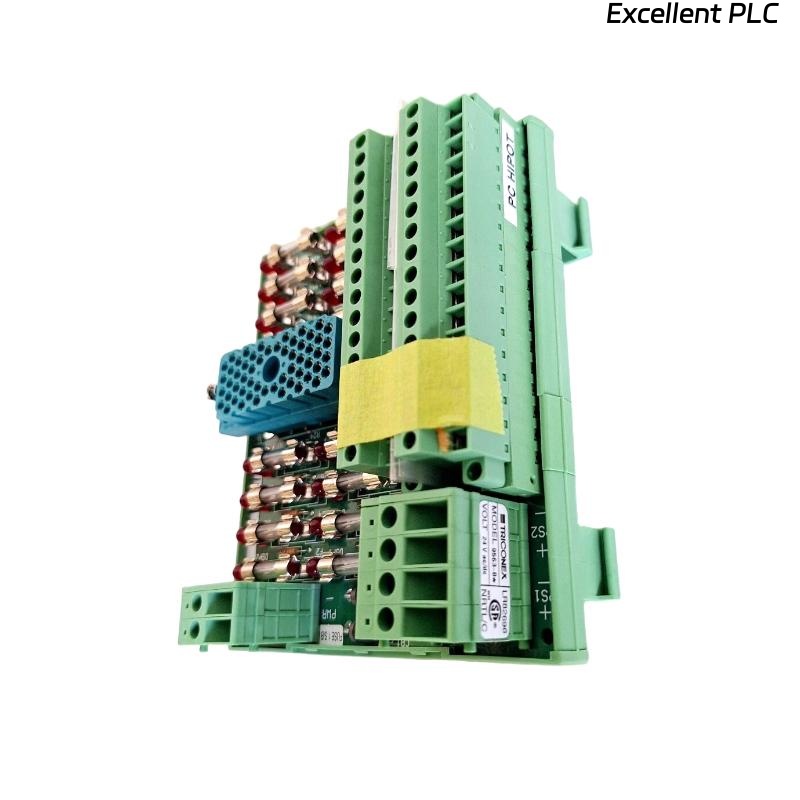

Triconex 9863-710F Analog Output Panel

Product Introduction

The Triconex 9863-710F Analog Output Panel is a high-reliability module designed to deliver accurate and stable analog output signals from Triconex control systems to field devices. It serves as a crucial interface between the Triconex system’s processing logic and analog-driven equipment, such as control valves, actuators, transmitters, and monitoring systems.

The panel ensures signal integrity through precision output circuitry, robust shielding, and industrial-grade components. It is widely used in safety instrumented systems (SIS), process control automation, and mission-critical applications where accurate analog signaling is vital for operational safety and efficiency. Its design supports ease of wiring, simplified maintenance, and dependable performance in harsh industrial environments.

---

Product Specifications

---

Applications

The Triconex 9863-710F Analog Output Panel is applied in a wide range of industrial and safety-critical operations:

• Process Control Systems – Provides analog signals to actuators, valves, and variable speed drives.

• Safety Instrumented Systems (SIS) – Ensures precise output for shutdown or protective functions.

• Emergency Shutdown Systems (ESD) – Delivers analog signals to initiate controlled shutdowns.

• Fire & Gas Systems (F&G) – Connects to analog detectors and safety devices.

• Energy and Utilities – Used in power generation plants for control loops.

• Oil, Gas, and Petrochemical Plants – Delivers control signals to essential field equipment.

---

Advantages

The Triconex 9863-710F Analog Output Panel offers multiple operational and engineering benefits:

• High Accuracy and Stability – Provides consistent analog output with minimal drift.

• Robust Signal Integrity – Advanced shielding reduces noise and interference.

• Flexible Configuration – Supports multiple output ranges (4–20 mA, 0–10 V).

• Channel Isolation – Protects against cross-talk and electrical disturbances.

• Durability – Industrial-grade construction withstands harsh environments.

• Safety Compliance – Certified for use in safety-critical applications.

• Ease of Maintenance – Modular design simplifies installation and troubleshooting.

• Compatibility – Fully compatible with Triconex control and I/O subsystems.

---

FAQ

1. What output signal types are supported by the 9863-710F?
   It supports both 4–20 mA current loops and 0–10 V voltage outputs.

2. Does the module provide channel-to-channel isolation?
   Yes, each output channel is isolated to prevent interference.

3. What is the resolution of the analog outputs?
   The panel provides 12-bit to 16-bit resolution depending on configuration.

4. How does the module ensure output accuracy?
   Through precision circuitry with an accuracy rating of ±0.1% full scale.

5. What is the maximum load resistance supported for current outputs?
   Up to 600 Ω per channel.

6. Can the panel be used in redundant safety systems?
   Yes, it is designed to integrate seamlessly into redundant architectures.

7. What kind of shielding is used to protect output signals?
   The panel employs EMI/RFI shielding to minimize noise interference.

8. Is the 9863-710F hot-swappable within the system?
   It supports replacement under controlled conditions without system downtime.

9. Does the panel support both SIS and general process control applications?
   Yes, it is suitable for both safety and non-safety applications.

10. What diagnostic features are available in the module?
    It supports self-checking functions for channel status and fault detection.

---
